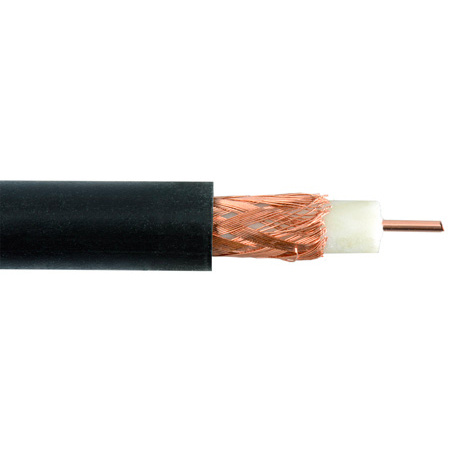

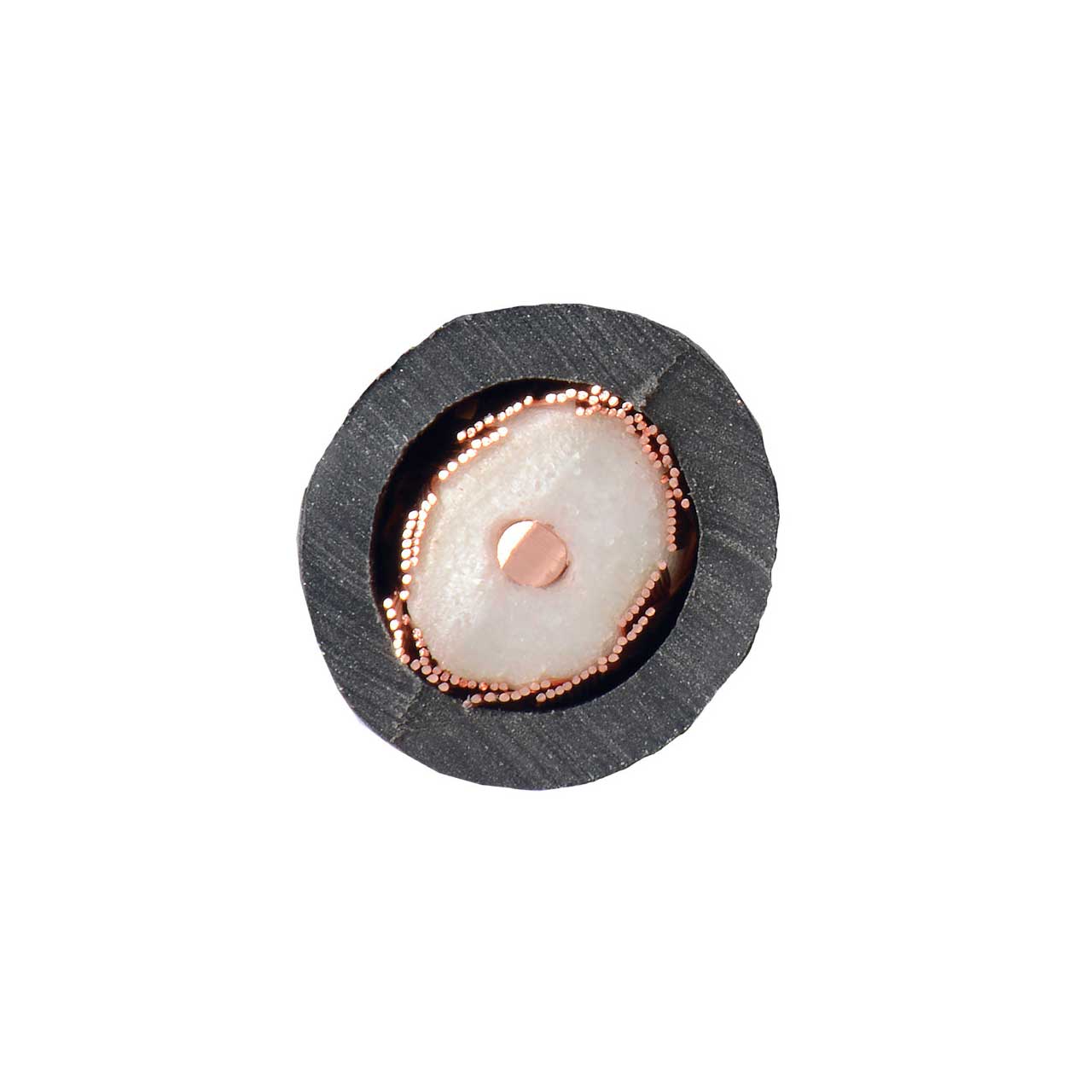

Liberty RG59-CCTV-CM-BLK Line Level Audio RG59 Coaxial Cable 1000 Ft - Black

Name: Liberty RG59-CCTV-CM-BLK Line Level Audio RG59 Coaxial Cable 1000 Ft - Black
Brand: Liberty AV Solutions
SKU: LWC-RG59CCTVCMBK
Price: 377.26 USD
Availability: PreSale

ITEM #: LWC-RG59CCTVCMBK MFG #: RG59-CCTV-CM-BLK

Liberty AV Solutions

Our Price:

$377.26

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RG59-CCTV-CM-BLK - Overview

20 AWG solid core bare copper single shield RG59 CCTV coaxial cable. NEC type CM and CEC type CM. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820.

Features:
- 20 AWG Solid Bare Copper Center Conductor
- Gas-Injected Cellular Polyethylene Dielectric
- Single Shield: 95% 34 AWG Bare Copper Braid
- Flame Rated Polyvinyl Chloride (FR-PVC) Jacket
- NEC CM, CEC CM, RoHS Compliant
- 1.0 GHz Sweep Test
- 1000 Foot Spools Standard
Specifications:
- Component 1:
- 20 AWG
- Solid annealed bare copper conductors
- Diameter: 0.032" | 0.813mm
- Component 2:
- Foam polyethylene
- Wall thickness: 0.056" | 1.42mm
- Diameter: 0.142" | 3.61mm
- Electrical:
- DC resistance: 10.3 O / 1000' | 33.9 O/KM
- Shield DCR: 2.70 O / 1000' | 8.86 O/KM
- Mutual capacitance: 16.0 pF/FT | 52.48 pF/M
- Impedance: 75 ± 3 O
- Velocity of Propagation: 82%
- Voltage rating: 300V
- SRL 5-300 MHz: -20dB
- Shield: 95% 16x7/34 AWG bare copper braid shield
- Performance:
- CCTV to 493 feet
- Mono RCA audio 125 feet
- Jacket:
- Polyvinyl chloride
- Colors: Black
- Wall thickness: 0.037" | 0.95mm
- Diameter: 0.240" | 6.10mm

RG59-CCTV-CM-BLK - Recommended Accessories

Paladin 1255 2 or 3 Level Coaxial Stripper for RG58/59/62 RG6
PAL-1255
Our Price: $22.43

RG59-CCTV-CM-BLK - Reviews

RG59-CCTV-CM-BLK - Attachments

See LIBERTY RG59-CCTV-CM-BLK Specifications (PDF)
