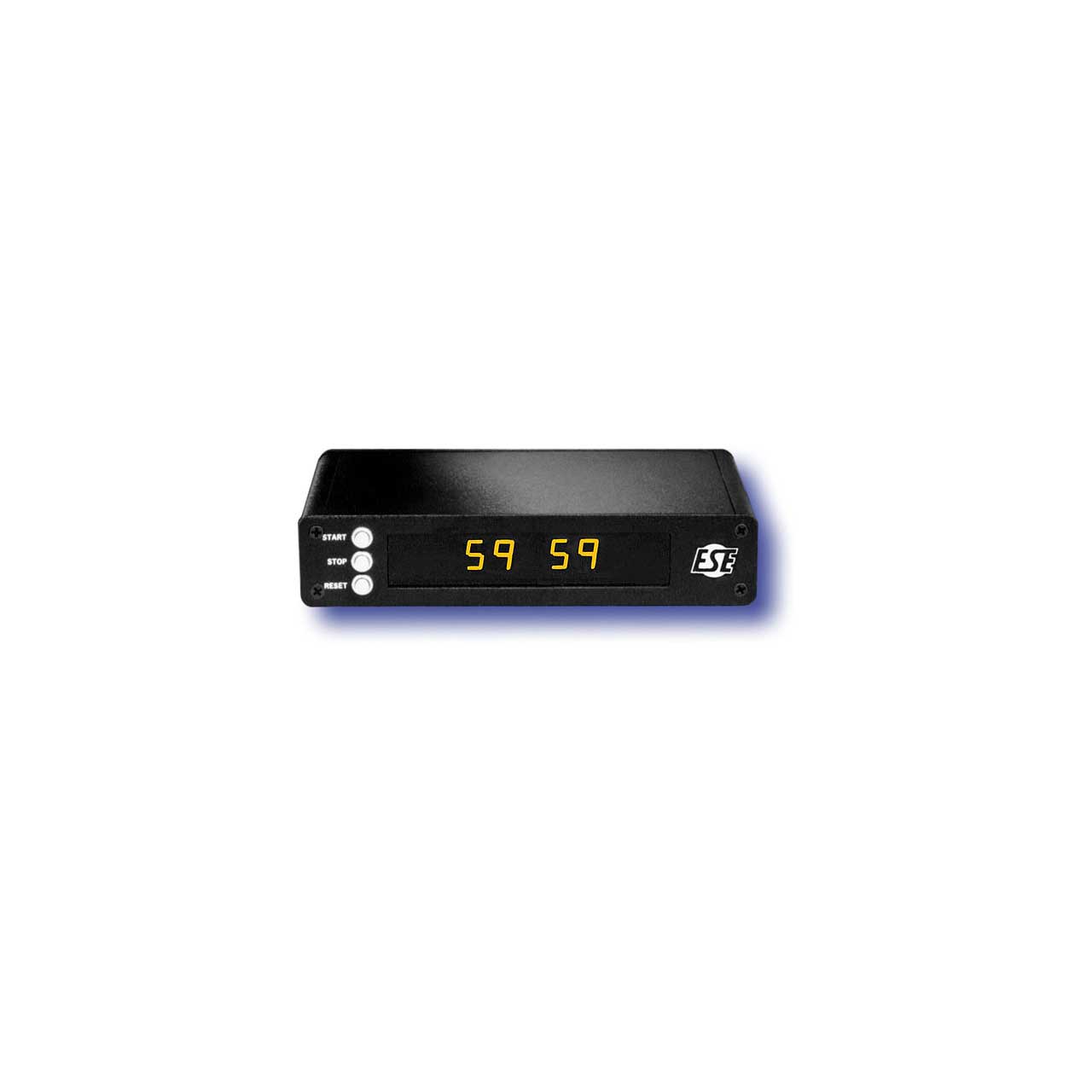

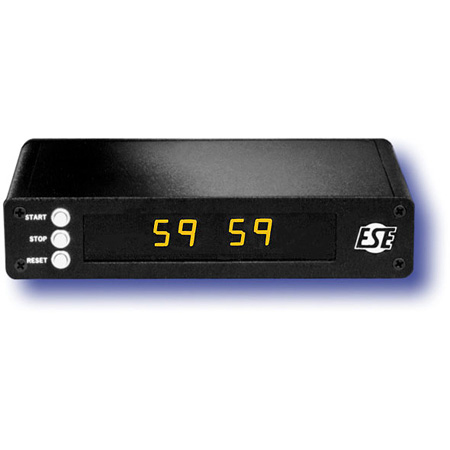

ESE LX-520U 60 Minute Master Up Timer

Name: ESE LX-520U 60 Minute Master Up Timer
Brand: ESE
SKU: LX-520U
Price: 270.95 USD
Availability: InStock

ITEM #: LX-520U MFG #: LX-520U

ESE

List Price:

$285.00

Our Price:

$270.95

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LX-520U - Overview

The LX-520U is a 60 Minute Up Timer. Start, Stop and Reset controls are provided on the front of the case. A remote control input is accessible on a rear-mounted DB-9 connector. A rear-mounted BNC connector provides ESE Timer Code for driving up to 100 remote slave displays.

Features:
- .56" Yellow LED Display
- Ruggedized Baked Powdercoat Aluminum case
- 60 Minute Up count range (00:00 - 59:59)
- Start, Stop, Reset functions
- Remote control input
- 4 Isolated Trigger Reset inputs
- Optional Tenths of Seconds display
- ESE Timer Code output
- 220-240 VAC (110-120 VAC is standard) & UL options available
- Various Options available: C, D, J, R(1), ESE(1), T, UL, W(1)
Options List:
- (10nS) 10nS Accuracy: The accuracy of the unit is improved to 10nS. List: $300
- (Black) Black Anodized Front panel-option availabel when standard panel is clear anodized List: $15
- (C) Crystal Time Base (2-3 seconds per week accuracy) List: $60
- (ESE) ESE Serial Time Code Output List: $30
- (EXT{1,5 or10}) External Input of either 1 MHz, 5 MHz, or 10 MHz (for use with "in-house" Standard) List: $70
- (IRIG) IRIG-B or IRIG-E Time Code may be specified (not available with SMPTE/EBU) List: $300
- (NPR) NPR (National Public Radio) Time Code INput (excluxive) with ESE Time Code Output List: $135
- (NTP) NTP Client Display will synchronize exclusively with an NTP server List: $120
- (6-Digit) Six-Digit Display: A 6-Digit (Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required. List: $200
- (9-Digit) Nine-Digit Display: A 9-Digit (Days, Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required. List: $300
- (Ant) GPS Antenna: High Performance GPS Antenna for harsh RF Environments. List: $195
- (B) Parallel BCD Output: CMOS compatible, 5-volt logic in parallel four-line format. Specify the ES-169B. List: $300
- (BBU) Battery Back-Up: An internal Gel-Cell battery is provided capable of maintaining the unit's microprocessor for up to a 4-hour power outage. List: $130
- (TZ) Time Zone Offset via internal DIP Switch List: $30
- (Q) 9" x 3 1/2" Front Panel for Console Mount Applications (Case is 8" Deep) List: $80
- (RS) RS232C ASCII Computer Interface (RS422A available on a custom basis) List: $50
- (UL) "UL" Approve Wall Mount Power Supply List: $60
- (V) DC Power (12 VDC) List: $30
- (W) 3-Wire Line Cord (2-Wire Line Cord is Standard on many units) List: $16
- (Wall) Wall Mount Enclosure replaces standard enclosure List: $80
- (DC) DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC. List: $250
- (SMPTE/EBU) SMPTE or EBU Time Code outputs: SMPTE or EBU Time Code outputs may be specified (not available with IRIG). List: $300
- (HR) Relay Closure: Option "HR" provides a user programmable relay contact closure. The standard contact closure occurs on the Hour and Half Hour. If contact closures at other times are desired, the user can program up to four relay closures using the PC Software, which can be downloaded from the ESE web site. The reed relay is rated at 10 watts maximum resistive load (500 mA switching current) and is intended for control applications only. The relay contacts are accessible on the DB-9 connector. List: $50
- (J) 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard. List: $30
- (K) provides a 10 MHz output and a 1 KHz output. Option '10ns' is required if option 'K' is specified. UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply. List: $300
