Luxi PWA-052U Power Adapter 100-240V AC Input on US Plug 5V 2A DC Output on Bare Wires

ITEM #: LXL-PWA-052U MFG #: PWA-052U

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LXL-PWA-052U

PWA-052U - Overview

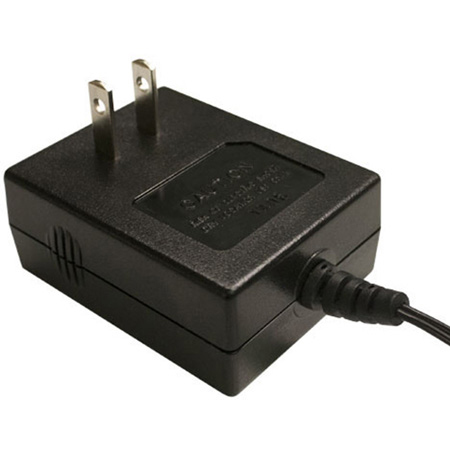

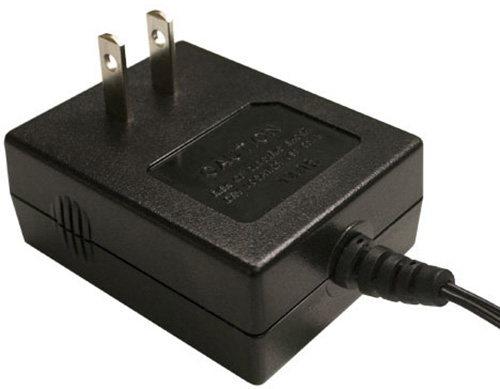

The PWA-052U is a power adapter with a 100-240V AC input on US plug, 5 V 2 A DC output on bare wires. For use with the Luxi AHD-211 & CHD-110.

Power options:
Both the Luxi AHD-211 & CHD-110. can draw power from the source device via HDMI cable or from the optional external power supply. To determine if the source device has enough power to power this device, connect this device in between the source and display devices via a short HDMI cable. If a normal picture appears on screen, then this device can get enough power from the source device and no need for an external power supply. If no normal picture on screen, then it needs this external power supply.

  • Features:

    • Efficient switch mode power adaptor
    • DC output wires can be cut to needed length and terminate with captive screw plug provided with every Luxi product
    • For Luxi Audio Extractor and Communicator products


  • Specifications:

    • AC input: 100-240 V, 50/60 Hz, 0.15 - 0.25 A max
    • DC output: 5 V, 2 A max
    • Input connector: 2-prone US style
    • output wiring: 2 conductor bare wires
    • Safety: CE, cUL, UL (power supply only)
    • EMI/EMC: CE, FCC Class B


  • Item Includes:

    • Power adapter


  • Warranty:

    • 3 years
