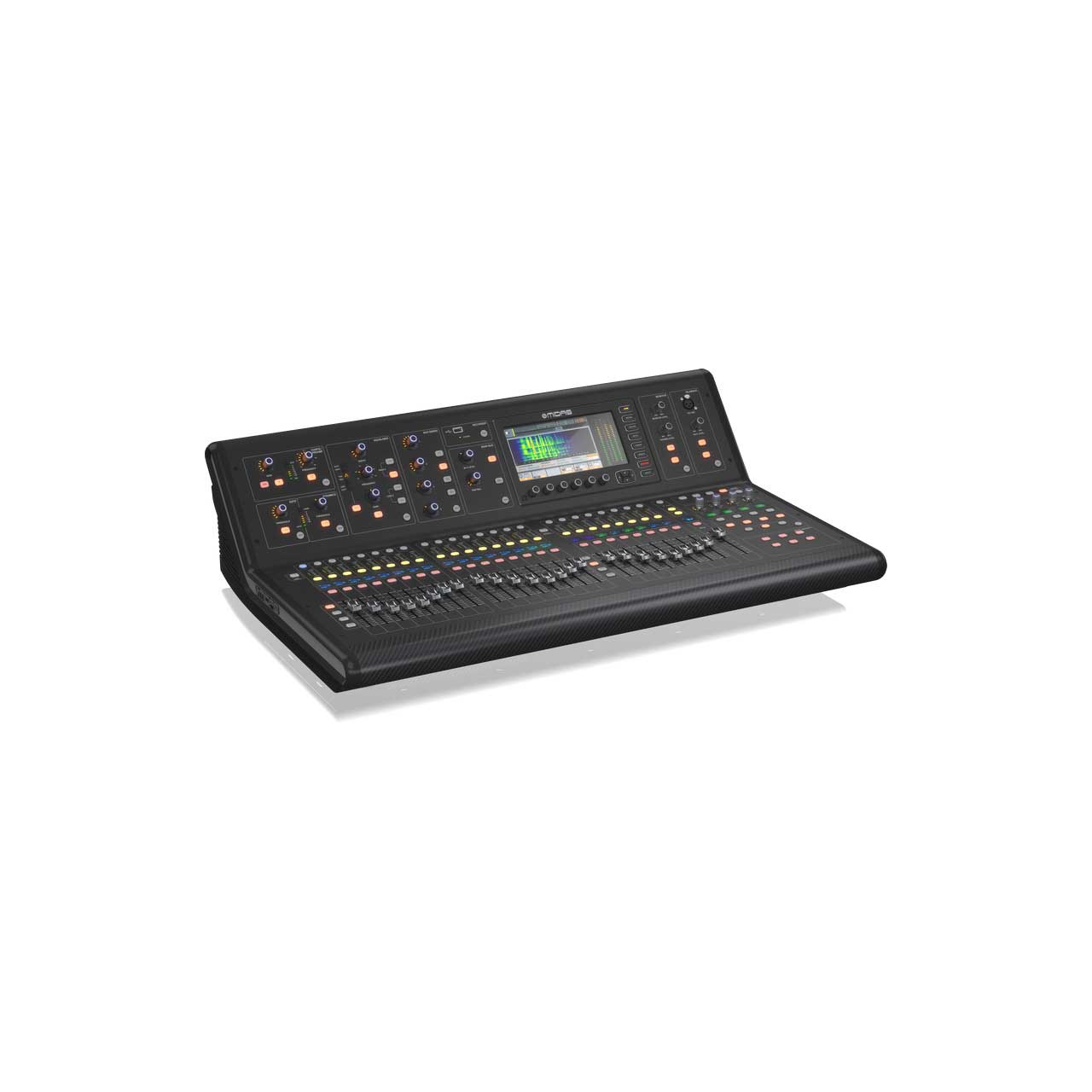

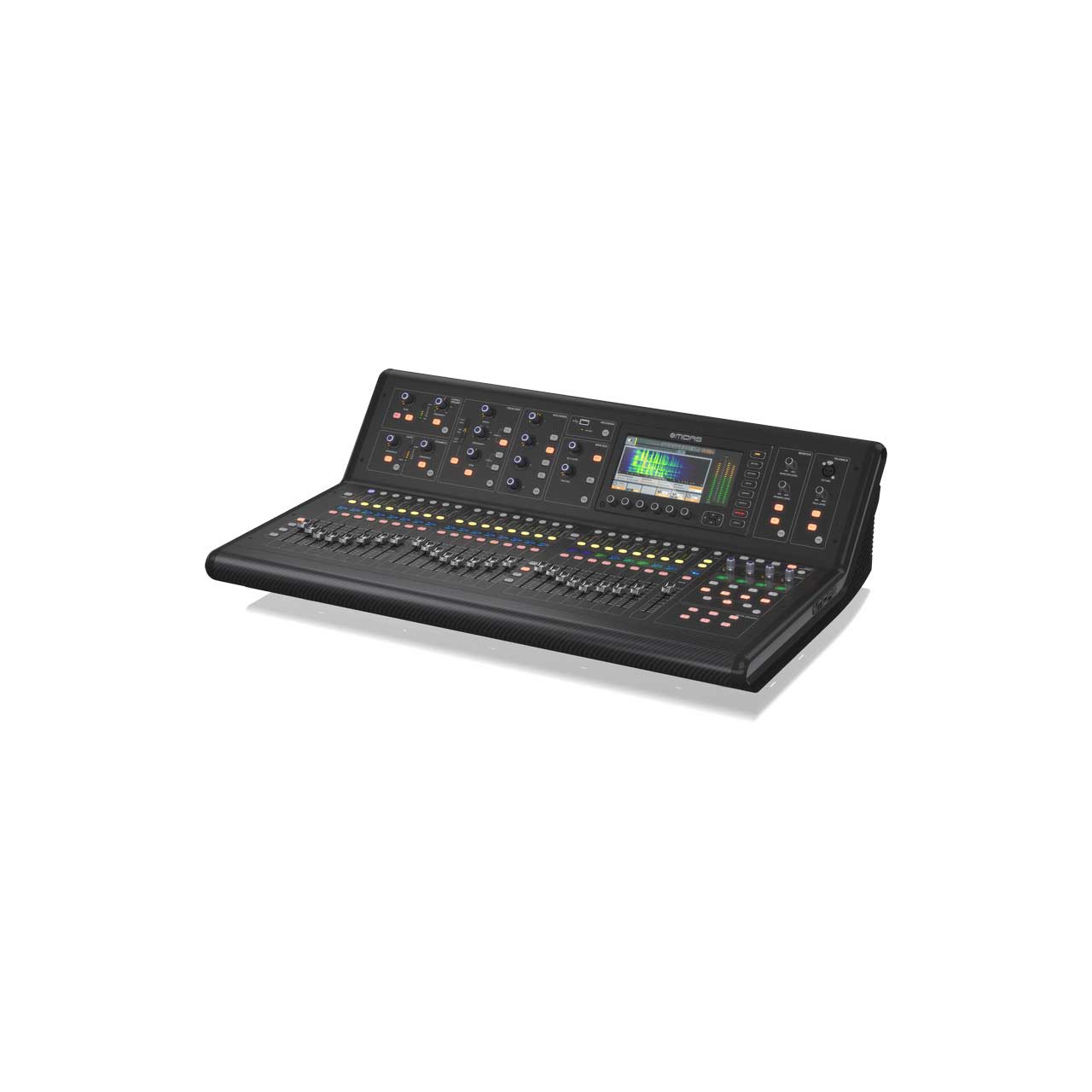

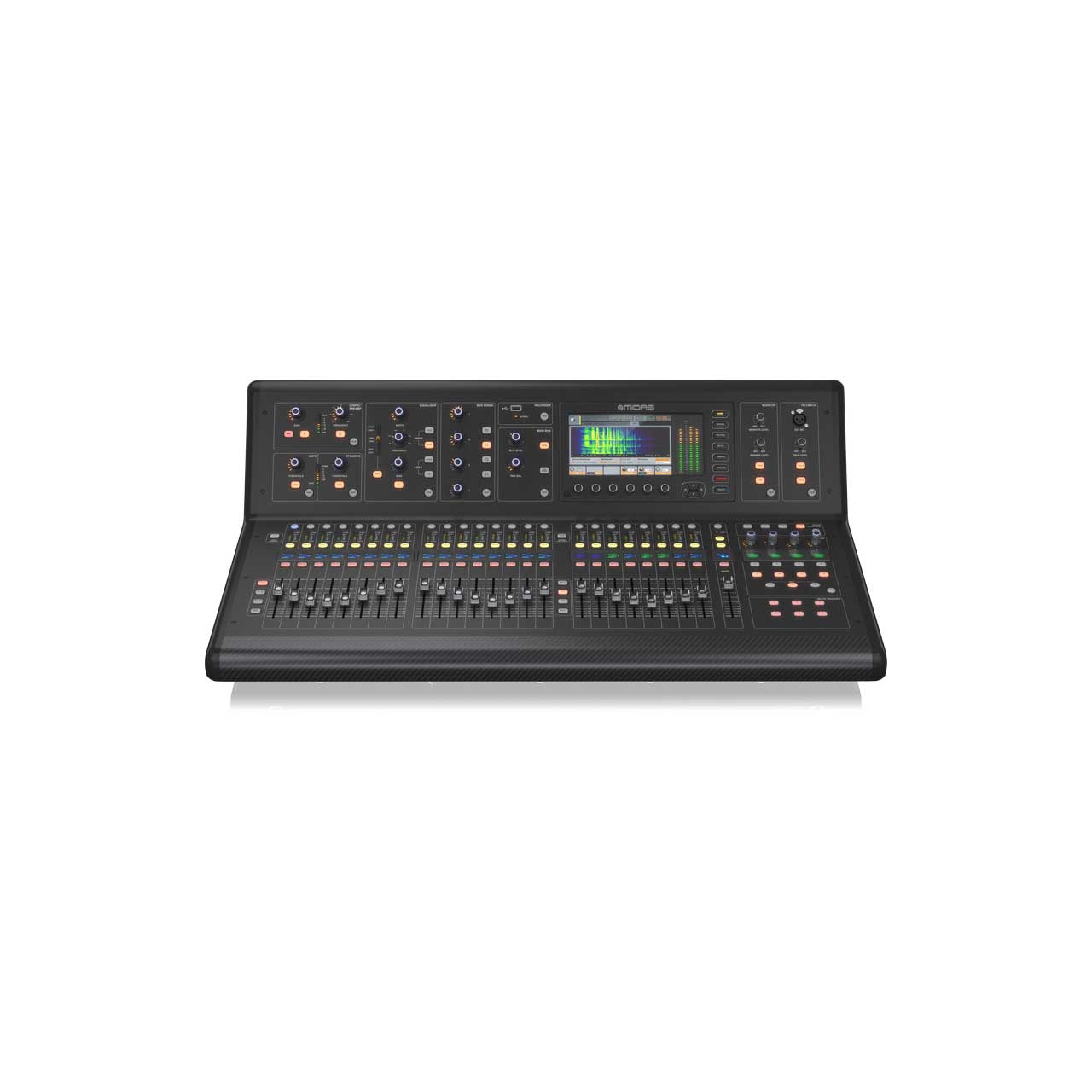

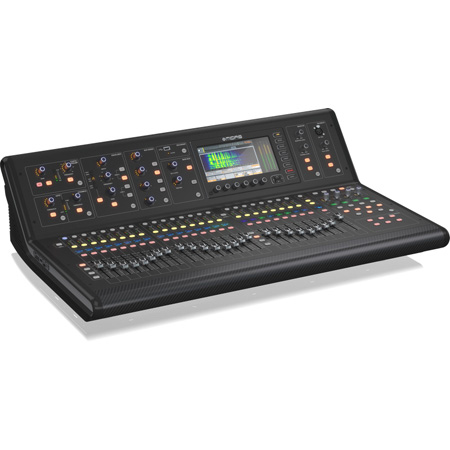

Midas M32 LIVE Digital Console for Live & Studio - 40 Input Channels / 32 Midas Pro Mic Preamps / 25 Mix Buses

ITEM #: M32LIVE MFG #: M32LIVE

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,999.00

Availability: In Stock
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
  • This item is not returnable. See Terms & Conditions for details.


M32LIVE - Overview

Designing A Future Classic
Midas's goal for the M32 LIVE was to combine the best of classic British console designs with advanced modern technology to completely redefine what a medium-format live console can offer. They began the industrial design process by drawing inspiration from a somewhat unexpected source - the luxury and high-performance car industry. Why High-Performance Cars? Simply because the design teams at Aston Martin*, Bentley*, Rolls Royce*, and other leading manufacturers are skilled at introducing innovative technological advancements while simultaneously maintaining the feel, essence, and intangible qualities of their cherished brands. And in essence, that's the challenge Midas too faced when creating the M32 LIVE console.

The Landmark in Console History
A close look at M32 LIVE reveals that the styling is completely new in every sense of the word. Rajesh Kutty's automotive-inspired design elements mesh perfectly with a recognisable Midas signature, setting the M32 LIVE apart from any other console. Its beautifully streamlined and elegant form factor completely revolutionises the experience of live mixing.

The Midas M32 LIVE construction is equally impressive, and is designed to offer you years of reliable performance while withstanding the demanding environment of live performance venues. M32 LIVE employs a predominantly space-frame construction, with parts of the subframe consisting of durable and lightweight carbon fibre and aluminium. Multiple alloys have been employed throughout to guarantee maximum component efficiency and an improved performance-to-weight ratio

Industry-Leading 192 kHz Precision
The groundbreaking M32 LIVE console combines legendary Midas sound quality with advanced digital technology, future-proof floating point audio engine, extremely low-latency design and industry-leading 192 kHz ADC and DAC converters, creating a revolutionary mid-format live console. M32 LIVE features ultra-sleek styling, offering you a truly luxurious mixing experience. High-end construction materials include carbon fibre provide unparalleled durability and strength, plus substantially lower weight than comparable consoles.

The M32 LIVE utilises award-winning Midas PRO Series microphone preamplifiers and the custom-designed Midas PRO motorised faders that are rated for 1 million life cycles-three times more than other leading consoles.

The Midas M32 LIVE is a future-forward console that completely raises the bar for live mixing.

Legendary Midas Sound Quality
While the Midas M32 LIVE design, styling, and construction will surely turn a lot of heads, it's the sound that matters most to engineers and performing artists. And that's where M32 LIVE shines even brighter - as the latest in a long line of pristine-sounding Midas consoles, it descends from a celebrated lineage that literally set the standard in electrical design and sound quality.

Award-Winning Midas Mic Preamplifier
The Midas mic preamp is considered by leading live sound and recording engineers to be the very essence of the famous Midas sound. More than 40 years of design experience paired with the finest choice of premium-grade components lead to the acclaimed warmth and depth, bring out subtle ambience, maintain spatial positioning, and more effectively capture a precise image.

  • Features:

    • Live performance and studio recording digital console with up to 40 simultaneous input channels
    • 32 award-winning Midas PRO microphone preamplifiers
    • 25 time-aligned and phase-coherent mix buses
    • AES50 networking allows up to 96 inputs and 96 outputs
    • 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
    • Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files
    • High-performance carbon fibre, aluminium and high-impact steel structure
    • 40 bit floating point digital signal processing
    • 8 DCA and 6 mute groups
    • 8 digital signal processing effects engines
    • 25 Midas PRO motor faders
    • Daylight viewable 7" full colour TFT display screen
    • 32 x 32 channel USB 2.0 audio interface

  • Specifications:

    • Processing
    • Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
    • Output Processing Channels: 16
    • 16 aux buses, 6 matrices, main LRC: 100
    • Internal Effects Engines (True Stereo / Mono): 16
    • Internal Show Automation (structured Cues / Snippets): 500 / 100
    • Internal Total Recall Scenes (incl. Preamps and Faders): 100
    • Signal Processing 40-Bit Floating Point
    • A/D Conversion (8-channel, 96 kHz ready): 114 dB Dynamic Range (A-weighted*)
    • D/A Conversion (stereo, 96 kHz ready: 120 dB Dynamic Range (A-weighted")
    • I/O Latency (Console Input to Output): 0.8 ms
    • Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

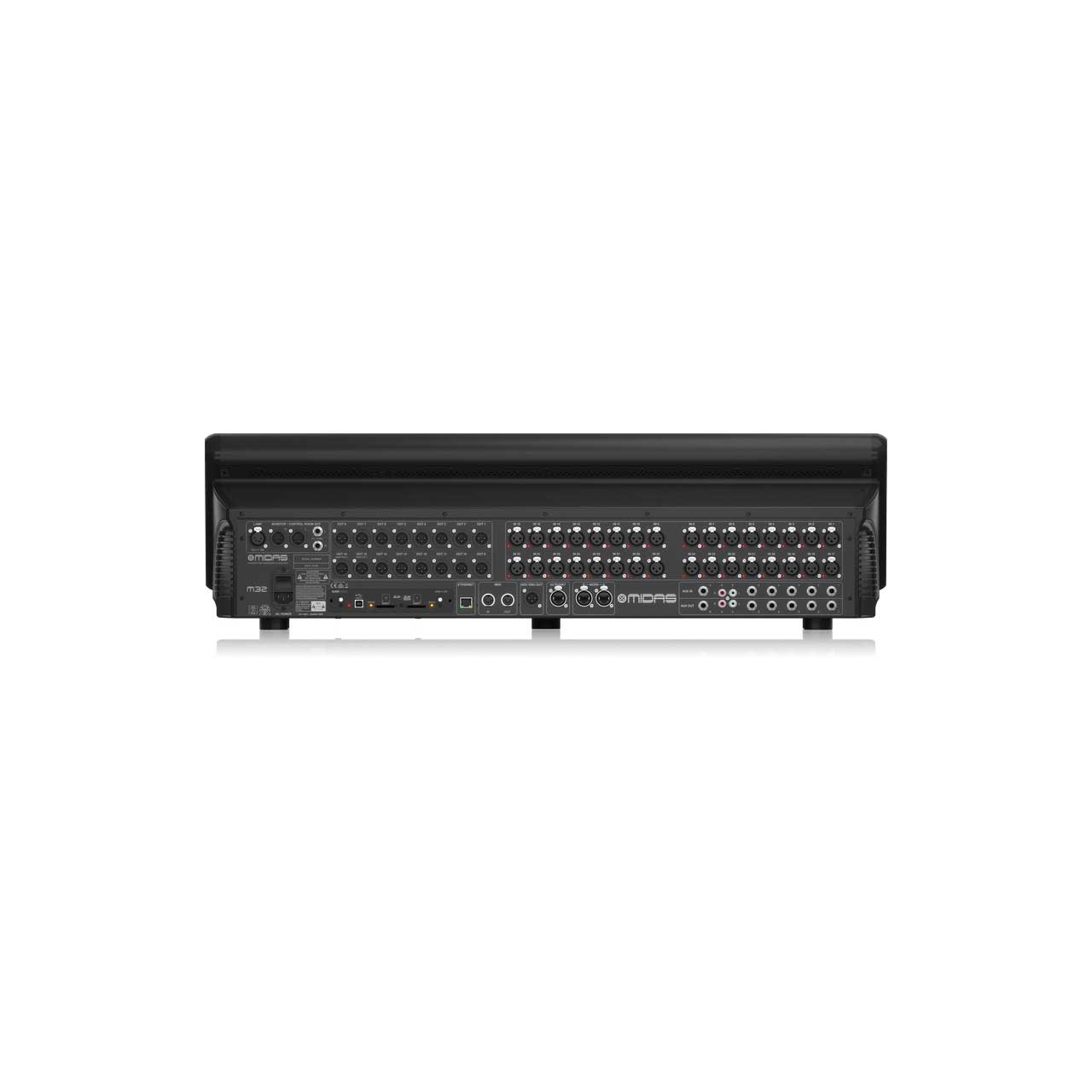

      Connectors
    • Midas PRO Series Mic Preamp (XLR): 32
    • Talkback Mic Input (XLR): 1
    • RCA Inputs / Outputs: 2
    • XLR Outputs: 16
    • Monitoring Outputs(XLR / 1/4" TRS Balanced): 2
    • Phones Output (1/4" TRS): 2 (Stereo)
    • Digital AES/EBU Output (XLR): 1
    • AES50 Ports (Klark Teknik SuperMAC): 2
    • Expansion Card Interface: 32 Channel Audio Input / Output
    • USB Type A (Audio and Data Import / Export): 1
    • USB Type B, rear panel, for remote control: 1
    • Ethernet, RJ45, rear panel, for remote control: 1

      Display
    • Main Screen 7" TFT LCD, 800 x 480 Resolution, 262k Colours
    • Channel LCD Screen 128 x 64 LCD with RGB Colour Backlight
    • Main Meter 24 Segment (-57 dB to Clip)

      Mic Input
    • Design: Midas PRO Series
    • THD+N (0 dB gain, 0 dBu output): <0.01% (unweighted)
    • THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% (unweighted)
    • Input Impedance (Unbalanced / Balanced): 10 kΩ / 10 kΩ
    • Non-Clip Maximum Input Level: +23 dBu
    • Phantom Power (Switchable per Input): +48 V
    • Equivalent Input Noise @ +45 dB gain(150 Ω source): -125 dB (22 Hz-22 kHz, unweighted)
    • CMRR @ Unity Gain (Typical): >70 dB
    • CMRR @ 40 dB Gain (Typical): >90 dB

      Input/Output
    • Frequency Response @ 48 kHz Sample Rate: 0 dB to -1 dB (20 Hz-20 kHz)
    • Dynamic Range, Analog In to Analog Out: 106 dB (22 Hz-22 kHz, unweighted)
    • A/D Dynamic Range, Preamp and Converter (Typical): 109 dB (22 Hz-22 kHz, unweighted)
    • D/A Dynamic Range, Output (Typical): Converter and 109 dB (22 Hz-22 kHz, unweighted)
    • Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB

      Power
    • Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
    • Power Consumption: 120 W

      Physical
    • Standard Operating Temperature Range 5°C - 40°C (41°F - 104°F)
    • Dimensions: 35.1 x 24.1 x 10.1" (891 x 612 x 256 mm)
    • Weight 55 lbs (25 kg)

  • GTIN:

    0653341305732
