PreSonus StudioLive 64S III 64-Ch./43-Bus Digital Console/Recorder/Interface w/ AVB Networking Quad-ore FLEX DSP Engine

ITEM #: PRE-SL64S MFG #: STUDIOLIVE 64S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,999.99

Our Price:

$3,999.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

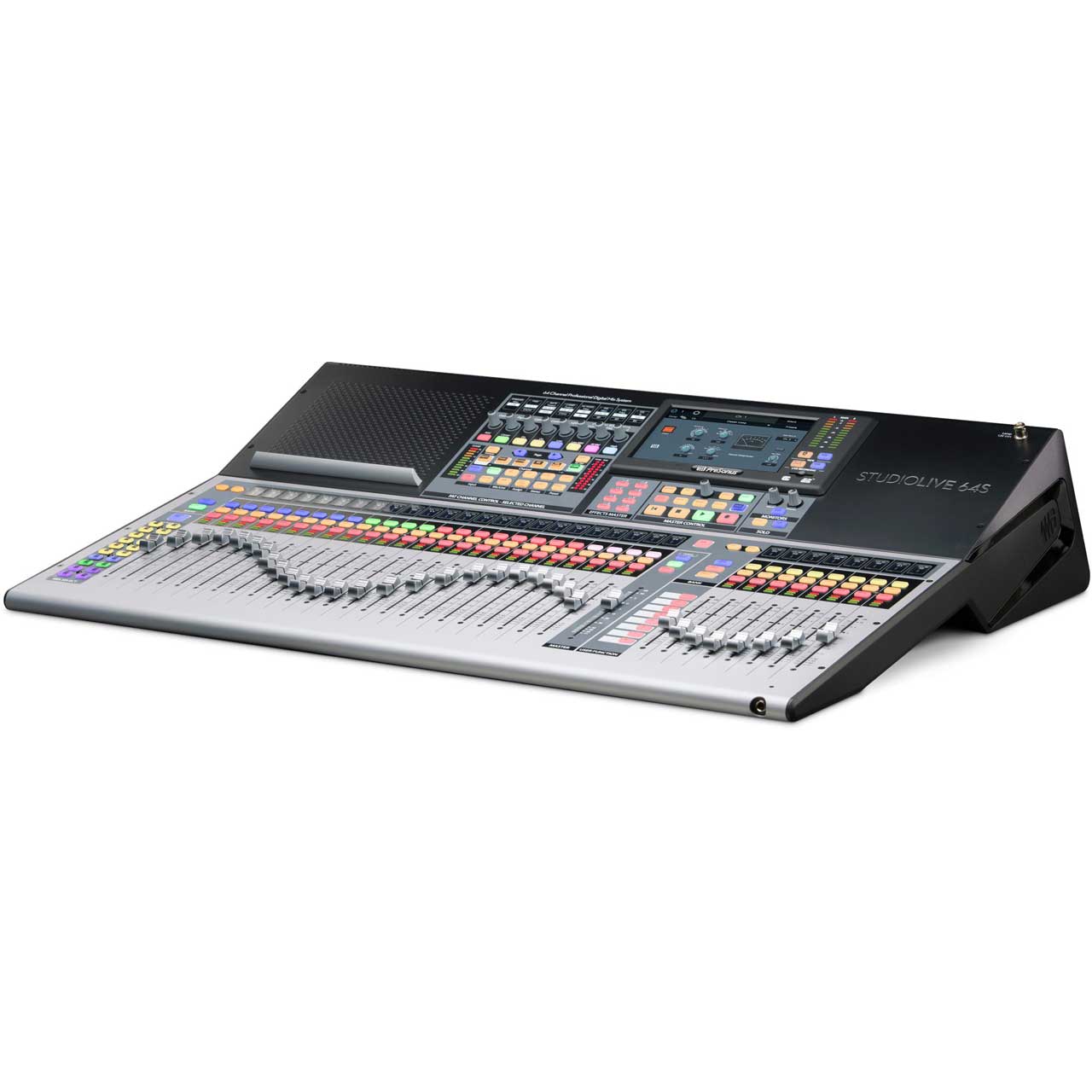

STUDIOLIVE 64S - Overview

The small format mixer with large format power
The StudioLive 64S is a 64-channel mixer that brings the power of a large format console to small format digital mixing. Powered by the new quad-core PreSonus FLEX DSP Engine, the StudioLive 64S III digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors - including 8 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64X64) channels of USB recording, 128 channels of AVB I/O, flexible routing options, and the studio-grade audio quality that made StudioLive mixers famous, the StudioLive 64S delivers a truly exceptional mixing experience that's in a class of its own.

The best digital mixer for recording - with or without a computer
PreSonus Capture® recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 64S digital mixer or on your Mac® or Windows® computer. Record any combination of channels, FlexMixes, and the main stereo mix to USB, to an SD Card, or both for the ultimate redundant live recording rig. StudioLive mix scenes can be stored with your recordings to speed up Virtual Soundchecks.

Remote control your digital mixer from anywhere, on any device
PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS®, Windows, iPad® and Android™. Control your monitor mixes with QMix®-UC for iPhone®, iPod® touch, and Android devices.

Includes Studio Magic Plug-in Suite!
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs.

PreSonus Metro
PreSonus Metro is the latest innovation for Studio Live Series III mixers, delivering a first-to-market solution for live remote mixing overthe Internet with high-quality, low-latency audio streaming. With Metro, anyone, anywhere in the world, can connect to a StudioLive Series III mixer over the Internet and begin remotely controlling the mixer using UC Surface while listening in real-time with their local audio device.

The first solution for live remote mixing with high-quality, low-latency audio over the Internet. MyPresonus account integration establishes a secure peer-to-peer connection between users to facilitate broadcast mixing, troubleshooting, podcast production, and more.

-Live Stream and Podcast Production - Produce a livestream or podcast from anywhere in the world.
-Troubleshooting - Troubleshoot StudioLive Series III mixers quickly and conveniently from your home or office.
-Remote Recording - Ensure that a remote recording session is properly gain staged.
-Corporate conference - Remotely mix an all-day conference panel from the comfort of your couch.
-Professional assistance - Dial in a scratch mix remotely for a less experienced on site FOH or monitor engineer to use as a starting point

  • Specifications:

    • System Requirements
    • Mac: macOS® 10.11 or higher (64-bit only); Intel® Core™ 2 Duo processor (Intel® Core i3 or faster recommended); 4 GB RAM (8 GB or more recommended)
    • Windows: Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64; Intel Core 2 Duo (Core i3 or faster recommended); 4 GB RAM (8 GB or more recommended)
    • Mac and Windows Systems: USB 2.0 port; Internet connection; Internal or external 7200 RPM storage drive; 30 GB hard disk space; Monitor with 1366x768 resolution
    • iOS: iOS 10 or later; iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
    • Android: Android™ 5.0 (Lollipop) or later; Android smartphone (QMix-UC); Android tablet (8-inch) with 1024x768 resolution (UC surface)

      Mic Preamplifier
    • Input Type: XLR Female, balanced
    • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
    • Input Impedance: 1 kΩ
    • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
    • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
    • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
    • Gain Control Range (±1 dB): 0 dB to +60 dB
    • Maximum Input Level (unity gain): +12 dBu
    • Phantom Power (±2 VDC): 48 VDC, switchable per channel

      Line Inputs
    • Type: 1/4" TRS Female, balanced
    • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
    • Input Impedance: 10 kΩ
    • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
    • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
    • Maximum Input Level: +18 dBu

      Tape Inputs
    • Type: RCA Female, unbalanced (stereo pair)
    • Maximum Input Level: +12 dBu, ±0.5 dBu

      XLR Outputs
    • Type: XLR Male, balanced
    • Maximum Output Level: +24 dBu, ±0.5 dBu
    • Output Impedance: 100Ω

      Line Outputs
    • Type: 1/4" TRS Female, balanced
    • Maximum Output Level: +18 dBu, ±0.5 dBu
    • Output Impedance: 100Ω

      Tape Outputs
    • Type: RCA Female, unbalanced (stereo pair)
    • Maximum Output Level: +18 dBu, ±0.5 dBu
    • Output Impedance: 100Ω

      Headphone Output
    • Type: 1/4" TRS Female, active stereo
    • Maximum Output: 100 mW/ch. @ 60Ω load
    • Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
    • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
    • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

      Digital Audio and Control
    • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
    • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
    • USB Recording Port: USB 2.0, Type-B
    • Bluetooth™ Input: 4.1, stereo
    • AES/EBU Output: XLR Male
    • Network Control Port: RJ-45
    • AVB Audio Network Port: Locking XLR Ethernet
    • Internal Processing: 32-bit, floating point
    • Sampling Rate: 48 kHz, 44.1 kHz
    • A/D/A Bit Depth: 24
    • Reference Level for 0 dBFS: +18 dBu
    • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

      General
    • Power Connector: IEC
    • Input-Voltage Range: 90 to 230 VAC (±10%)
    • Power Requirements (continuous): 85W
    • Operating Temperature: 0° to 40°C/ 32° to 104°F
    • Dimensions (HxWxD): 6.51 x 32.37 x 22.97"
    • Weight: 37.2 lbs.

  • GTIN:

    0673454008160
