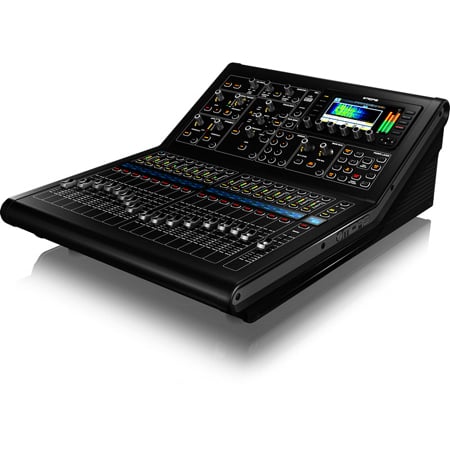

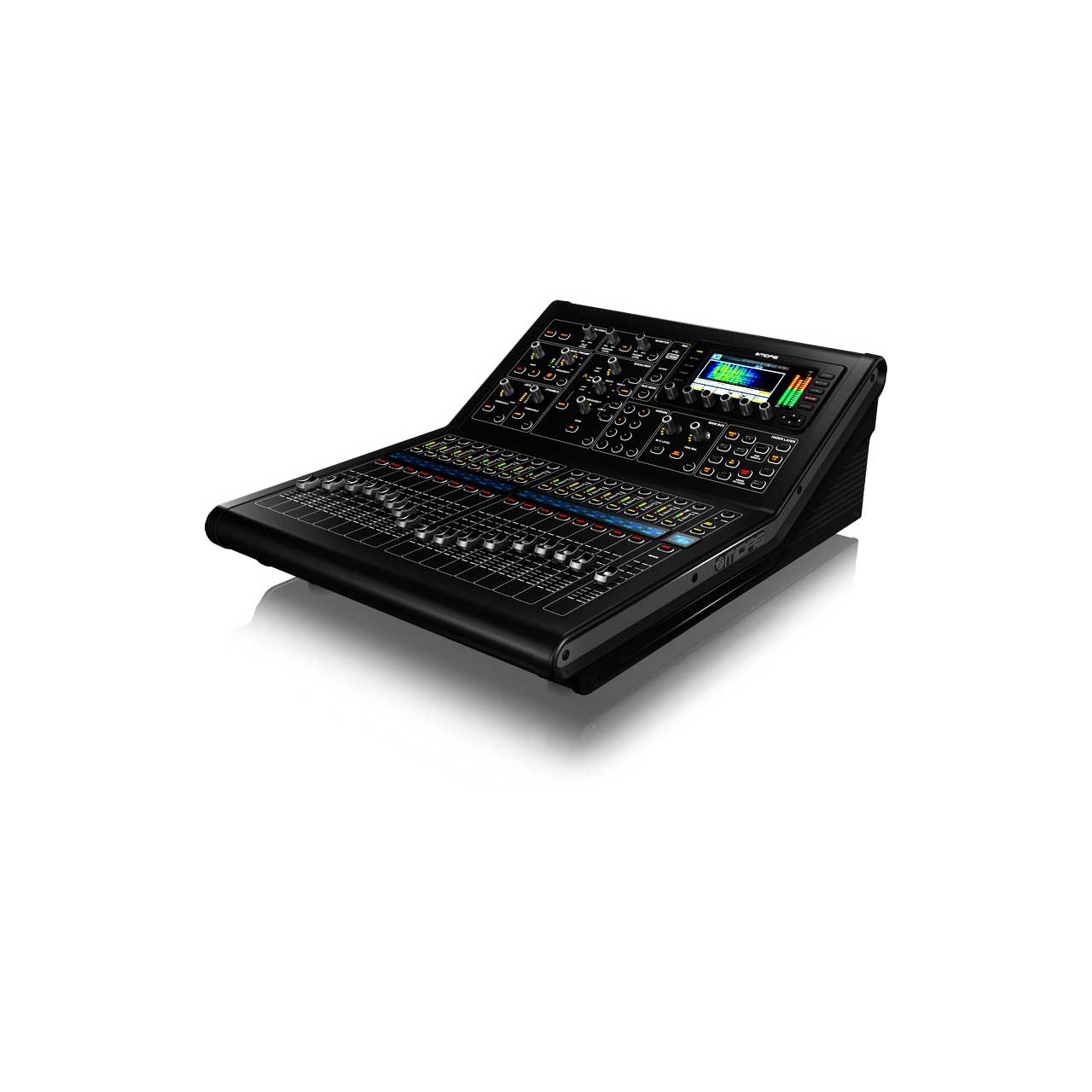

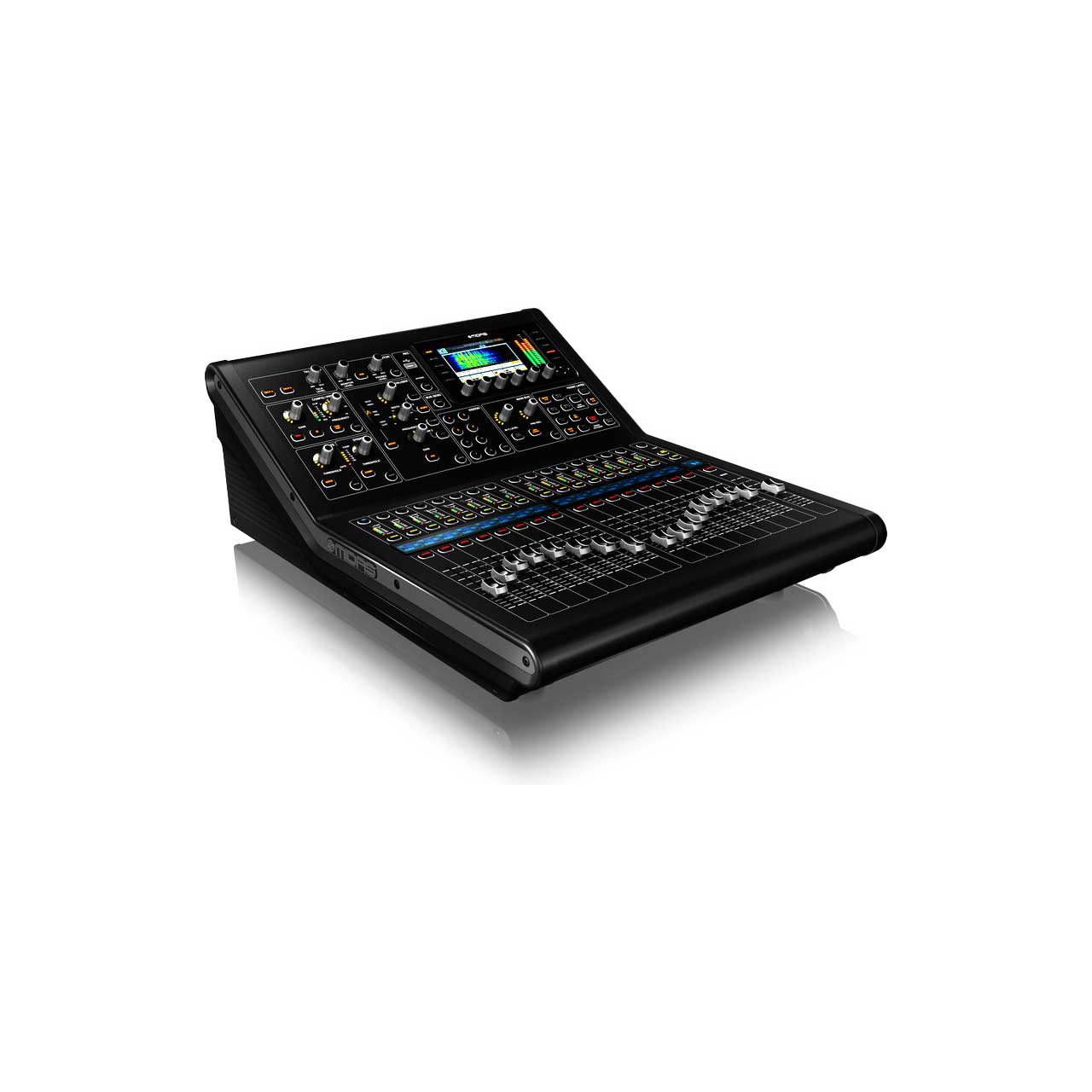

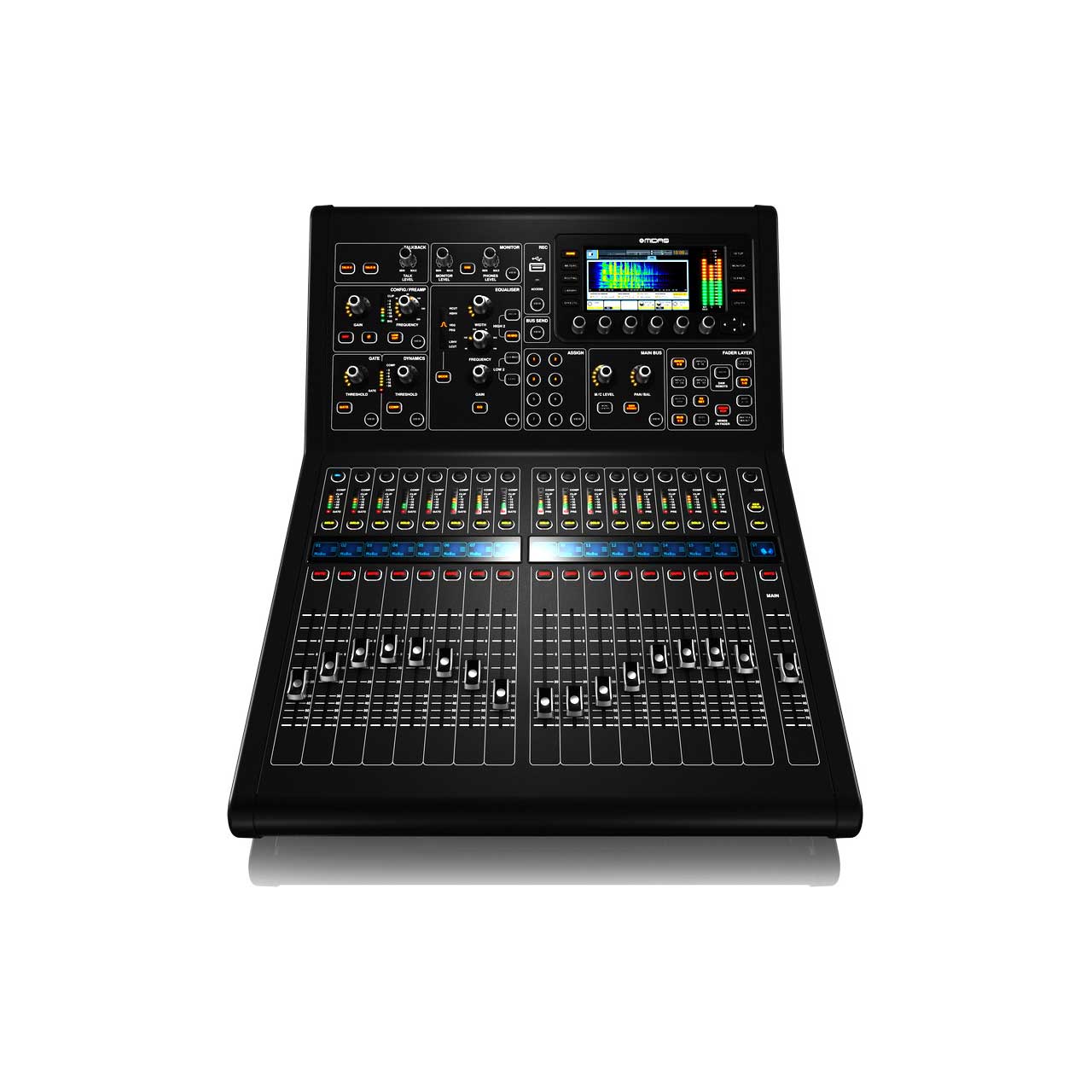

Midas M32R LIVE 40 Input Channel Digital Mixer Console

M32R - Overview

• Features:

  • Live performance and studio recording digital console with up to 40 simultaneous input channels
  • 16 award-winning MIDAS PRO microphone preamplifiers
  • 25 time-aligned and phase-coherent mix buses
  • AES50 networking allows up to 96 inputs and 96 outputs
  • Open architecture allows for future 96 kHz operation
  • 192 kHz ADC and DAC converters for outstanding audio performance
  • Industry-leading design by Bentley* Motors Designer
  • High-performance aluminium and high-impact steel structure
  • Rack mount brackets included for ultimate flexibility
  • 40 bit floating point digital signal processing
  • 8 DCA and 6 mute groups
  • 8 digital signal processing effects engines
  • 17 MIDAS PRO motorised 100 mm faders
  • Daylight viewable 5” full colour TFT display screen
  • 32 x 32 channel USB 2.0 audio interface
  • DAW remote control emulations of Mackie Control and HUI protocols
  • Optional wireless remote control with MIDAS Apps for iPhone and iPad
  • Auto-ranging universal switch-mode power supply


• Specifications:

  • Processing
  • Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
  • Output Processing Channels: 8 / 16
  • 16 aux buses, 6 matrices, main LRC: 100
  • Internal Effects Engines (True Stereo / Mono): 8 / 16
  • Internal Show Automation (structured Cues / Snippets): 500 / 100
  • Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
  • Signal Processing: 40-Bit Floating Point
  • A/D Conversion (8-channel, 96 kHz ready): 24-Bit, 114 dB Dynamic Range, A-weighted
  • D/A Conversion (stereo, 96 kHz ready): 24-Bit, 120 dB Dynamic Range, A-weighted
  • I/O Latency (Console Input to Output): 0.8 ms
  • Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

    Connectors
  • MIDAS PRO Series Microphone Preamplifier (XLR): 16
  • Talkback Microphone Input (XLR): 1
  • RCA Inputs / Outputs: 2 / 2
  • XLR Outputs: 8
  • Monitoring Outputs (XLR / 1/4" TRS Balanced): 2/2
  • Aux Inputs/Outputs (1/4" TRS Balanced): 6/ 6
  • Phones Output (1/4" TRS): 1 (Stereo)
  • AES50 Ports (KLARK TEKNIK SuperMAC): 2
  • Expansion Card Interface: 32 Channel Audio Input / Output
  • ULTRANET P-16 Connector (No Power Supplied): 1
  • MIDI Inputs / Outputs: 1 / 1
  • USB Type A (Audio and Data Import / Export): 1
  • USB Type B, rear panel, for remote control: 1
  • Ethernet, RJ45, rear panel, for remote control: 1

    Mic Input Characteristics
  • Design: MIDAS PRO Series
  • THD+N (0 dB gain, 0 dBu output): < 0.01% unweighted
  • THD+N (+40 dB gain, 0 dBu to +20 dBu output): < 0.03% unweighted
  • Input Impedance (Unbalanced / Balanced): 10 kOhm / 10 kOhm
  • Non-Clip Maximum Input Level: +23 dBu
  • Phantom Power (Switchable per Input): +48 V
  • Equivalent Input Noise @ +45 dB gain (150 Ohm source): -125 dBu 22 Hz-22 kHz, unweighted
  • CMRR @ Unity Gain (Typical): > 70 dB
  • CMRR @ 40 dB Gain (Typical): > 90 dB

    Input/Output Characteristics
  • Frequency Response @ 48 kHz Sample Rate: 0 dB to -1 dB 20 Hz – 20 kHz
  • Dynamic Range, Analogue In to Analogue Out: 106 dB 22 Hz - 22 kHz, unweighted
  • A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB 22 Hz - 22 kHz, unweighted
  • D/A Dynamic Range, Converter and Output (Typical): 109 dB 22 Hz - 22 kHz, unweighted
  • Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
  • Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
  • Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 OHM / 50 OHM
  • Input impedance, TRS Connectors 20 kOHM / 40 kOHM (Unbalanced / Balanced)
  • Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
  • Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
  • Output Impedance, TRS (Unbalanced / Balanced): 50 OHM / 50 OHM
  • Phones Output Impedance / Maximum output Level: 40 OHM / +21 dBu (Stereo)
  • Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz, unweighted
  • Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz, unweighted
  • Residual Noise Level, TRS and Monitor out XLR Connectors: -83 dBu 22 Hz-22 kHz, unweighted

    Display
  • Main Screen: 5" TFT LCD, 800 x 480 Resolution, 262k Colors
  • Channel LCD Screen: 128 x 64 LCD with RGB Color Backlight
  • Main Meter: 18 Segment (-45 dB to Clip)

    Power
  • Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) / 10%
  • Power Consumption: 70 W

    Physical
  • Standard Operating Temperature Range: 41°F - 104°F
  • Dimensions: 18.8 x 24.3 x 8.2"
  • Weight: 31.5 lbs


• Warranty:

  • 3 years


• GTIN:

  0748252148445
