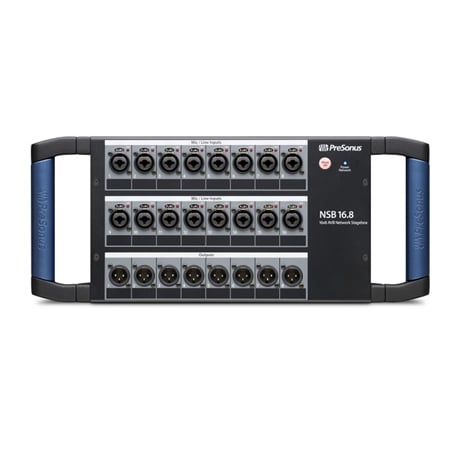

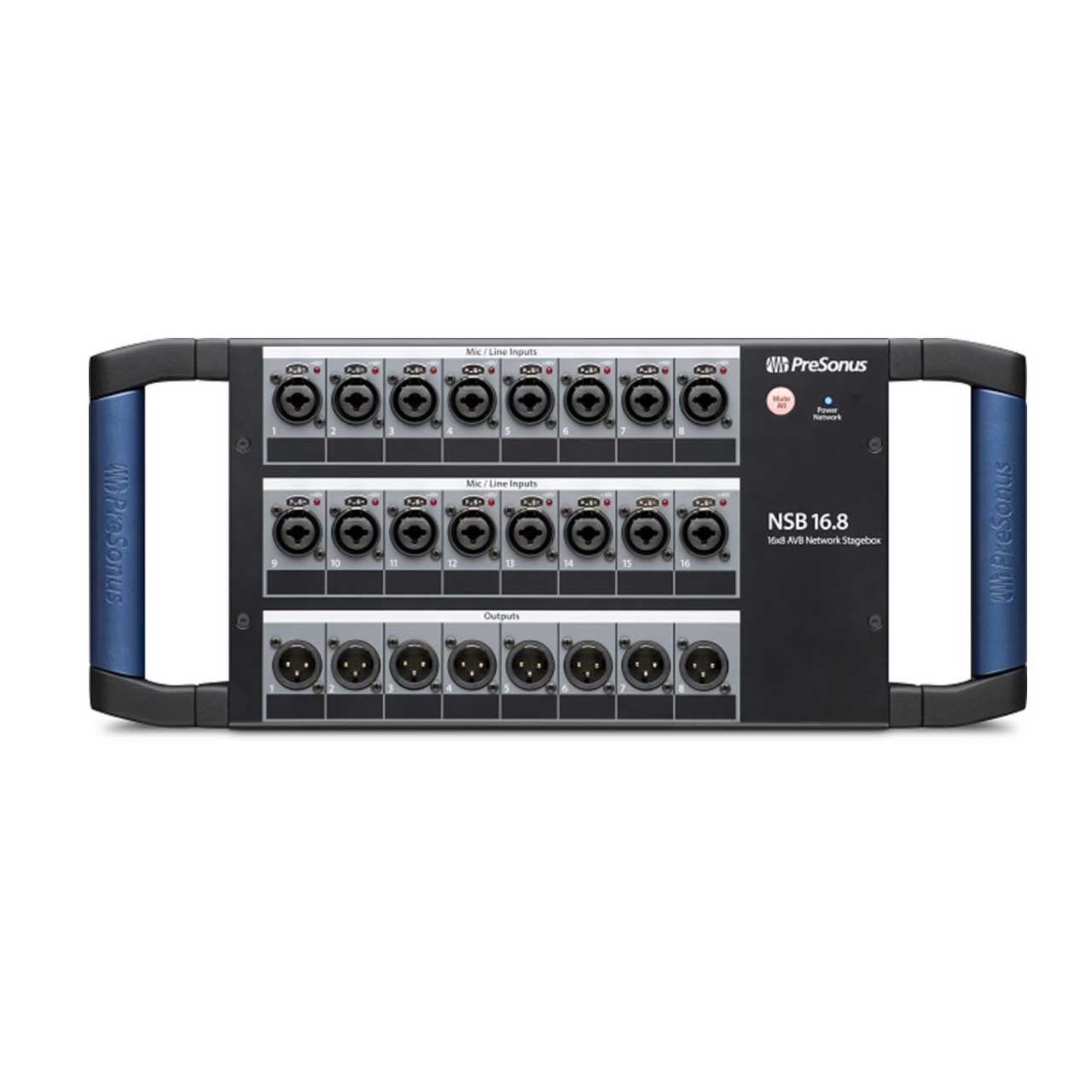

PreSonus NSB 16.8 16x8 AVB-Networked Stage Box

NSB 16.8 - Overview

• Features:

  • Rugged stage box enclosure
  • 8 locking, remote controllable combo mic/line inputs
  • 16 remote-controllable XMAX preamps
  • Gain compensation for shared inputs
  • 8 locking XLR line outputs

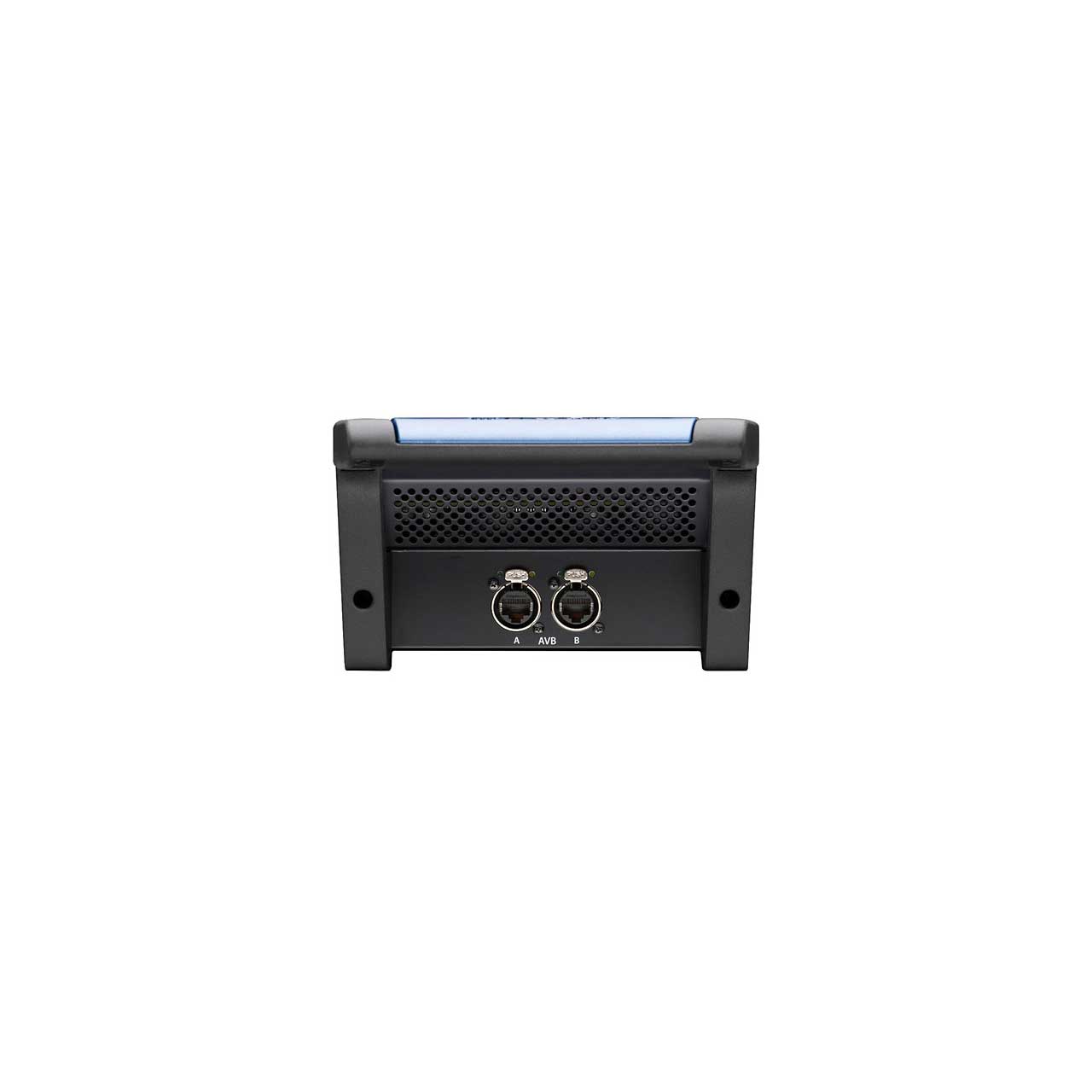

  • 2 AVB ports with locking XLR Ethernet jacks
  • 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)
  • Mute All button
  • Locking IEC power jack
  • +48V indicators
  • Easy setup and control from StudioLive Series III consoles and from free PreSonus UC Surface software
  • Optional rack ears


• Specifications:

  • Microphone Preamplifier
  • Input Type: XLR Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  • Input Impedance: 1 kΩ
  • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
  • Gain Control Range (±1 dB): 0 dB to +60 dB
  • Maximum Input Level (unity gain): +12 dBu
  • Phantom Power (±2 VDC): 48 VDC, switchable per channel

    Line Inputs
  • Type: 1/4" TRS Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  • Input Impedance: 10 kΩ
  • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Maximum Input Level: +18 dBu

    XLR Outputs
  • Type: XLR Male, balanced
  • Maximum Output Level: +24 dBu, ±0.5 dBu
  • Output Impedance: 100Ω

    Digital Audio
  • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • AVB Audio Network Ports: Locking XLR Ethernet
  • Sampling Rate: 48 kHz

    Physical

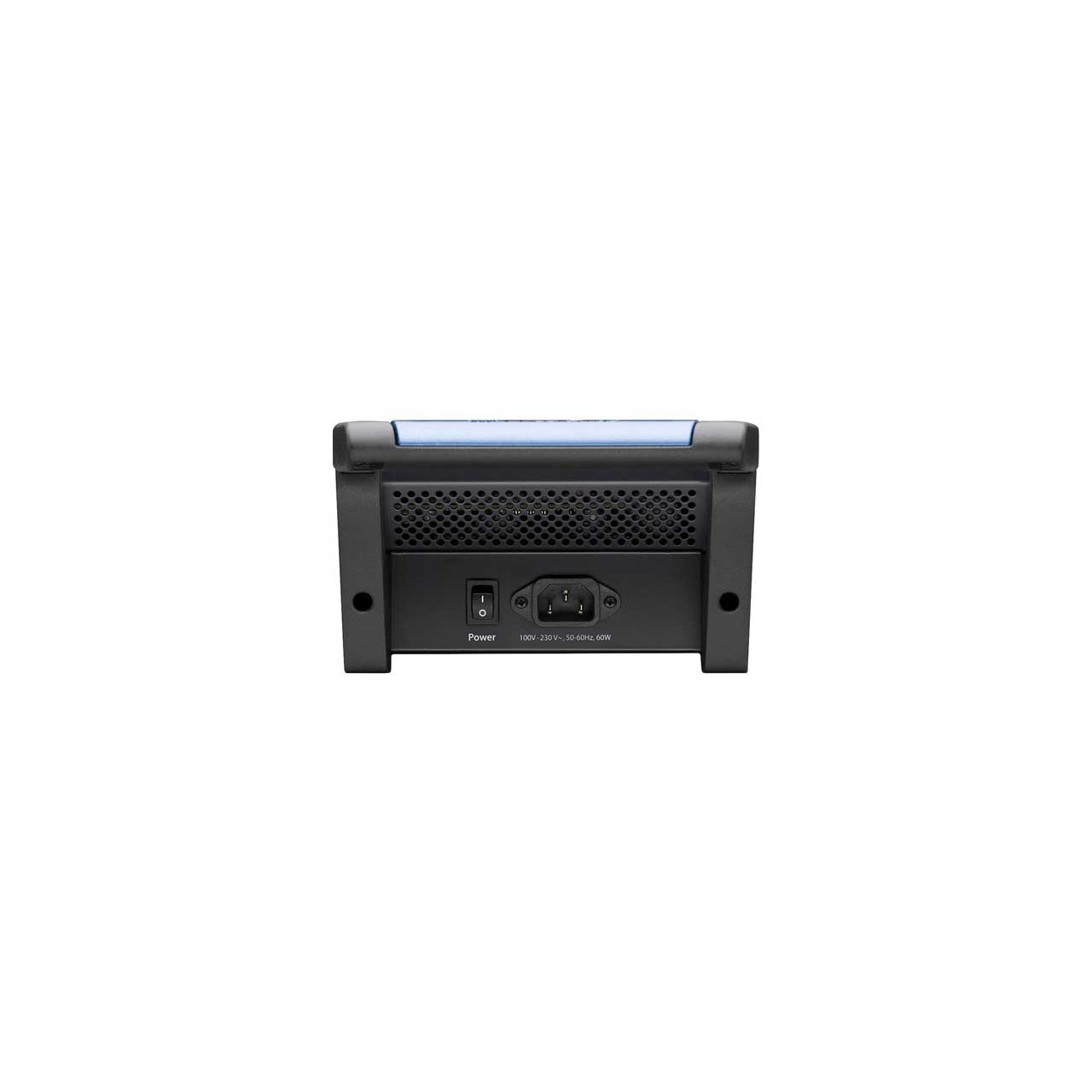

  • Power Connector: Locking IEC
  • Input-Voltage Range: 90 to 230 VAC (±10%)
  • DImensions (H x W x D): 7" x 16.7" x 4.5" (178 x 424 x 114 mm)
  • Weight: 6.2 lbs. (2.8 kg)


• GTIN:

  0673454006487
