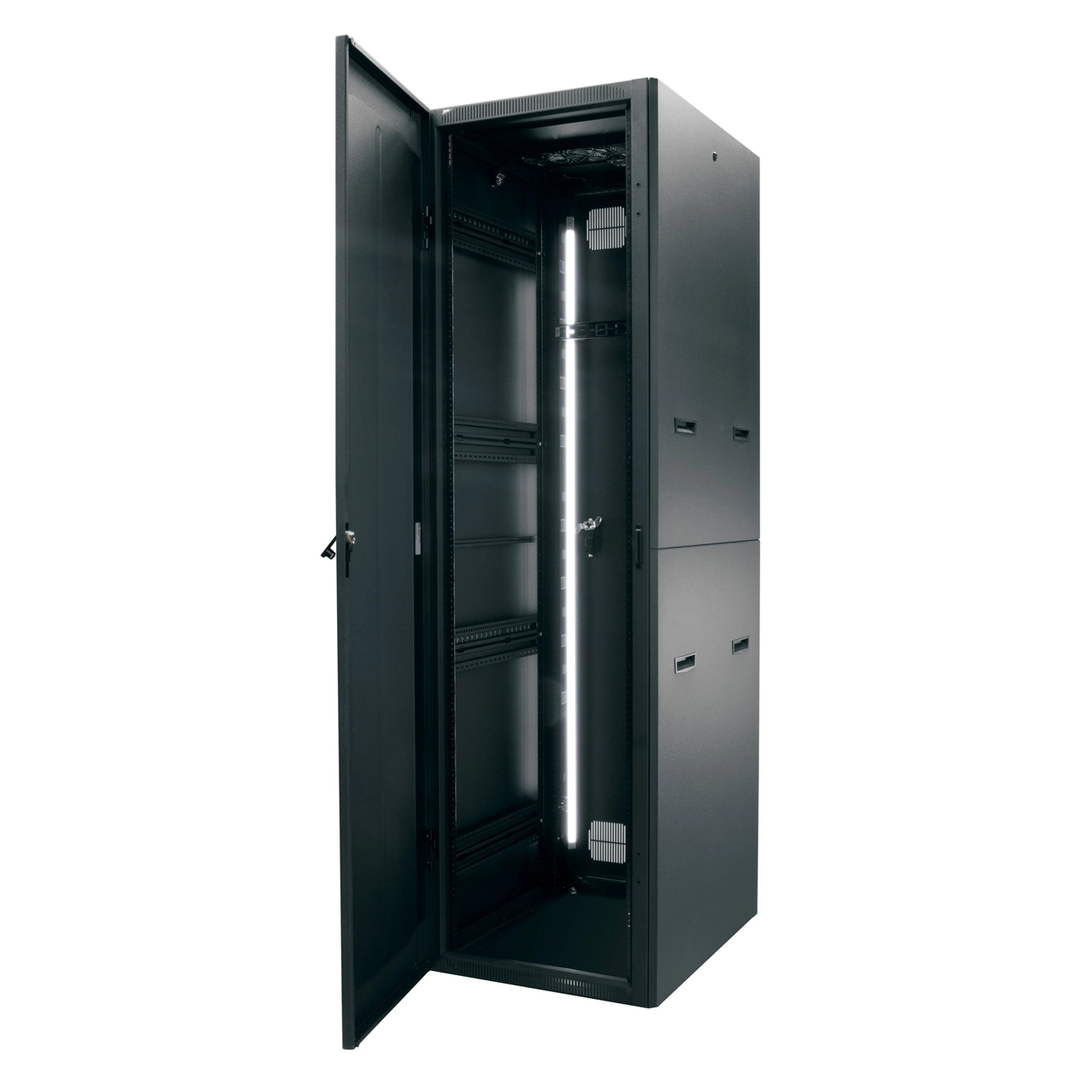

Middle Atlantic BGR-3827-AV 38RU BGR Series Rack - 27-Inch Depth - Pre-Configured for Pro AV

BGR-3827-AV - Overview

• Specifications:

  • CFM: 276
  • Depth: 27" (68.6cm)
  • Height: 70.98" (180.3cm)
  • Panel Width: 19" (48.3cm)
  • Rack Units: 38 RU
  • Shipping Weight: 330lbs (149.7kg)
  • Usable Depth: 17.9" (45.5cm)
  • Usable Height: 66.63" (169.2cm)
  • Weight Capacity: 3000lbs (1,360.8kg)
  • Width: 23" (58.4cm)
  • Color: Black
  • Finish: Black Wrinkle Powder Coat
  • Forward Compatible: Yes
  • Gangable: Yes
  • Handles: 25mm x 150mm Swing Handle
  • Material: Steel
  • Product Configuration: Pre-Configured for Pro AV
  • Rack Rail Type: Forward Rackrail
  • Rack Type: Pre-Configured
  • Rear Door: Yes
  • Special Features: Installation Time Savers


• Item Includes:

  • Included Forward Panels:
  • 4x Forward 1RU flanged blank panels (FWD-EB1)
  • 2x Forward 2RU flanged blank panels (FWD-EB2)

    Included Horizontal Cable Management:

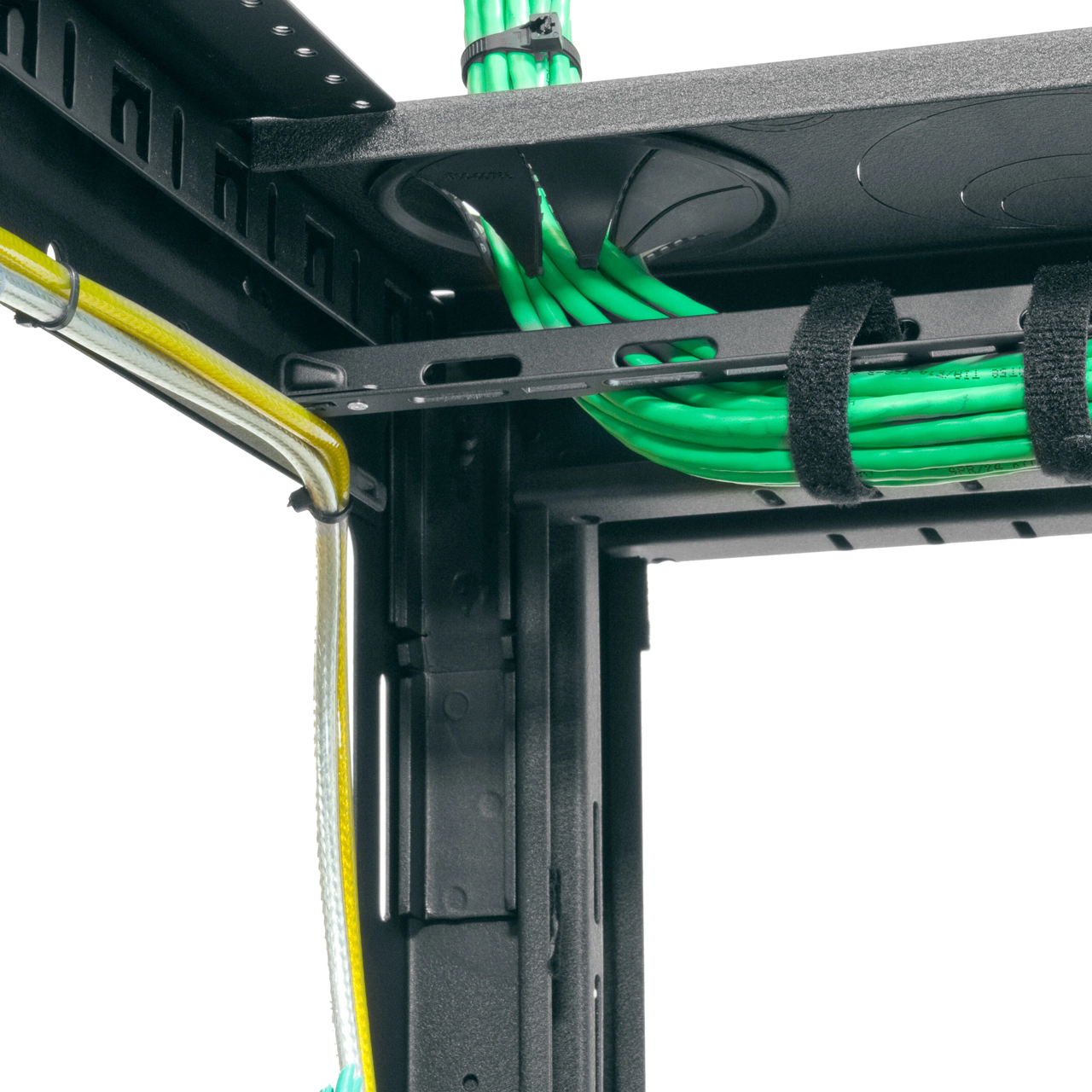

  • 1x 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK)
  • 1x 4pk of Forward 2" offset horizontal lacer bar (FWD-LB-2A-4PK)

    Included Vertical Cable Management:
  • 1x Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-35-40)
  • 1x Forward Vertical Cable Management Lace (FWD-LACE-UMV-35-40) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15
  • 2x Lever LockT vertical channel (LL-VC21)

    Included Cable Management Accessories:
  • 1x 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15)
  • 2x Velcror straps for tie saddles (TW12)

    Included Small Device Mounting:
  • 2x 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4)

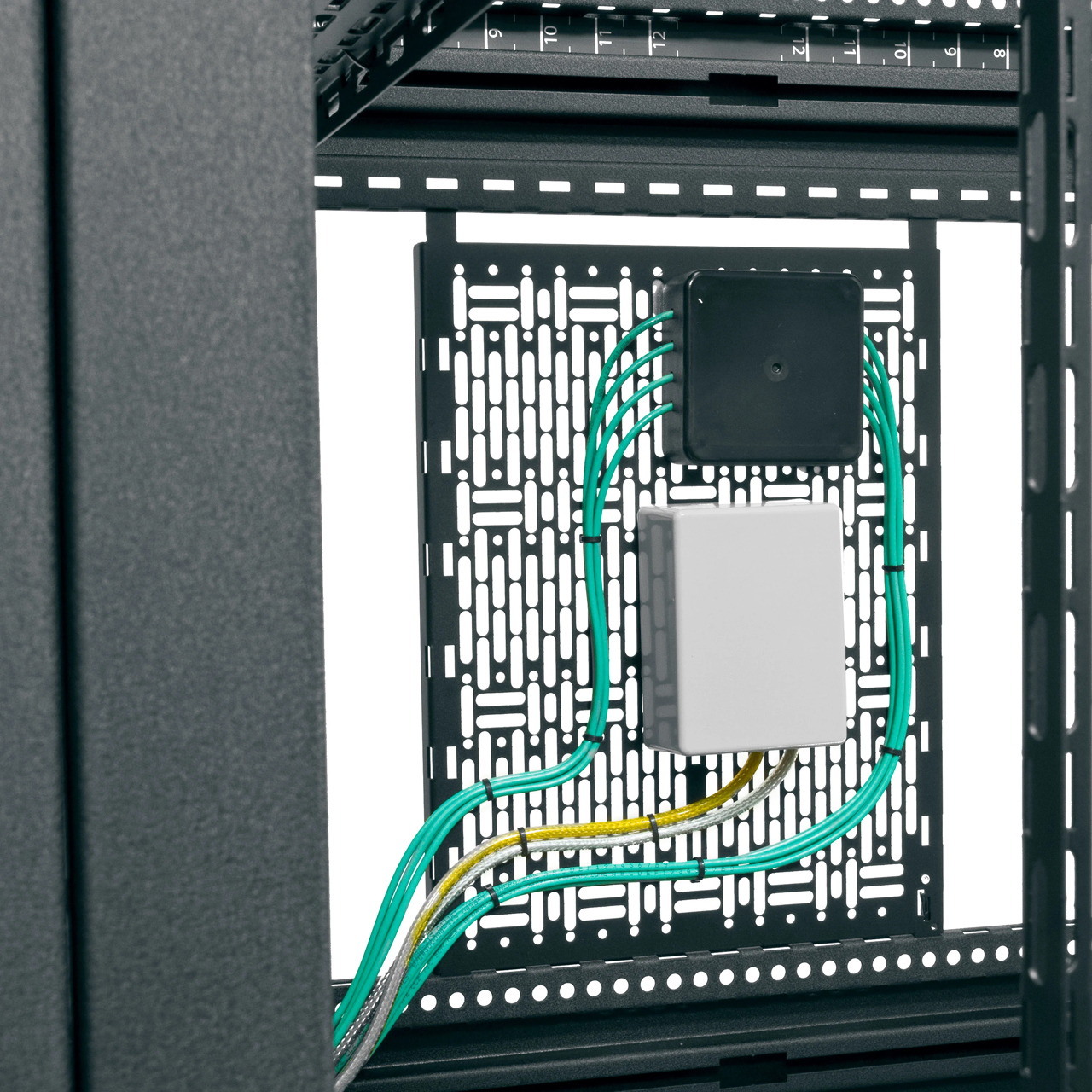

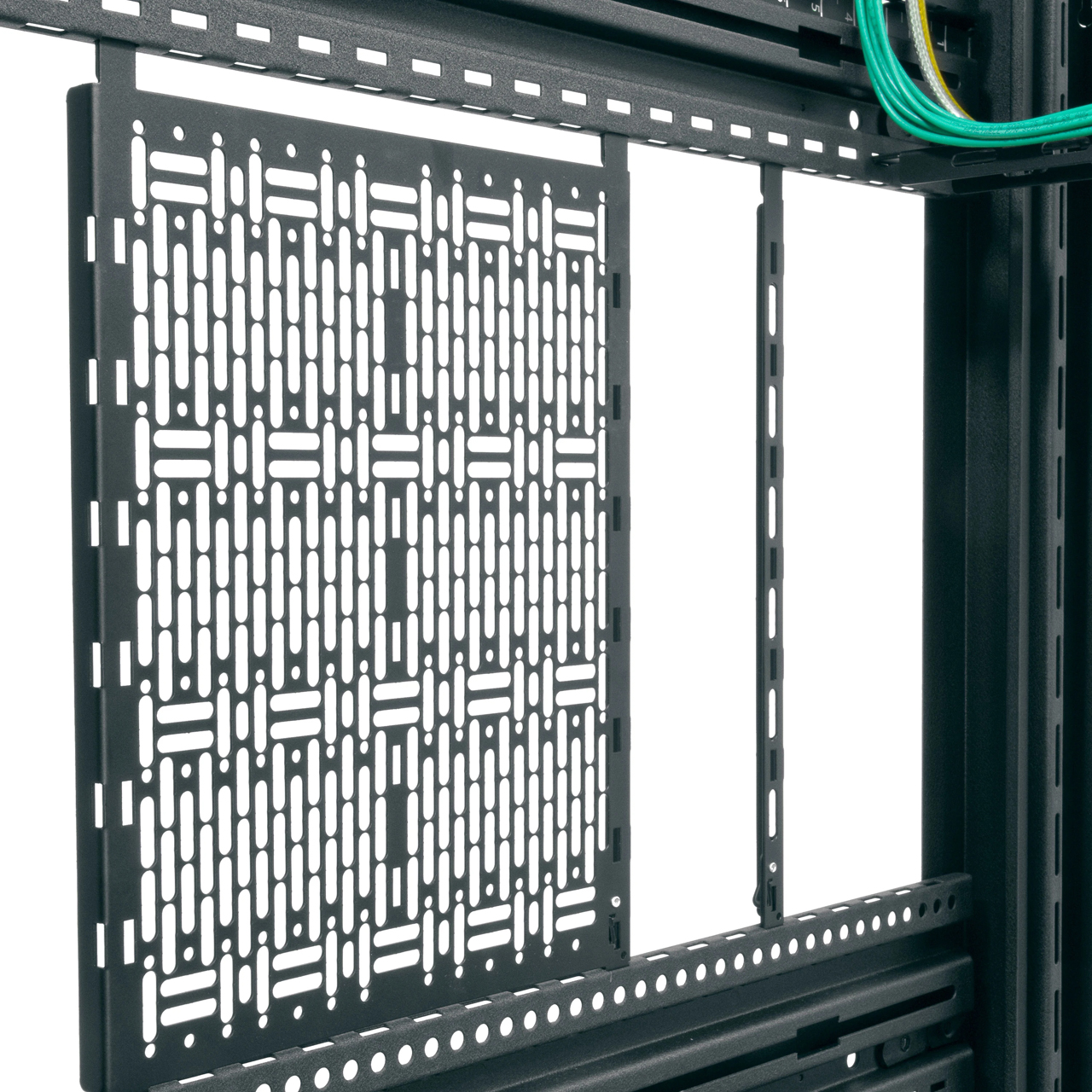

  • 1x Lever LockT plate for small device mounting (LL-VP2110)

    Included Thermal Management:
  • 1x DC fan top with 4 fans moving 276CFM. Includes controller and plugs for North America, EU, UK and Australia (IBGR-276FT-FC)

    Included Rack Options:
  • 1x Solid front door (BFD-38)
  • 1x Pair of side panels (BSPN-38-27)
  • 1x set of leveling feet (LF-HD)

    Included Hardware:
  • 100x 10-32 threaded rackscrews (HP)
