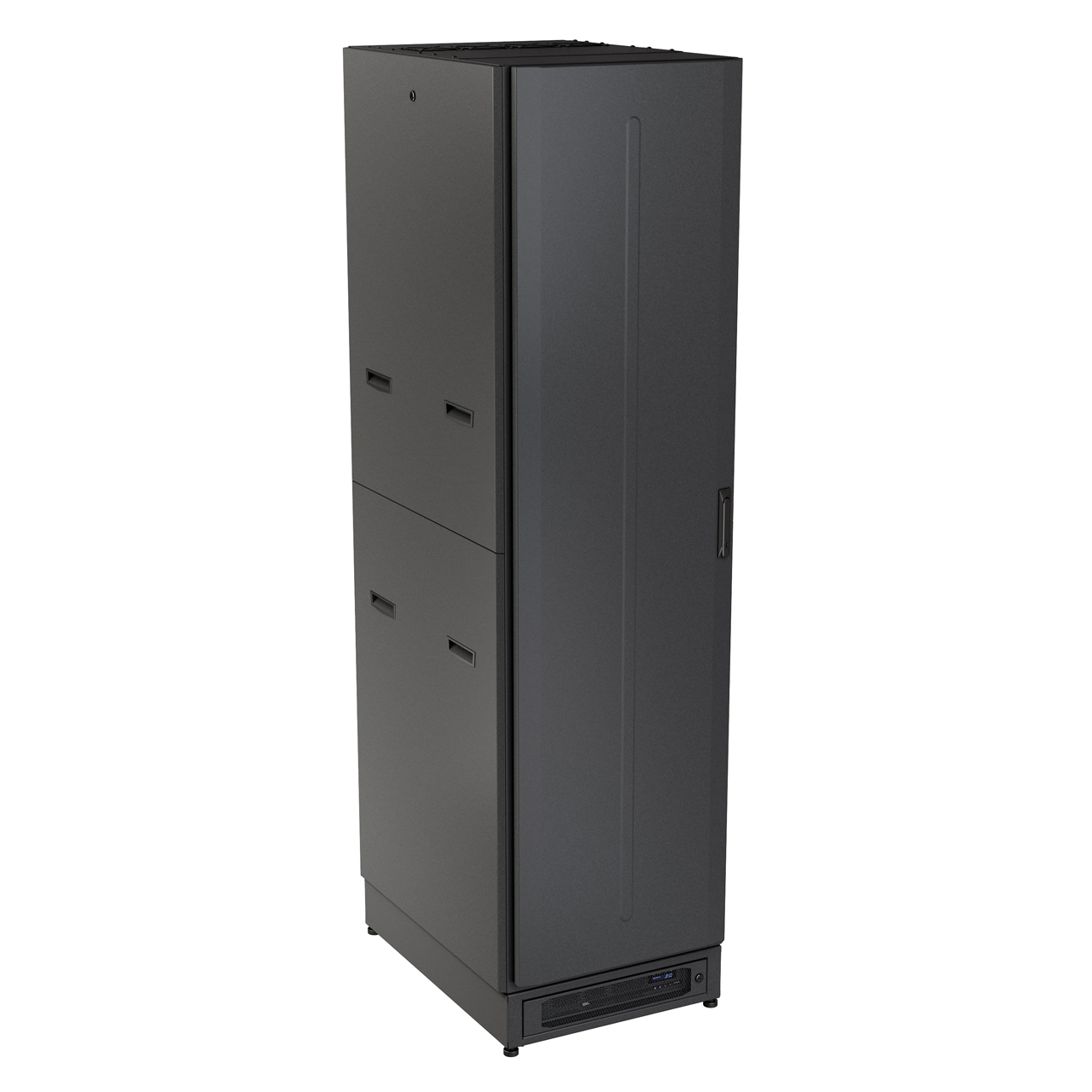

Middle Atlantic BGR-4532-FWD 45RU Forward Pre-Configured BGR - 32 Inches Deep

ITEM #: MAP-BGR-4532-FWD MFG #: BGR-4532-FWD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Middle Atlantic Products
Free Shipping with $49 Minimum Order

List Price:

$9,539.00

Our Price:

$8,585.10

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

BGR-4532-FWD - Overview

Middle Atlantic BGR-4532-FWD is an AV foundation built for tomorrow's speed. The Forward accessories and options included with the Forward Pre-Configured BGR were hand selected by our product experts with crucial input from customers. The result, a single part number aimed at helping you get the job done in a fraction of the time with everything needed for an optimized foundation to deliver the ultimate AV experience.

  • Specifications:

    • Color: Black
    • Finish: Black Wrinkle Powder Coat
    • Forward Compatible: Yes
    • Gangable: Yes
    • Handles: 25mm x 150mm Swing Handle
    • Material: Steel
    • Product Configuration: Pre-Configured for Forward
    • Rack Rail Type: Forward Rackrail
    • Rack Type: Pre-Configured
    • Rear Door: Yes
    • Special Features: Installation Time Savers
    • AC Voltage Output: 120V
    • Amps: 20 Amp
    • CFM: 276
    • Depth: 32 in (81.3 cm)
    • Height: 90.57 in (230.1 cm)
    • Panel Width: 19 in (48.3 cm)
    • Rack Units: 45 RU
    • Shipping Weight: 330 lbs (149.7 kg)
    • Usable Depth: 22.9 in (58.2 cm)
    • Usable Height: 78.88 in (200.4 cm)
    • Weight Capacity: 1038 lbs (470.8 kg)
    • Width: 23 in (58.4 cm)


  • Item Includes:

    • 1x Forward UPS Caster Base (FWD-CBS-2KVA-BGR32) with a NEXSYS™ UPX-2000R-2 pre-installed from our factory ready to be integrated
    • 1x 16 outlet Select Series Vertical PDU with RackLink™ (RLNK-1615V)
    • 4x Forward 1RU flanged blank panels (FWD-EB1)
    • 2x Forward 2RU flanged blank panels (FWD-EB2)

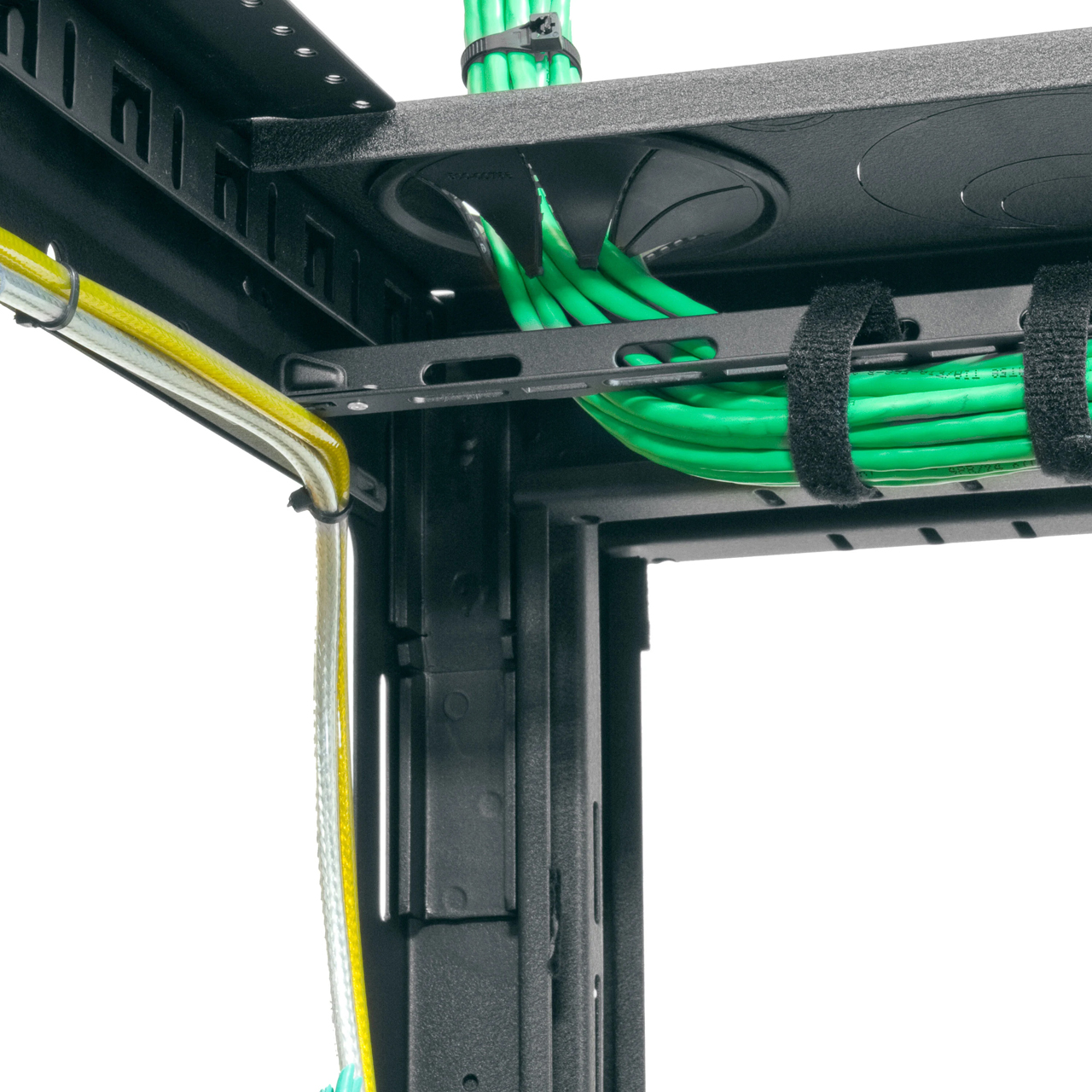

    • 1x 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK)
    • 1x 4pk of Forward 2" offset horizontal lacer bar (FWD-LB-2A-4PK)
    • 1x Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-44-45)
    • 1x Forward Vertical Cable Management Lace (FWD-LACE-UMV-44-45) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15
    • 2x Lever Lock™ vertical channel (LL-VC21)
    • 1x 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15)
    • 2x Velcro® straps for tie saddles (TW12)
    • 2x 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4)
    • 1x Forward utility light (pair) with IR sensor and dimmer (FWD-LT-UTL-44-45-D)
    • 1x DC fan top with 4 fans moving 276CFM. Includes controller (BGR-276FT-FC)
    • 1x Solid front door (BFD-45)
    • 1x Pair of side panels (BSPN-45-32)
    • 1x set of leveling feet (LF-HD)
    • 100x 10-32 threaded rackscrews (HP)

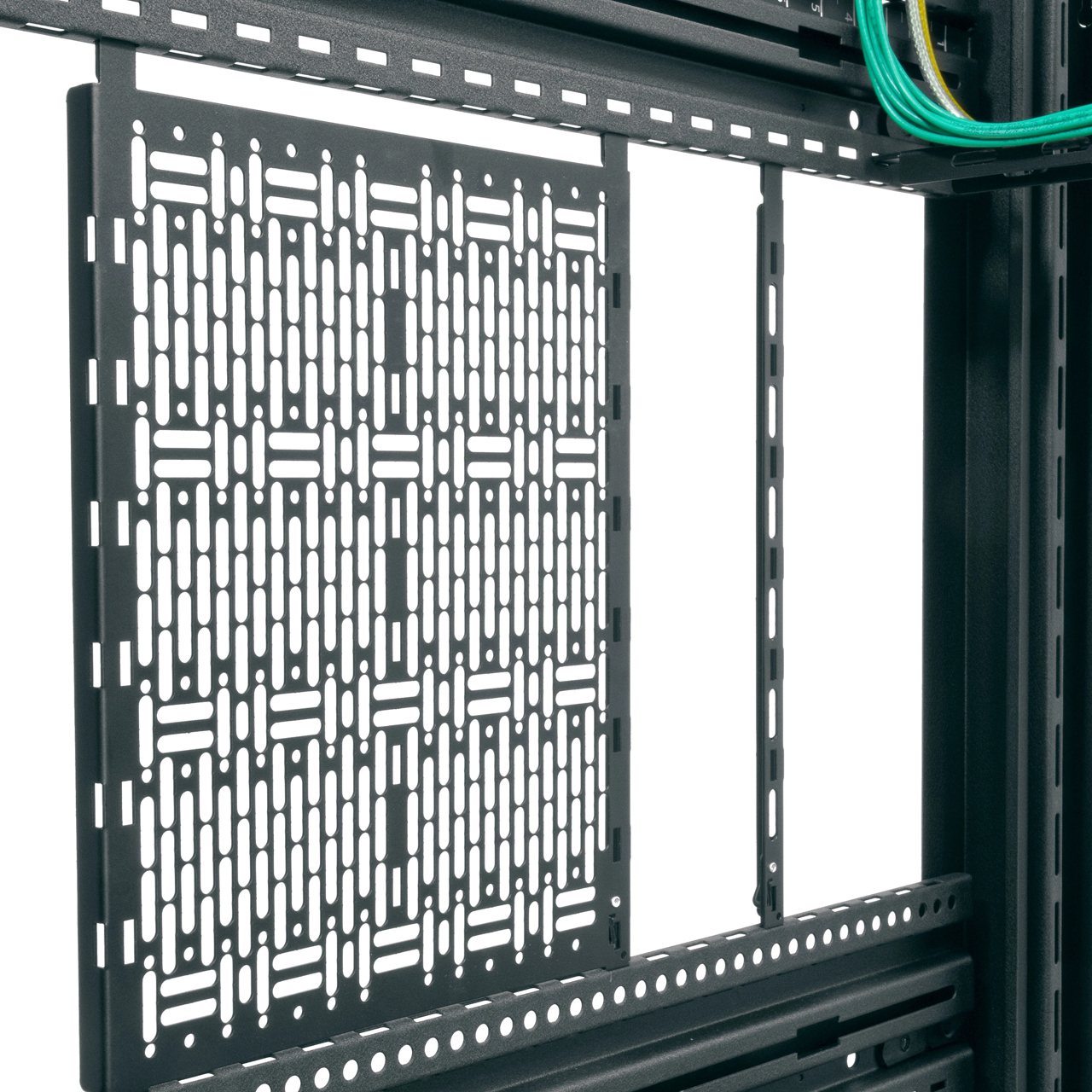

    • 1x Lever Lock™ plate for small device mounting (LL-VP2110)
