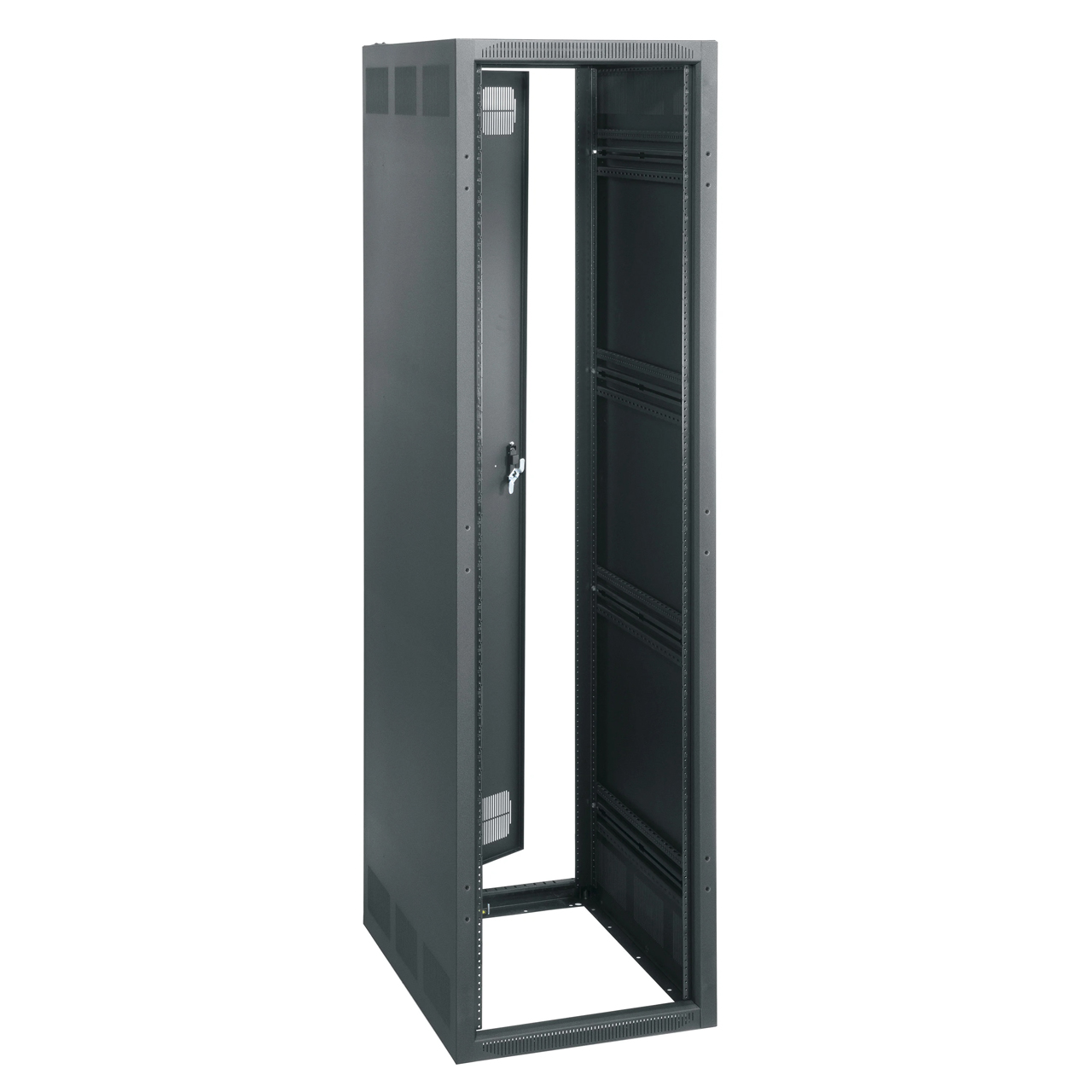

Middle Atlantic BGR-45SA-32 45RU BGR-SA Series Rack - 32-Inch Depth

BGR-45SA-32 - Overview

• Features:

  • 45RU
  • 32" (813mm) Depth
  • The 1st Forward Compatible rack
  • Breakthrough design provides high rack strength without extra weight
  • Solid sided for system security and to control airflow
  • Sides have ganging holes if multiple BGR-SAs are needed

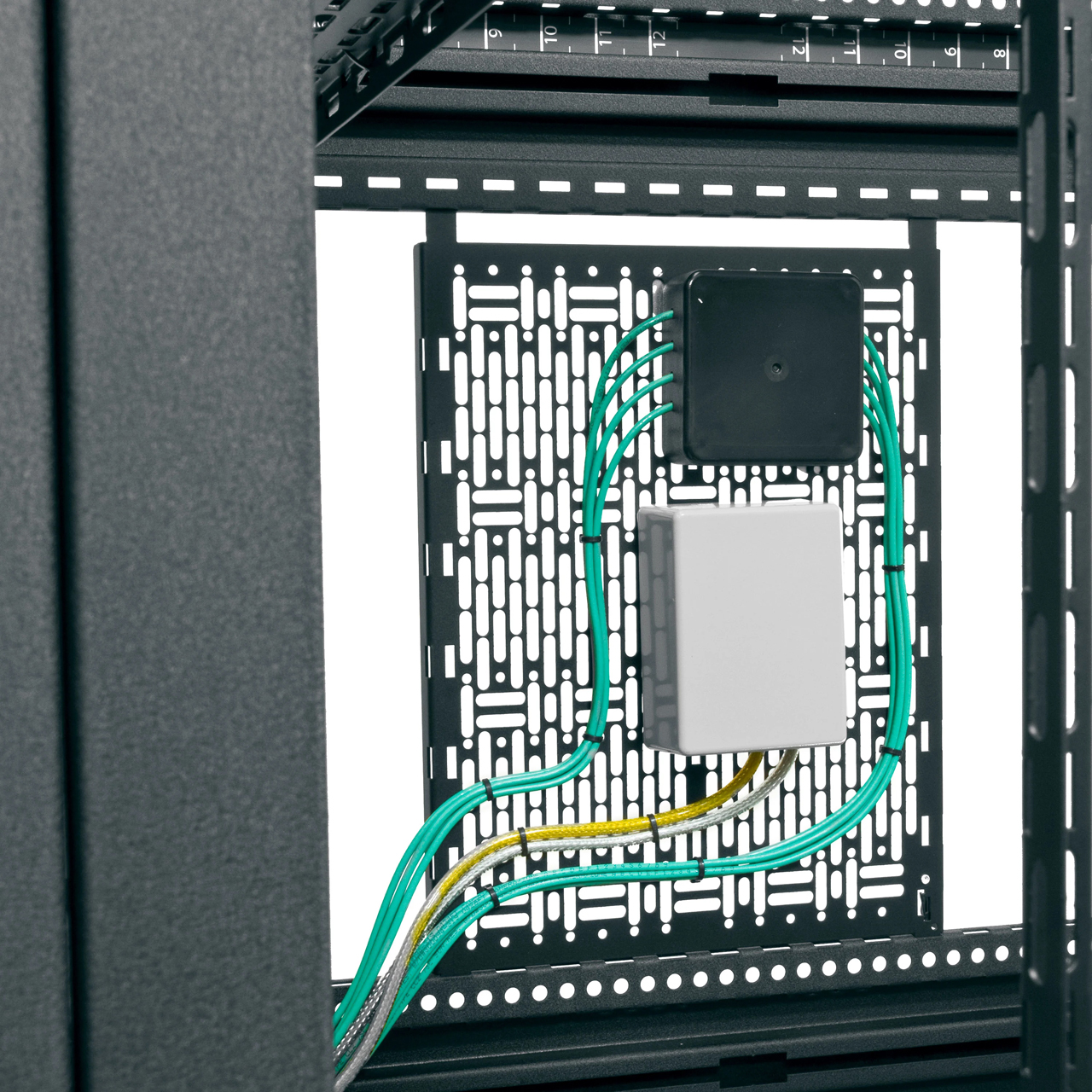

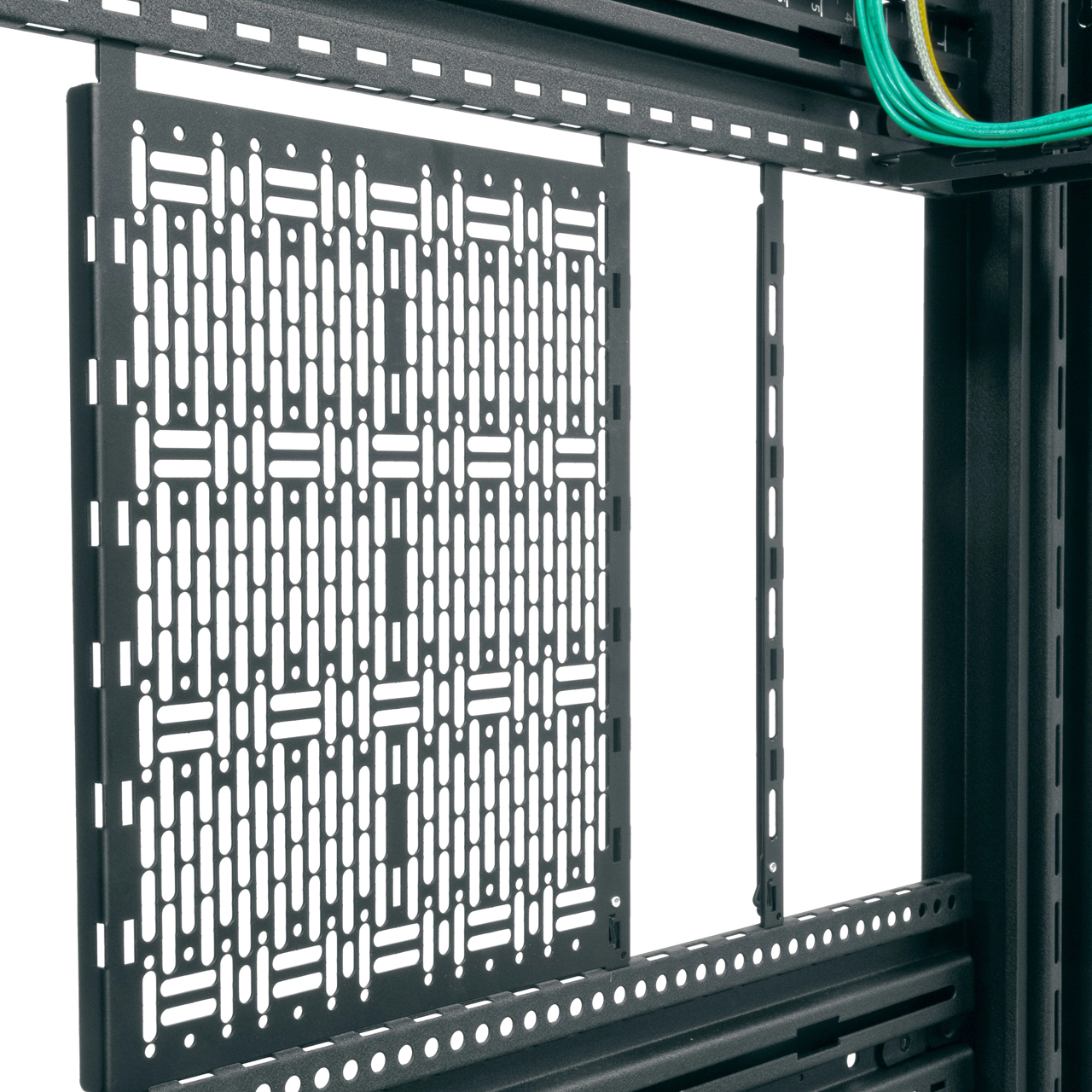

  • Accepts Lever Lock™ system tool free cable management accessories
  • The 23" width gives you extra room in "no-man's land" for front-to-back cable management and for mounting small devices on Lever Lock™ freeing up valuable rackspace.
  • Innovative side lacing on the Forward rear rackrail provides flexibility for internal cabling and accepts the Forward vertical cable management products.
  • Includes standard vented rack rear door that accepts optional fans

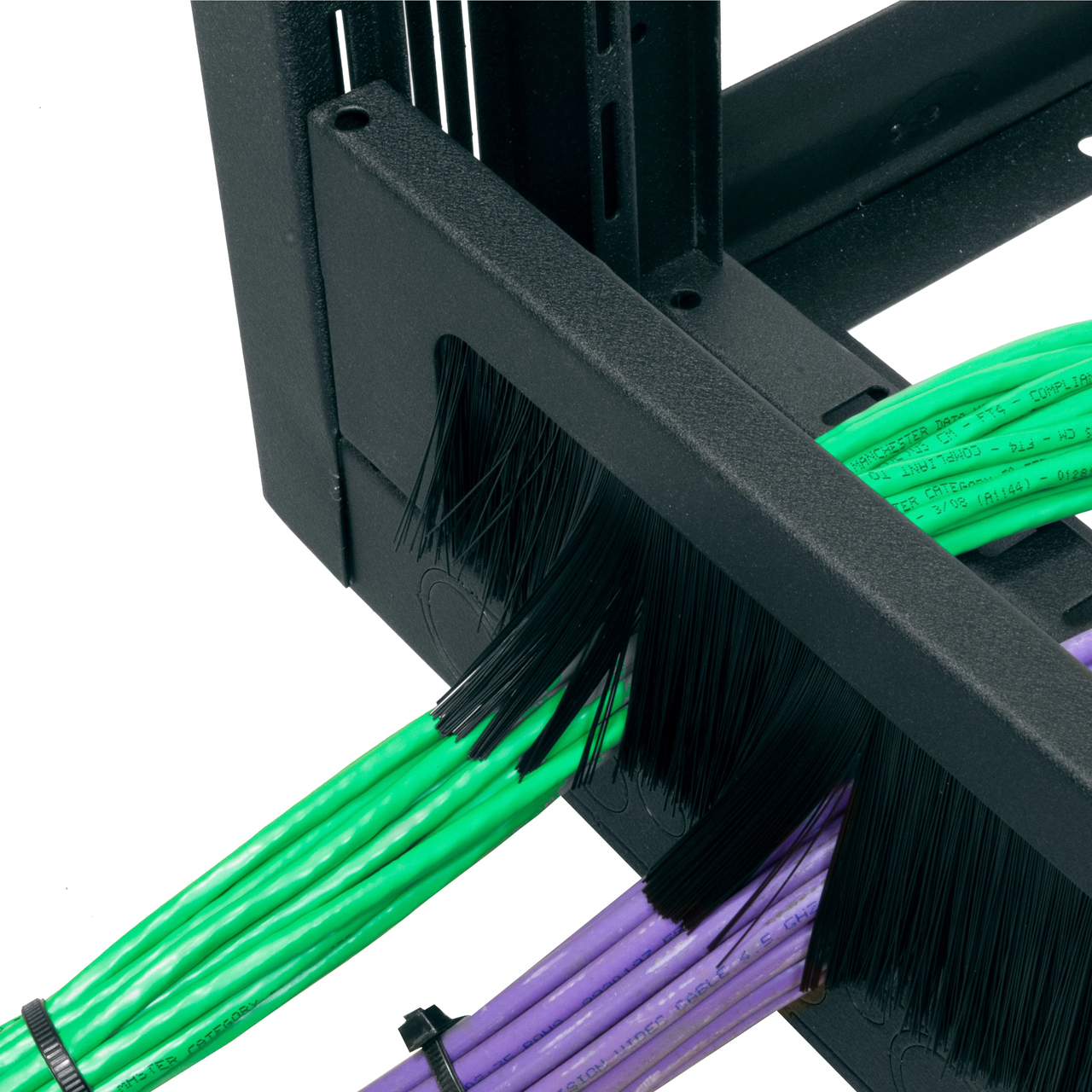

  • Accepts brush grommet rear door kit for a large cable passage without fishing

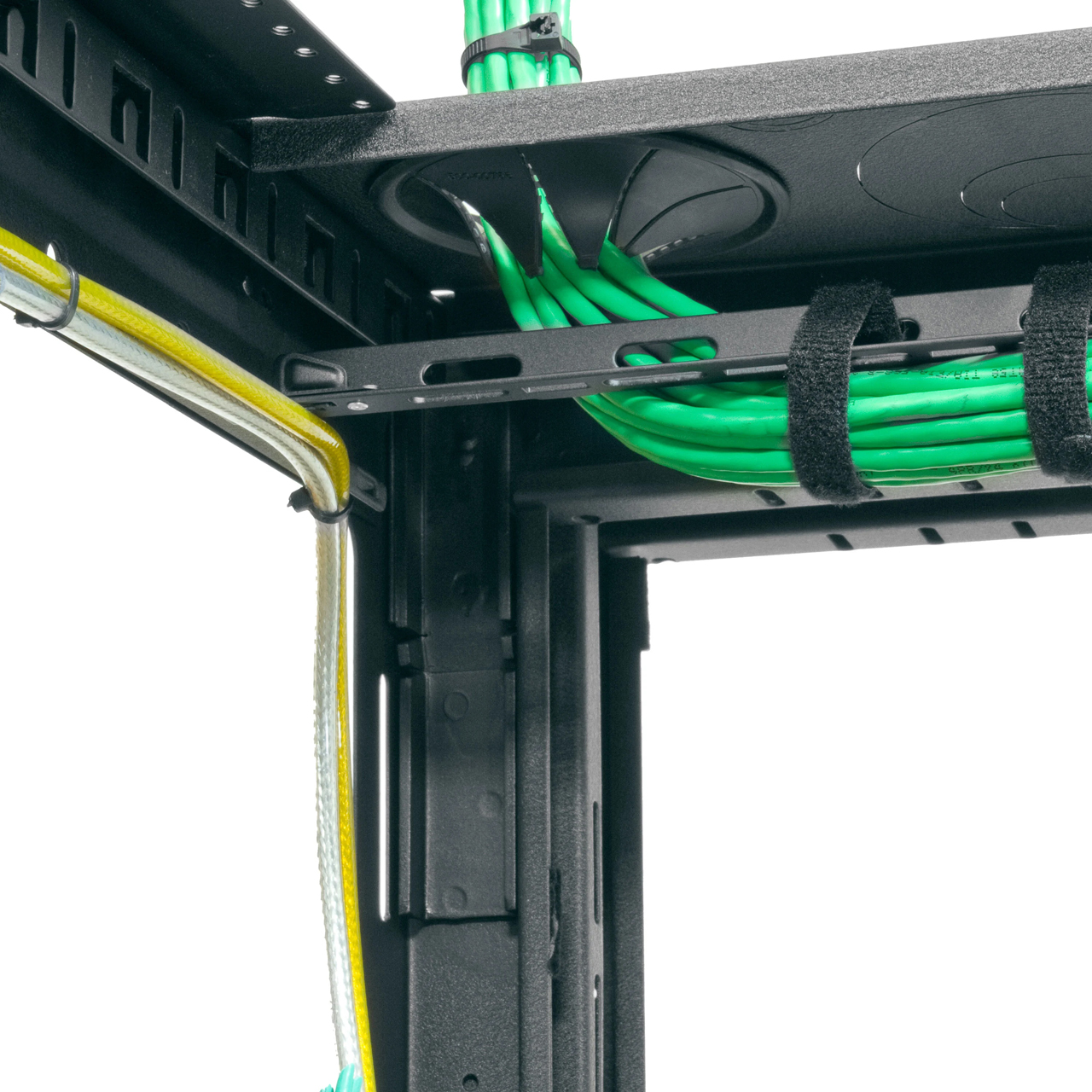

  • Wide open rack top and bottom offer many cabling and cooling options
  • Standard front and rear adjustable Forward Rackrail with numbered spaces


• Specifications:

  • Color: Black
  • Finish: Black Wrinkle Powder Coat
  • Forward Compatible: Yes
  • Gangable: Yes
  • Handles: 25mm x 150mm Swing Handle
  • Material: Steel
  • Product Configuration: Frame Only
  • Rack Rail Type: Forward Rackrail
  • Rear Door: Yes
  • Seismic Rated: Yes
  • Depth: 32" (81.3cm)
  • Height: 82.88" (210.5cm)
  • Panel Width: 19" (48.3cm)
  • Primary Package Weight: 217lbs (98.4kg)
  • Rack Units: 45 RU
  • Shipping Weight: 217lbs (98.4kg)
  • UL Load Capacity: 3000lbs (1,360.8kg)
  • Usable Depth: 29.4" (74.7cm)
  • Usable Height: 78.88" (200.4cm)
  • Width: 23" (58.4cm)
  • Certifications: ASCE, HCAI (formerly OSHPD), TAA, UL Listed
  • Seismic Load Capacity: 1,175lbs (533kg)
