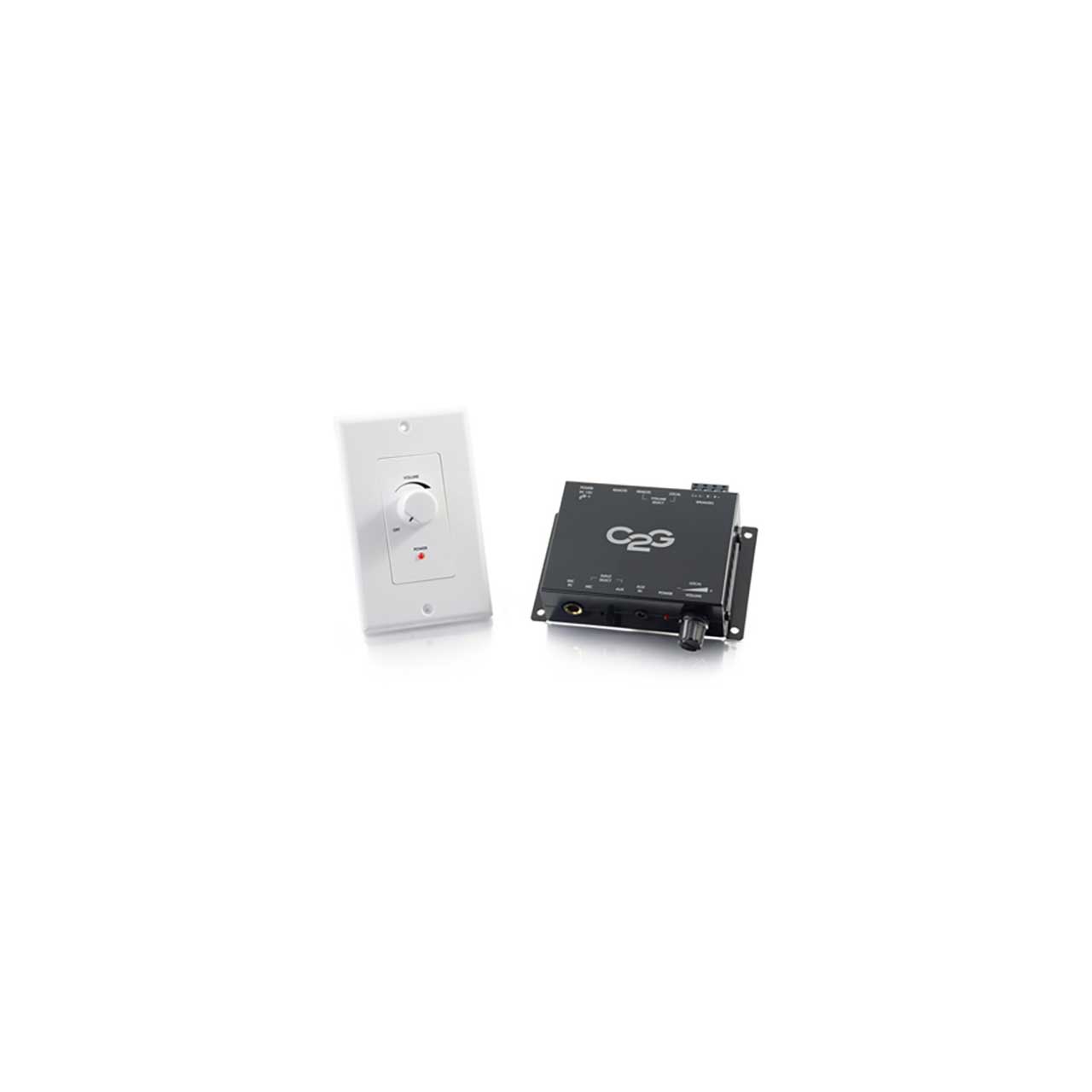

Middle Atlantic CG40914 Compact Amplifier with External Volume Control

ITEM #: MAP-CG40914 MFG #: CG40914

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$201.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CG40914 - Overview

This Middle Atlantic CG40914 amplifier has been designed to mount under a desk, in a podium, or to nearly any flat surface with the ability to control the volume from a decora style wall plate. This simple discreet solution provides sound reinforcement from a concealable amplifier capable of filling a class room, meeting room, huddle space, or work shop with rich sound while offering a convenient remote control that can be installed within reach.

Send in the reinforcement
In a crowded room a speakers voice can quickly be lost to the noise. Ensure that every word can be heard with this simple audio reinforcement amplifier. Each word will be launched at the audience with 15 watts of power at 4[ohm] resistance providing distinct audio to all listeners.

Command amplitude
There is no need to search for controls or fiddling with settings when preparing to present. The remote control wall plate can be installed in the location that is most convenient to a presenter, ensuring a smooth start to any meeting.

Need more input
Dynamic presentations may require more than dazzling vocals to deliver the intended message. This amplifier incorporates a 1/4 inch microphone port and a 3.5mm stereo audio line level input, offering the ability to deliver reinforced content from an audio source such as a laptop or a triumphant oration leaving the audience astounded.

Effortless deployment
This amplifier simplifies audio reinforcement installation. No brackets or field terminations are required with this amplifier. Simply secure the amplifier with the built in mounting brackets to the desired location, attach speaker wires, and plug in a cat5e or cat6 cable to connect the remote control wall plate.

  • Features:

    • 15 watts (RMS) per channel
    • Remote wired wall plate controller
    • 1/4" dynamic microphone and 3.5mm stereo audio line level inputs
    • Built in mounting bracket

  • Specifications:

    • Electrical Specifications
    • Output Power: 15W (RMS) Per Channel (@ RL = 4Ω)
    • Total Harmonic Distortion: 0.06% (at RL = 8Ω, F = 4Ω)
    • Minimum Load Resistance: 4Ω
    • Chipset: (ST LM833DT, (TI) TPA3110D2PWPR
    • Microphone Pre-Amplifier Gain: 40dB
    • Power Source: 12V / 2A

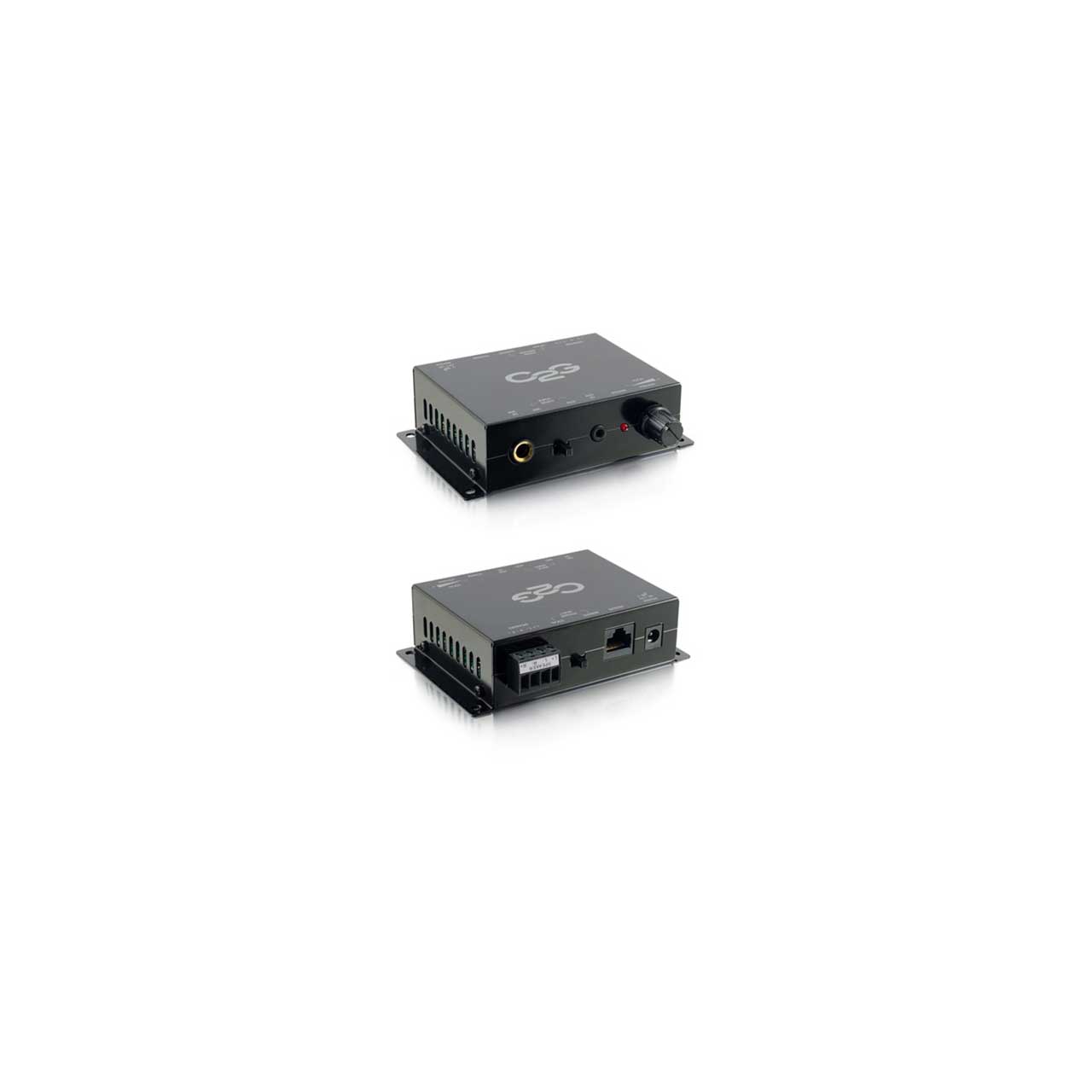

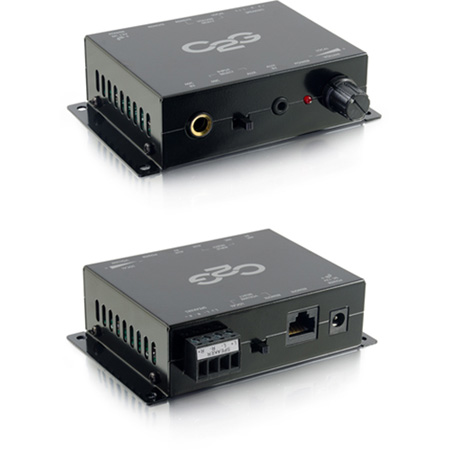

      Amplifier Physical Specifications
    • Amplifier Type: Class D
    • Physical Dimensions (HxWxD) 31 x 113.5 x 97.6mm
    • Material: Housing Steel
    • Inputs: Dynamic Microphone or Stereo Audio Line Level
    • Operating Temperature: 0° to +50°C / 20-80% RH (Non-Condensing)
    • Storage Temperature: -20°to +70°C / 10-90% RH (Non-Condensing)
    • Approvals: RoHS2, FCC

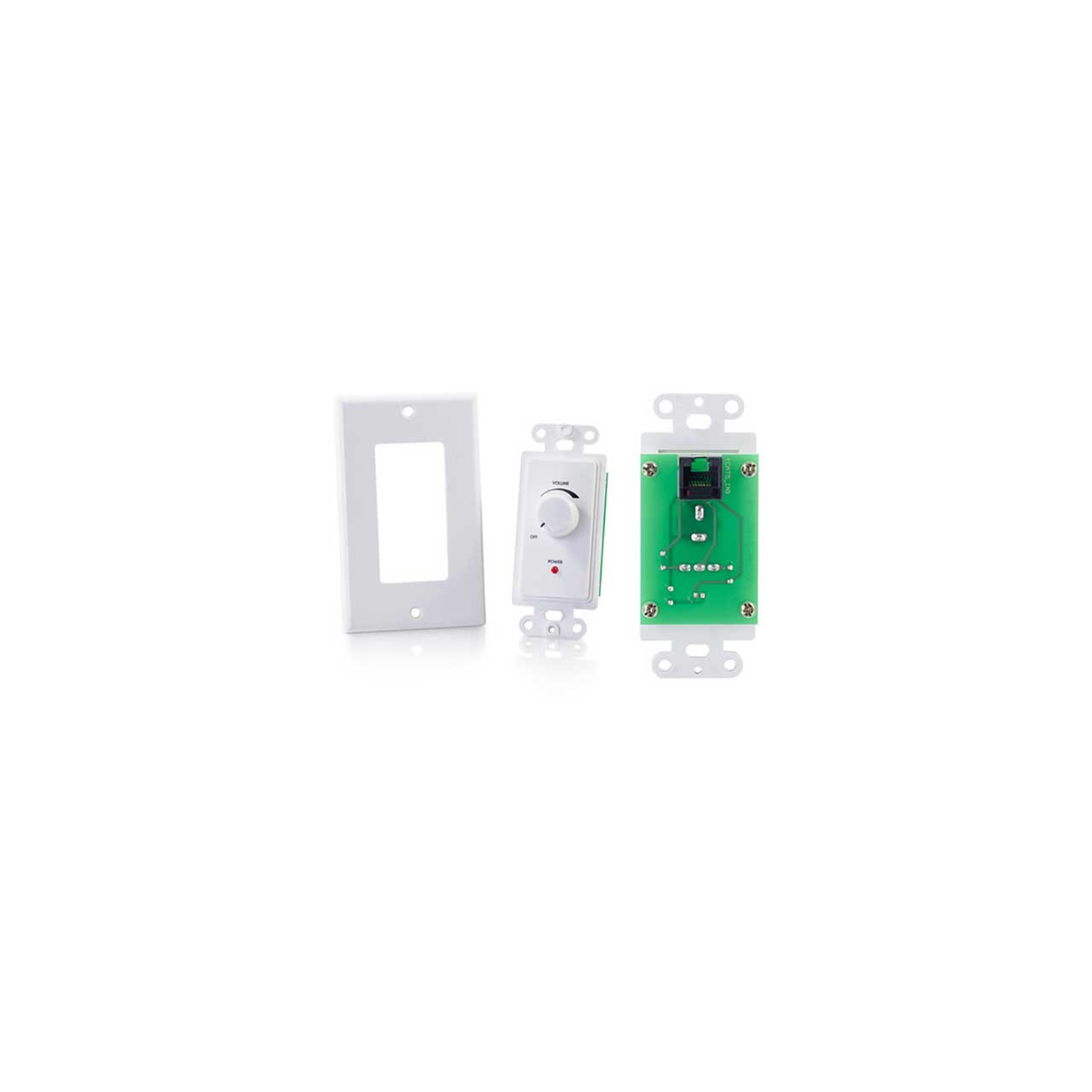

      Volume Control Wall Plate Physical Specifications
    • Wall Plate Overall Physical Dimensions (HxWxD) 114 x 69.5 x 6.5mm
    • Material: ABS
    • Volume Control Plate Overall Dimensions (HxWxD) 103 x 33.1 x 49.6mm
    • Material: ABS
    • Operating Temperature: 0° to +50°C / 20-80% RH (Non-Condensing)
    • Storage Temperature: -20°to +70°C / 10-90% RH (Non-Condensing)
    • Approvals: RoHS2, FCC

  • GTIN:

    0757120409144
