Middle Atlantic DWR-35-22PD DWR Series 35RU / 22 Inch Deep Pivoting Wall Rack

DWR-35-22PD - Overview

• Features:

  • 35RU and 22" Deep

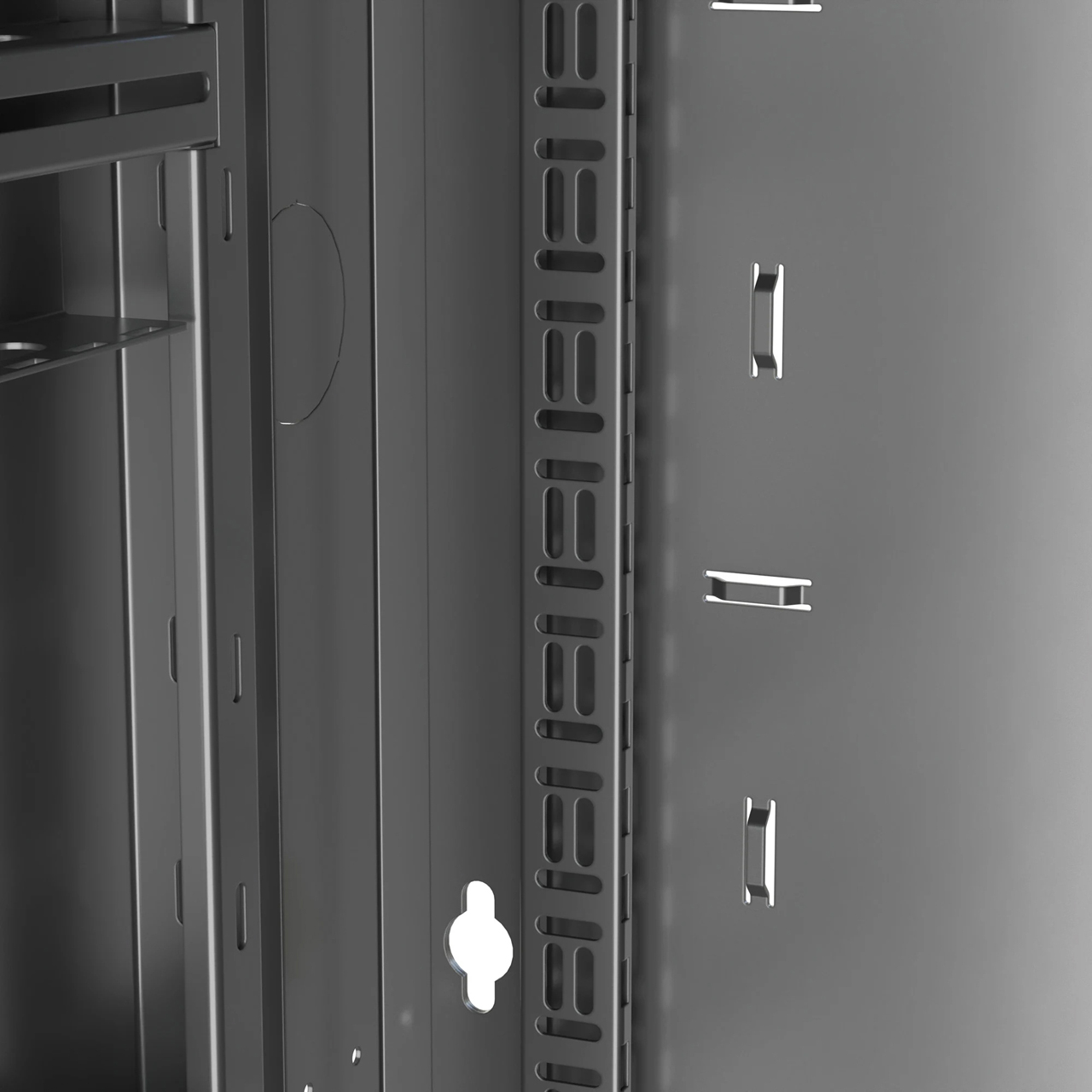

  • Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional (FWD-DWR-RRxx)

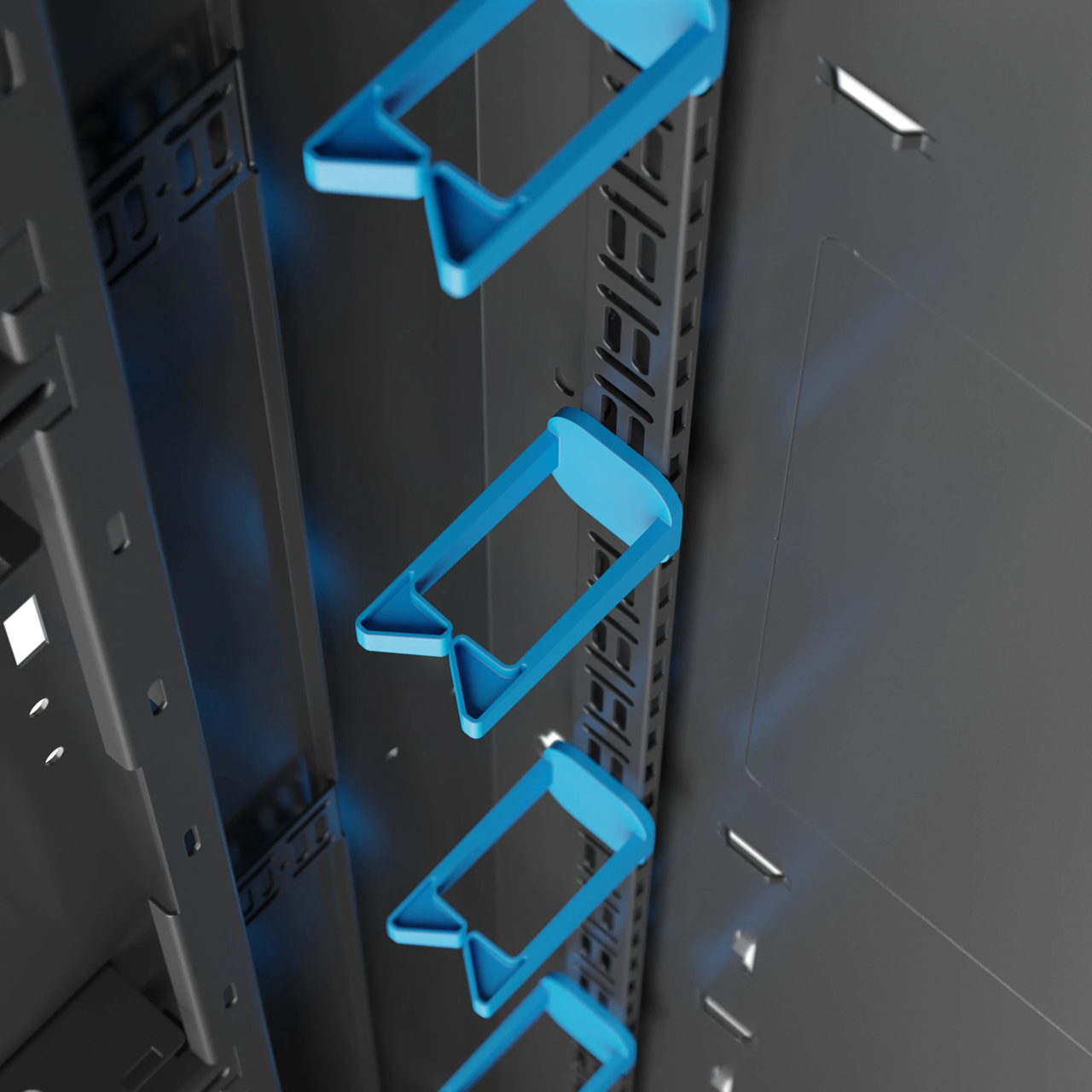

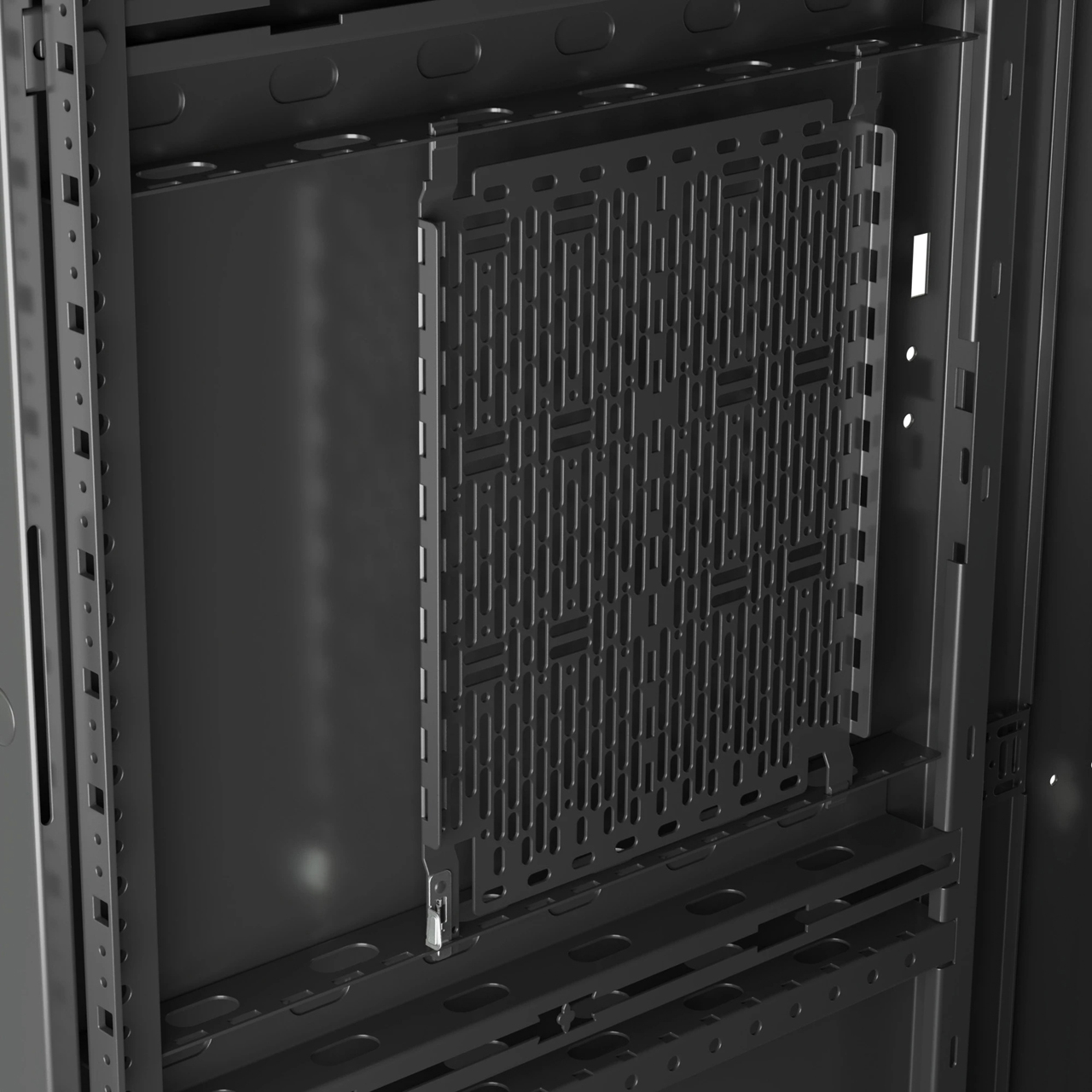

  • Now accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
  • Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch
  • Center section rear channel accommodates optional slim power to save space, including the 10 outlet Select Vertical PDU with RackLink™
  • Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan on the jobsite
  • Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room
  • Center section swing is reversible, and can be both key-locked and padlocked
  • Center section is keyed differently from optional front door for additional security
  • Designed for active or passive cooling to support all systems

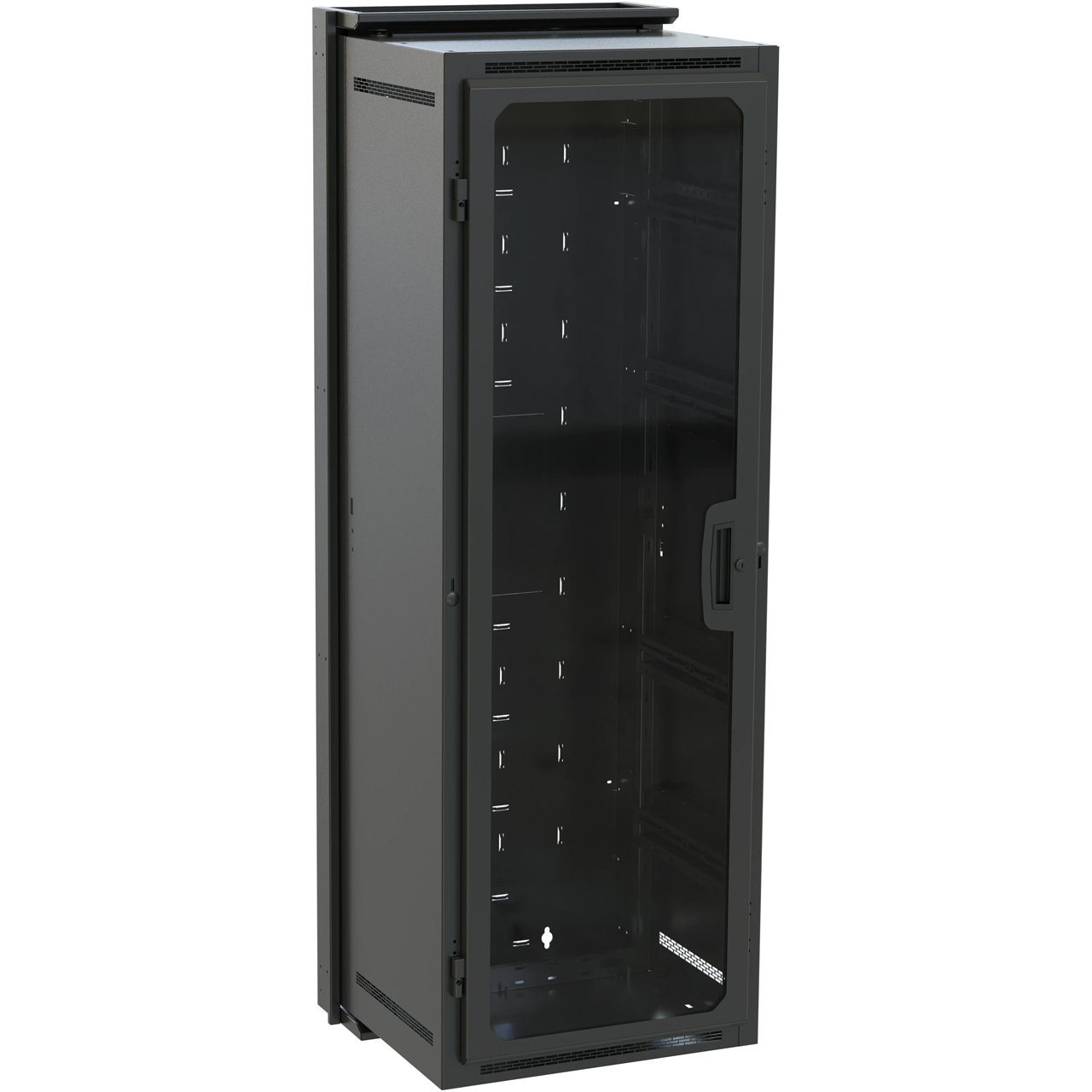

  • Comes with a factory installed plexi door


• Specifications:

  • Available Internationally: Yes
  • Color: Black
  • Door Type: Plexi
  • Federal Ops Country of Origin: USA
  • Finish: Black Wrinkle Powder Coat
  • Forward Compatible: Yes
  • Front Door: Yes
  • Material: Steel
  • Rack Rail Type: Forward Rackrail
  • Seismic Rated: Yes
  • Depth: 22 in (55.9 cm)
  • Height: 68.25 in (173.4 cm)
  • Product Weight: 157.5 lbs (71.4 kg)
  • Rack Units: 35 RU
  • Shipping Weight: 194 lbs (88 kg)
  • UL Load Capacity: 300 lbs (136.1 kg)
  • Usable Depth: 20 in (50.8 cm)
  • Usable Height: 61.25 in (155.6 cm)
  • Width: 23.4 in (59.4 cm)
  • Certifications: CSA Standard, TAA, UL Listed
  • Patent Number: 7278183
  • Seismic Load Capacity: 155 lbs (70.3 kg)
