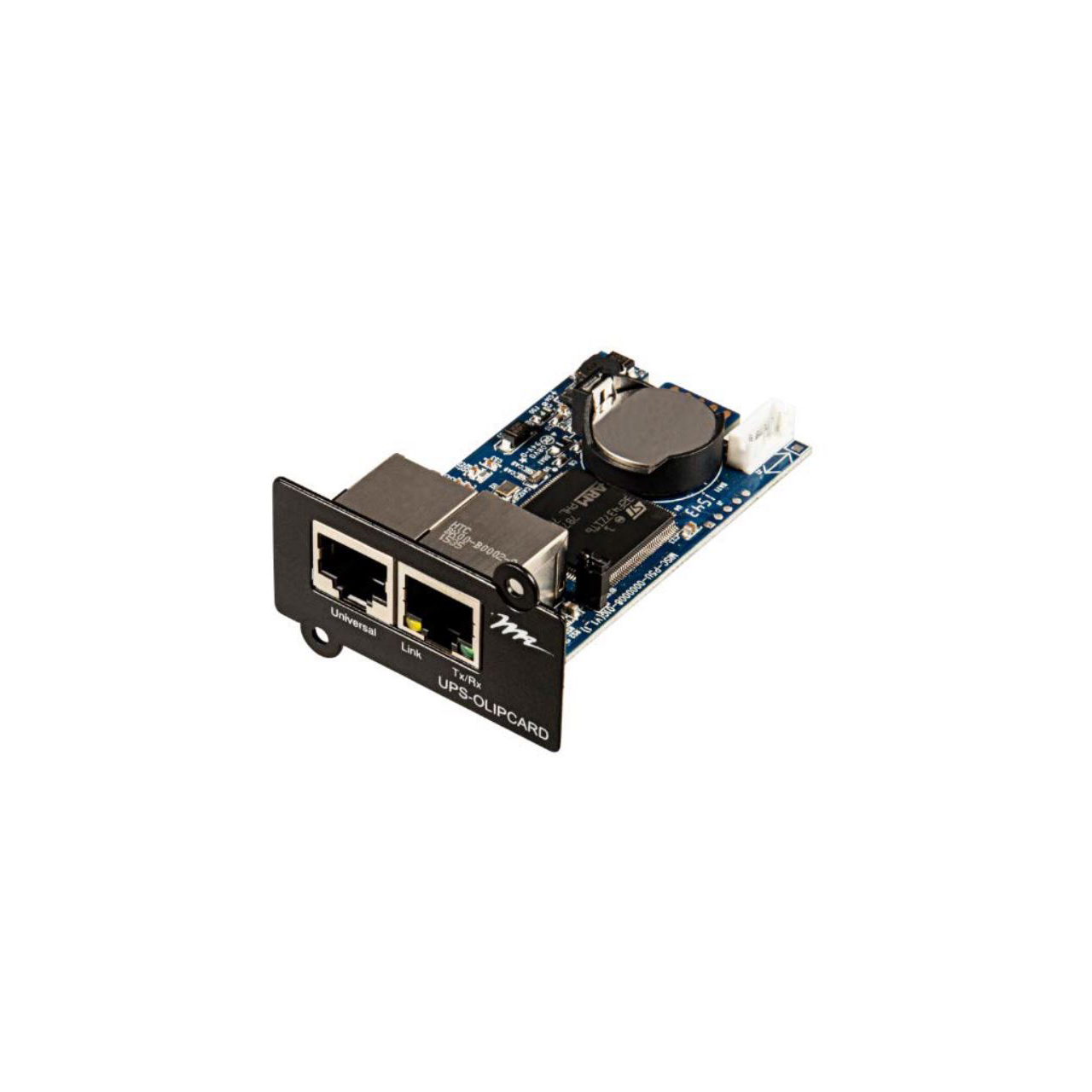

Middle Atlantic UPS-OLIPCARD Hot-Swappable Network Interface Card for Premium Online and Select UPS Models

UPS-OLIPCARD - Overview

• Features:

  • Real time UPS monitoring
  • Remote Management System software provides management and configuration of the UPS via web browser
  • User upgradeable firmware downloads and Remote Management System software updates
  • Auto-shutdown to protect servers/workstations from data lose due to power failure
  • Schedule shutdown/start-up/reboot of the UPS via remote control
  • Event logging to trace UPS operational history
  • Graphic data logging for analyzing power conditions
  • Save and restore configuration settings
  • Event notifications via Email, SNMP traps, Syslog, and SMS
  • Support IPv4/v6, SNMPv1/v3, HTTP/HTTPs, DHCP, NTP, DNS, SMTP, SSH, Telnet, FTP, and
  • Syslog protocol
  • Support Email Secure Authentication Protocols: SSL, TLS
  • Support External Authentication Protocols: RADIUS, LDAP, LDAPS, Windows AD
  • SNMP MIB available for free download
  • Quick installation and user friendly interface
  • Hot-swappable


• Specifications:

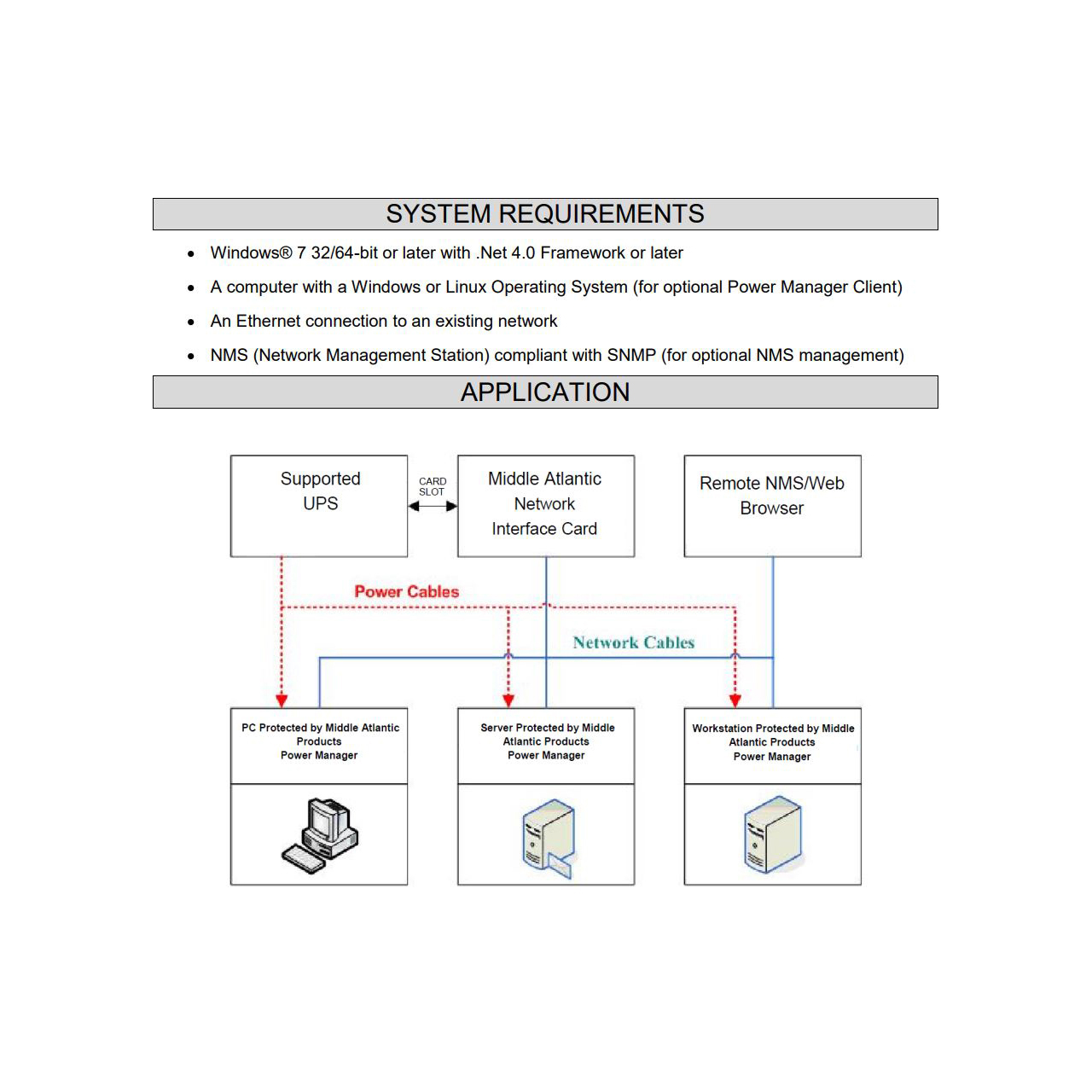

  • System Requirements
  • Windows® 7 32/64-bit or later with .Net 4.0 Framework or later
  • A computer with a Windows or Linux Operating System (for optional Power Manager Client)
  • An Ethernet connection to an existing network
  • NMS (Network Management Station) compliant with SNMP (for optional NMS management)

    Certifications
  • FCC
  • UL Listed


• Item Includes:

  • 1x Middle Atlantic OLIPCARD
  • 1x Quick Start Guide
  • 1x Spare Jumper


• GTIN:

  0656747276255
