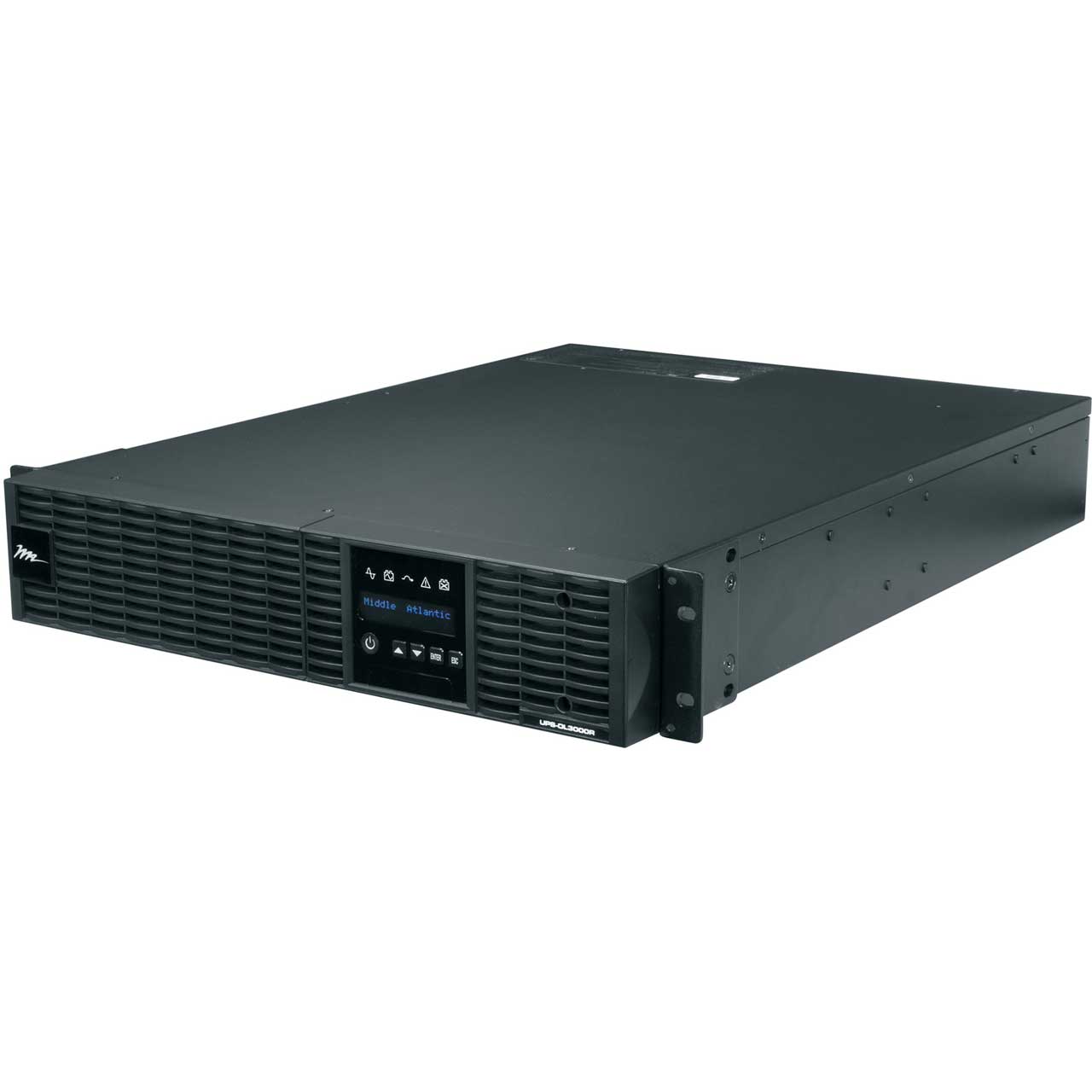

Middle Atlantic UPS-OL3000R 2 RU Premium Online Series UPS Backup Power System (3000VA)

UPS-OL3000R - Overview

• Features:

  • Permanent connection to the battery for zero transfer time eliminating system disruptions and guaranteeing maximum uptime
  • Complete isolation and conditioning of output power with double conversion topology providing the cleanest power possible
  • Reduced ambient noise with quiet variable speed fans
  • Longest run time available in this form factor with the capability to add up to 10 expansion battery packs
  • Front accessible, hot-swappable batteries to eliminate downtime related to UPS power maintenance
  • Pure sine wave output waveform automatically corrects over-voltage and under-voltage conditions
  • Non-critical load shedding
  • EMI/RFI filtering for clean power of connected equipment
  • Monitoring and reporting for real time battery life notifications
  • Removable LCD display & power switch for remote accessible functionality
  • Flexibility to set the output frequency to match connected equipment
  • Remote monitoring and control of power with optional IP card
  • 30A capability twist lock receptacles for larger equipment
  • UPS-OLEBPR-1 expansion battery pack is compatible with this unit
  • UPS-OLRBP-1 replacement battery pack is compatible with this unit


• Specifications:

  • Input Voltage Range: 100~125Vac
  • Input Frequency Range: 50 / 60Hz
  • Input Power Factor: 0.99
  • Cold Start: Yes
  • Output Waveform: Sine wave
  • Output Voltage: 100, 110, 115, 120, 125Vac (Configurable) ±2%
  • Output Frequency: 50 / 60Hz (Auto-Sensing or Configurable) ±0.25Hz
  • Transfer Time (Typically): 0ms
  • Rated Power Factor: 0.9
  • Capacity (Watts): 2700W
  • VA: 3000VA
  • Harmonic Distortion: THD < 3% at Linear Load, < 5% at Non-linear Load
  • Crest Factor: 3:1
  • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
  • UPS Outlets: (6) NEMA 5-20R, (1) L5-30R
  • Surge Protection: IEC 61000-4-5 Level 3
  • Phone / Network Protection: RJ11/RJ45 (One In/One Out)
  • Battery: (6) 12V/9AH
  • Recharge Time (Typically): 5 hours for 0-100% Capacity; 4 hours for 0-90% Capacity

    Overload Protection
  • Line Mode: 105~125% Load for 1 min, 126~150% Load for 10 sec
  • Battery Mode: 105~130% Load for 10 sec, 131~150% Load for 2 sec
  • Short Circuit Protection: UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection


  • Operating Temperature: 32°F to 104°F ( 0°C to 40°C)
  • Operating Relative Humidity: 0 to 90% Non-Condensing
  • Form Factor: Rackmount
  • Depth: 22.26 in
  • Height: 3.46 in
  • Width: 19 in
  • Conformance Approvals: UL
  • RoHS: RoHS Compliant


• Item Includes:

  • 1x 1.5KVA or 2.2K/3KVA UPS
  • 1x Rackmount Left Rail
  • 1x Rackmount Right Rail
  • 1x Left Hanging Bracket
  • 1x Right Hanging Bracket
  • 2x Rackmount Ears
  • 1x Phone Line
  • 1x USB Communication Cable
  • 1x Serial Interface Cable (RS-232)
  • 4x Pan Head Screws: M5x12L
  • 8x Flat Head Screws: M5x7L
  • 6x Pan Head Screws: M5x6L
  • 12x Pan Head Screws: 10-32x1/2L
  • 12x Screw Hole Dust Covers


• GTIN:

  0656747272592
