Middle Atlantic UPX-2000R-2 NEXSYS Series - UPS Backup Power with RackLink - 2000VA

Name: Middle Atlantic UPX-2000R-2 NEXSYS Series - UPS Backup Power with RackLink - 2000VA
Brand: Middle Atlantic Products
SKU: MAP-UPX-2000R-2
Price: 2430.00 USD
Availability: InStock

ITEM #: MAP-UPX-2000R-2 MFG #: UPX-2000R-2

Middle Atlantic Products

List Price:

$2,700.00

Our Price:

$2,430.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

UPX-2000R-2 - Overview

NEXSYS is built on a promise that Middle Atlantic kept for over two decades - more than half the life of the company - that their power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And the NEXSYS Line Interactive UPSs prove it. They are built with premium components to keep your AV systems running as smoothly as you'd expect.

Features:
- 2000VA
- 20 Amp
- 8 Outlets with Bank Control - (2) outlet banks with 4 outlets each
- An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
- Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
- "NEXSYS, alert me when...". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required
- All UPSs include a 6' (1.8m) IEC power cord

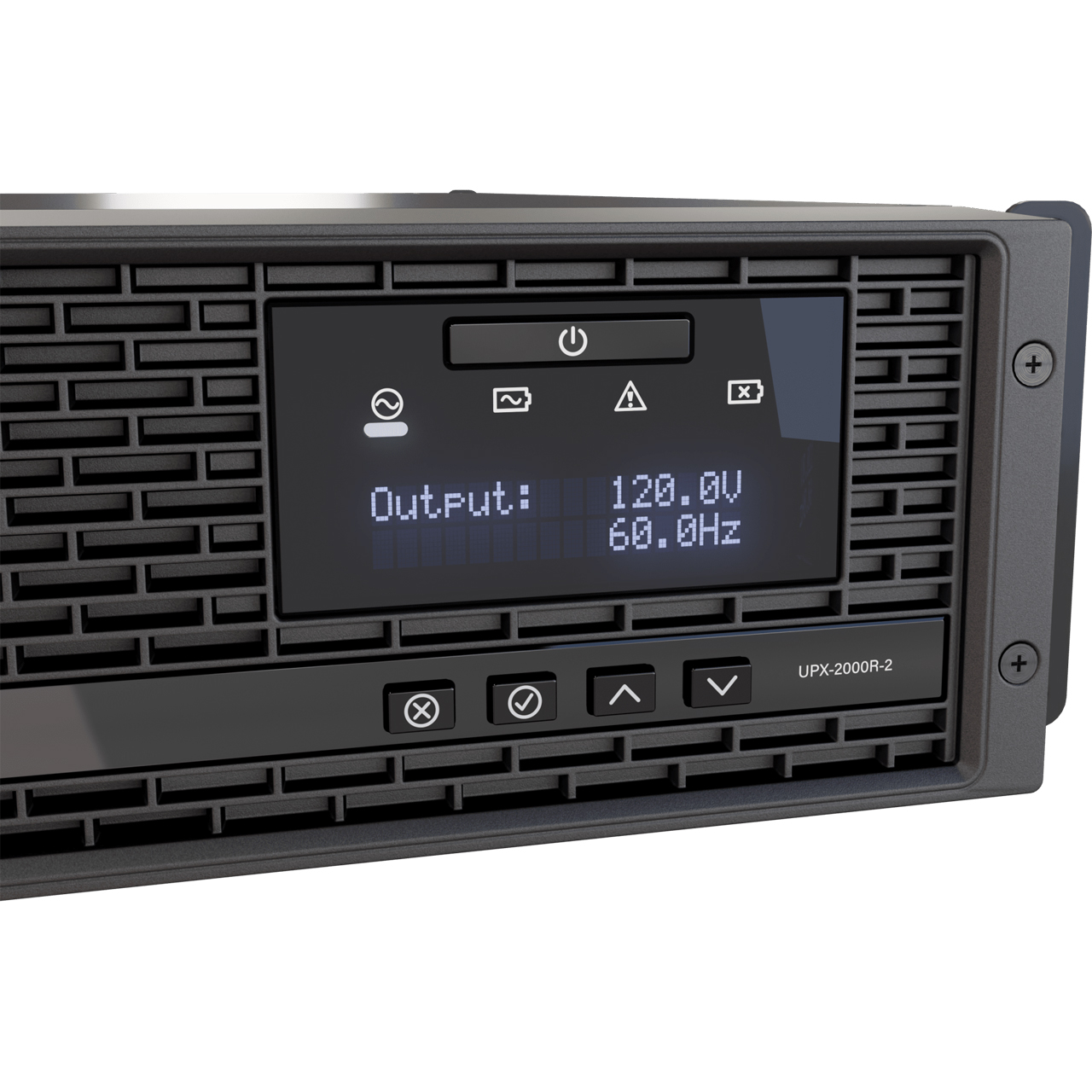

- Name, address, and date of birth, please? Easily locate the Serial Number, replacement Battery Part Number, Battery Replacement Date, and UPS Firmware Version via the front LCD screen. You can even see the battery installation date.
- Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards
- Swap it like it's hot. Hot swappable battery from the front access panel for easy service without disrupting the system
- Add RackLink™ Remote Management. The NEXSYS UPS is RackLink compatible (RackLink card sold separately) and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices.
- Included RS232 port for control
- (2) dry contact ports for alerts, 1 is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold, the other is defined to alert users when the battery level is low based on usage with customizable thresholds
- Energy Star Certified
Specifications:
- AC Voltage Input: 120 VAC
- AC Voltage Output: 110V, 120V, 127V
- Amps: 20 Amp
- Cord Length: 6 ft (1.8 m)
- Depth: 16 in (40.6 cm)
- Height: 3.46 in (8.8 cm)
- Mounting Depth Max: 36 in (91.4 cm)
- Mounting Depth Min: 22 in
- Operating Temperature: 32°F - 104°F
- Primary Package Weight: 71 lbs (32.2 kg)
- Product Weight: 63 lbs (28.6 kg)
- Rack Units: 2 RU
- VA: 2000 VA
- Volts AC: 120 VAC
- Volts DC: 48 VDC
- Watts: 1800 W
- Width: 19 in (48.3 cm)
- Isolated Ground: No
- Mounting Points: 4
- Network Card Included: No
- Network Enabled: Yes
- Outlet Control Type: Bank
- Outlet Count: 8
- Plug Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20R
- Special Features: NEXSYS UPS
- Surge Protection Type: MOV
- Topology: Line Interactive
Item Includes:
- 1x UPS Unit
- 1x Power Cord Retainer
- 1x Power Cord
- 1x 36" USB-B to USB-A Cable
- 1x RS-232 Cable
- 3x Connector
Warranty:
- 3 Year Limited Warranty (2 year for battery)
GTIN:
0656747395598

UPX-2000R-2 - Recommended Accessories

AC Powerstrip Piggyback Outlet Saver Extension Cord - 1 Foot
12PS2
Our Price: $8.95
Middle Atlantic 5-43 Slim 5 Series Equipment Rack Enclosure - 43RU
5-43
Our Price: $670.50
Connectronics 18 AWG IEC Power Cord NEMA 5-15P to IEC-60320-C13 - 6 Foot
POWER-6
Our Price: $5.99
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
Middle Atlantic QBP-2 1RU Quiet Blower Panel - 100 CFM - 32dB - Flat Finish
MAP-QBP-2
Our Price: $546.30
Middle Atlantic LT-GN-PNL One Rackspace Rackmount Panel with Dual Gooseneck LED Lights
LT-GN-PNL
Our Price: $144.00
