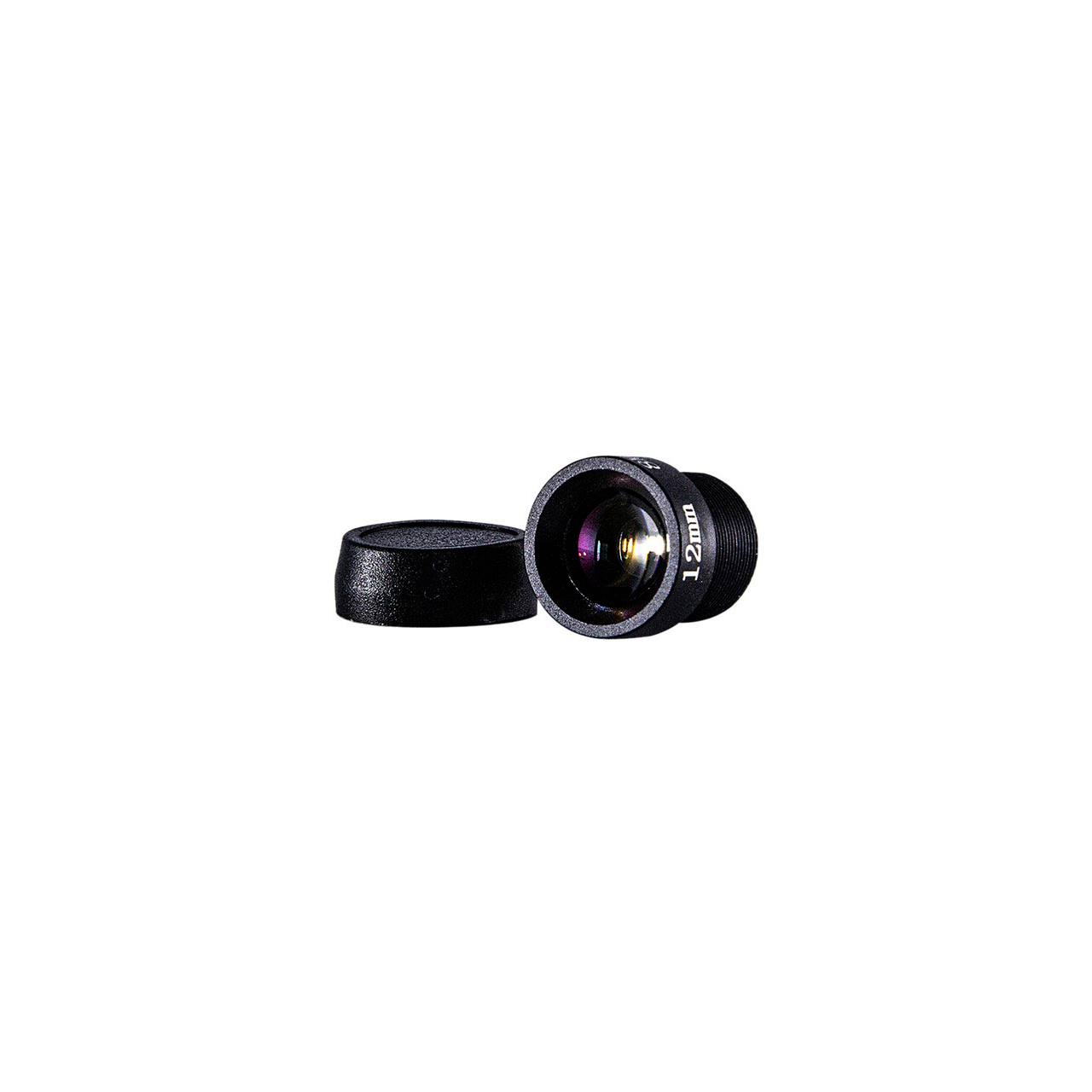

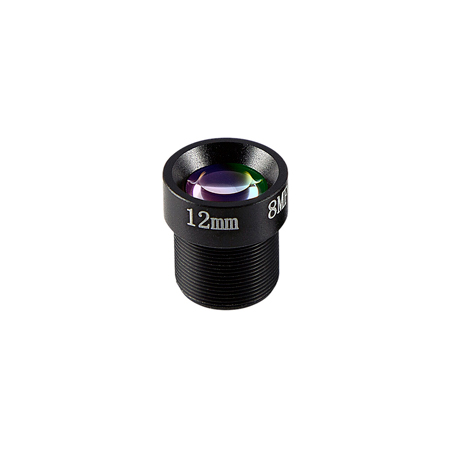

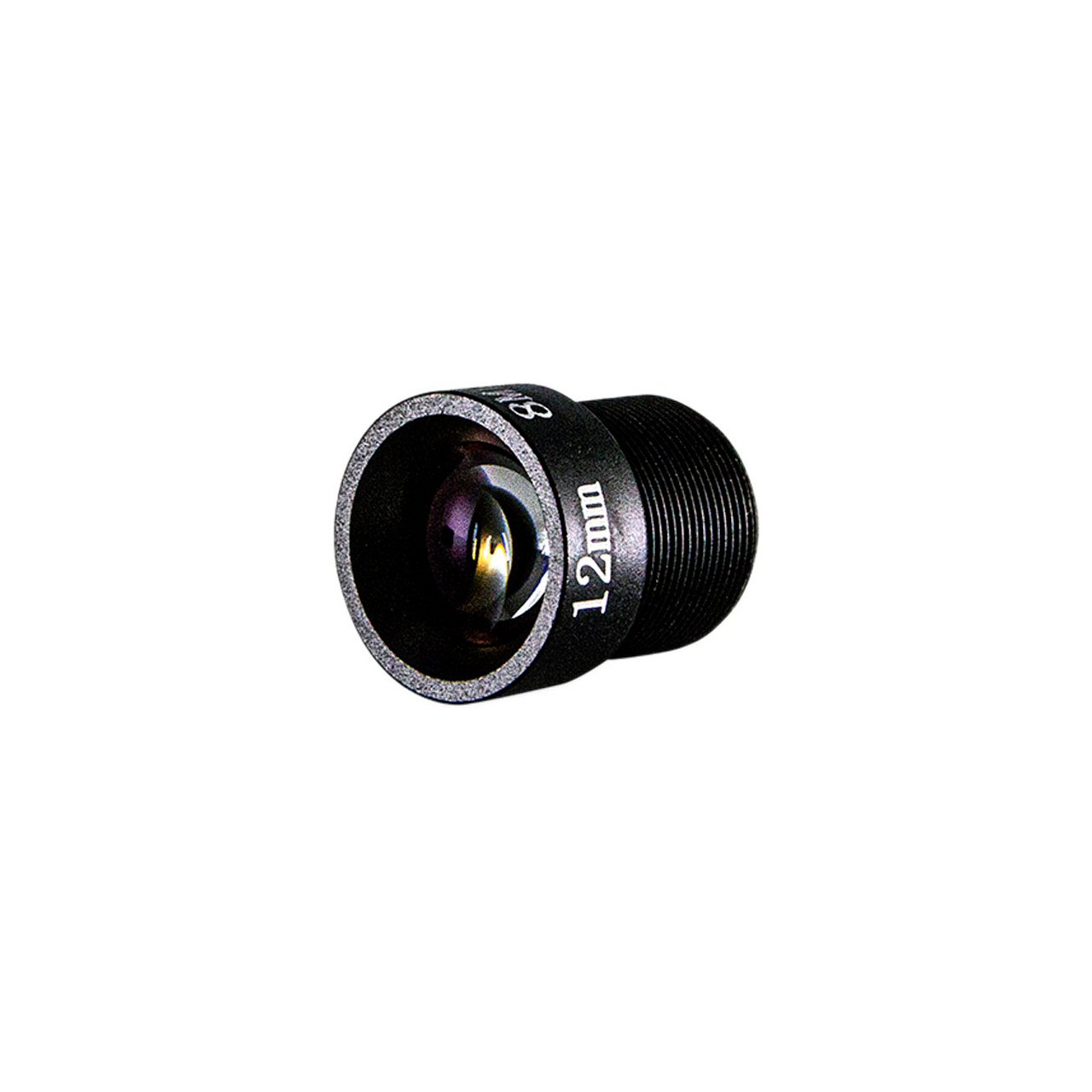

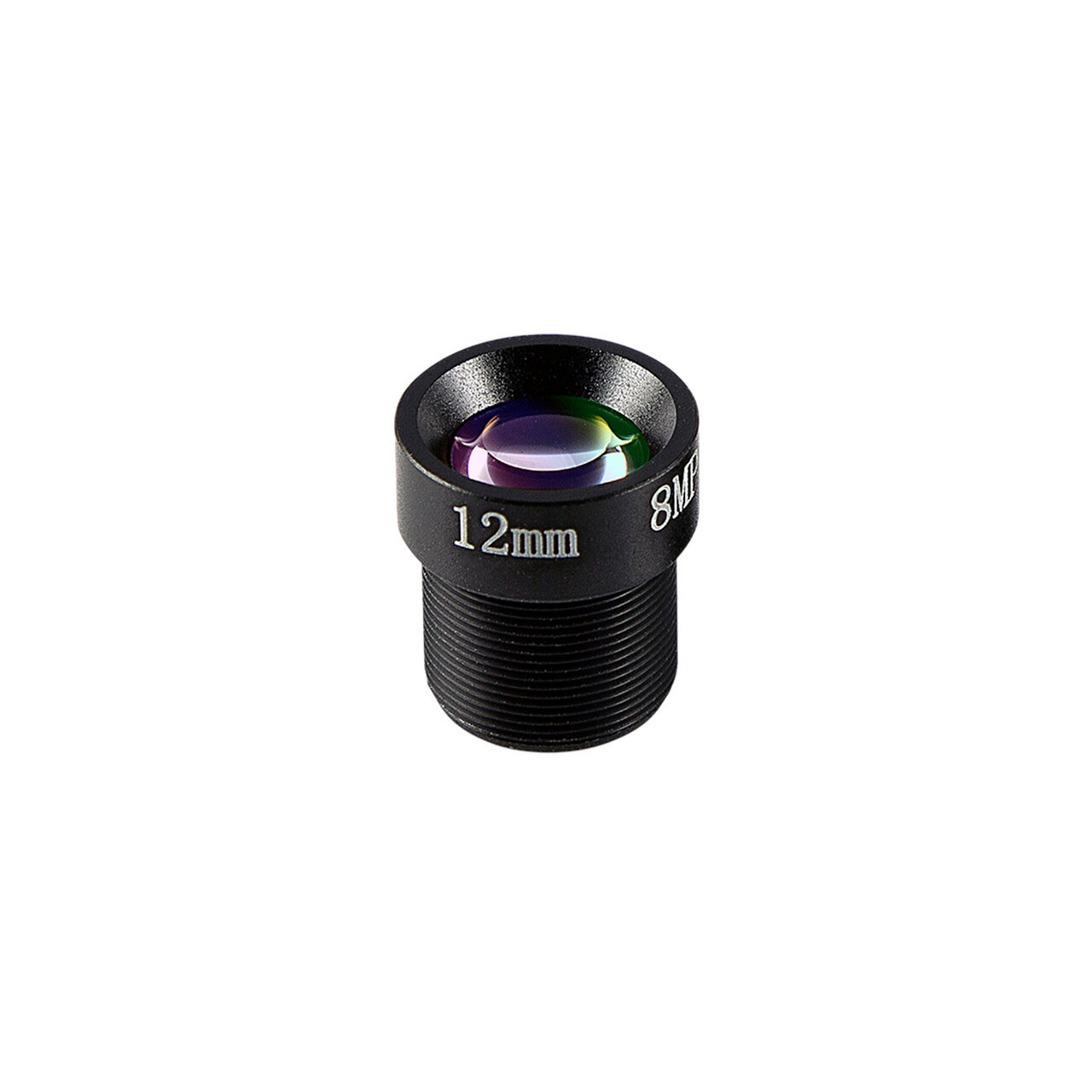

Marshall CV4812-8MP 12mm F1.8 8MP M12 Lens

ITEM #: MAR-CV4812-8MP MFG #: CV4812-8MP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$49.99

Our Price:

$44.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CV4812-8MP - Overview

The CV4812-8MP 12mm f/1.8 M12 8MP Lens from Marshall Electronics supports up to 8MP video resolutions and incorporates an M12 lens mount. This fixed-focus prime lens features a coating on the rear element that minimizes IR contamination for a clean image. Use the 12mm lens with CV570 or CV574 POV cameras or any Marshall M12-mount camera.

  • Specifications:

    • Lens Mount: M12
    • Sensor Compatibility:
    • - 1/2.5"
    • - 1/2.7"
    • - 1/3"
    • Focal Length: 12mm
    • Back Focal Length: 11.5mm
    • Maximum Aperture: f/1.8
    • Focus Type: Fixed Focus
    • Iris Type: Fixed
    • IR Corrected: Yes
    • Operating Conditions: -4°F - 140°F (-20°C - 60°C)
    • Angle of View:
    • 1/2.5"-Type Sensor
    • - Horizontal: 50°,
    • - Vertical: 29°,
    • Diagonal: 65°
    • 1/2.7"-Type Sensor
    • - Horizontal: 42°,
    • - Vertical: 25°, Diagonal: 56°
    • 1/3"-Type Sensor
    • - Horizontal: 33°,
    • - Vertical: 20°,
    • -Diagonal: 48°

  • Item Includes:

    • 1x Marshall Electronics 12mm f/1.8 8MP M12 Lens

  • GTIN:

    0801813232646
