Marshall CV-PT-HEAD Micro PT Head for CV502/503/505/506/565/566 POV Cameras

ITEM #: MAR-CV-PT-HEAD MFG #: CV-PT-HEAD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,499.00

Our Price:

$1,299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    CV-PT-HEAD - Overview

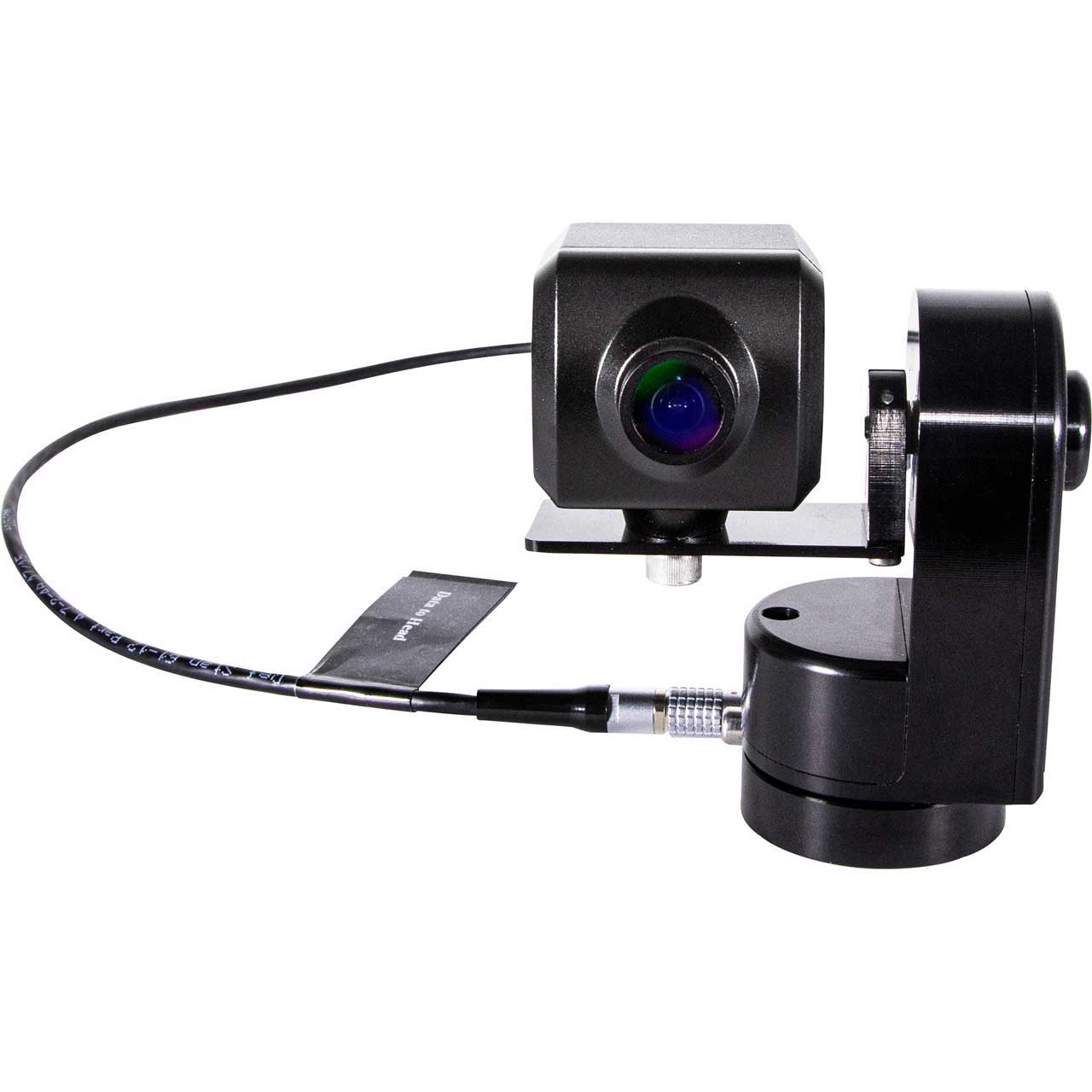

    The CV-PT-HEAD Micro PT Head is just 90mm (approx. 3.6 inches) tall and is possibly the smallest remote head of its type ever!

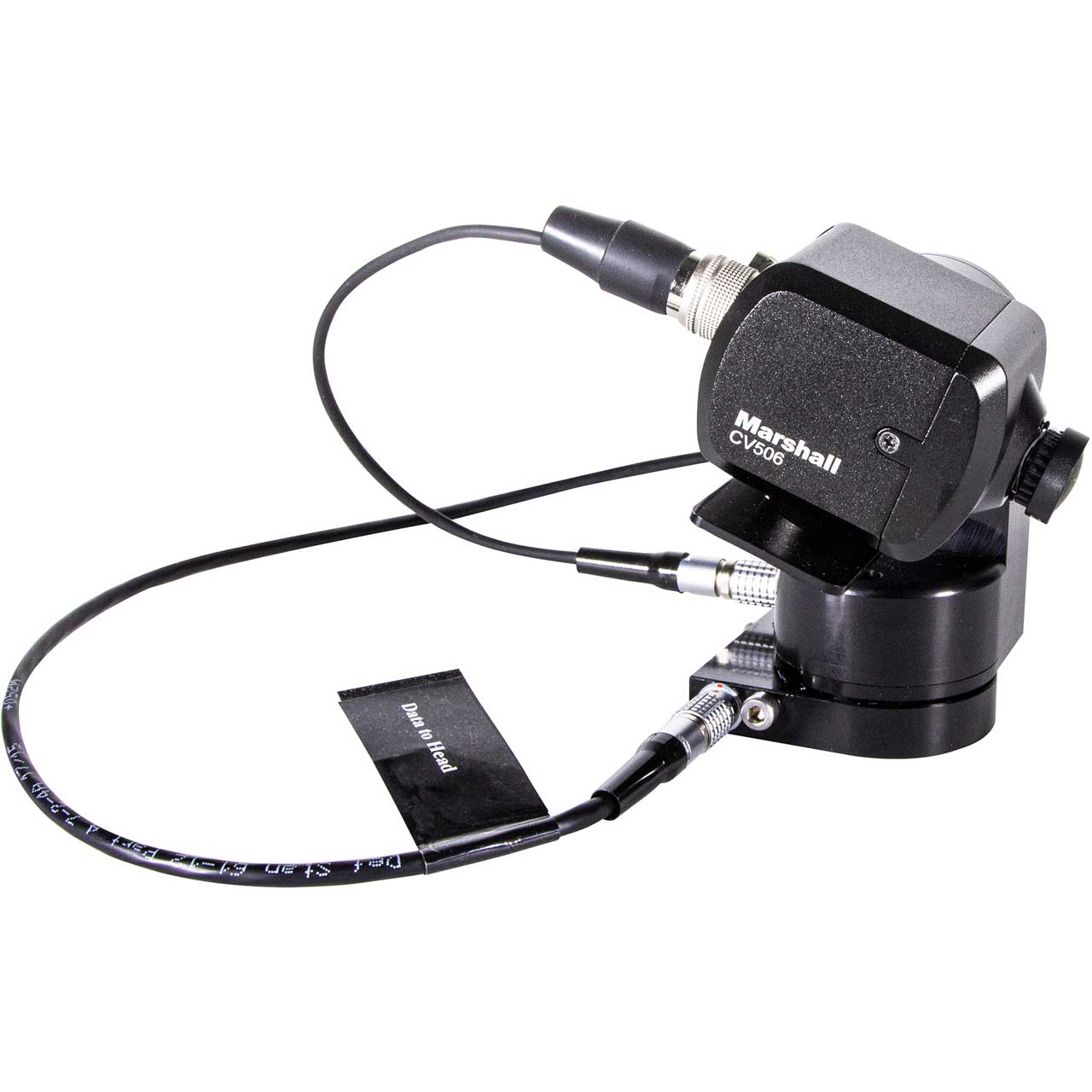

    Suitable for Marshall CV500-series cameras, such as CV503, CV506, CV565, CV566, and because CV-PT-HEAD is already weatherproof, best suited for use with the CV503-WP weatherproof cameras. This combination offers both indoor and outdoor shot possibilities previously unattainable.

    The input voltage is from 12v to 35v offering a huge range on a cable if you increase the supply voltage from 12v. There is a built-in camera power supply delivering a constant 12v to the camera socket as well as camera control data.

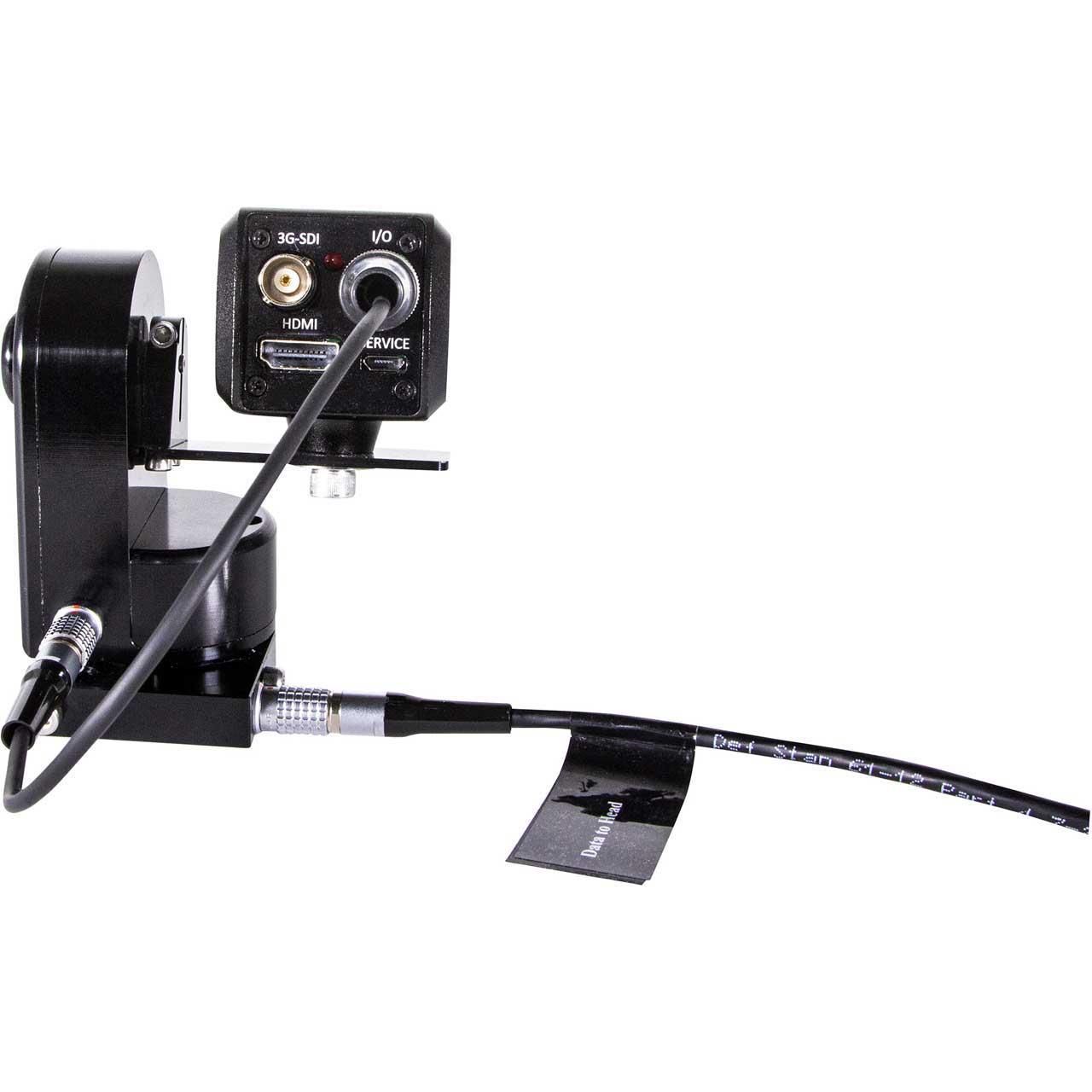

    Unusually for a head as small as this, the input socket for power and control data is on the fixed base. This allows for better freedom of movement, with the camera socket on the moving part with the camera.

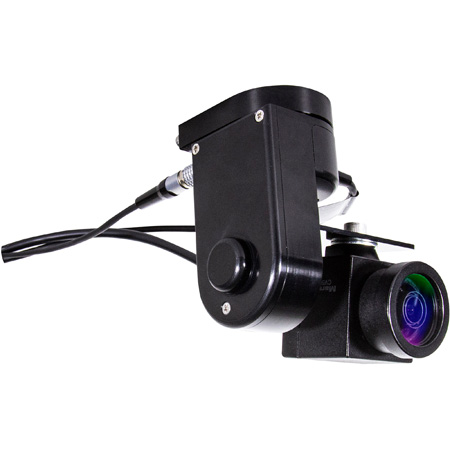

    There are also 2 safety bond points on different faces of the base. There should always be one accessible, even in tight spaces. And if you want to hang it upside down - no problem. There are 3x M4 mounting threads as well as a 1/4"-20 camera thread on the base.

    The CV-PT-HEAD can be controlled by CV-MICRO-J2 or any BR Remote style controller (items sold separately). These controllers generate RS485 data which can be connected directly to the CVPT-HEAD or sent via an IP network with IP adaptors. The RS485 data can be sent up to 3,000+ feet (1km) on the included four (4) pin XLR cable.

    Applications
    The CV-PT-HEAD is suitable for use in Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Concerts, Confidence, Observation, Nature.

    • Features:

      • Smooth simultaneous pan & tilt movements
      • 350° horizontal pan range
      • 360° vertical tilt range
      • Durable IP65 weatherproof body
      • Standard1/4"-20 mount access from bottom
      • Mount on common camera stands or inverted (flip image)
      • PT head payload: 400 grams & 20-60mm wide camera
      • 12~35V @ 0.5A + camera (12V @ 1A)

    • Specifications:

      • Power: 12 - 35v @ 0.5A + camera
      • Camera power: 12v @ 1A
      • Weight: 250gm.
      • Payload: 400gm. 20 - 60mm wide
      • Cam Protocols: Marshall VISCA
      • Pan Range: 350 deg.
      • Tilt Range: 360 deg.
      • Environmental: IP65 (with plugs)

    • Item Includes:

      • CV-PT-HEAD

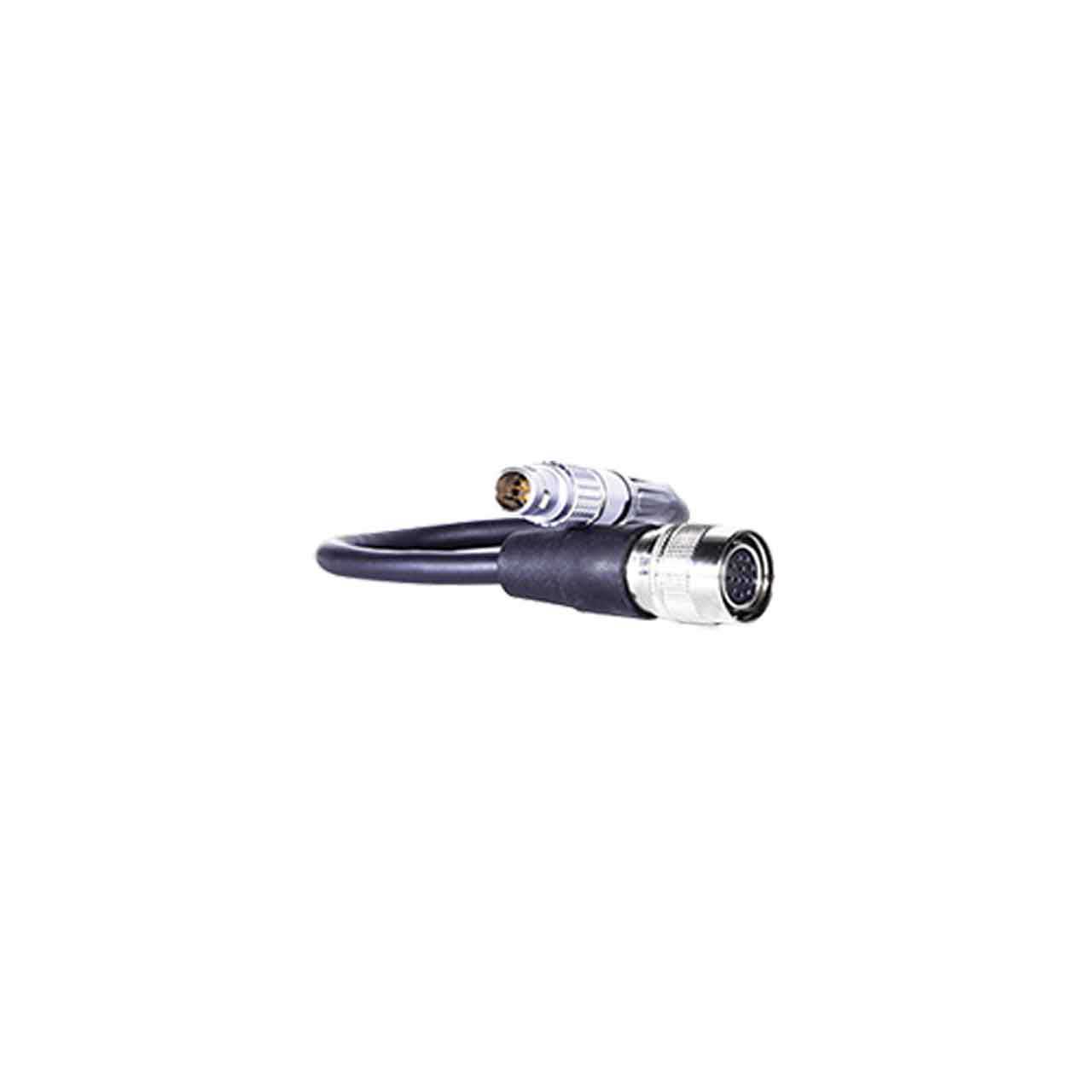

      • Lemo (base) to Hirose (camera) cable to connect to the CV-MICRO-J2 controller and Marshall cameras (items sold separately).

    • GTIN:

      0801813227581
