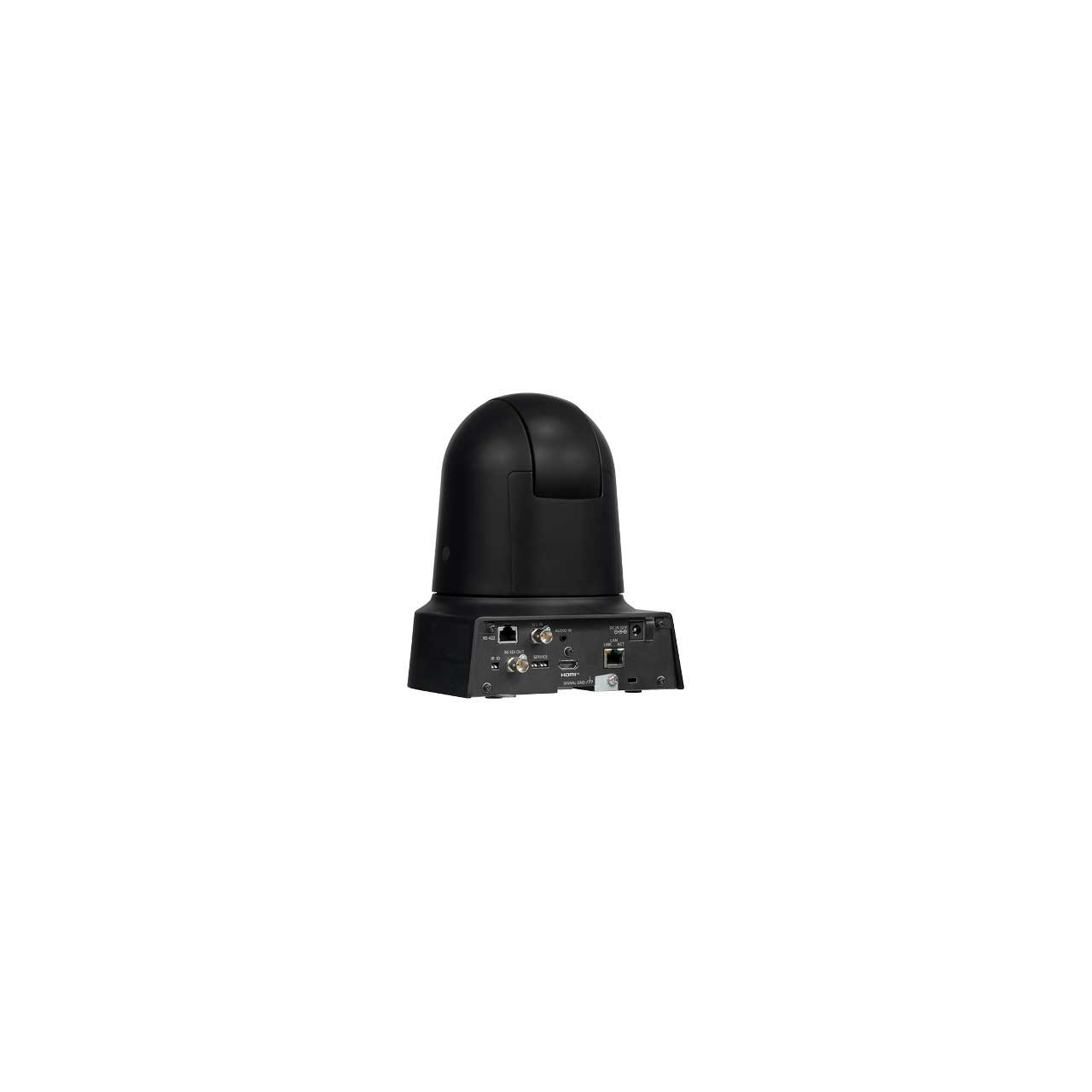

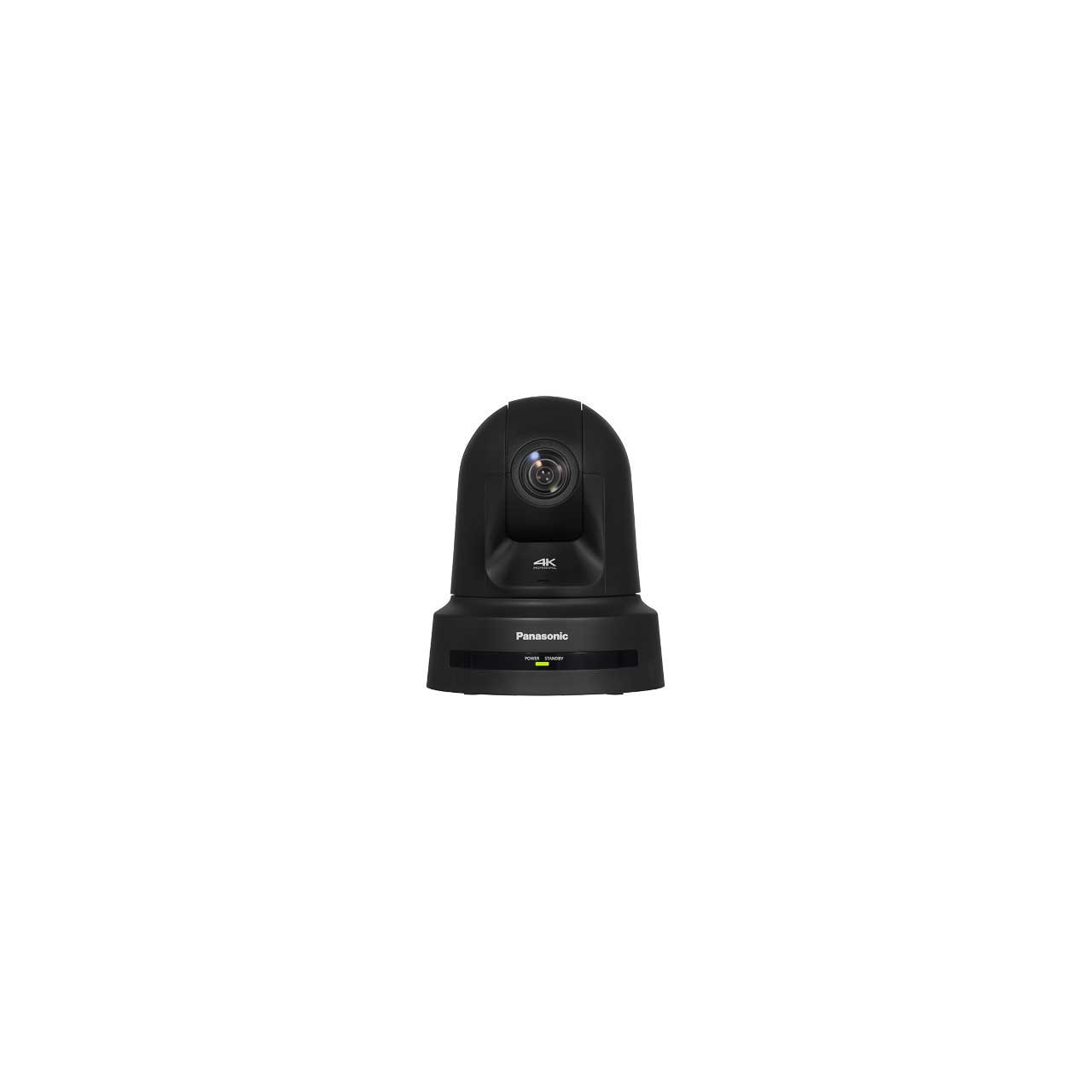

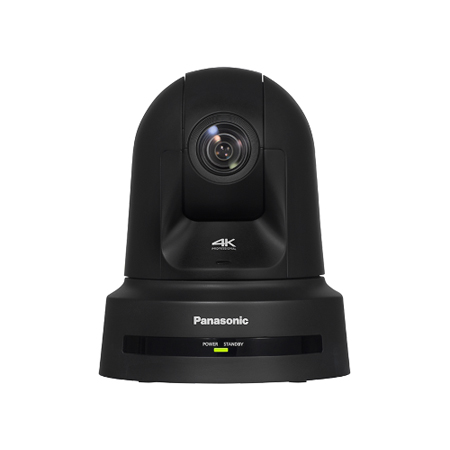

Panasonic AW-UE80 Motorized Optical 24x Zoom 4K PTZ Camera - Black

AW-UE80KPJ - Overview

• Features:

  • Compact & quiet design blends in smoothly with the surroundings.
  • The inconspicuous, small dome-shape design blends in with the surroundings to minimize "the feeling of being recorded on video."
  • Low operating sound for anywhere use.
  • Original image stabilizer ensure clear and stable video recording.
  • Can be suspended from the ceiling or mounted on a tripod for shooting from locations too difficult for a person to enter.
  • Flexibly adapt to various video shooting situations such as large-scale shooting.
  • 4K resolution, wide angle and high-magnification zoom maintains "the lively ambience in the hall" intact in streaming videos.
  • Single controller can control up to 200 camera units.
  • Supports FreeD to enable low-cost AR/VR shooting.
  • High-quality videos resistant to interruption and with a low latency.
  • Smooth playback of high-quality videos.
  • Secure and stable streaming protocol for reduced risk of communication trouble.


• Specifications:

  • Comprehensive
  • Power Requirements: 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
  • PoE++: IEEE802.3bt compliant: DC42 to 57 V (Camera Input) (Software authentication (LLDP) is supported)
  • Current Consumption: 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
  • Ambient Operating Temperature: 0° to 40°C (32° to 104°F)
  • Allowable Humidity Ranges: 20 % to 90 % (no condensation)
  • Storage Temperature: -20°C to 50°C (-4°F to 122°F)
  • Mass: Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),
  • Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket)
  • Dimensions (WxHxD): 170 x 211 x 171mm (6.6 x 8.3 x 6.7")
  • Finish:
    AW-UE80W: White
    AW-UE80K: Black
  • Compatible Controllers: AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2

    Camera Part
  • Image Sensors: 1/2.5-type 4K MOS x 1
  • Effective Pixels: Approx. 8,490,000 pixel
  • Lens:
    Motorized Optical 24x zoom, F1.8 to F4.0
    [f=4.12 mm (5/32") to 98.9 mm (3-29/32")
    35 mm (1-3/8") equivalent: 25.0 mm (31/32") to 600.0 mm (23-5/8")]
  • Zoom:
    Optical Zoom: 24x
    i.Zoom UHD 28x, FHD 36x
    Digital Extender Zoom: 1.4x, 2x
  • Conversion Lens: Not supported
  • Angle of View Range: Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
  • Vertical Angle of View: 46.0° (wide) to 1.9° (tele)
  • Diagonal Angle of View: 81.8° (wide) to 3.8° (tele)
  • Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode")
  • Focus: Switching between auto and manual
  • Focus Distance:
    Entire zooming range: 1200 mm (3.9 ft)
    Wide end: 100 mm (0.33 ft)
  • Color Separation Optical System: 1MOS
  • Minimum Illumination: 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
  • Horizontal Resolution: 1,500 TV Typ (Center area, UHD mode, wide)
  • 1,000 TV Typ (Center area, FHD mode, wide)
  • Gain Selection: Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
  • Frame Mix: Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
  • Electronic Shutter Speed:
    59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
  • Synchro Scan:
    59.94p/59.94i: 60.0 Hz to 7200 Hz
    29.97p: 30.0 Hz to 7200 Hz
    23.98p/24p: 24.0 Hz to 7200 Hz
    50p/50i: 50.0 Hz to 7200 Hz
    25p: 25.0 Hz to 7200 Hz
  • Gamma: HD / Normal / Cinema1 / Cinema2 / Still Like
  • White Balance:
    ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
    AWB: AWB-A / AWB-B
    VAR (selectable between 2000 K and 15000 K by designating a value)
  • Chroma Amount Variability: OFF, -99 % to 99 %
  • PLEASE NOTE: For a list of FULL specifications, please visit the Attachments Tab


• GTIN:

  0885170388291
