AIDA Imaging AIDA-PTZ-NDI-X18 Broadcast/Conference NDI/HX FHD NDI/IP/HDMI PTZ Camera with 18x Zoom - Black

ITEM #: AIDA-PTZ-NDIX18B MFG #: AIDA-PTZ-NDI-X18B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$795.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AIDA-PTZ-NDI-X18B - Overview

Setting a new standard to NDI|HX PTZs
Lets face it, finding a quality NDI|HX PTZ is like finding a needle in a haystack. Allow us to make your search easier. Introducing the PTZ-NDI-X18, the most cost-effective NDI|HX PTZ camera to date. Featuring a staggering 18x optical zoom and Sony progressive CMOS sensor, capturing a quality broadcast has never looked better. The PTZ allows for simulataneous HDMI and IP streaming capabilities, making this PTZ a one-man-streaming machine, without breaking the bank.

No-Hassle Integration
As always, the PTZ-NDI-X18 comes pre-loaded with its NDI|HX license key. It just makes sense that way!

Silence is Golden
The PTZ's finely tuned motion mechanism allows for smooth and silent PTZ actions.

Tally Light Integration
The PTZ-NDI-X18 comes equipped with a small, discreet tally light to ensure your talents are focused, and undisctracted.

(Un)limited Ways to Control
The PTZ comes standard with a physical remote, web UI control, as well as SONY VISCA, VISCA OVER IP, and NDI control. You will never run out of ways to move this camera!

Get Up Close and Personal
The PTZ comes loaded with a 18x Optical zoom, which allows for a wide FOV of 60°, to a zoomed in 4°. No quality lost here!

PoE+ Capable
With the ability to run power, control and video over one ethernet cable, you will never use the wall plug again.

The PTZ That Keeps Giving
This PTZ is capable of running NDI|HX, IP and HDMI streams simultaneously, making this the ultimate streaming machine.

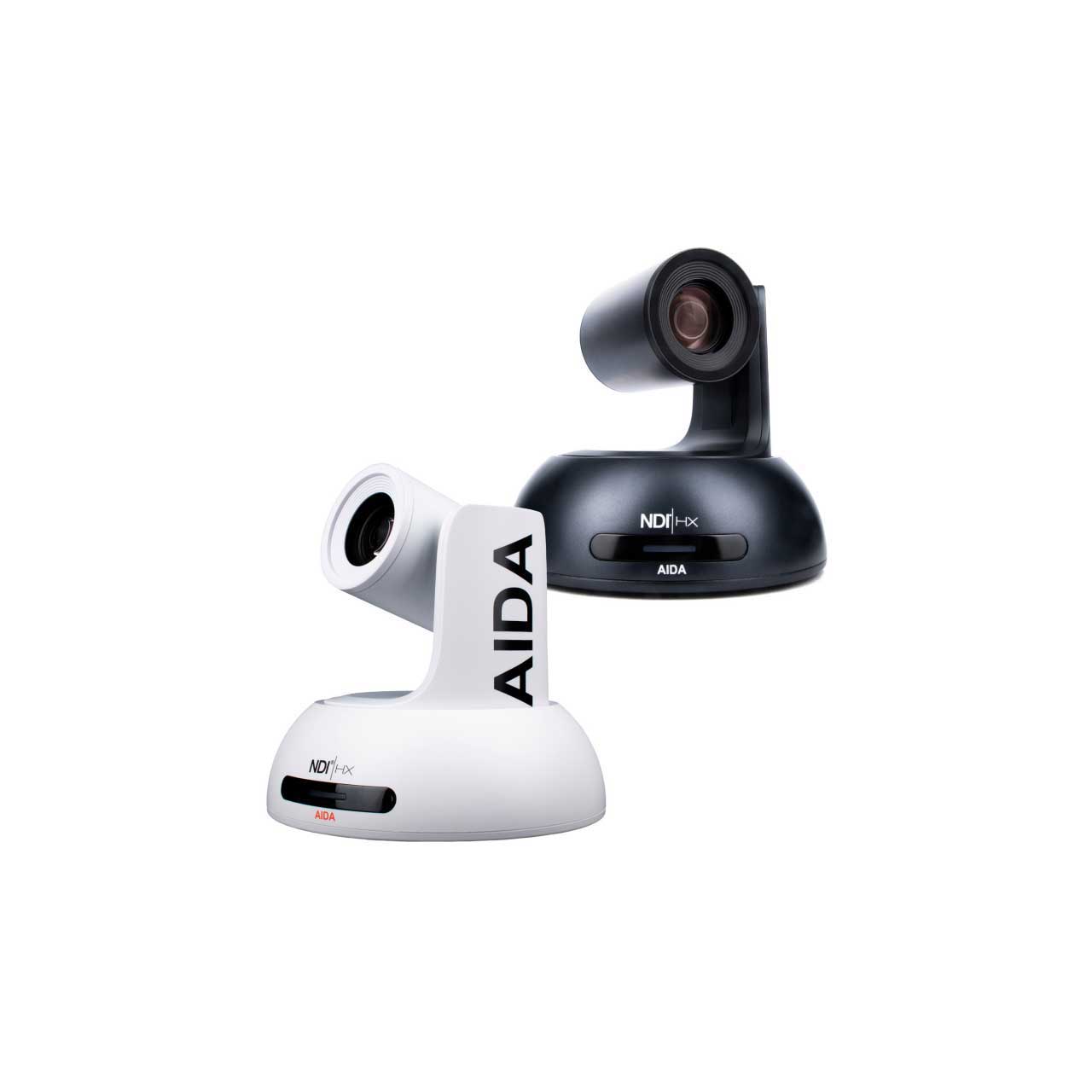

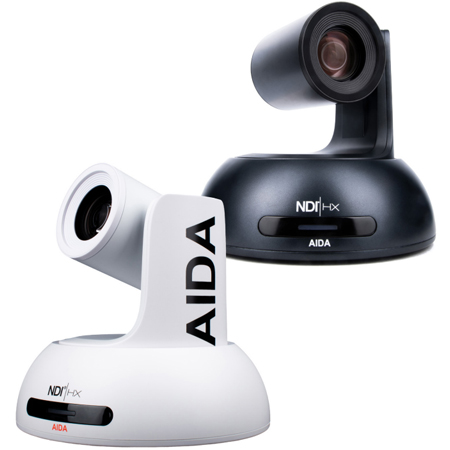

Two Colors to Choose From
The PTZ-NDI-X18 comes in either black or white, matching any aesthetic seamlessly!

  • Features:

    • NDI®|HX streaming capable for low latency video streaming and PTZ control.
    • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
    • Advanced digital image processor provides vivid and detailed images with full access feature sets.
    • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
    • Simultaneous IP and HDMI outputs for versatility and seamless video performance.
    • Power Optical Zoom capability up to 18x.
    • 3.5mm Line-in for no audio/video delay over IP/NDI protocols.
    • Built-in OSD controls for customizable image settings.
    • Economically priced and perfect solutions for newer broadcast workflows.
    • Comes in either a White or Black shell for further customization

  • Specifications:

    • Video
    • Image Sensor: 1/3" Progressive CMOS
    • Effective Pixels: Horizontal: 1920, Vertical: 1080
    • Pixel Size: 2.13 µm (H) x 2.13 µm (V)
    • Resolution: 1080p & 1080i: 1920 x 1080
    • Resolution Rate: 1080 60p/59.94p/50p/30p/29.97p/25p, 24p/23.98p, 1080 60i/59.94i/50i, 720 60p/59.94p/50p/30p/29.97p/25p
    • Output: HDMI, NDI®|HX / RTSP / RTMP / SRT
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Min. Illumination: 0.1Lux

      Function
    • White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
    • Focus: Auto, Manual
    • Shutter Speed: 1 to 1/10,000 Sec.

      Lens
    • Lens: 18x HD Optical Zoom
    • Focal Length: 5.2~93mm
    • F-Stop: F1.5 ~ F3.0
    • Viewing Angle: 60° (wide) ~ 4° (tele)

      PTZ
    • Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°
    • Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s
    • Presets: 128 Positions (via web), 10 Positions (via remote)

      Standard
    • IP Protocol: UDP/IP, RTSP/RTMP

      Audio
    • Input: 3.5mm TRS Stereo Audio Port
    • Sample Rate: 16/24/32 Bits

      Physical
    • Camera Control Protocol: VISCA, VISCA over IP, NDI, Interface: RS-232C IN & OUT, RJ-45, Remote Controller
    • Operation Temp: 32°F - 104°F

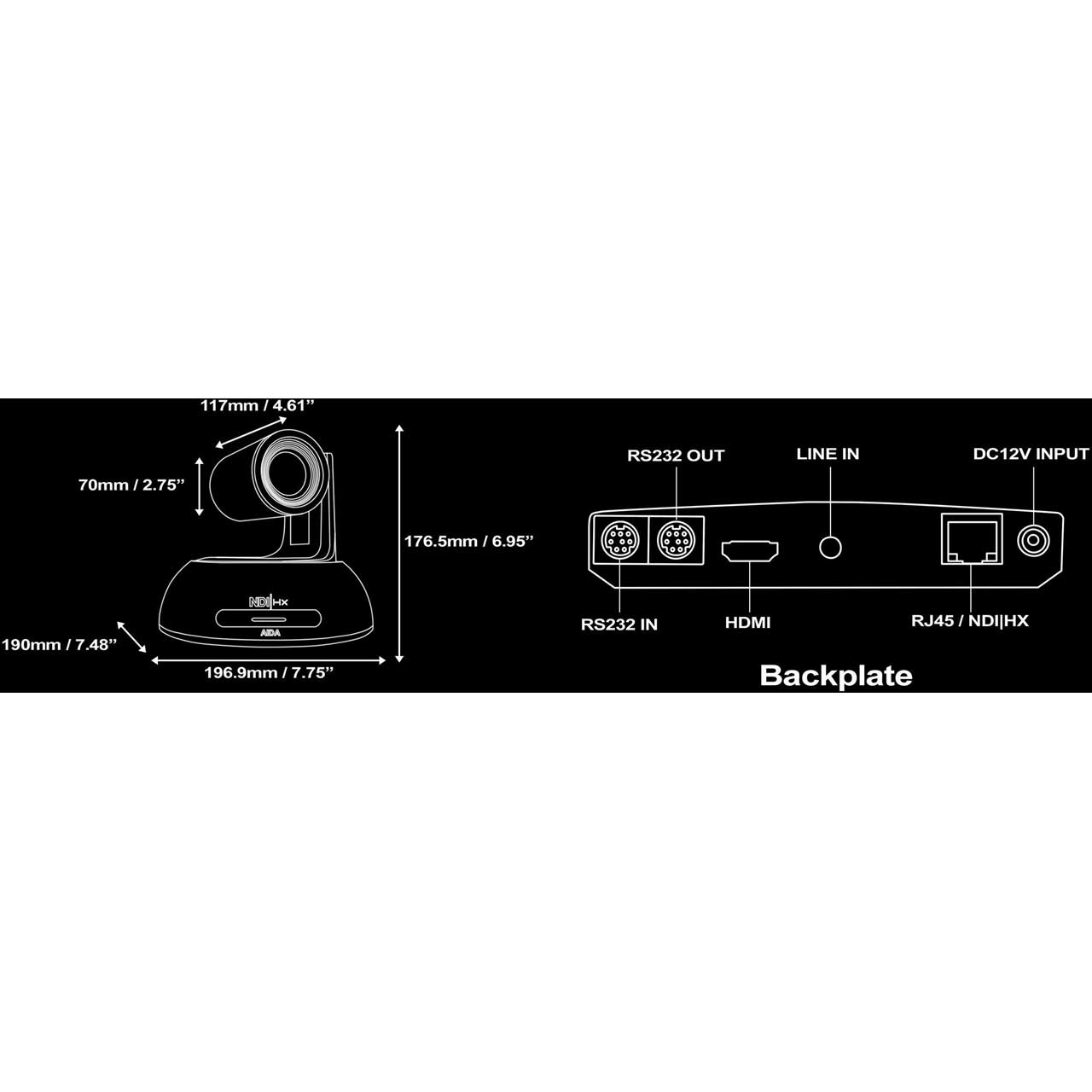

    • Dimension: 155mm x 160m x 170mm / 6.10" x 6.92" x 6.69"
    • Weight: 1.35kg / 2.97lbs
    • Power: 12VDC (+9 - +15VDC), PoE+ (IEEE802.3at Standard Required)

  • Item Includes:

    • 1x Remote
    • 1x Controller Camera Mounting Bracket
    • 1x Power Adapter & Cable

  • GTIN:

    0686091739786
