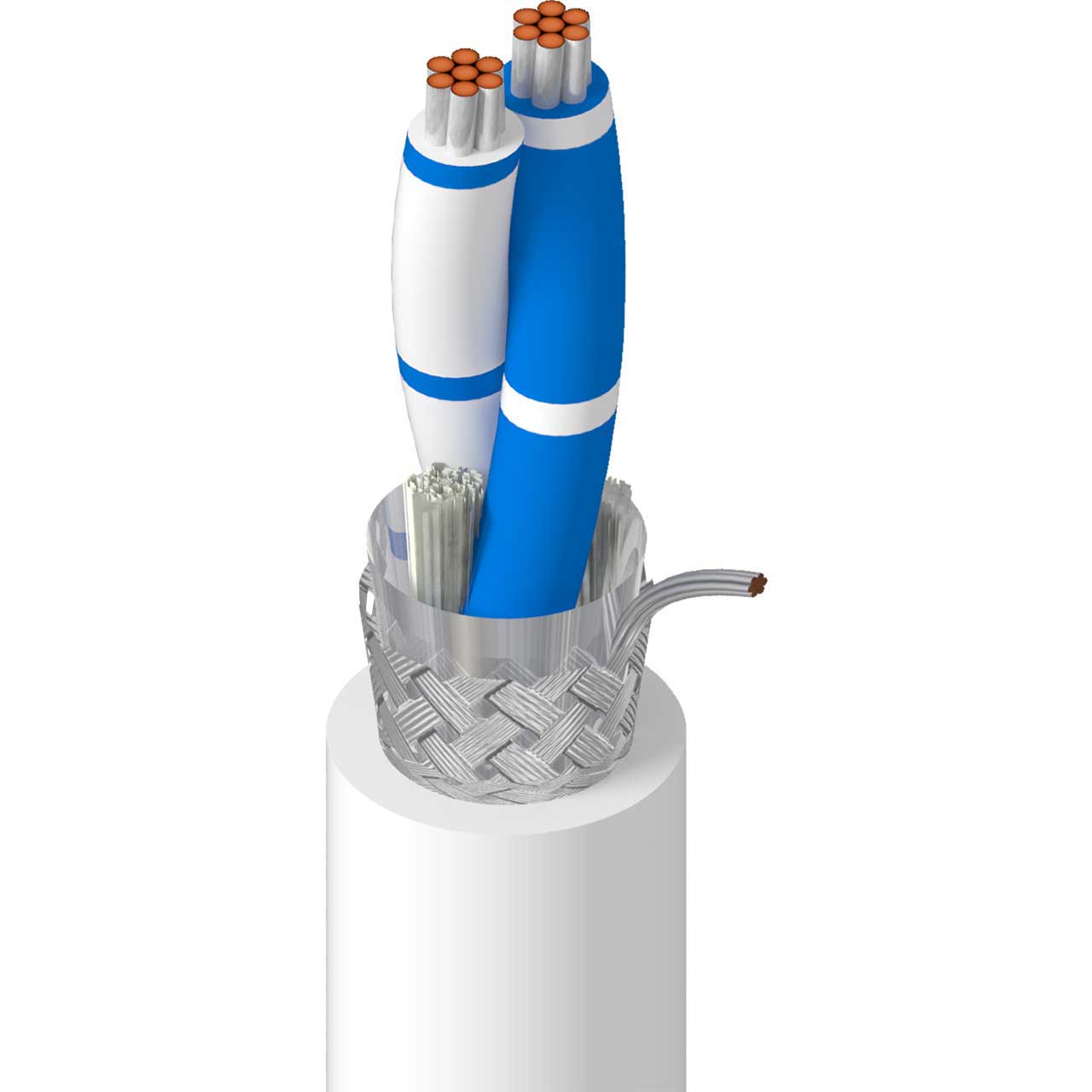

Belden 9841 CM Multi-Pair RS-485/DMX512 Low Capacitance Control Cable STR/TC/SF/UTP 1 Pr 24AWG - Chrome - 1000 Foot

9841 0601000 - Overview

RS-485 Serial Control Cable for Enhanced Automation Systems

• Features:

  • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
  • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
  • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference


• Specifications:

  • Pairs: 1
  • Conductor AWG: 24
  • Conductor Stranding: 7x32
  • Conductor Material: TC - Tinned Copper
  • Insulation Material: PE - Polyethylene
  • Insulation Nom. Thickness: 0.023 in (0.58 mm)
  • Insulation Nominal Diameter: 0.068 in (1.7 mm)
  • Insulation Color Code: White/Blue Stripe & Blue/White Stripe
  • Outer Shield Type Tape: Bi-Laminate (Alum+Poly) 100%
  • Outer Shield Type Braid: Tinned Copper (TC) 90%
  • Drainwire Type: 24 AWG (7x32) TC
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.035 in (0.89 mm)
  • Outer Jacket Nom. Diameter: 0.232 in (5.89 mm)
  • Overall Cable Diameter (Nominal): 0.232 in (5.89 mm)
  • UL Temperature: 80°C
  • Operating Temperature: -30°C to +80°C
  • UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
  • UL Rating: 80°C (UL AWM 2919)
  • Operating: -30°C to +80°C
  • Stationary Min.: 3.5 in
  • Max. Pull Tension: 87 lbs
  • Bulk Cable Weight: 49 lbs/1000ft
  • Environmental Suitability: Indoor
  • Flammability/Fire: Resistance: IEC 60332-1-2
  • NEC/UL Compliance: Article 800, CM
  • AWM Compliance: 2919
  • CEC/C(UL) Compliance: CM


• Item Includes:

  • 9841 Low Capacitance Control Cable 1 Pr 24AWG - Chrome - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825259459
