West Penn Wire 25815 Plenum RG59 CCTV Coaxial Cable per foot

ITEM #: WP-25815/P MFG #: WP-25815/P

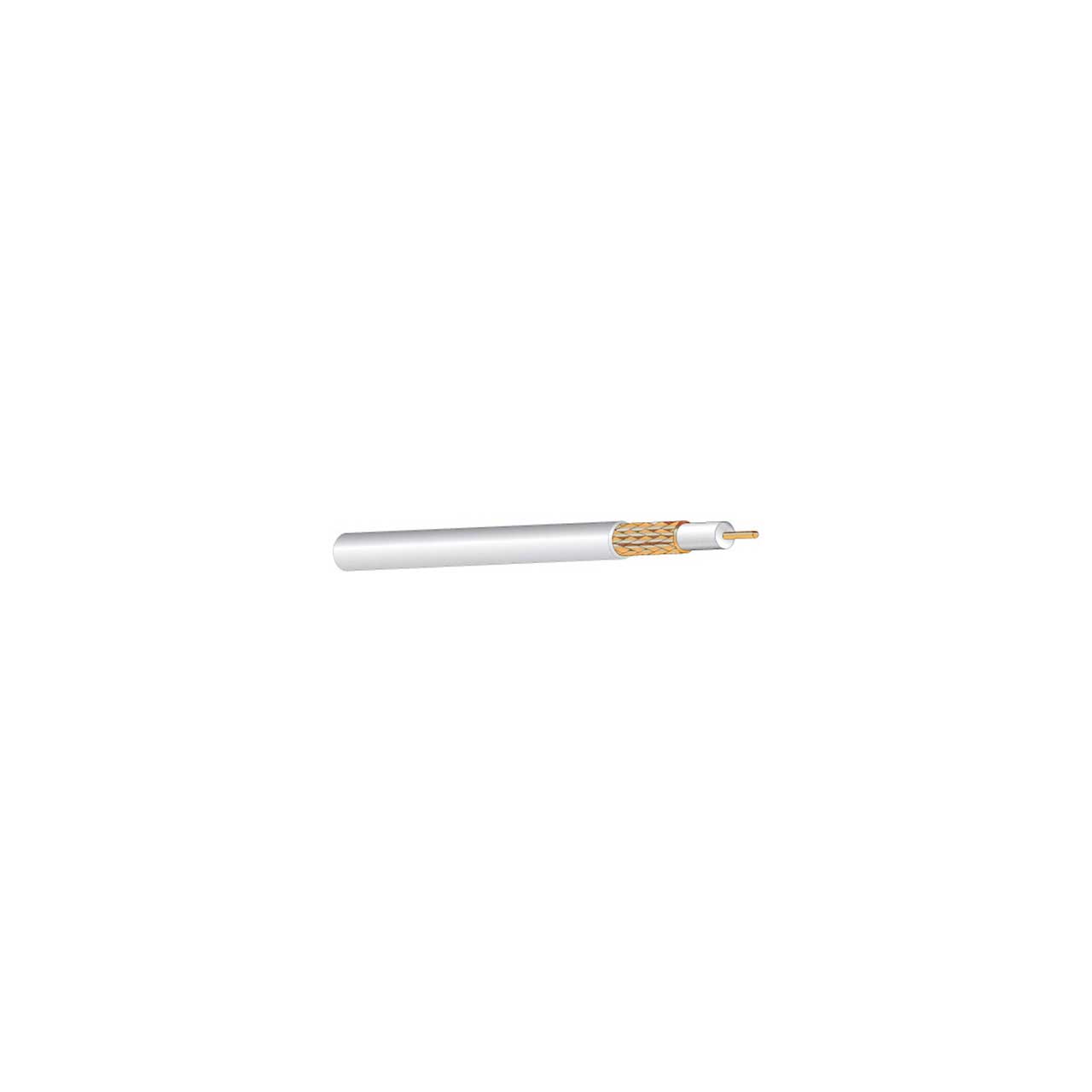

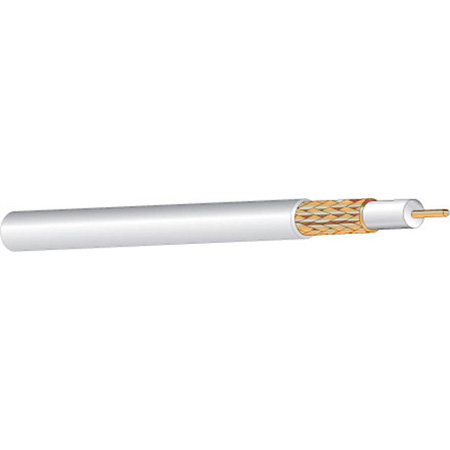

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$0.64

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

WP-25815/P - Overview

West Penn Wire 25815 RG59/U - 1 Conductor 20AWG Solid, 95% Bare copper braid and an overall Flex Plenum Jacket. Suitable for indoor within ducts, plenum and other spaces used for environmental air for CCTV.

  • Features:

    • Extra Flexible CCTV Plenum RG59/U Coax
      AWG:20
      Stranding: Solid
      O.D. 0.207 inch
      Nom. Impedance: 75 Ohms


  • Specifications:

    • Number of Conductors: 1
    • AWG Size: 20
    • Conductor Stranding: Solid
    • Conductor Type: Bare Copper
    • Nominal DCR: 10.1 Ohm/1000f
    • Insulation Type: Foam FEP
    • Insulation Thickness: 0.135 in
    • Shield Type Overall: 100% Aluminum Foil
    • Shield Type: 2 95% Bare Copper Braid
    • Nominal Impedance: 75 Ohm
    • Nom. Cap. Between Conductors: 16.2 pF/f
    • Jacket Type: Flexible Plenum
    • Nominal Cable O.D.: 0.2 in
    • Plenum: Yes
    • NEC UL Rating: CMP
    • RoHS Compliant: Yes
    • Pull Tension: 55 lbs
    • Bend Radius: 2.0 in
    • Cable Weight: 35 lbs


  • GTIN:

    0612825050667
