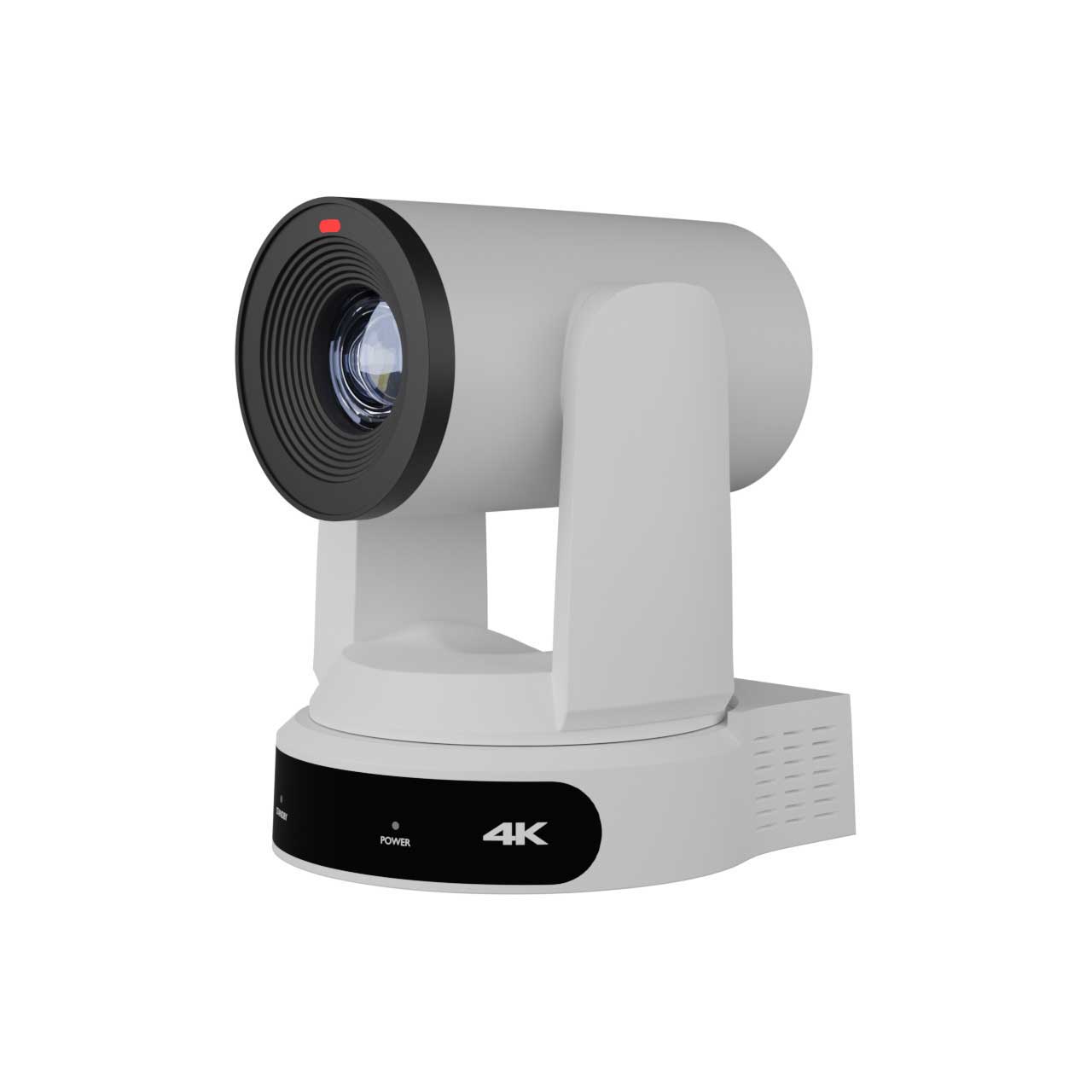

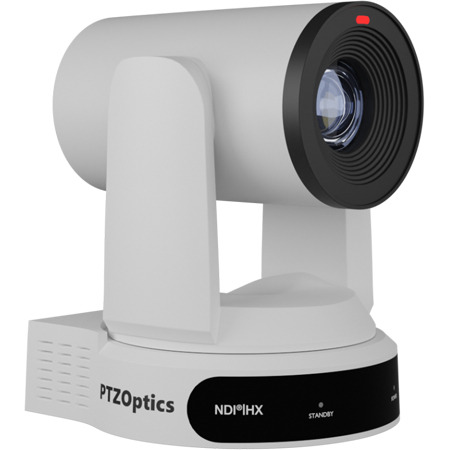

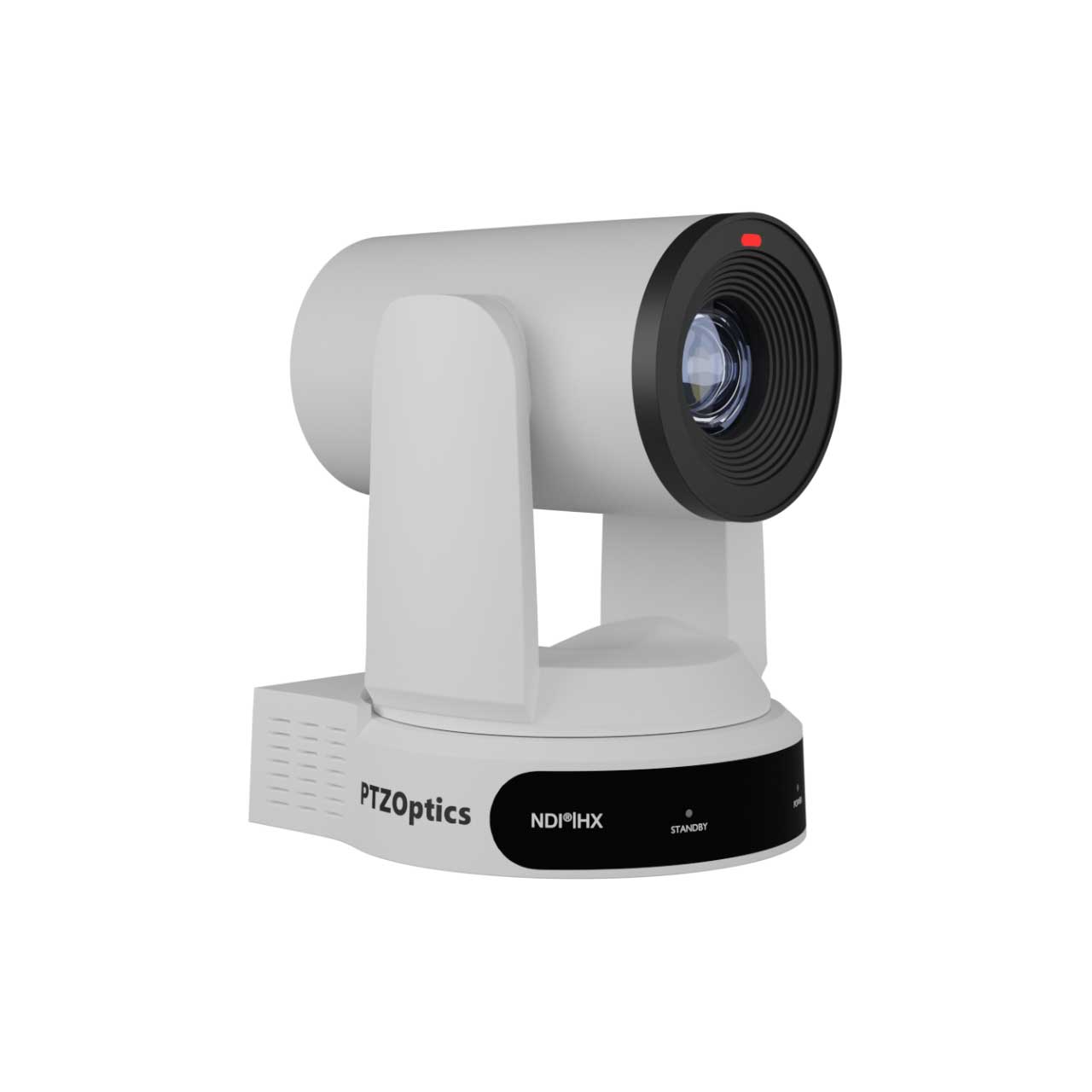

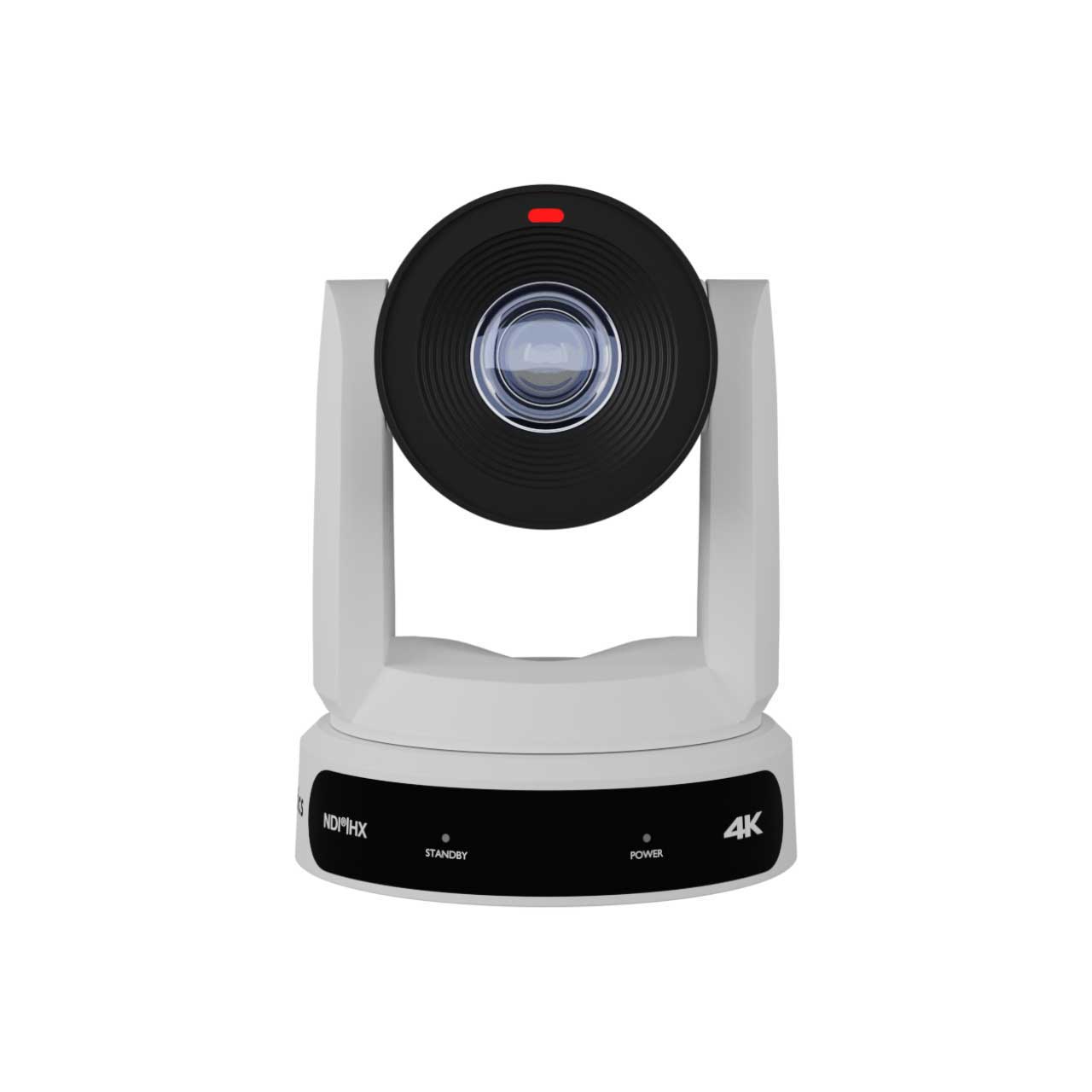

PTZOptics Move 4K 30x Auto-Tracking PTZ Camera with SDI / HDMI / USB and IP - White

ITEM #: PTZ-PT30X-4KWHG3 MFG #: PT30X-4K-WH-G3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,419.00

Our Price:

$2,199.00

Availability: In Stock
iAvailability Description Popup


PT30X-4K-WH-G3 - Overview

NDI|Hx Support for 4K up to 60fps!

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDIr|HX for unparalleled performance and versatility.

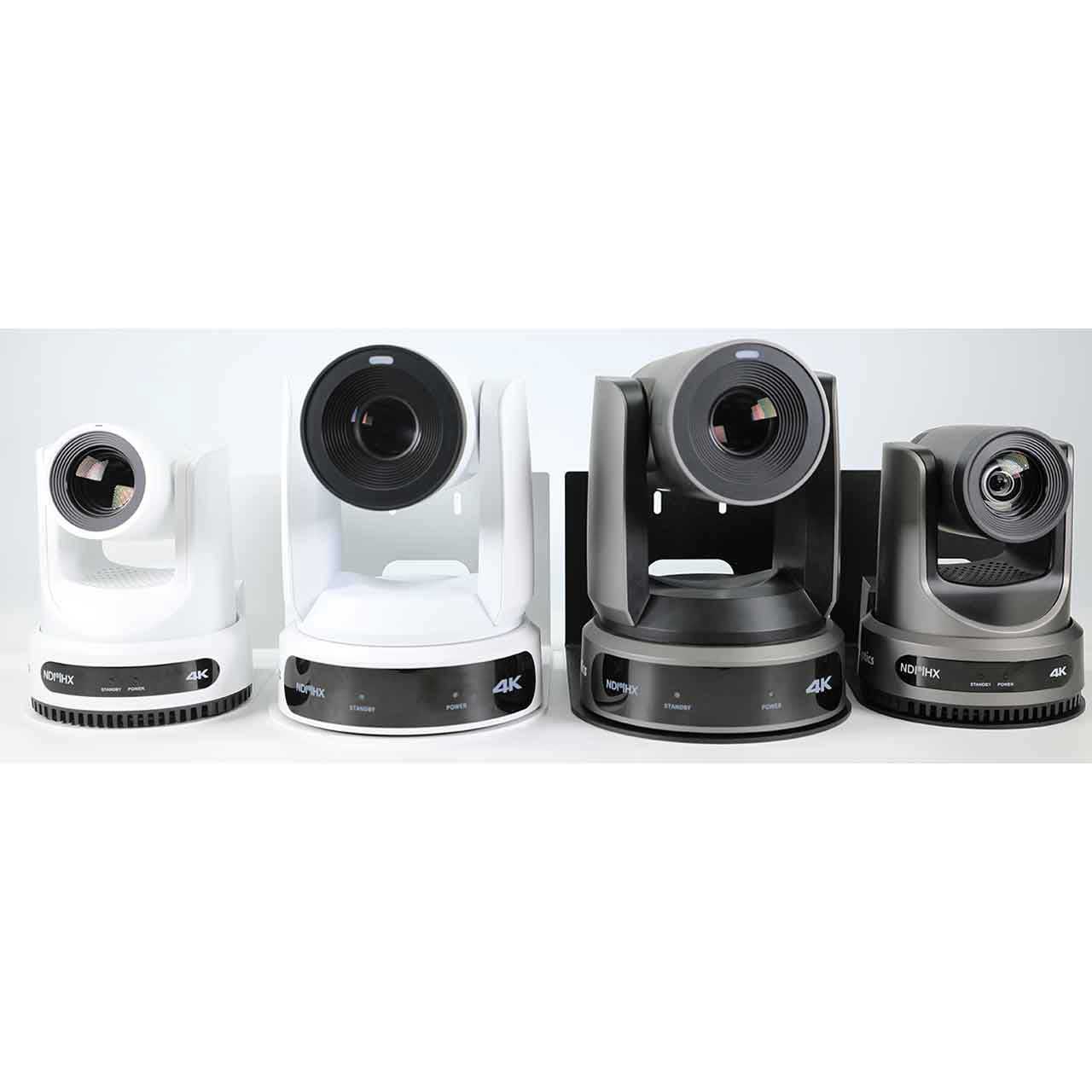

The Move 4K offers built-in auto-tracking capabilities - no need to run software on another computer - freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Control your production from behind the scenes - or right in front of them. The Move 4K's auto-tracking can lock into a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Move 4K can track subjects up to 300 feet away.

In addition to the Move 4K's auto-tracking features, users will also have access to our latest Web UI - updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster - or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDIr and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.

  • Features:

    • Built-In Auto-Tracking
    • Advanced White Balance Modes
    • Wide Dynamic Range
    • Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
    • 3D Noise Reduction
    • SRT Support
    • Up to 4K Resolution @ 60fps
    • Blackmagic Switcher Integration
    • Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94
    • 5 Year Parts & Labor Manufacturer Warranty

  • Specifications:

    • Video Sensor: 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M, 20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
    • Lens: 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6, 20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95, 30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19
    • Lens (35mm Equivalencies): 12x: 25mm ~ 299mm, F1.8 ~ F2.6, 20x: 31mm ~ 589mm, F1.58 ~ F3.95, 30x: 32mm ~ 825mm, F1.61 ~ F5.19.

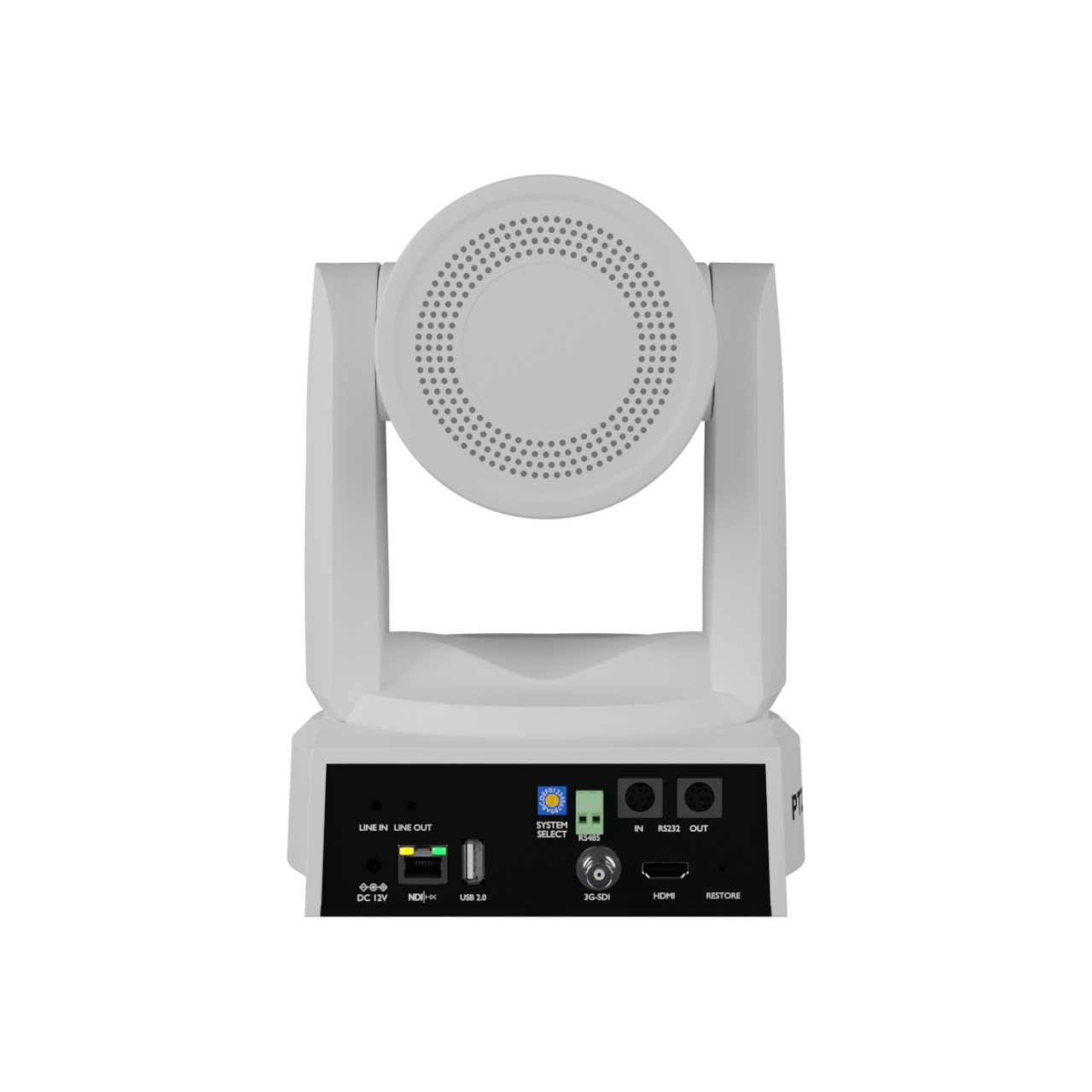

    • HD Video Output: 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard, 1x HDMI: version 2.0, 1x USB 2.0: type A, 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
    • Audio Interface: 1x 3.5mm Line level Input
    • Communication Interface: 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P, 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P, 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
    • Network Interface: RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
    • Power Jack: JEITA type (DC IN 12V)
    • Power Supply: DC 12V / PoE+ (802.3at)
    • Input Power: 18W (Max)
    • Pan Speed: 1.7° ~ 100°/s
    • Tilt Movement: +90° to -30
    • Tilt Speed: 1.7° ~ 69.9°
    • Presets: 255 Presets
    • Video Tracking: Supported
    • Image Flip, Mirror and Freeze: Supported

  • Item Includes:

    • 1x Camera
    • 1x AC Power Supply
    • 1x USB A-A Cable
    • 1x RS232 Cable
    • 1x Quick Start Guide
    • 1x IR Remote
    • 2x AA Batteries

  • Warranty:

    • 5 Year Parts & Labor
