Marshall RCP-PLUS Multi-Camera Controller with 5-Inch Touchscreen RCP for CV300/500 - VISCA over IP/VISCA over RS485

RCP-PLUS - Overview

• Features:

  • VISCA over IP to support Marshall camera models: CV574, CV570, CV374, CV370, CV420Ne, CV420e, CV355-27X-IP

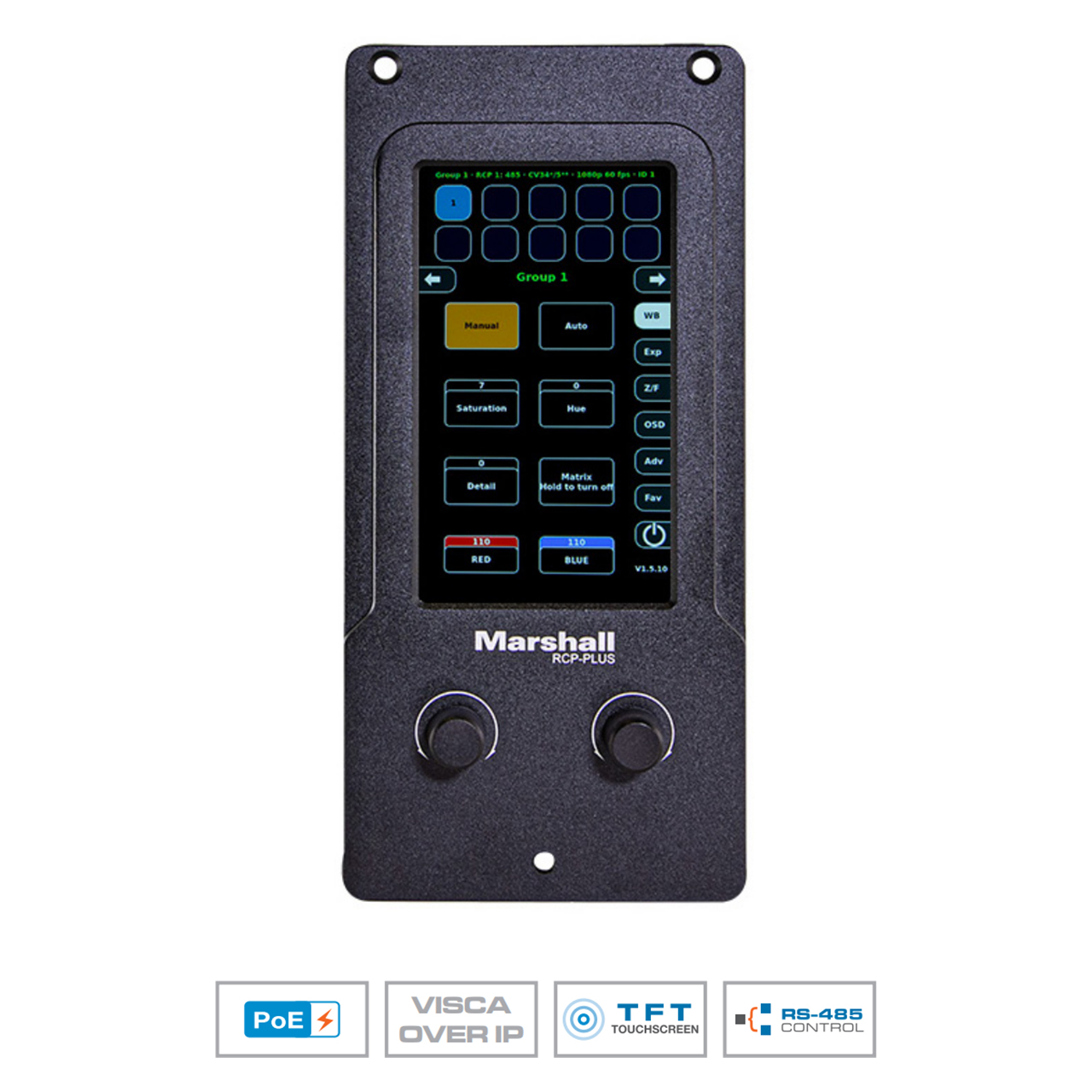

  • Larger 5-inch TFT LCD Touchscreen (800x480) with fine-tune adjustment knobs.
  • Supports up to 7 cameras via VISCA RS485 and up to 100 cameras using both VISCA RS485 and VISCA over IP combined
  • Directly adjust and match up to seven different cameras from the convenience of control truck or control booth.
  • Common 3-pin XLR cable connection allows for cable-runs at distances of up to 300 meters (1,000 ft).
  • Adjustments made on camera without OSD Menu appearing on video stream.
  • Top Rack Mount Bracket for mounting onto CCU control boards for remote adjust

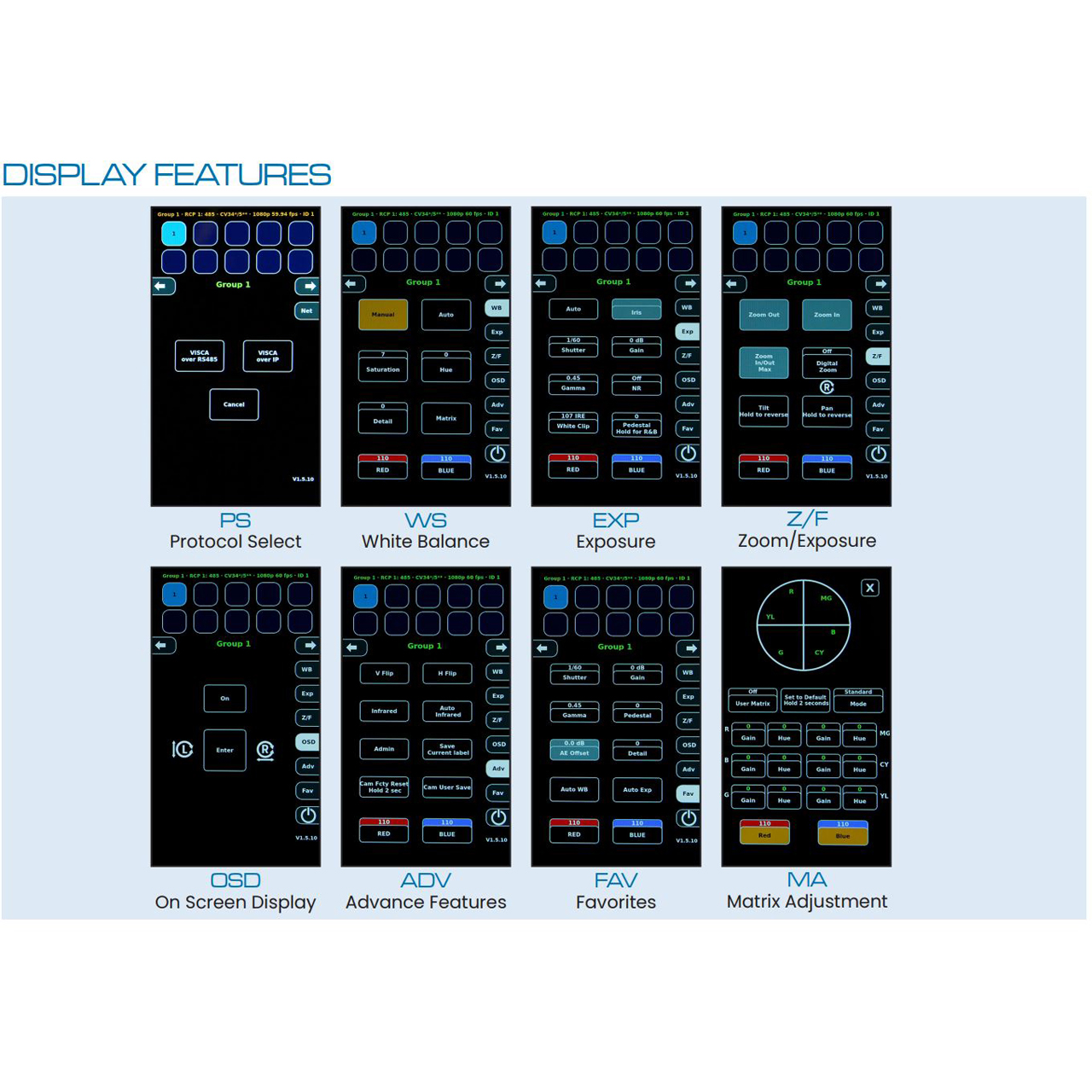

  • Seven cameras are select-able from ALL screen menus with intuitive navigation layout.
  • Global or individual camera adjustment capability without OSD (On-screen Display) Menu appearing on video stream.
  • Adjust Red/Blue, Pedestal (Black-levels), Brightness (AE Offset), Gain, Gamma, Iris, Shutter, Saturation, Hue, Optical/Digital Zoom, Pan-Tilt, Focus, and more.
  • Rugged machined aluminum enclosure provides durability while a larger 5-inch screen provides easier access to digital buttons.
  • Easy access USB port for field up-gradable firmware
  • Red and Blue adjustment follows every screen menu with optional Favorites Menu to save important controls to specific events for easy access.
  • Low power consumption requires 12V power at less than 12W (AC or battery packs).


• Specifications:

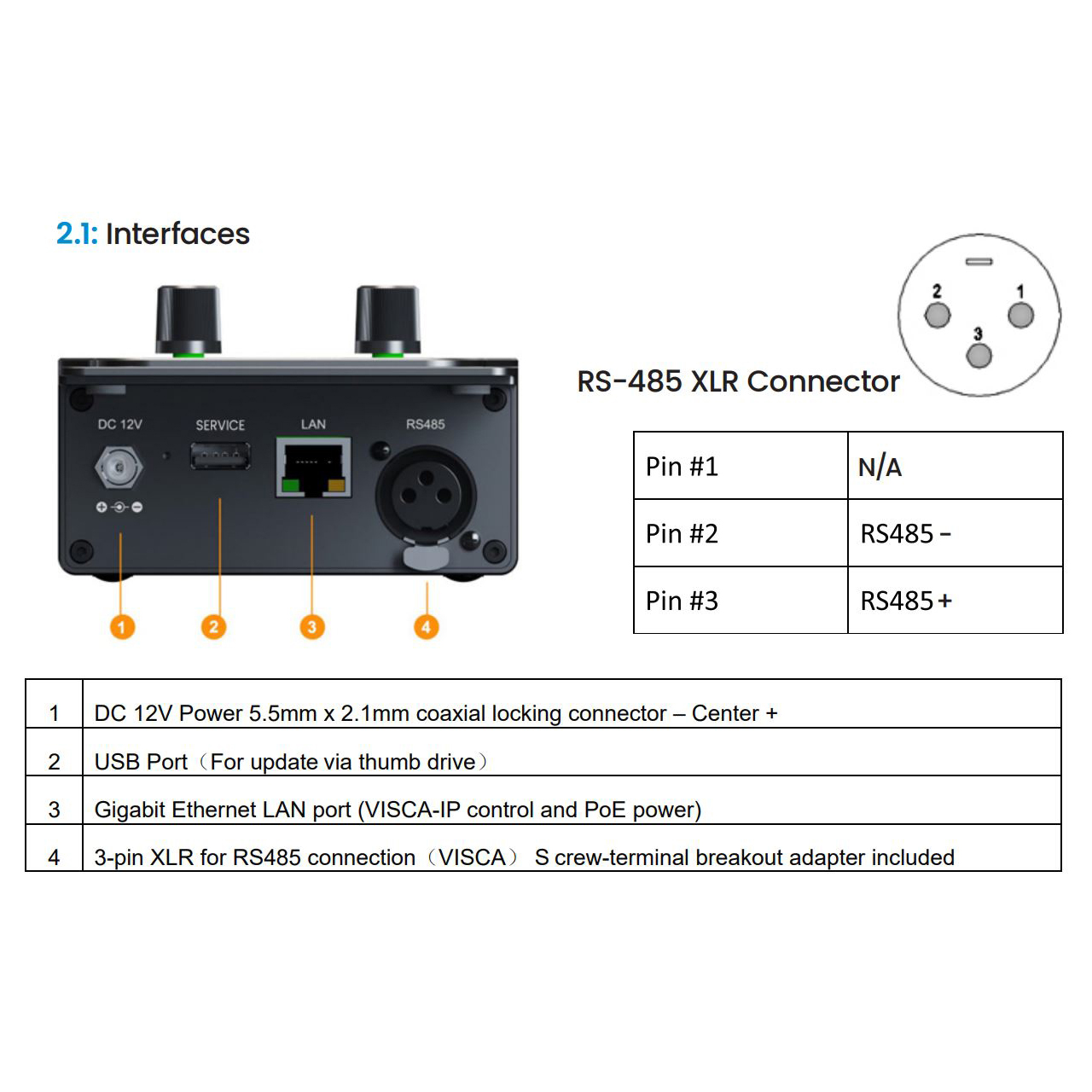

  • Connections:
    - 3-pin XLR Receptacle: For RS485 serial control
    - USB 2.0: For Product Upgrade
    - LAN RJ-45: VISCA-over-IP control and POE power supply
    - Control Type: IP: VISCA-over-IP, RS485: VISCA
    - RS485 Serial Baud Rates: 4800,9600(default),19200,38400,115200
  • User Interfaces:
    - Display: 5" TFT LCD touch screen
    - Brightness: 400cd/m²
    - Resolution: 480 x 854
  • Power:
    - Power: DC 12V or PoE
    - Power Consumption: Less than 3W | 2.5W typical
  • Environment:
    - Working Temperature: -4°F - 158°F
    - Storage Temperature: -22°F - 175°F
  • Mechanical:
    - Dimensions (LxWxH): 4.0" x 8.6" x 1.9"
    - Weight: 1.6lbs

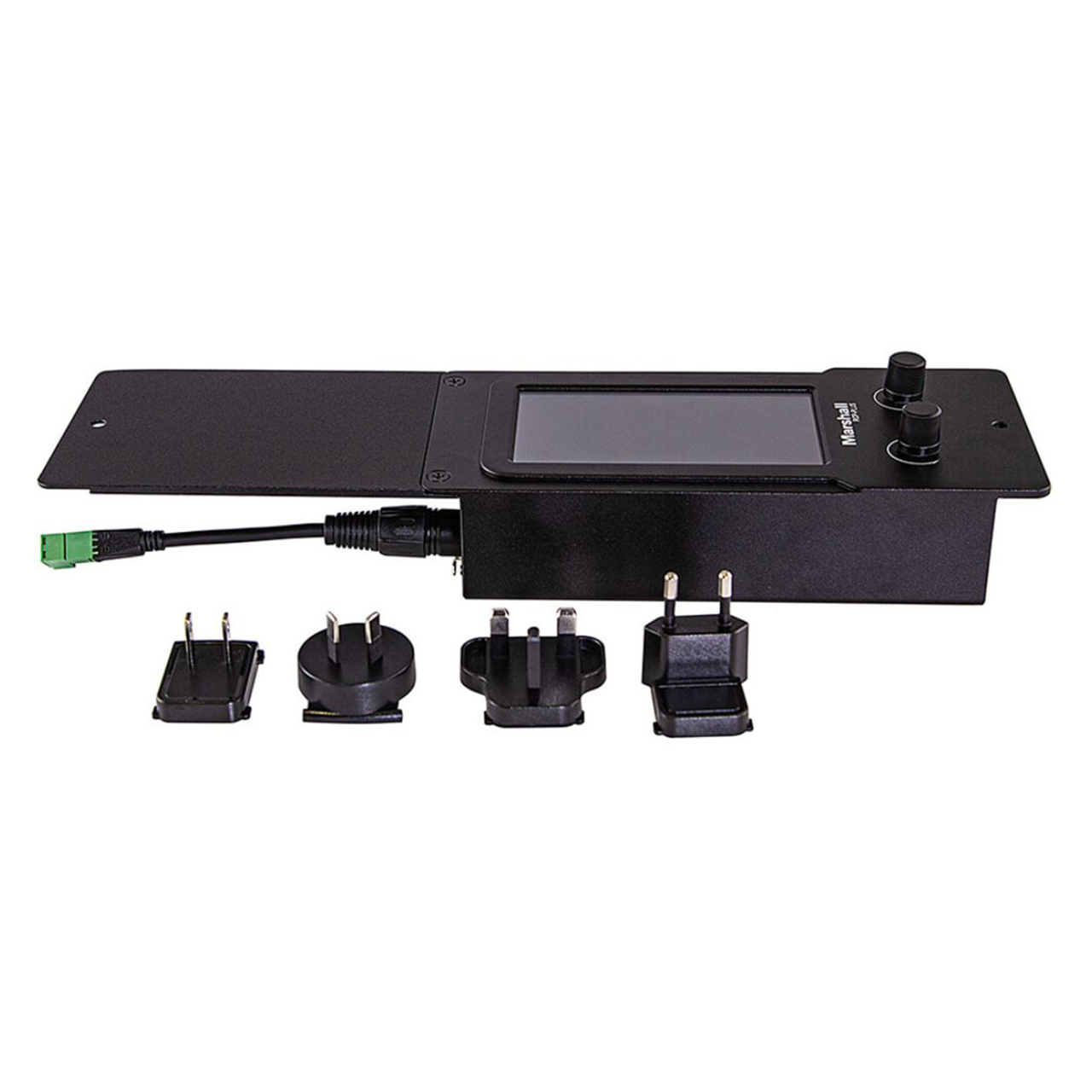

• Item Includes:

  • 1x Marshall RCP-PLUS Camera Controller Unit
  • 1x Mounting extender "wing" and screws
  • 1x XLR 3-pin connector adapter to screw terminal
  • 1x + 12 Volt DC Power Adapter - Universal 120 - 240 volt AC input


• GTIN:

  0801813233360
