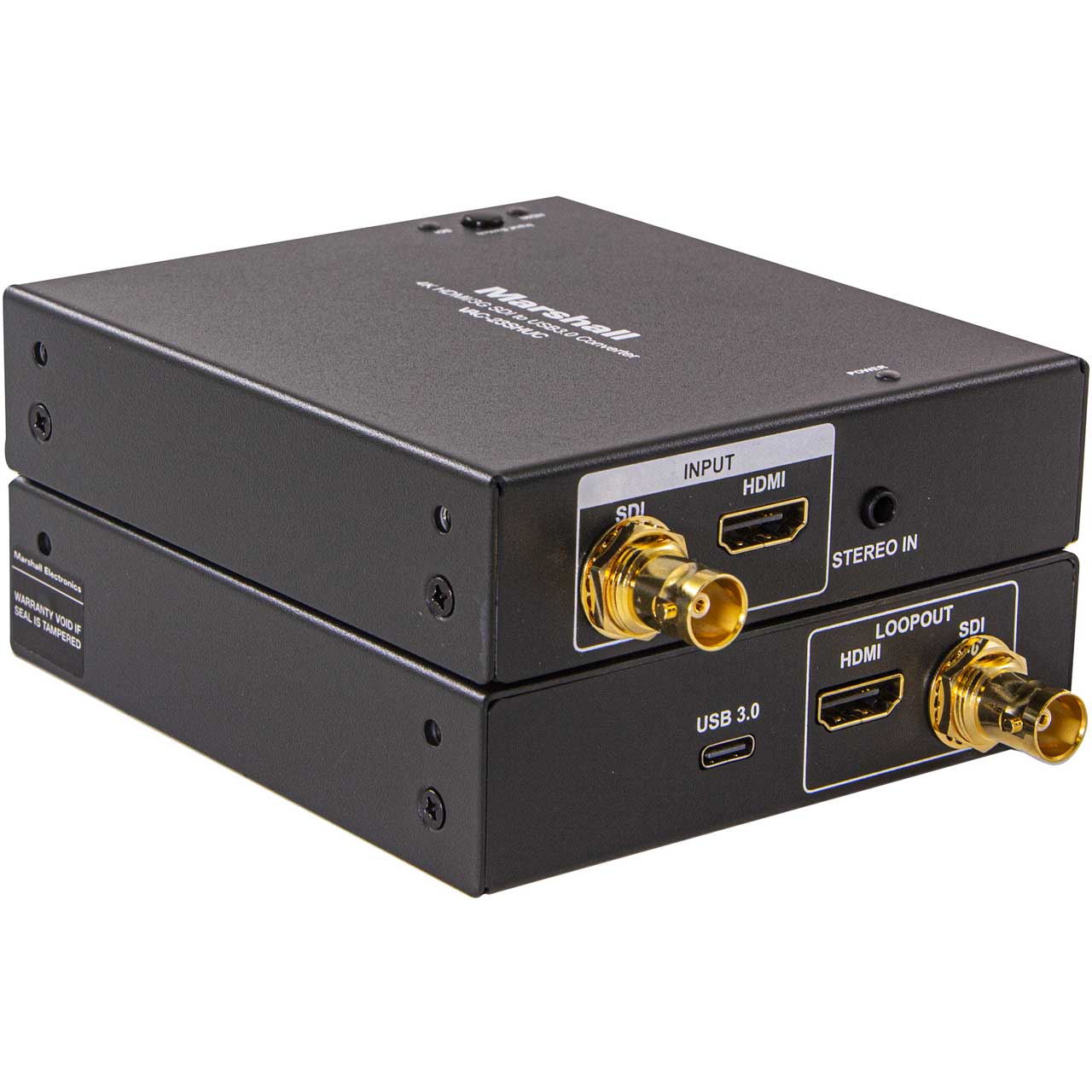

Marshall VAC-23SHUC 4K HDMI/3G-SDI to USB 3.0 Converter - Encoder - Capture Device

VAC-23SHUC - Overview

Keep more of what you have! 10-bit input sampling makes a visible difference

• Features:

  • 3G/HDSDI input with active loop-through output supports formats up to 1080p50/60
  • HDMI 2.0 input with active loop-through output
  • USB 3.0 output is YUY2 format (equivalent to SDI 4:2:2 sampling). USB 2.0 mode is MP4.
  • USB output audio sampling rate is 44.1 KHz (not rate converted)
  • All power derived from USB port
  • 10 Bit input sampling for improved image processing.
  • Plug-and-Play operation. No special drivers required
  • Compatible with popular applications including Zoom, Skype, OBS Studio, and many more


• Specifications:

  • HDMI Input and Output
  • HDMI Conforms to HDMI 2.0 standard
  • HDCP 1.4 and 2.2 compliant
  • Video Frame Rates from 23.98 ~ 60 fp
  • Video Formats from 480i/p, 576i/p to 4096x2160p (4K) at 30 fps

    3GSDI/HDSDI Input & Loop Out
  • SMPTE 296M, 274M, 259M, 425M (3G Level A)
  • Video Frame Rates from 23.98 ~ 60 fps
  • Video Formats from 480i/p, 576i/p to 1920x1080p @ 50/59.94/60 fp

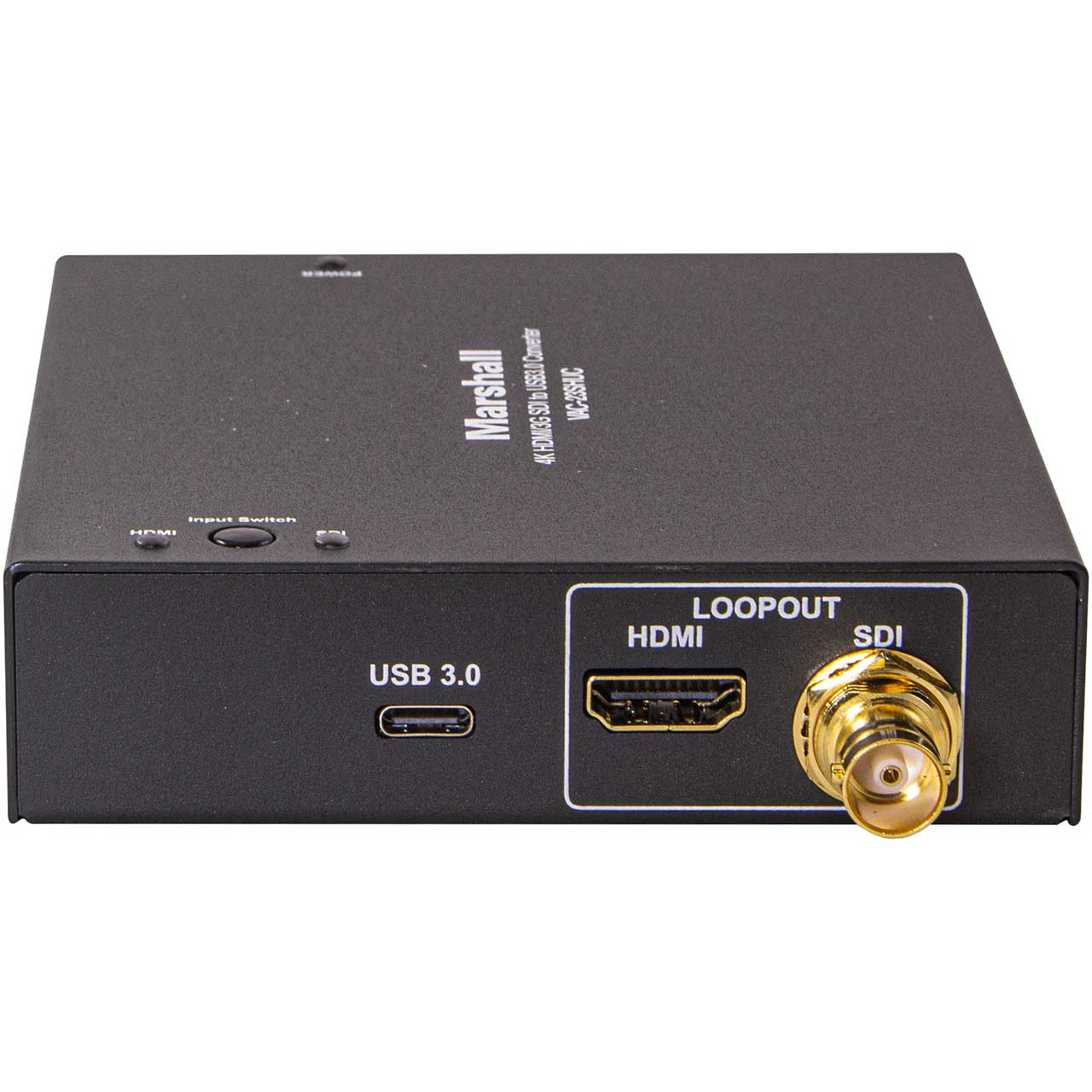

    USB-C Output (USB 3.0) and Backwards Compatible to USB 2.0
  • Connected via USB-C (USB3.0/2.0) with formats up to 3840x2160p (UHD) at 30 fps sent to host computer.
  • When connecting to a USB 2.0 port, we recommend 1280x720p or below

    Audio Input
  • Embedded audio on HDMI pass through (HDMI out). Channels 1 & 2 are sent to USB-C out.
  • External stereo analog line level input on 3.5mm stereo TRS jack. Switches on when plug is inserted.
  • When mic plugged in, it replaces audio to HDMI out and USB to computer

    Operating Temperature
  • 32° to 104°F (0° to 40°C)

    Power Rating
  • 5V 1.3A


• GTIN:

  0801813229608
