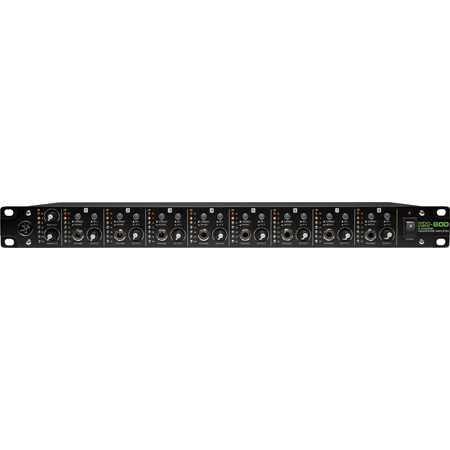

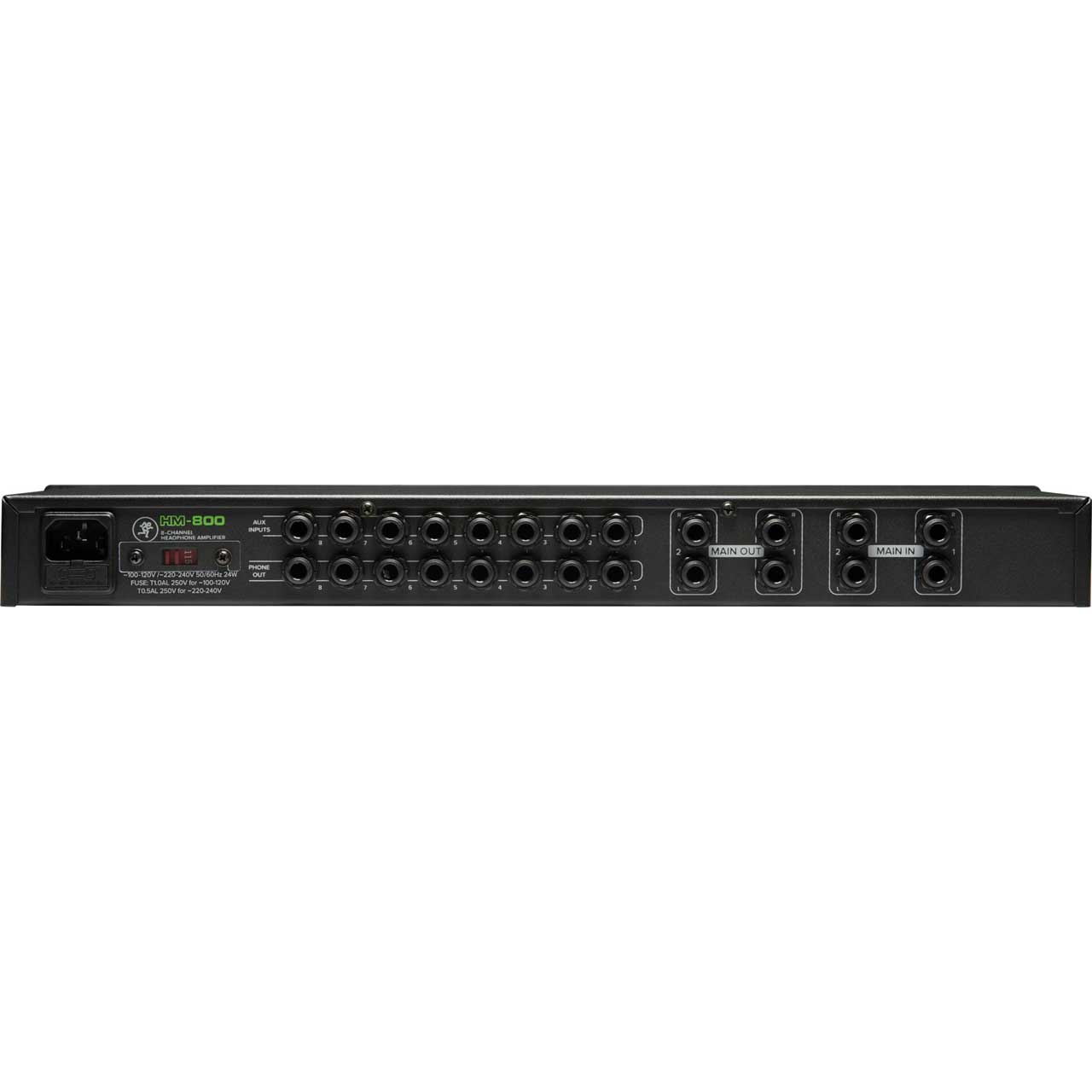

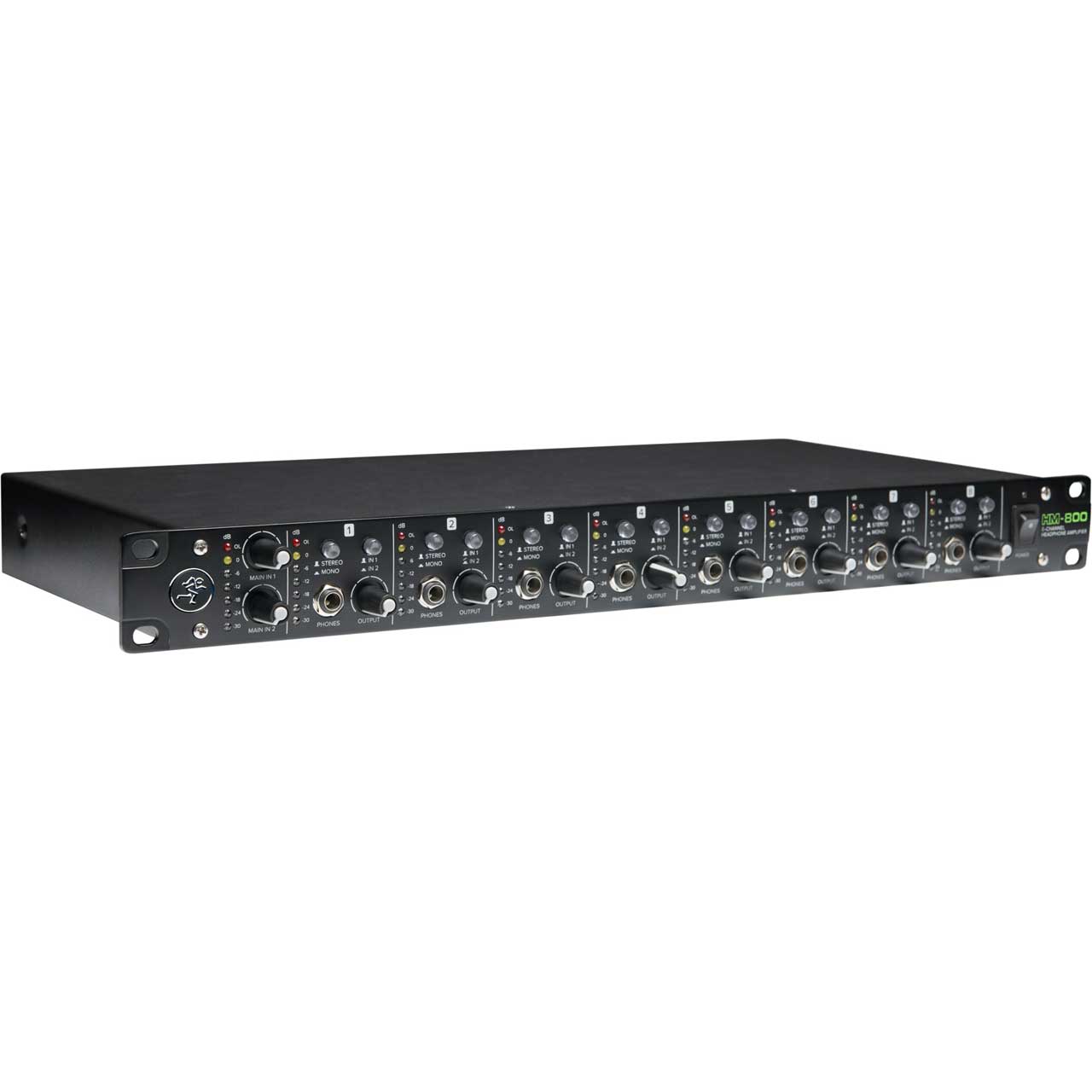

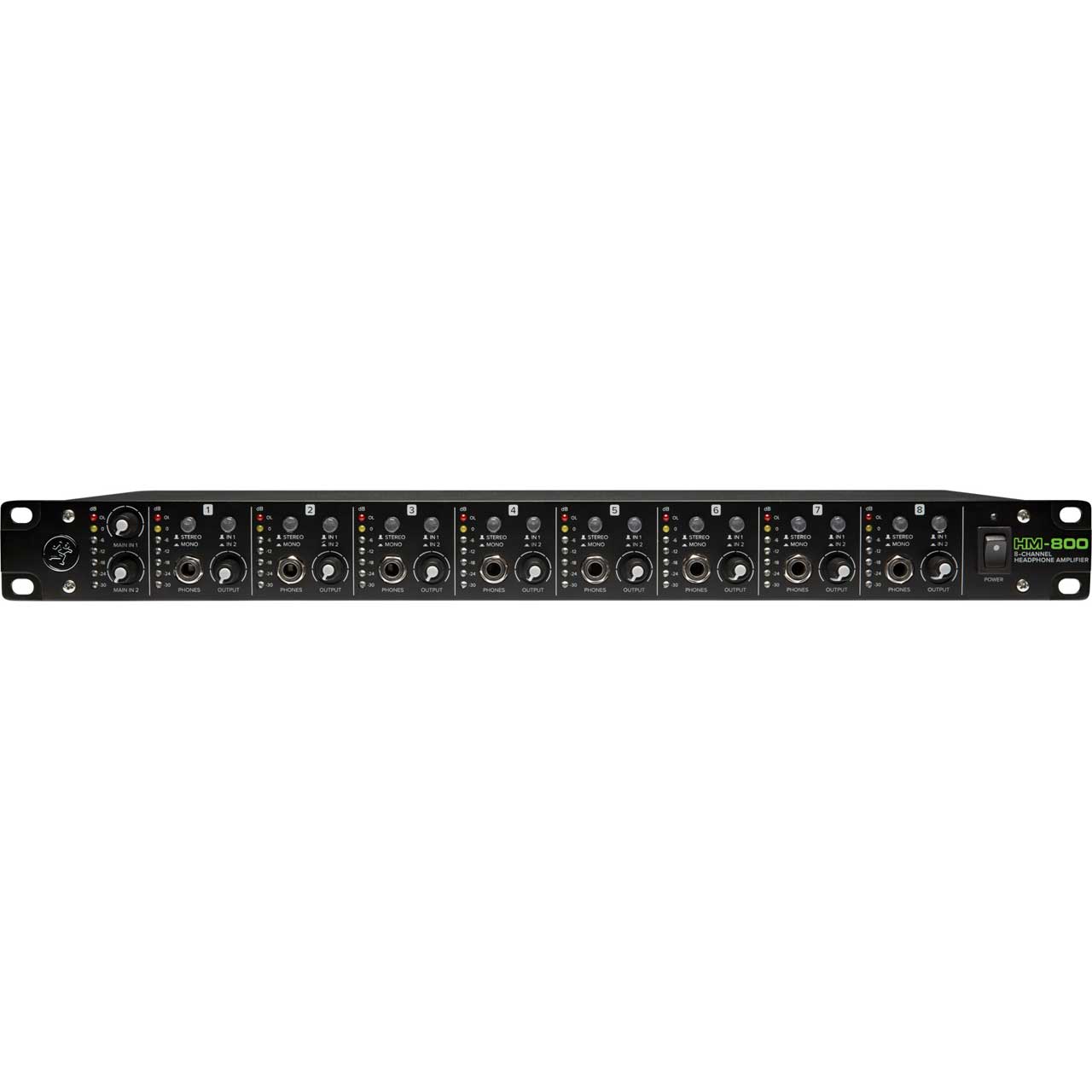

Mackie HM-800 8-Channel Headphone Amplifier

HM-800 - Overview

• Features:

  • 2 discrete main stereo inputs with separate level control plus stereo outputs
  • 7-segment LED metering per channel plus main
  • 2 headphone outputs per channel
  • 8 independant aux inputs for up to 8 individual stereo mixes
  • Input Select and Stereo/Mono switches per channel
  • 16 total headphone outputs
  • Built-Like-A-Tank™ construction


• Specifications:

  • Frequency Response: 20Hz - 20kHz, ±1dB
  • Noise: -70dB
  • Distortion: <0.005%
  • Main Input (max level): +19dBu balanced/unbalanced
  • Aux Input (max level): +20dBu unbalanced
  • Headphone Output: 550mW/channel @ 47Ω (+21dBu)
  • CMRR (Main Input): >52dB @ 1kHz
  • Gain Range (Main Input): -67 to 19dBu
  • Input Type: Female XLR Balanced, Female 1/4" Balanced - Unbalanced
  • Main Input Impedance: 40kΩ balanced, 20kΩ unbalanced
  • Aux Input Impedance: 13kΩ unbalanced
  • Output Type: Male XLR Balanced, Female 1/4" Balanced - Unbalanced
  • Headphone Output Impedance: 3Ω unbalanced
  • Detachable line power cord: -100 - 120V, 50/60Hz, 24W; -220 - 240V, 50/60Hz, 24W
  • AC Connector: 3-pin IEC 250VAC, 10 A male
  • Display LEDs: Front power on/off, Front input level meter, Front output level meters, Stereo/Mono swithces, in 1/2 switches
  • Dimensions (HxWxD): 1.8" x 19.0" x 8.8"
  • Weight: 8.0lbs


• GTIN:

  0663961054095
