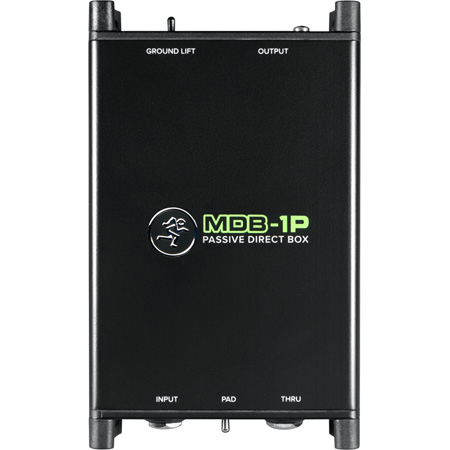

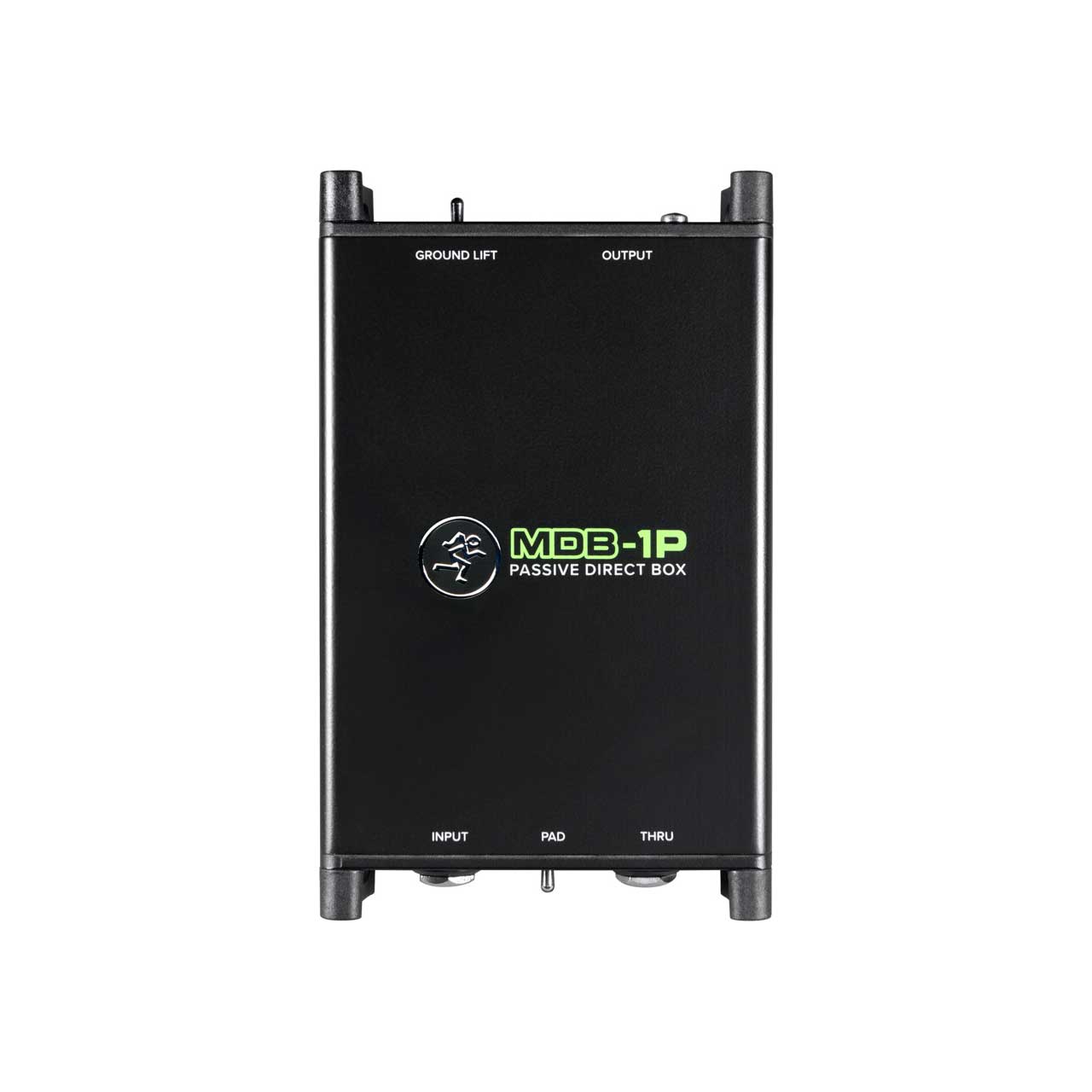

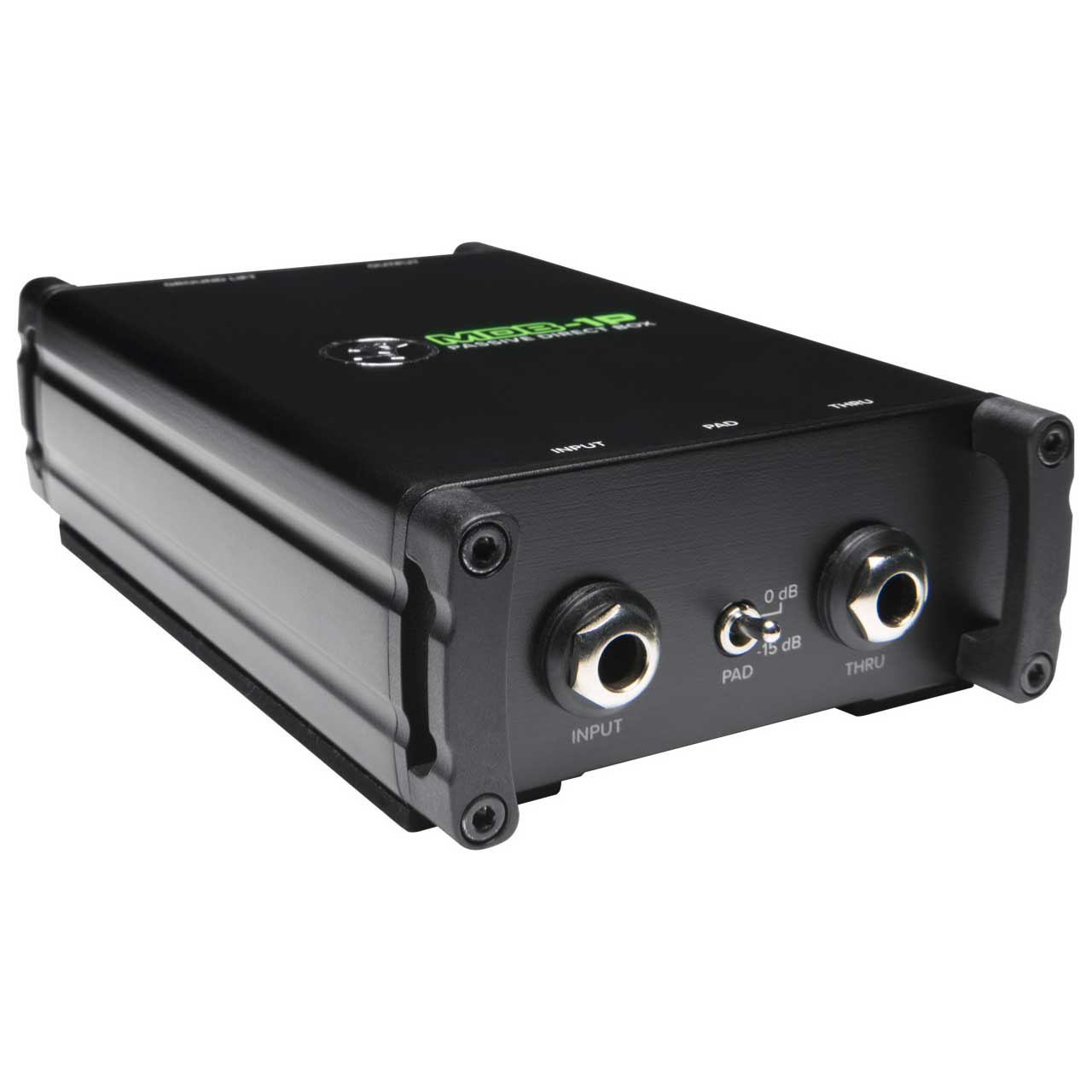

Mackie MDB-1P Passive Direct Box

ITEM #: MCK-MDB-1P MFG #: MDB-1P

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$69.99

Availability: In Stock
iAvailability Description Popup


MDB-1P - Overview

Ready For Anything
From acoustic guitars to laptops, always sound your best with MDB Series Direct Boxes. Available in four different models, the MDB Series will give you the peace of mind that your sound will faithfully get to your audience the way that you hear it on stage.

An essential tool for every musician and engineer, the MDB-1P Passice DI has everything you need to adapt unbalanced, high-impedance audio to a balanced, low-impedance output with minimal noise. Featuring a 1/4" high-impedance input and thru with -15dB pad and a balanced XLR output with ground lift.

  • Features:

    • Perfect for guitars, basses and more for stage and studio

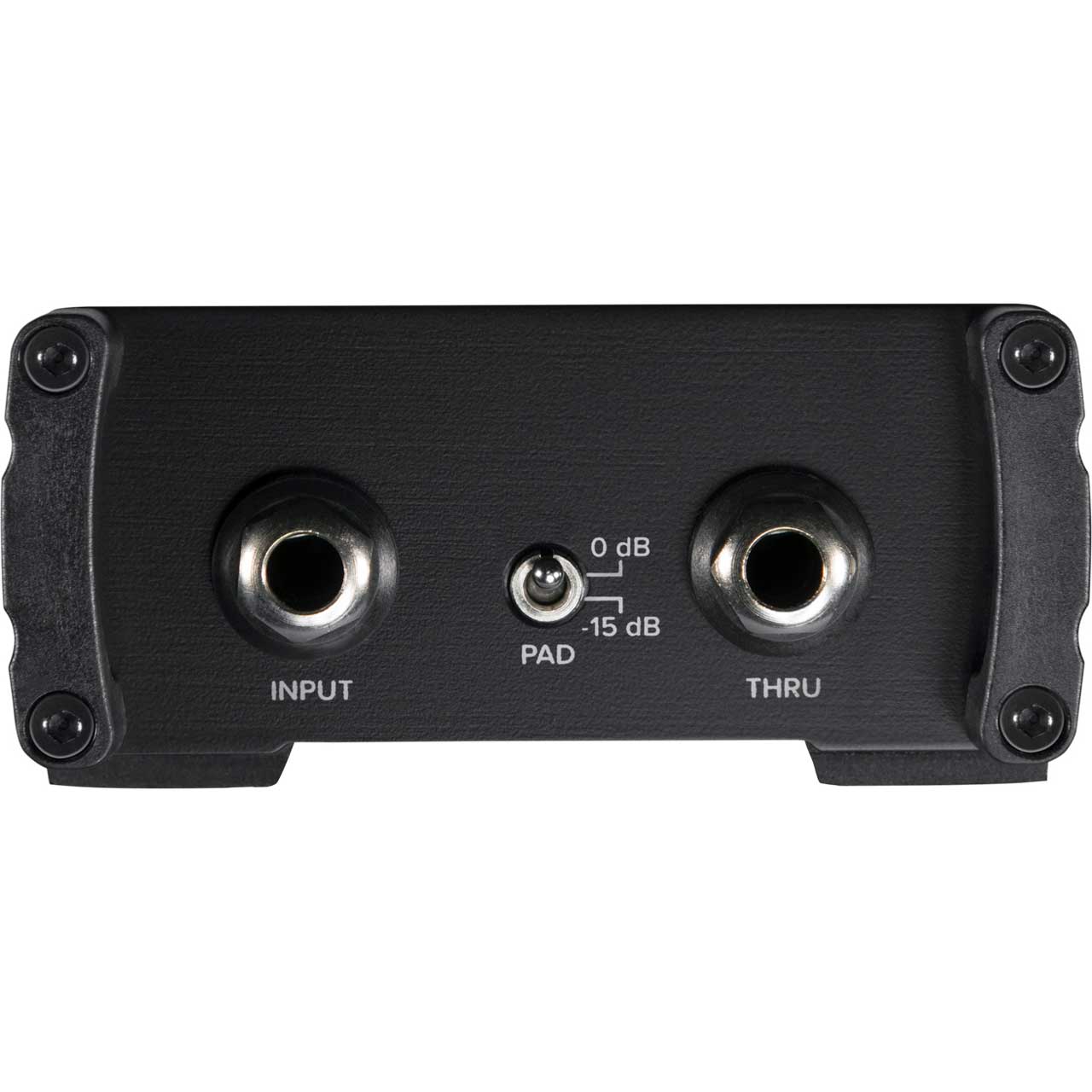

    • High-impedance 1/4" input with Thru output

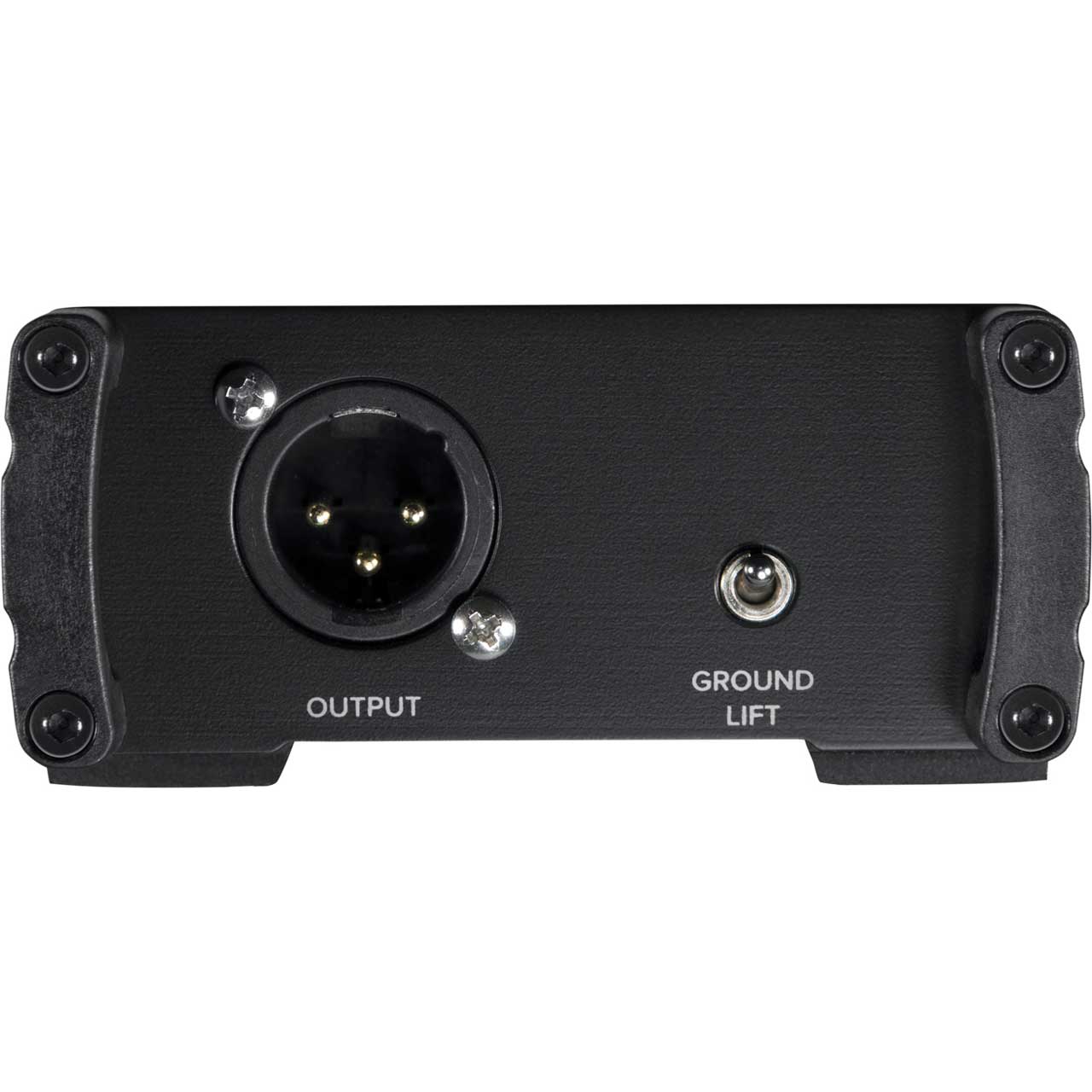

    • Balanced Male XLR output connector with Ground Lift
    • Ultra-low noise and distortion
    • -15dB pad ensures distortion-free performance when connection to high output sources
    • Built-Like-A-Tank™ construction

  • Specifications:

    • Frequency Response: 20Hz - 20kHz, ±0.2dB
    • Dynamic Range: 128dB
    • Total Harmonic Distortion: 0.002% from 1000Hz
    • Pad: -15dB
    • Input Type: Female 1/4" Unbalanced
    • Input Impedance: 140kΩ
    • Impedance Ratio (Input to Output): 350:1
    • Output Type: Male XLR Balanced, 1/4" Unbalanced (Thru)
    • Output Impedance: 400Ω unbalanced
    • Dimensions (HxWxD): 1.5" x 3.4" x 5.8"
    • Weight: 0.8lb

  • GTIN:

    0663961053982
