Tripplite SPIKECUBE Single Outlet Direct Plug-In Surge Suppressor

ITEM #: SPIKECUBE MFG #: SPIKECUBE

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$13.91

Our Price:

$12.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SPIKECUBE - Overview

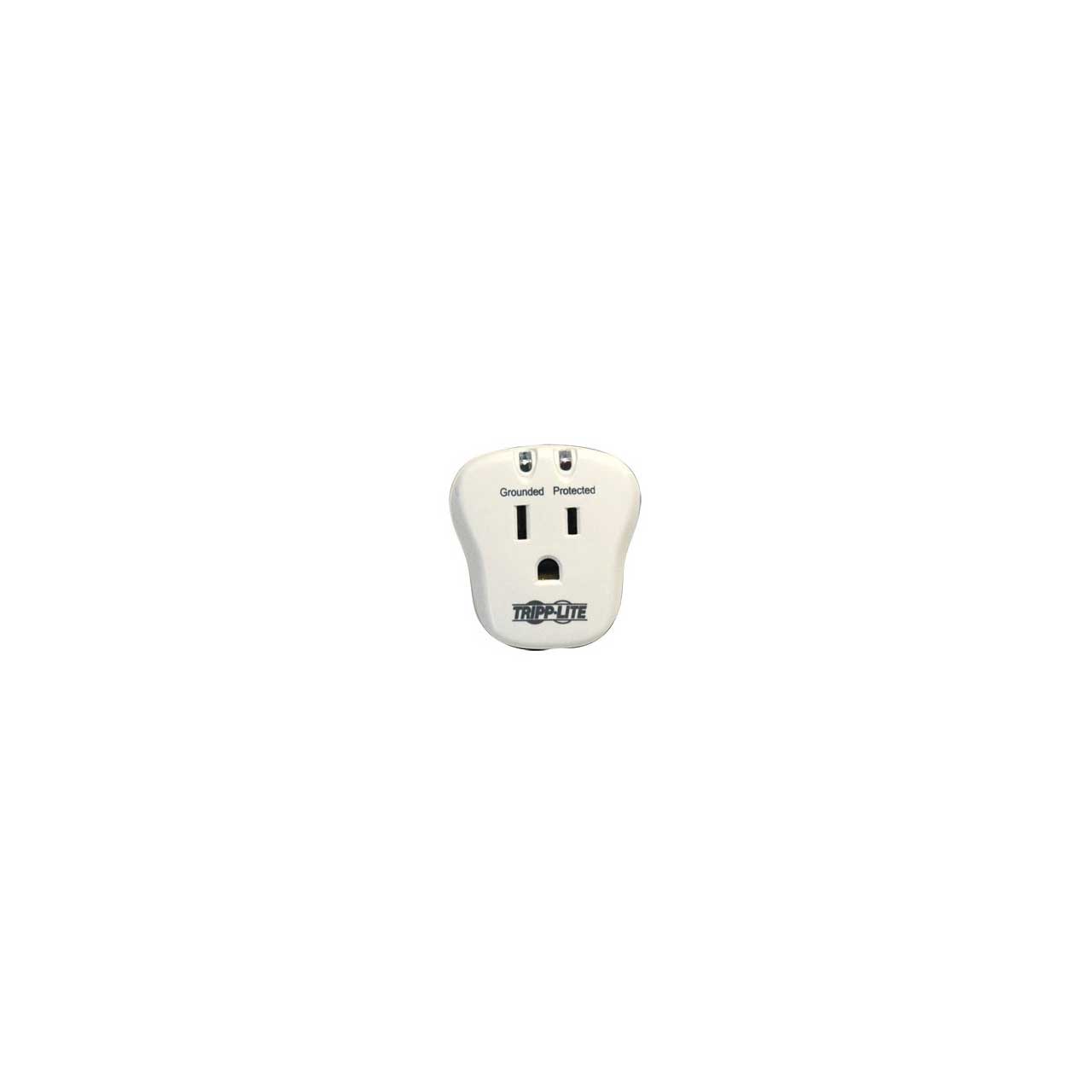

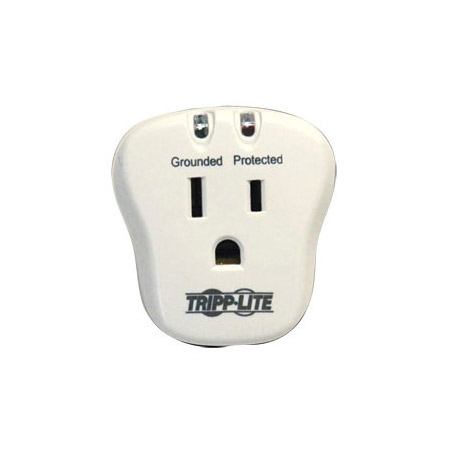

The SPIKECUBE Surge Suppressor from Tripp Lite is a direct plug-in suppressor providing protection on one AC outlet. Its small size makes it ideal for protecting laptop computers, projectors and other portable electronics. A green "Protected" and red "Grounded" LED illuminates to indicate that adequate surge suppression is available. The unit has 600 joules of surge energy absorption. $5,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).

  • Features:

    • 1 outlet; direct plug-in
    • Surge energy absorption: 600 joules; 6,500 amps
    • Diagnostic LEDs indicate protection present (green) and ground present (red)
    • $5,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

  • Specifications:

    • Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 120V (110-125V)
    • Input Cord Length Details: Direct Plug-In
    • Voltage Compatibility (VAC): 120
    • Maximum Surge Amps: 36000
    • Input Plug Type: NEMA 5-15P
    • Input Cord Length (ft.): 0
    • Right-Angle Plug: No
    • Integrated Cord Clip: No

      Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output (Watts): 1800
    • Output Receptacles: (1) 5-15R
    • Circuit Breaker (amps): 15
    • Transformer Accommodation: (1) Yes
    • Right-Angle Outlets: No

      User Interface, Alerts & Controls
    • Diagnostic LED(s): Yes
    • Diagnostic LED Details: Protected (green) & Grounded (red)

      Surge / Noise Suppression
    • AC Suppression Joule Rating: 600
    • AC Suppression Response Time: < 1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS): 150
    • UL1449 Let Through Rating: 400, 500, 500
    • Automatic Shut-Off: No

      Dataline Surge Suppression
    • Telephone/DSL Protection: No
    • Cable (Coax) Protection: No
    • Network (Ethernet) Protection: No

      Physical
    • Anti-Microbial Protective Coating: No
    • Color: Light Gray
    • Form Factors Supported: Direct plug in suppressor supports wall-mounting directly into AC receptacle
    • Housing Color: Light Gray
    • Integrated Keyhole Mounting Slots: No
    • Material of Construction: Plastic
    • Receptacle Color: Light gray
    • Shipping Dimensions (hwd / in.): 6.50 x 4.00 x 2.00
    • Shipping Weight (lbs.): 0.23
    • Unit Dimensions (hwd / in.): 2.50 x 1.90 x 1.80
    • Unit Weight (lbs.): .100

      Special Features
    • Rotatable Outlets: No

      Standards & Compliance
    • Approvals: Exceeds IEEE 587 category A&B specifications
    • UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition

  • Item Includes:

    • 1x SPIKECUBE Surge Suppressor
    • 1x Warranty and instruction information

  • GTIN:

    0037332010643
