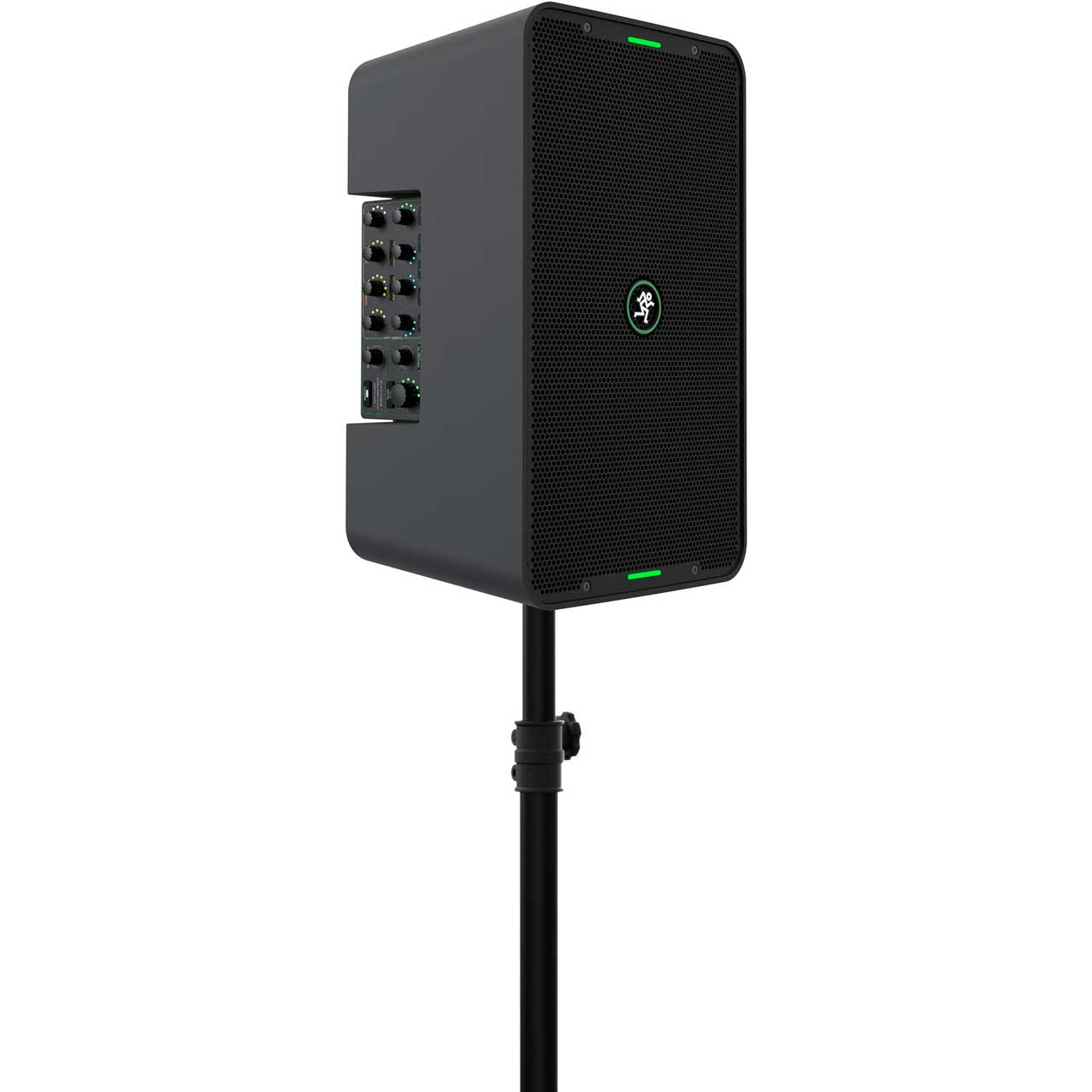

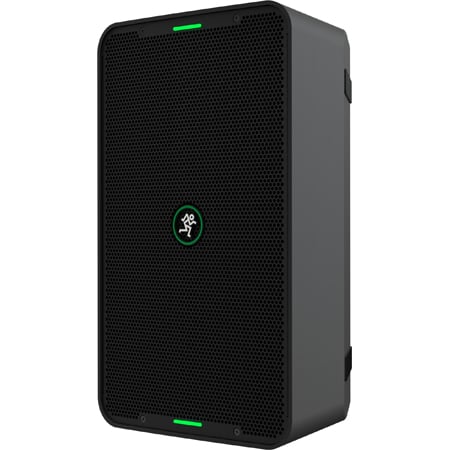

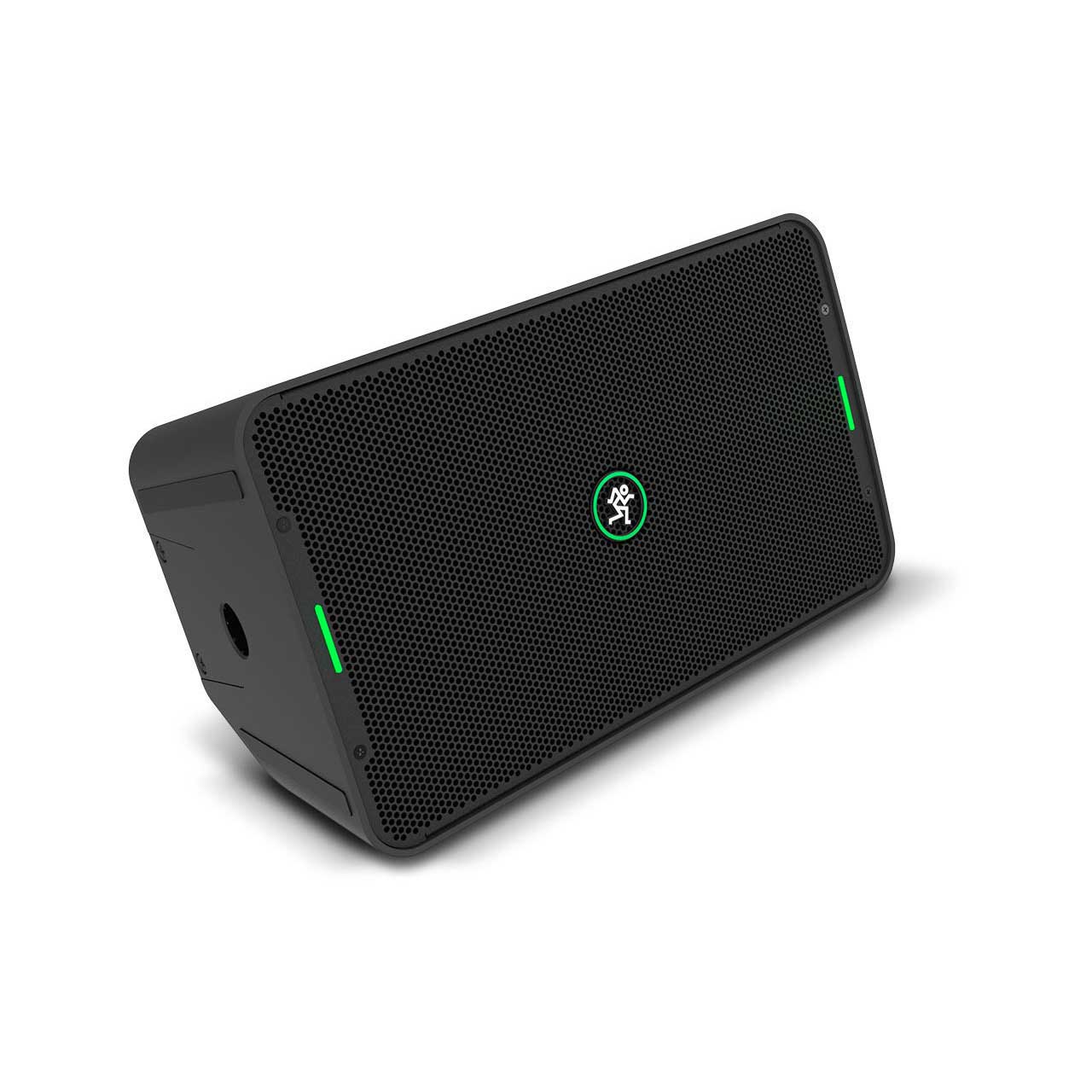

Mackie ShowBox Battery Powered All-In-One Performance Rig with Breakaway Mix Control

ITEM #: MCK-SHOWBOX MFG #: SHOWBOX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$799.99

After Savings:

$649.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Save $150 on the ShowBox When You Order Today!Mackie is now extending a $150 instant rebate on the very popular ShowBox! Order now, this offer ends soon.


SHOWBOX - Overview

Show Them What You've Got
Set up in seconds with Mackie ShowBox, the battery-powered all-in-one performance rig that makes it easy to get great live sound anywhere. ShowBox offers all the audio inputs for solo gigs and small bands, replacing instrument amps and PA speakers and adding effects you can tweak from your mic stand with the breakaway controller.

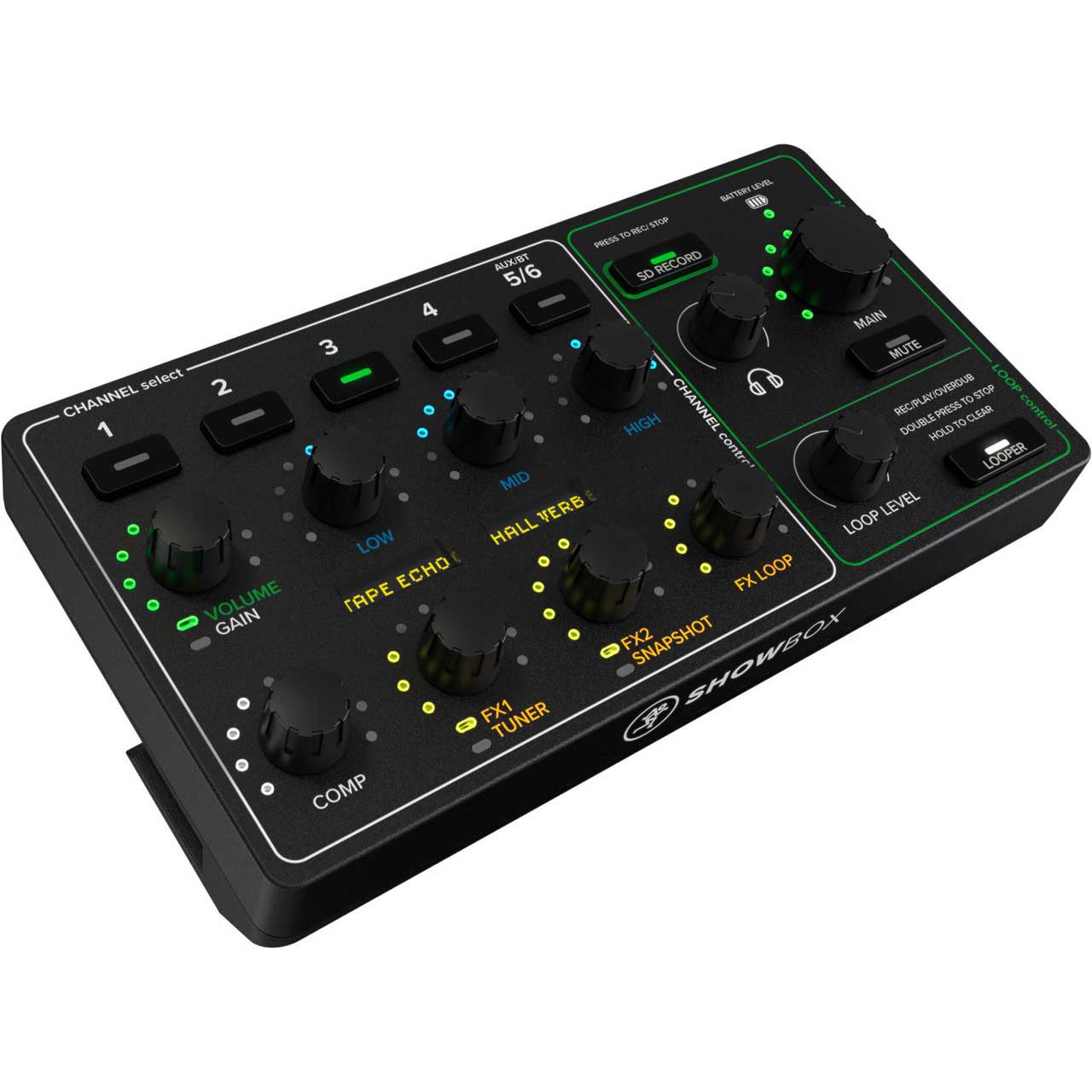

Breakaway Mix Control
Keep everything at your fingertips with the breakaway mix control, including levels for mics and instruments, effects, tone shaping, snapshots, looper, tuner and more. The controller mounts to your mic stand and slides into the ShowBox for storage.

Up to 12 Hours of Powerful Live Sound
Mackie ShowBox delivers up to 12 hours of powerful live sound thanks to a 400W amp, custom drivers and the included battery. With 6 input channels for mics and instruments, ShowBox is the complete solution to portable live sound for singers, guitarists, keyboardists and more.

Total Connectivity
Mackie ShowBox connects you with your audience, wherever they are. Simplify your live setup while adding the ability to record with an SD card, stream with USB-C, and use Bluetooth® to play backing tracks (or music while on a much-needed break).

Amp & PA Voicing Modes
No amp? No problem. With switchable "PA" and "amp" voicing modes, internal effects for guitar and vocals, an FX loop for your pedals, and settings for indoor and outdoor performance, ShowBox can replace your amp and your PA system while opening up new creative possibilities for solo artists and small bands.

Dual Effects Engines
Add two layers of dynamic effects to vocals and instruments, including essential guitar effects like fuzz, overdrive, tube model, acoustic amp and tremolo, plus a variety of modulation and reverb effects.

Expressive Sound Shaping
ShowBox goes beyond the typical portable PA speaker with precise tools for shaping your tone, including separate 3-band parametric EQ and single-knob compression on each channel.

Interactive Performance Tools
ShowBox streamlines your guitar setup with a built-in tuner and looper you can access from the breakaway controller, plus user snapshots that let you recall your favorite settings in seconds.

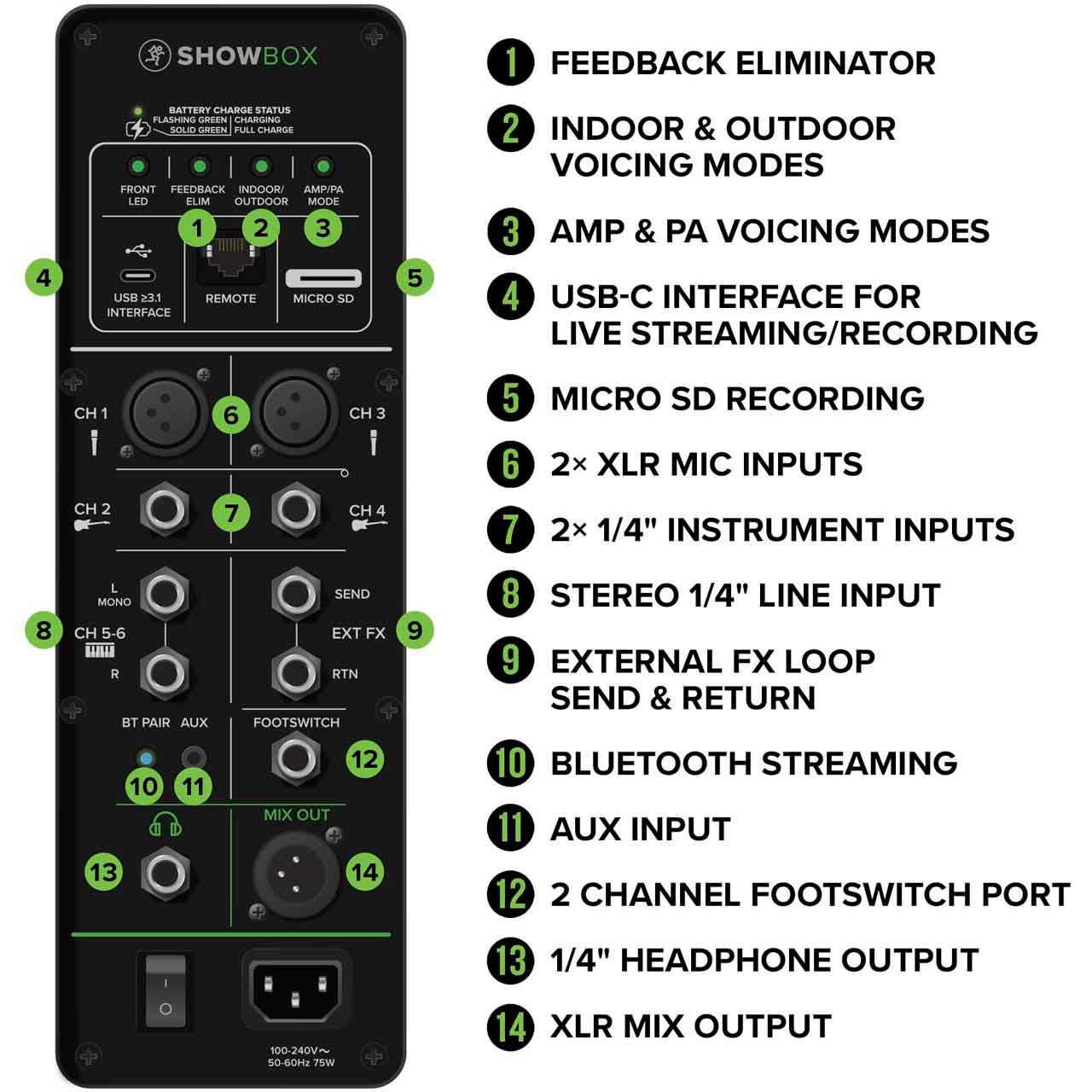

  • Features:

    • Feedback Eliminator
    • Indoor & Outdoor Voicing Modes
    • Amp & PA Voicing Modes
    • USB-C Interface for Live Streaming/Recording
    • Micro SD Recording
    • 2x XLR Mic Inputs
    • 2x 1/4" Instrument Inputs
    • Stereo 1/4" Line Input
    • External FX Loop Send & Return
    • Bluetooth Streaming
    • 3.5 mm Aux Input
    • 2-Button Footswitch Port
    • 1/4" Headphone Output
    • XLR Mix Output

  • Specifications:

    • Acoustic Performance
    • Frequency Range (-10 dB): 48 Hz - 20 kHz
    • Frequency Range (-3 dB): 55 Hz - 20 kHz
    • Horizontal Coverage: 90°
    • Vertical Coverage: 60°
    • Maximum SPL Peak: 122 dB
    • Monitor Angle: 45°

      Transducers
    • Low Frequency: 8.0"/203mm woofer with ferrite
    • High Frequency: 1.0"/25mm titanium high frequency driver

      Power Amplifiers
    • System Power Amplification: Rated Power: 400 watts peak
    • Low Frequency Power Amplifier:
      - Rated Power: 350 watts peak
      - Rated THD: <1%
      - Cooling: Convection
      - Design: Class D
    • High Frequency Power Amplifier:
      - Rated Power: 50 watts peak
      - Rated THD: <1%
      - Cooling: Convection
      - Design: Class D

      Input/Output
    • Input Types:
      - 2x Female XLR
      - 4x 1/4" balanced jacks
      - 1x 1/8" Aux jack
      - 1x USB-C
      - Bluetooth
    • Mic Impedance (Channels 1 + 3): 4 kΩ balanced
    • Instrument Impedance (Channels 2 + 4): 1 MΩ unbalanced
    • Line Input (Channel 5/6): 10 kΩ balanced/unbalanced
    • Output Types:
      - Male XLR Balanced (Mix Out)
      - 1/4" Stereo Headphones
    • Mix Out Impedance: 300 Ω balanced
    • FX Send Impedance: 300 Ω pseudo-balanced

      Bluetooth and USB Information
    • Bluetooth Protocol: 5.1
    • Bluetooth Function: Audio Streaming
    • USB: 2x2, 3.1 ≥Gen1

      Electronic Crossover
    • Crossover Type: 4th order Linkwitz-Riley set at 1.8 kHz
    • Crossover Frequency: 2.0 kHz

      Equalization
    • Low: ±15 dB @ 80 Hz
    • Mid: ±15 dB @ 2.5 kHz
    • High: ±15 dB @ 12 kHz

      Digital Effects
    • Number of Presets (FX1): 12
    • Number of Presets (FX2): 16

      Line Input Power
    • Detachable Line Cord: 100-240V~, 50-60Hz, 75W

      Safety Features:
    • Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection
    • Display LEDs:
      - Front LEDs
      - Feedback Eliminator
      - Outdoor Mode
      - PA Mode
      - Bluetooth Status
      - Battery Level
      - Breakaway Mixer (Multiple)

      Battery Information
    • Battery Type: Lithium Ion
    • Battery Life: Up to 12 hours
    • Charge Time: 3 hours (no signal), 4 hours (with signal)
    • Capacity: 5200 mAh
    • Nominal Voltage: 14.8 V
    • Operating Temperature Range: 59°F - 95°F (15°C - 35°C)
    • Charging Temperature Range: 32°F - 113 °F (0°C - 45°C)

      Construction Features
    • Basic Design: Asymmetrical
    • Enclosure Material: Polypropylene
    • Enclosure Finish: Black, textured finish
    • Grille Material: Perforated Metal w/weather-resistant coating
    • Grille Finish: Powder-coated black
    • Handles: One on top

  • Warranty:

    • Electronics: 3-year nontransferrable warranty
    • Drivers: 2-year nontransferrable warranty

  • GTIN:

    0663961065534
