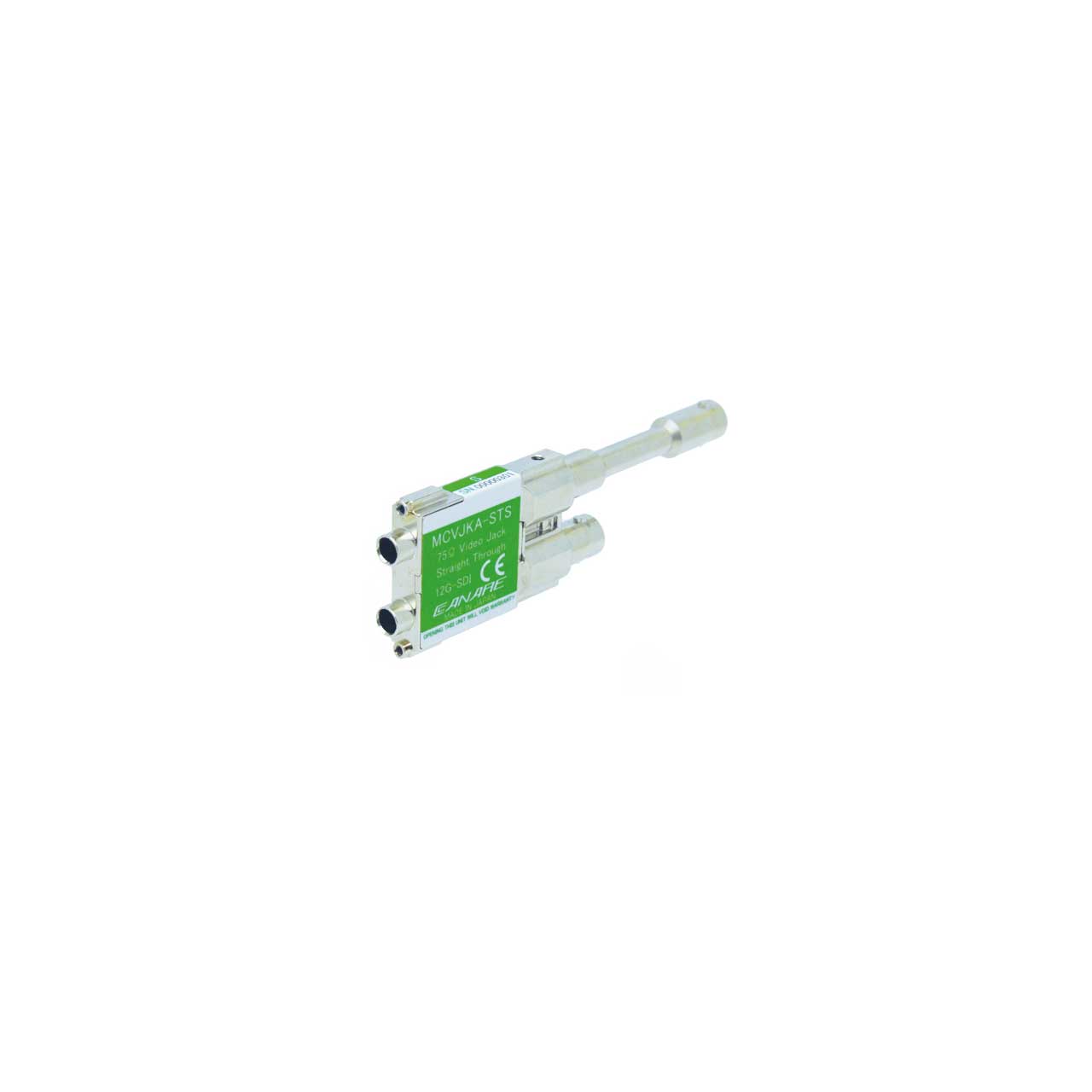

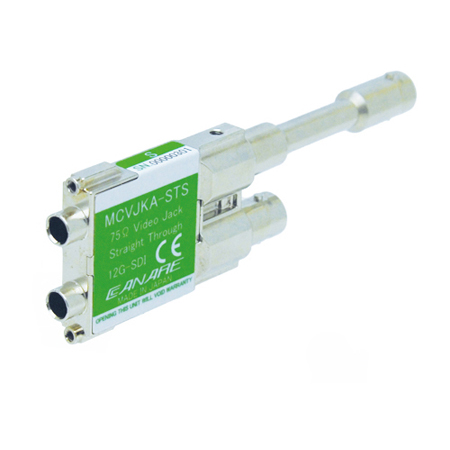

Canare MCVJKA-STS 12G-SDI Straight Through Staggered Rear BNC Dual Video Jack

MCVJKA-STS - Overview

• Features:

  • Return loss: ≥ 10 dB @ 3 GHz, 7 dB, @ 6 GHz, 4 dB @ 12 GHz
  • Isolation: ≥ 45 dB @ 6 GHz
  • 12G/3G/HD/SD-SDI
  • Dust-proof shutter
  • Staggered BNC rear jacks with vertical stud position
  • Improved visibility of the position mark on the BNC plug body

    Note1: Be sure to use with Canare Micro Video Patch Cords.
  • Note2: Not compatible with other plug/patch cables.
  • Note3: `MCVJKA-STW/STS' cannot use with patchbays `32MCK series'. Be sure to use with `32MCKA series'.


• Specifications:

  • General Specifications
  • Nominal Impedance: 75Ω unbalanced
  • Weight: appx. 0.14 lbs (64g)
  • Connector Type: Rear: BNC (IEC 61169-8)
  • Operating Temperature: 14° - 158°F (-10° - 70°)
  • Operating Humidity: ~ 85%

    Electrical
  • Insulation Resistance: 1x10⊃9 Ω or more (1,000MΩ or more)
  • Voltage Proof: Without any damage such as electric breakdown etc
  • Contact Resistance: Between external contacts:5mΩ or less, Between center contacts :50mΩ or less
  • Return loss: 15dB or more( ~1.5GHz ), 10dB or more(~3.0GHz ), 7dB or more(~ 6.0GHz)
  • Isolation: 45dB or more(~6.0GHz)
  • Insertion Loss: 1.5dB or less (~3.0GHz), 2.0dB or less (~6.0GHz)

    Insulation
  • Insulation Resistance: DC500V, 1,000MΩ or more
  • Voltage proof: Without damage such as electric breakdown etc.
  • Contact Resistance:Between External Contact:10mO or less Between Center Contact :100m Ω or less
  • Return Loss: 15dB or more(~ 1.5GHz )

    Mechanical
  • Fixing Force of Plug: 4N or more
  • Contact Resistance: Between external contacts:10m&Ohm; or less, Between center contacts :100mO or less

    Measurement conditions: Unless otherwise specified, the standard range of atmospheric conditions for making measurements and tests are as follows: Ambient temperature (15° to 35°), Relative humidity (25% to 75%), Air pressure (86kPa to 106kPa). If there is any doubt about the results, measurements shall be made within the following limits: Ambient temperature (20 ± 1°C), Relative humidity (63% to 67%), Air pressure (86kPa to 106kPa).


• Item Includes:

  • 1x Canare MCVJKA-STS 12G-SDI Staggered Straight Through Dual Video Jack
