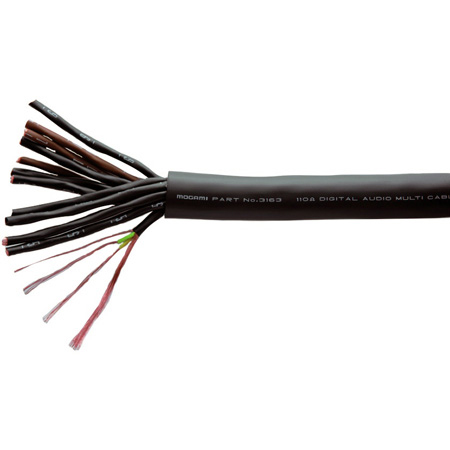

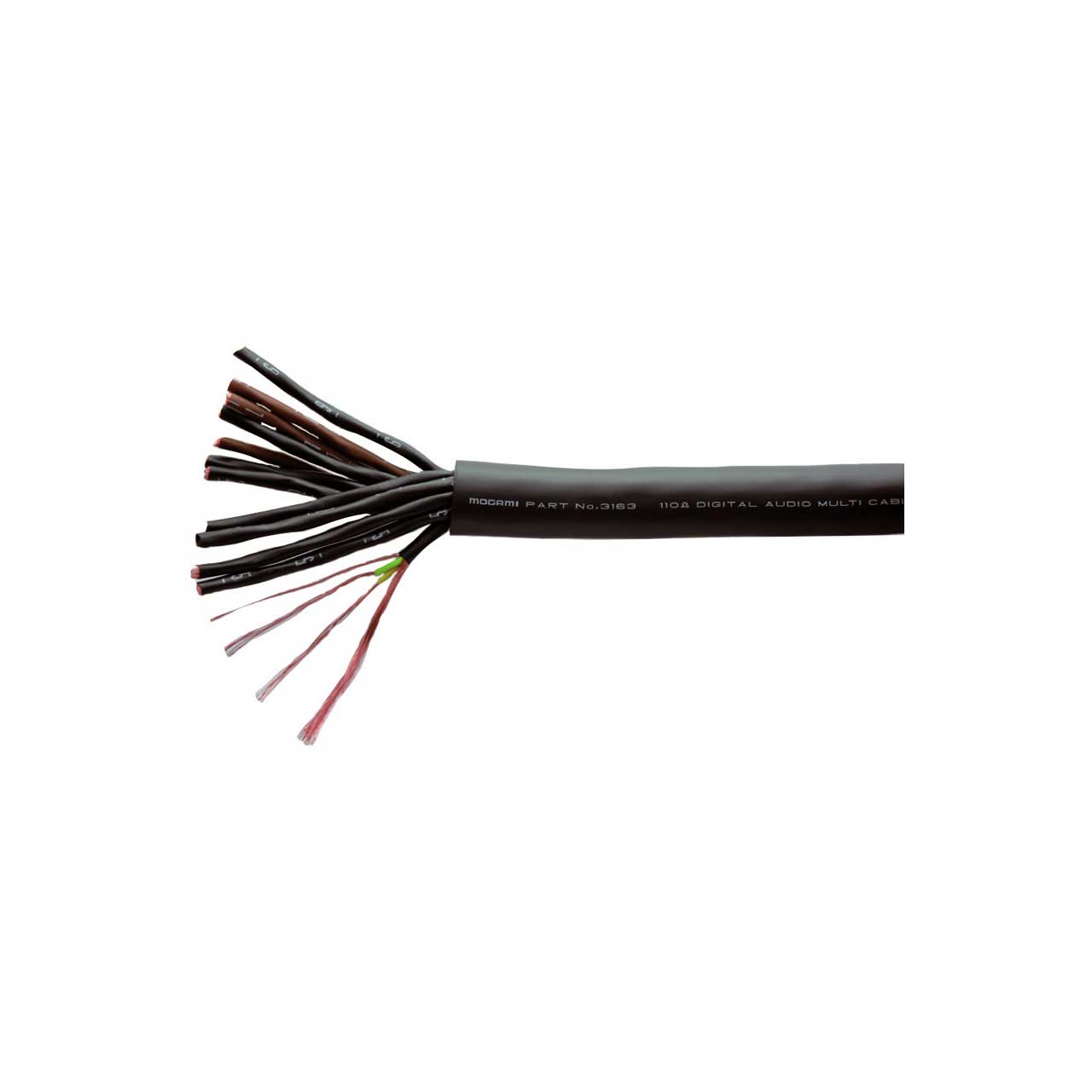

Mogami W3162 8-Core 110 Ohm AES/EBU Digital Audio Cable - Per Foot - Black

W3162-00-C - Overview

• Features:

  • Because of employed cellular PP (polypropylene) insulation material, regardless of its compact overall diameter, larger conductor size is used, which naturally results in lower attenuation.
  • Easy cable core identification system, such as numbered cable core
  • Easy wiring assisted by the same conductor size drain wire
  • Flexible and good low temperature characteristic


• Specifications:

  • Cable
  • Nos. of Cores: 8-CR
  • O.D. (Approx. mm): 13.8 (0.543")
  • Jacket Thickness (Approx. mm): 1.4 (0.055")
  • Conductor: 7/0.20A (0.22mm²) #24AWG (7x #32AWG)
  • Insulation: 1.35∅CPP (Cellular polypropylene)(0.053")
  • Drain Wire: 7/0.20A (Exactly same as conductor)
  • Shield: Approx. 79/0.10A Served (Spiral) Shield
  • Jacket (covering): 3.2∅ Flexible PVC (0.126"∅)
  • Identification: Similar to analog snake cable

    Electrical & Mechanical
  • DC Resistance at 68°F (20°C):
    - Inner Pair Cond.: 0.081Ω/m (0.0247Ω/ft)
    - Shield: 0.024Ω/m (0.0073Ω/ft)
  • Capacitance at 1kHz, 68°F (20°C): 46pF/m (14pF/ft)
  • Inductance: 0.8µH/m (0.24µH/ft)
  • Characteristic Imperdance: 110Ω ±10%
  • Attenuation (6MHz): 0.065dB/m (0.020dB/ft)
  • Phase Constant (6MHz): 0.17rad/m
  • Electrostatic Noise: 5.0mV Max
  • Electromagnetic Noise at 10kHz: 2.0mV Max
  • Microphonics: 60mV
  • Voltage Breakdown: Must withstand at DC 500V/15 sec
  • Insulation Resistance at DC 125V, 68°F (20°C): 10000MΩ x m Min
  • Tensile Strength of One Core: 303N
  • Emigration: Non-Emigrant to ABS resin
  • Applicable Temperature: -4°F - 158°F (-20°C - 70°C)
