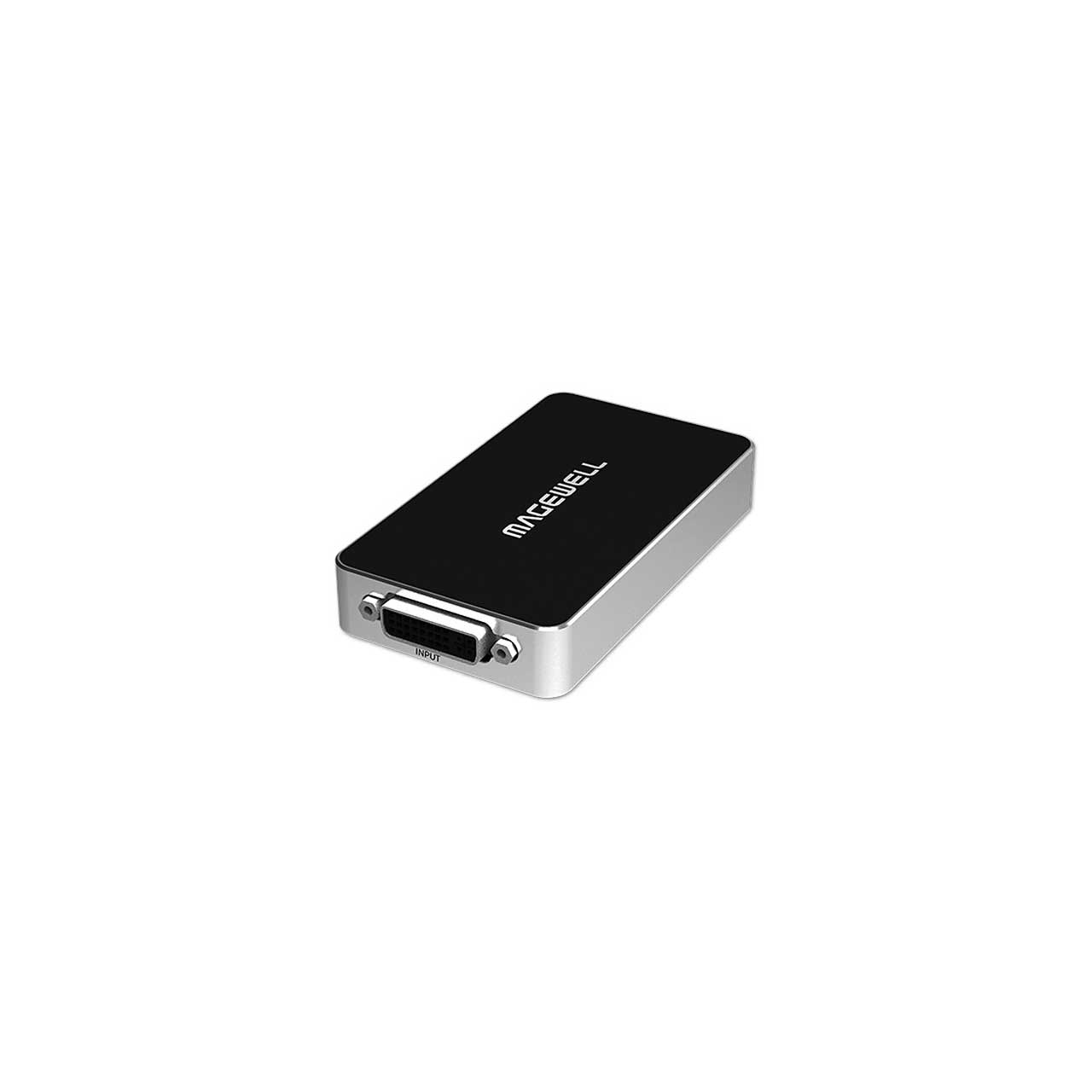

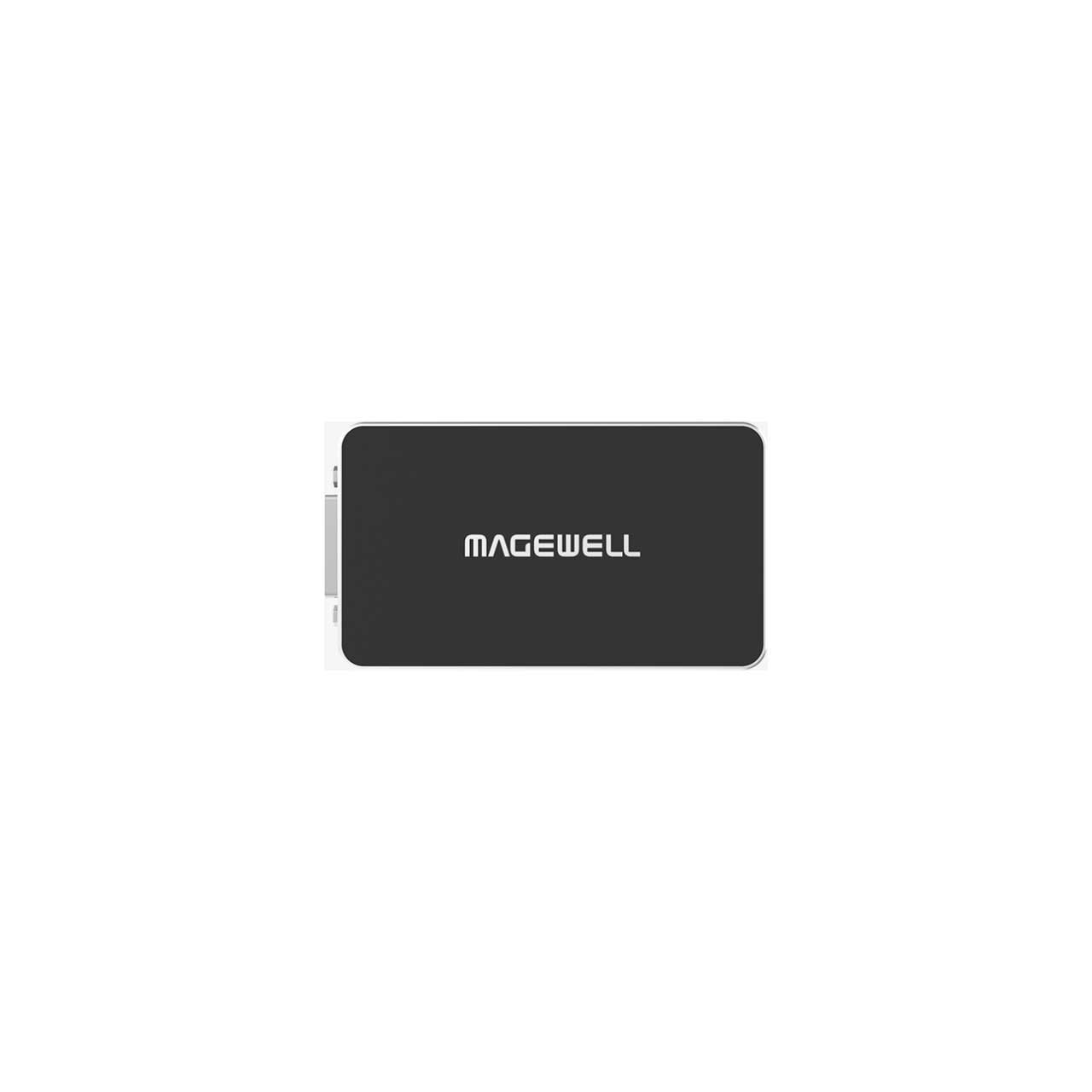

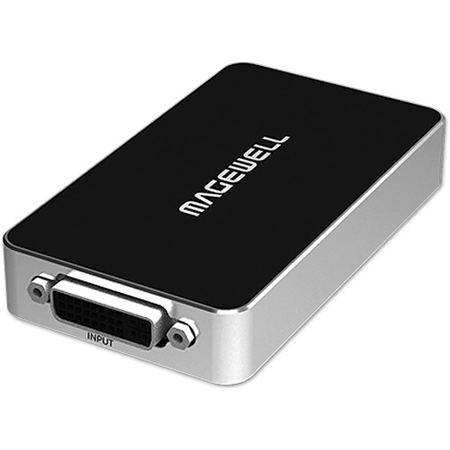

Magewell 32080 USB Capture DVI Plus USB 3.0 Dongle - 1-channel DVI / VGA / YPbPr / CVBS Capture Card w/Loop-through Out

32080 - Overview

• Features:

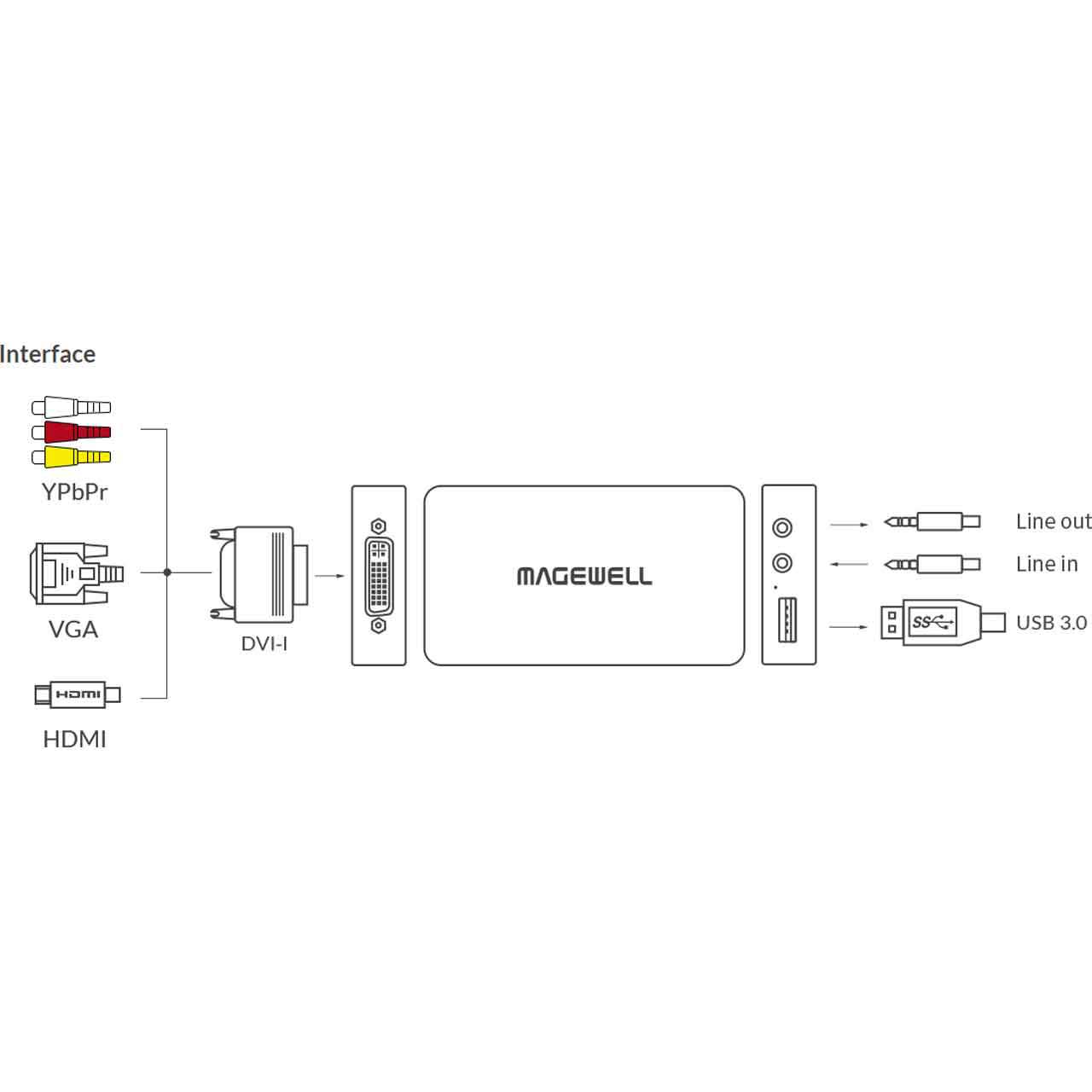

  • Captures one of the following:
  • DVI + audio
  • VGA + audio
  • Component + audio
  • HDMI + embedded audio
  • Audio input via Line in
  • Extract HDMI embedded audio output via Line out


• Specifications:

  • Input
  • 225MHz HDMI receiver, max input & loop through signal: 1920x1080p90 4:4:4
  • Custom EDID
  • Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit HDMI signals

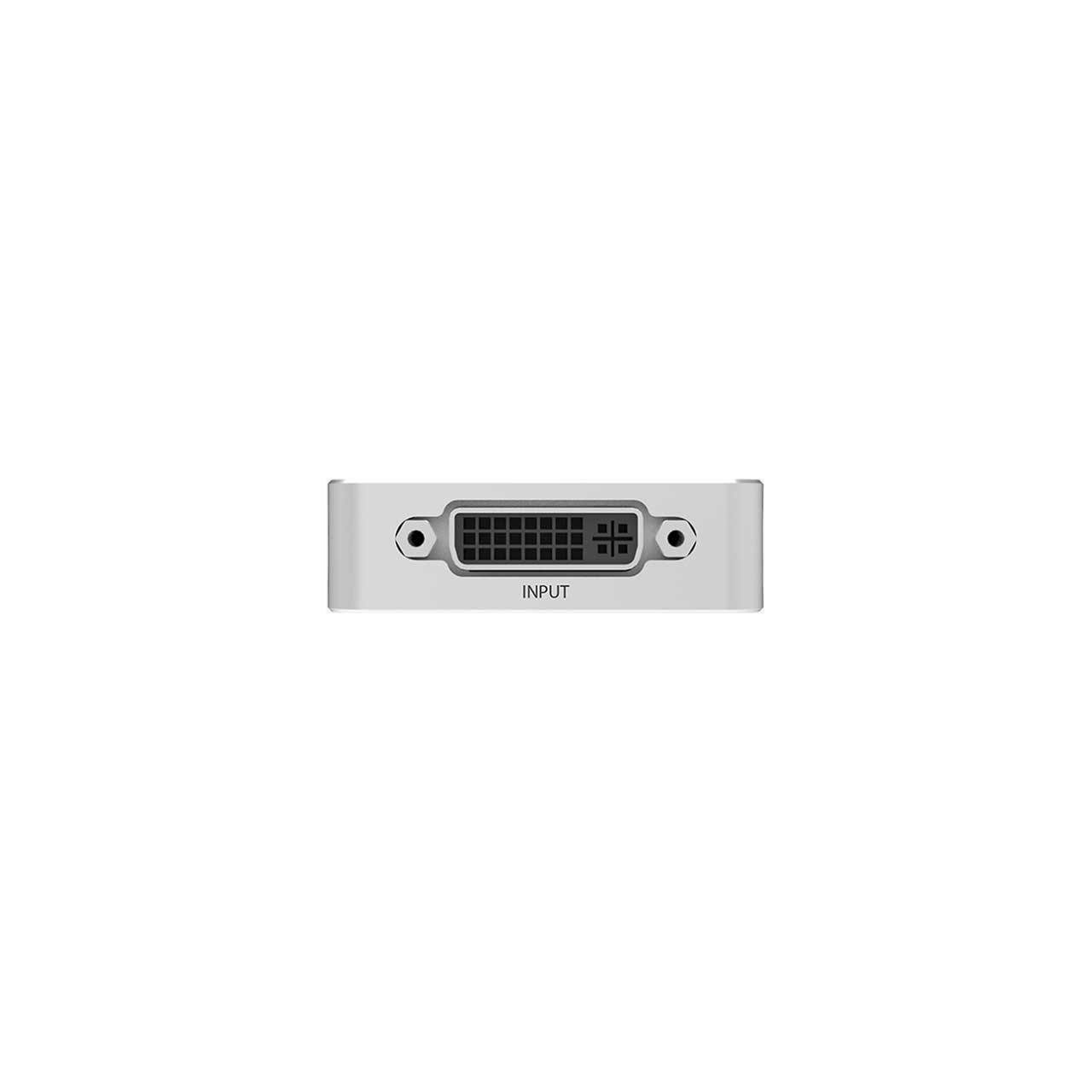

  • DVI-I: DVI 1.0
  • HDMI 1.4a (via breakout cable)
  • VGA (via DVI-to-VGA connector)
  • Component (via breakout cable)
  • 3.5mm audio jack for microphone

    VGA & Component
  • 12-bit ADC
  • Support RGB & YCbCr (YUV) color formats
  • Support separated sync, composite sync, sync-on-green (SOG), sync-on-luminance (SOY)
  • Support DMT, CEA, CVT, GTF and customized CVT/GTF video timings
  • Input signals up to 165MHz pixel rate are digitized with 1:1 sampling

    HDMI Specific Features
  • Video processing pipelines with ~160M pixels/s processing bandwidth
  • Capture resolutions up to 2048x2160, frame rate up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.)
  • 1920x1080p/1280x720p60
  • 720x576p25
  • 720x480p30
  • Output YUYV/UYVY/RGB24/RGB32 videos
  • Video cropping, de-interlacing, up/down scaling, aspect ratio conversion, frame rate conversion, color format conversion, flipping and mirror

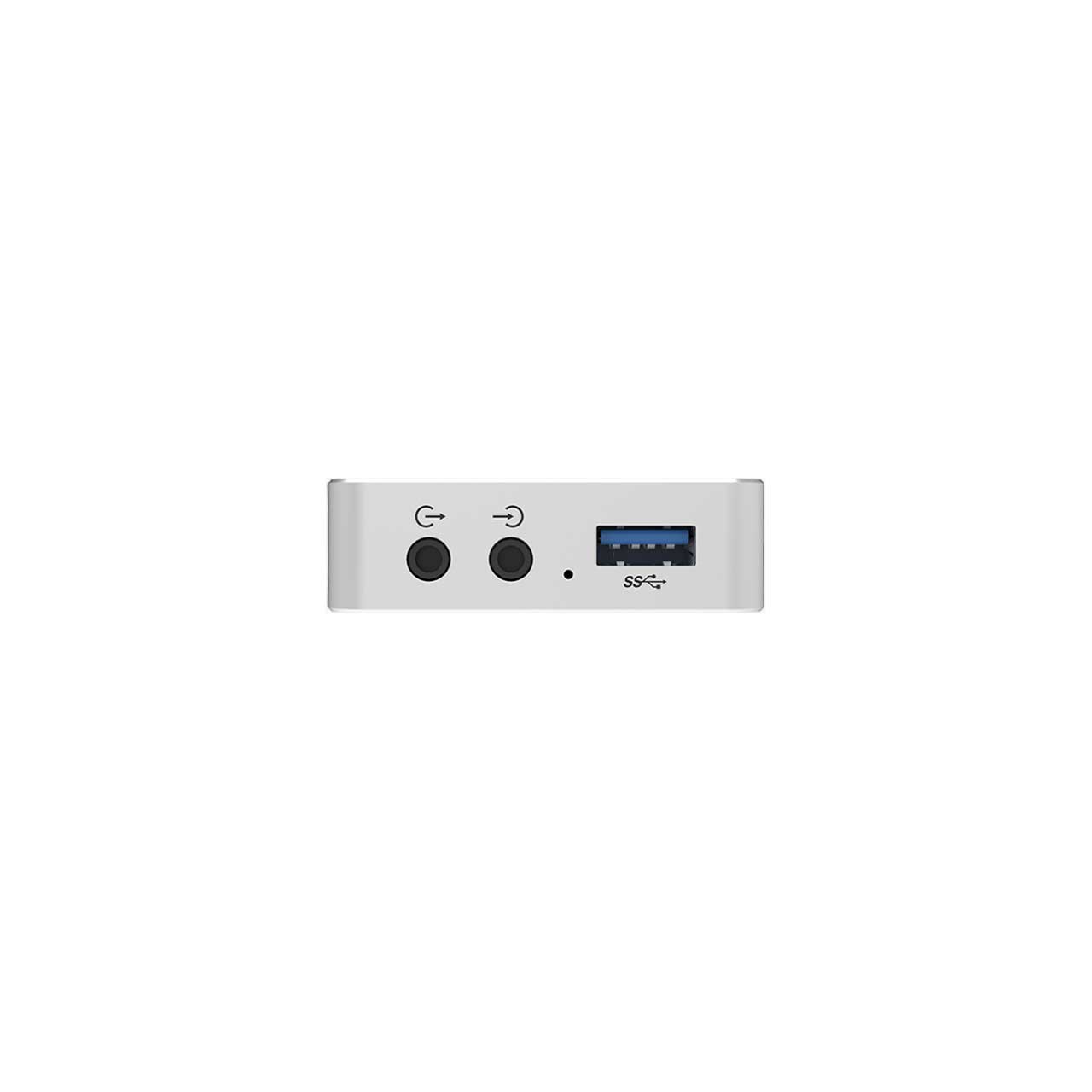

  • Output audio via 3.5mm line out
  • Up to 2-channel IEC60958 audio streams

    SDK & APIs
  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
  • Windows DirectShow/Wave API/DirectSound/WASAPI
  • Linux V4L2/ALSA
  • macOS AVCaptureSession/AudioUnit

    Output Interface
  • USB 3.0
  • compatible with USB 2.0
  • compatible with USB 3.1 Gen 1

    Compatible Software
  • Zoom Certified
  • Microsoft Teams
  • Skype for Business
  • Google Hangouts
  • GoToMeeting
  • Gstreamer
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

    Recommended OS
  • Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above
  • Mac OS X 10.9/macOS 10.12 and above
  • Chrome OS

    LED Indicator
  • Status LEDs indicate the working state of the device:
  • Pulsing slowly: input signal unlocked
  • On: input signal locked
  • Double blinks: memory abnormal or FPGA configuration failed
  • Off: firmware or power supply abnormal

    Form Factor (LxWxH)
  • 3.99" (101.5mm) x 2.23" (56.8mm) x .66" (17mm)

    Power Consumption
  • 5V max current: ~600mA
  • max power consumption: ~3W

    Working Environment
  • Operating temperature: 32°F (0°C) to 113 F (45°C)
  • Storage temperature: -4°F (-20°C) to 158 F (70°C)
  • Relative Humidity: 5% to 90% non-condensing


• Item Includes:

  • 1x Magewell 32080 USB Capture DVI Plus
  • 1x USB 3.0 cable
  • 1x DVI to VGA connector
  • 1x DVI-I to HDMI + Component breakout


• Warranty:

  • 3-Year Limited Warranty


• GTIN:

  8143950200884
