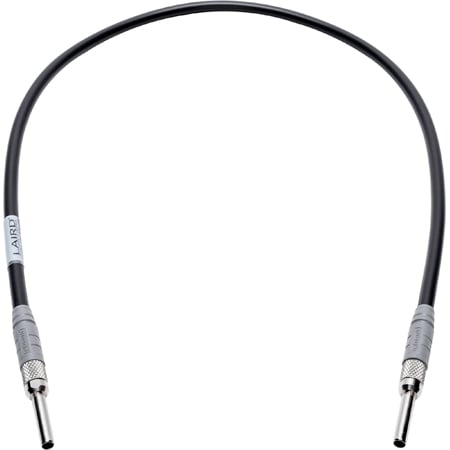

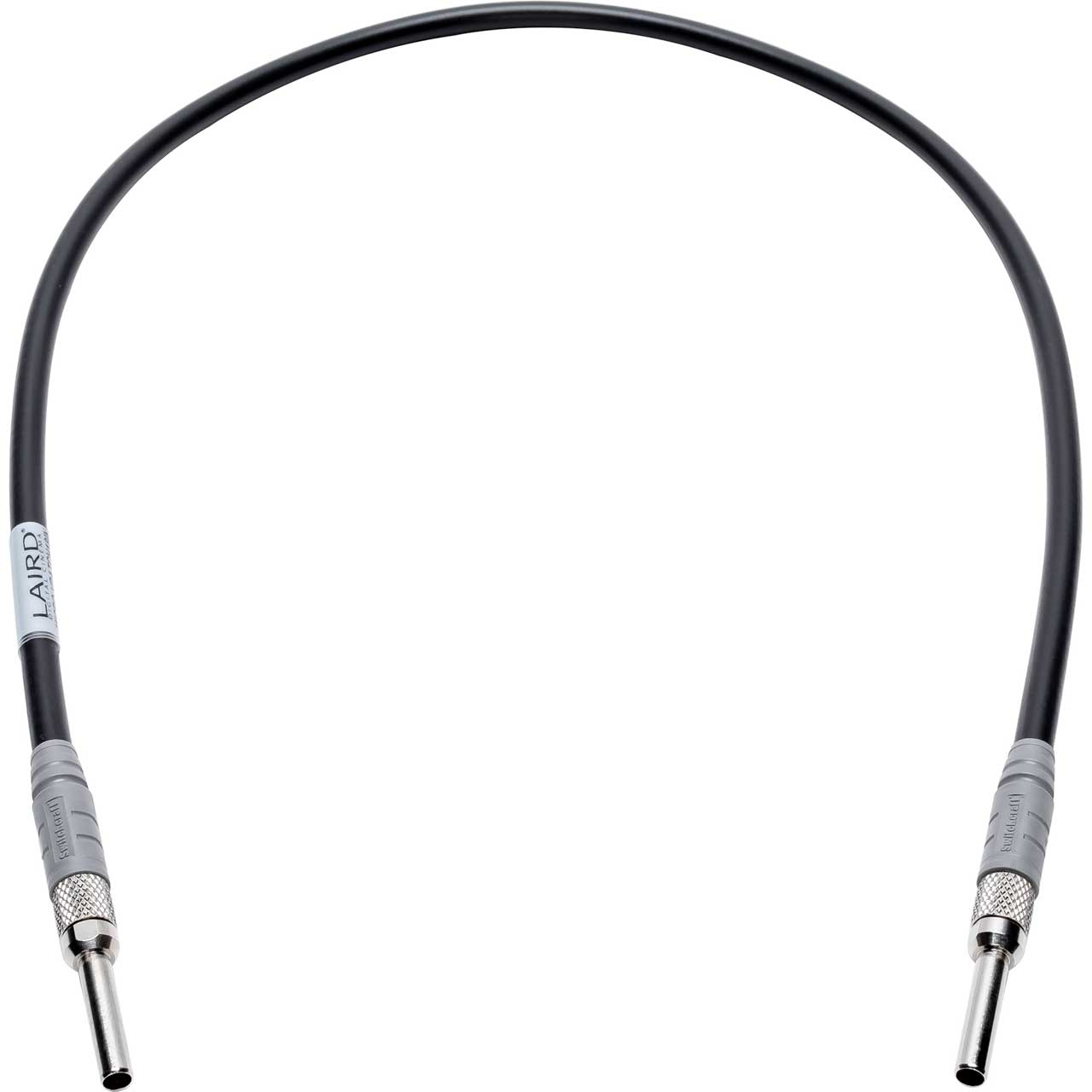

Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 1 Foot

MICRO-VPATCH-001 - Overview

• Features:

  • Designed for UHD and 4K Video Transport
  • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • Single Link Micro Video Patch Plug Simplifies Installations
  • Optimized Transmission Distance for UHDTV
  • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
  • Meets SMPTE 424M, ST2081-1 and ST2082-1 Standards
  • Sweep tested 5 MHz to 12 GHz


• Specifications:

  • Belden 4505R 20 AWG 12G SDI Coax Cable with PVC Jacket:
  • Mechanical Characteristics:
  • Operating Temperature Range: -30°C To +75°C
  • Max. Recommended Pulling Tension: 52 lbs.
  • Min. Bend Radius/Minor Axis: 2.500 in.

    Electrical Characteristics:
  • Impedance (Ohm): 75
  • Inductance (µH/ft): 0.107
  • Capacitance (pF/ft): 16.100
  • Nominal Velocity of Propagation (%): 83.000
  • Nominal Delay (ns/ft): 1.220
  • Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 10.200
  • Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft): 3.400
  • Max. Operating Voltage - UL: 300 V RMS

    Physical Characteristics:
  • # Coax: 1
  • AWG: 20
  • Stranding: Solid
  • Conductor Material: Silver Plated Copper
  • Dia. (in.): 0.032
  • Insulation Material/ Diameter (in.): Gas-injected FHDPE - Foam High Density Polyethylene / .145"
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Nominal Diameter: 0.233 in.

    Switchcraft 2P7032 Single UHD 75 Ohm Micro Video Patch Plug:
  • Meets SMPTE 2082-1
  • Impedance (Ohm): 75
  • Contact Resistance: Less than 50 Milliohms
  • Life Cycle: 5,000 min
  • Plug Barrel: Copper Alloy/Nickel Plated
  • Sleeve and Ferrule: Copper Alloy/Nickel Plated
  • Contact Pin: Copper Alloy/Gold Plated
  • Insulators: Teflon
  • Boot: Thermoplastic Elastomer, UL94-VO, Gray


• Warranty:

  • 1 Year
