Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 18 Inch

Name: Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 18 Inch
Brand: Laird Digital Cinema
SKU: MICRO-VPATCH18IN
Price: 51.95 USD
Availability: PreSale

ITEM #: MICRO-VPATCH18IN MFG #: MICRO-VPATCH18IN

Laird Digital Cinema

Lengths:

Colors:

Lengths

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$57.95

Our Price:

$51.95

Add to Wish List Leasing Options

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MICRO-VPATCH18IN - Overview

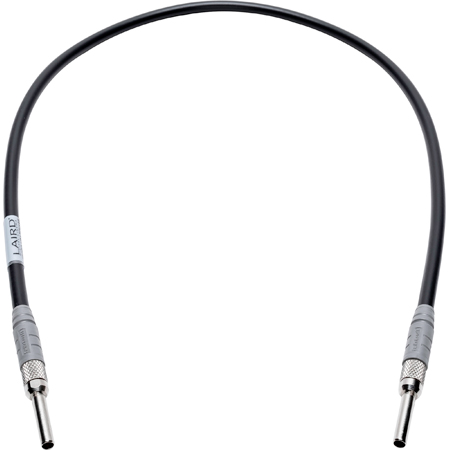

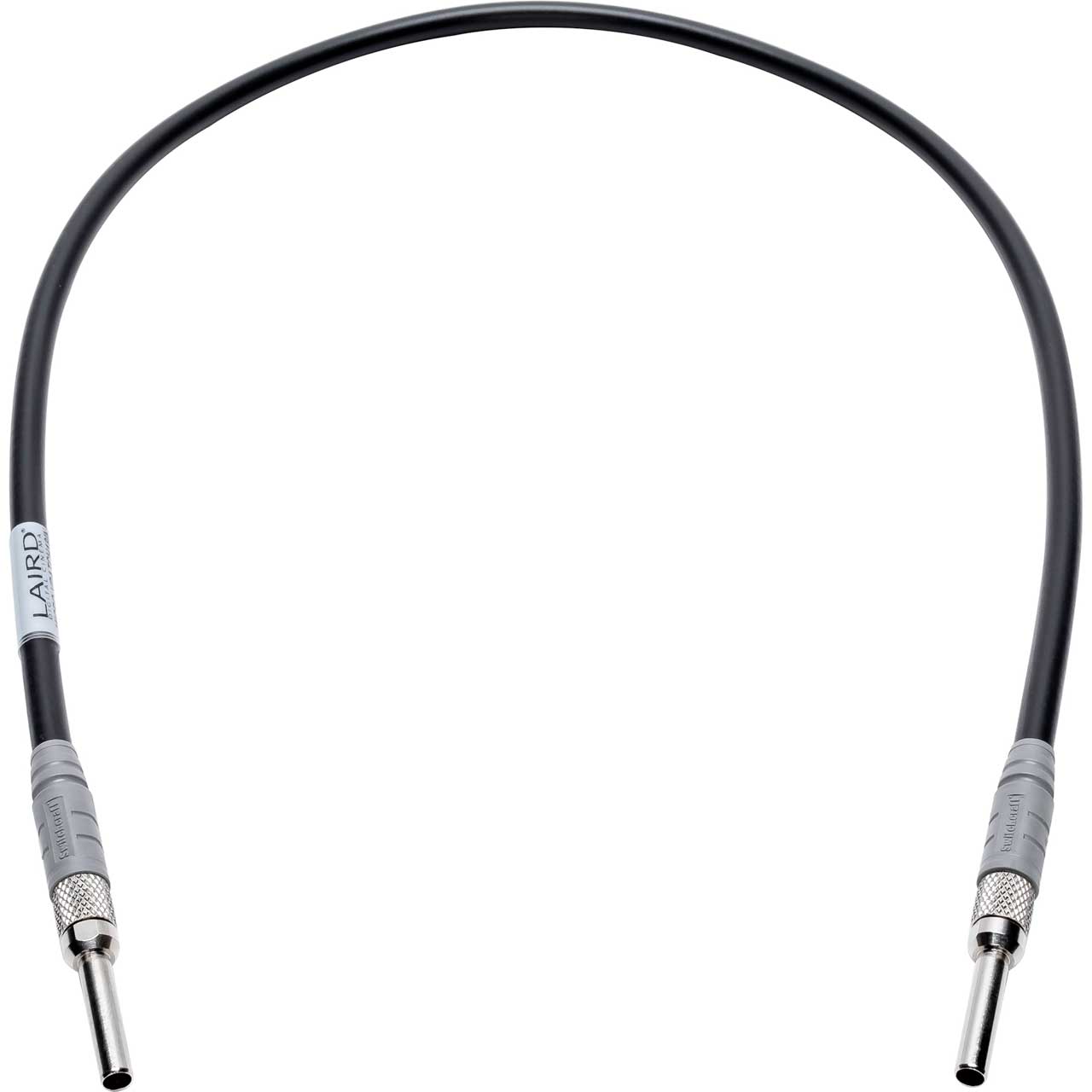

Coming from the broadcast video industry’s most trusted source in video cables, the Laird MICRO-VPATCH Series are the first choice in Micro Video Patch cords for 12Ghz panels. These patch cables are fully compatible with AVP, Bittree and Switchcraft brand video patchbays and ready to handle your critical video signals in 12G-SDI applications. Cables are a precision hand crafted work of art utilizing Belden 4505R coax and Switchcraft 2P7032 micro video patch plugs. Laird MICRO-VPATCH are lightweight and perfect in both studio and OB truck use.

Please Note: Not compatible with Canare patchbays

Features:
- Designed for UHD and 4K Video Transport
- 12 GHz, 4K UHD Precision 75-Ohm Video Cable
- Single Link Micro Video Patch Plug Simplifies Installations
- Optimized Transmission Distance for UHDTV
- Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
- Meets SMPTE 424M, ST2081-1 and ST2082-1 Standards
- Sweep tested 5 MHz to 12 GHz
Specifications:
- Belden 4505R 20 AWG 12G SDI Coax Cable with PVC Jacket:
- Mechanical Characteristics:
- Operating Temperature Range: -30°C To +75°C
- Max. Recommended Pulling Tension: 52 lbs.
- Min. Bend Radius/Minor Axis: 2.500 in.

  Electrical Characteristics:
- Impedance (Ohm): 75
- Inductance (µH/ft): 0.107
- Capacitance (pF/ft): 16.100
- Nominal Velocity of Propagation (%): 83.000
- Nominal Delay (ns/ft): 1.220
- Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 10.200
- Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft): 3.400
- Max. Operating Voltage - UL: 300 V RMS

  Physical Characteristics:
- # Coax: 1
- AWG: 20
- Stranding: Solid
- Conductor Material: Silver Plated Copper
- Dia. (in.): 0.032
- Insulation Material/ Diameter (in.): Gas-injected FHDPE - Foam High Density Polyethylene / .145"
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Overall Nominal Diameter: 0.233 in.

  Switchcraft 2P7032 Single UHD 75 Ohm Micro Video Patch Plug:
- Meets SMPTE 2082-1
- Impedance (Ohm): 75
- Contact Resistance: Less than 50 Milliohms
- Life Cycle: 5,000 min
- Plug Barrel: Copper Alloy/Nickel Plated
- Sleeve and Ferrule: Copper Alloy/Nickel Plated
- Contact Pin: Copper Alloy/Gold Plated
- Insulators: Teflon
- Boot: Thermoplastic Elastomer, UL94-VO, Gray
Warranty:
- 1 Year

MICRO-VPATCH18IN - Recommended Accessories

Bittree S64S-2MVTDK 12G+ Micro-Video HD-BNC Patchbay - 2X32 - 1 RU
BIT-S64S-2MVTDK
Our Price: $3,096.00
AVP AV-U248E1-UHN75R2-B31 1RU Mini-BNC UHD Micro 12G Video Patch Panel - 2 x 48 - Normaled - Terminated with Cable Bar
AVU248E1U75R2B31
Our Price: $6,183.90
Switchcraft MMVPMB48K175T 2x48 MicroSize 12G 4K/8K Video Patchbay - Full Normal - Micro-BNC - HDBNC
SW-MMVPMB48K175T
Our Price: $4,160.58
Middle Atlantic Claw14 Wallmount Cable Hanger
CLAW14
Our Price: $31.95
Black 5 Inch Soft cinch VELCRO® Brand Polytie Cable Tie - 25 Pack
3105-25
Our Price: $10.18
CAIG DN5S-6N DeoxIT Spray Contact Cleaner & Rejuvenator - Non Flammable
DN5S-6N
Our Price: $29.50

MICRO-VPATCH18IN - Reviews

MICRO-VPATCH18IN - Attachments

Download the MICRO-VPATCH Series Datasheet

Overview

MICRO-VPATCH18IN - Overview

Please Note: Not compatible with Canare patchbays

Features:
- Designed for UHD and 4K Video Transport
- 12 GHz, 4K UHD Precision 75-Ohm Video Cable
- Single Link Micro Video Patch Plug Simplifies Installations
- Optimized Transmission Distance for UHDTV
- Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
- Meets SMPTE 424M, ST2081-1 and ST2082-1 Standards
- Sweep tested 5 MHz to 12 GHz
Specifications:
- Belden 4505R 20 AWG 12G SDI Coax Cable with PVC Jacket:
- Mechanical Characteristics:
- Operating Temperature Range: -30°C To +75°C
- Max. Recommended Pulling Tension: 52 lbs.
- Min. Bend Radius/Minor Axis: 2.500 in.

  Electrical Characteristics:
- Impedance (Ohm): 75
- Inductance (µH/ft): 0.107
- Capacitance (pF/ft): 16.100
- Nominal Velocity of Propagation (%): 83.000
- Nominal Delay (ns/ft): 1.220
- Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 10.200
- Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft): 3.400
- Max. Operating Voltage - UL: 300 V RMS

  Physical Characteristics:
- # Coax: 1
- AWG: 20
- Stranding: Solid
- Conductor Material: Silver Plated Copper
- Dia. (in.): 0.032
- Insulation Material/ Diameter (in.): Gas-injected FHDPE - Foam High Density Polyethylene / .145"
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Overall Nominal Diameter: 0.233 in.

  Switchcraft 2P7032 Single UHD 75 Ohm Micro Video Patch Plug:
- Meets SMPTE 2082-1
- Impedance (Ohm): 75
- Contact Resistance: Less than 50 Milliohms
- Life Cycle: 5,000 min
- Plug Barrel: Copper Alloy/Nickel Plated
- Sleeve and Ferrule: Copper Alloy/Nickel Plated
- Contact Pin: Copper Alloy/Gold Plated
- Insulators: Teflon
- Boot: Thermoplastic Elastomer, UL94-VO, Gray
Warranty:
- 1 Year
