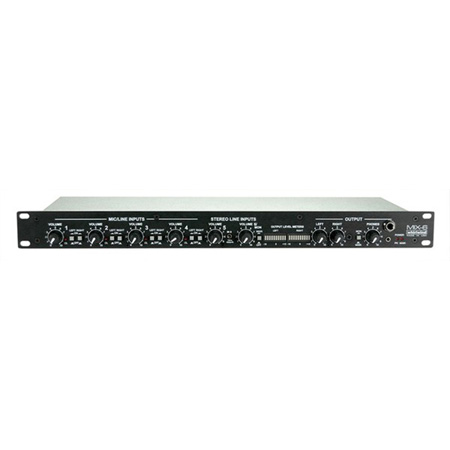

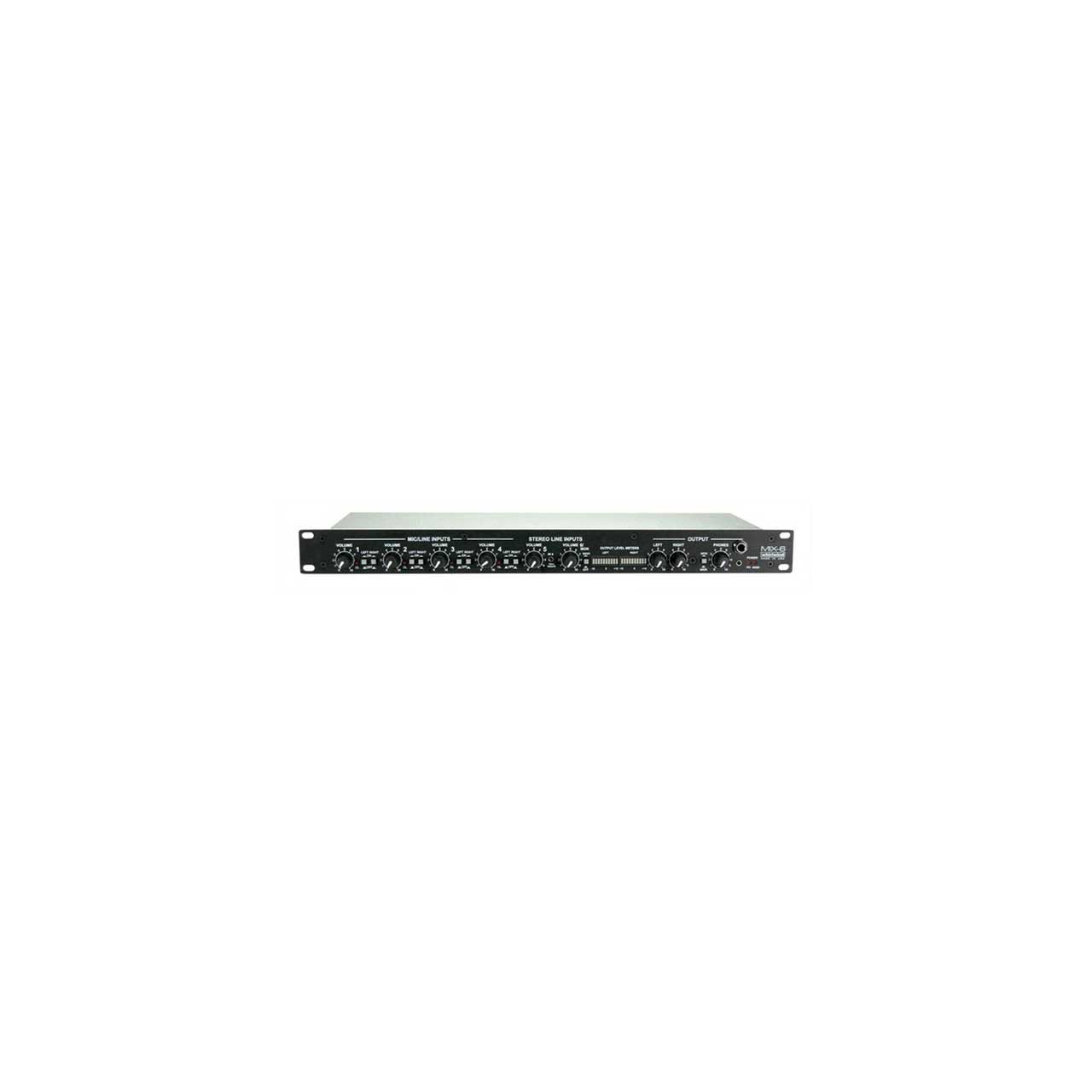

Whirlwind Pro Stereo Rack Mixer

ITEM #: MIX-6 MFG #: MIX-6

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,090.38

Our Price:

$992.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MIX-6 - Overview

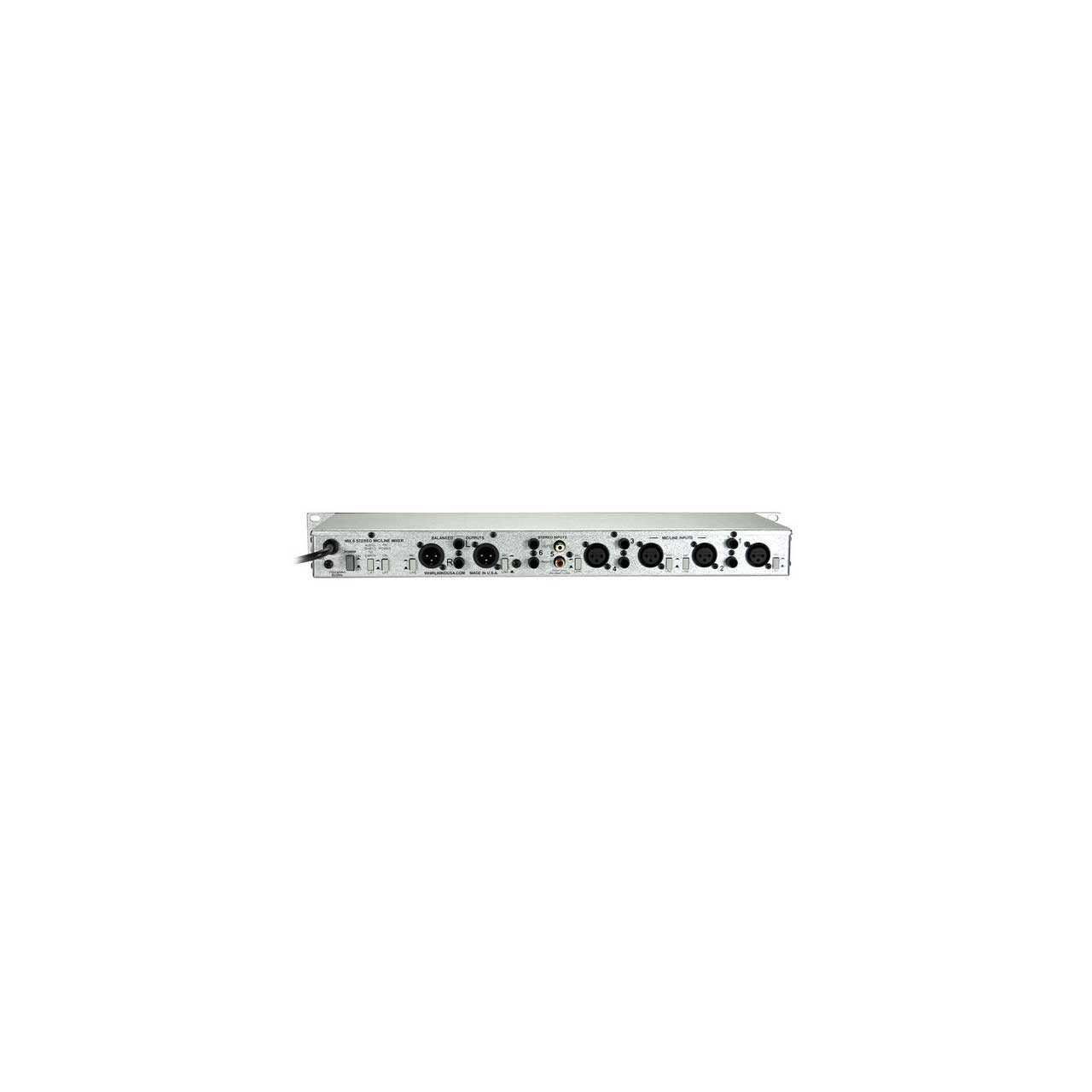

The Whirlwind single rack space MIX-6 offers a unique combination of inputs to provide a simple field mixing system. Inputs 1-4 and the stereo outputs are capable of any combination of line or mic level, XLR or 1/4", balanced or unbalanced. Input 5 is a stereo RCA pair, and Input 6 is a stereo 1/4" pair (balanced or unbalanced). Additionally, Input 6 is switchable for removal from the output buss and patching directly to the headphone out for solo monitoring of channel 6. Internal power supply may be preset to 120 or 230V.

  • Specifications:

    • Frequency Response (Line) Unity Gain: ±1dBV 20Hz - 20kHz
    • Frequency Response (Mic) 40dB Gain: ±1dBV 125Hz - 20kHz
    • THD + N Line Mode Unity Gain: <.0.% 20Hz - 20kHz
    • THD + N Mic Mode 40dB Gain: <.01% 125Hz - 20kHz
    • Equivalent Input Noise: -120dBV
    • Total Gain: 72dBV
    • Gain of Microphone Preamp: Mic switch -32dBV; 20dBV on pot
    • Range Of Input & Output Pots: -56 - 20dBV
    • Common Mode Rejection Of Input (Mic): >85dB @ 60Hz
    • Maximum Input Level: Line +21dBV; Mic -11dBV
    • Low Frequency Filter (Mic Mode): 24dB per octave @ 120Hz
    • Phantom Power: 48V DC
    • Input Impedance: Mic 1.5kΩ; Line 8.7kΩ
    • Channel Isolation: 75dB
    • Maximum Output Level: +26dBV balanced
    • Output Impedance: 200Ω balanced; 100Ω each leg
    • Noise @ Unity Gain (Line): -92dBV
    • Noise @ 40dB Gain (Mic): -80dBV
    • Clip LED Threshold: +19dBV
    • Minimum Headphone Impedance: 30Ω
    • Maximum Headphone Output Level: 6.5dBm; 1.6 VAC RMS @ 30Ω
    • Power Consumption: .2A AC @ 120VAC max; .11A AC @ 120VAC min
    • Power Requirements: 120VAC 60Hz - US model; 230VAC 50Hz - Export model
    • Internal Mains Fuse: .25A Slo-Blo type 3AG - US model; .125A Slo-Blo 3AG - Export model
    • AC Dropout Voltage: 105VAC max load; 99VAC min load
    • Dimensons (HxWxD): 1.75" x 19" x 6"
    • Unit Weight: 5.3lbs
    • Shipping Weight: 7lbs

  • Warranty:

    • 5 year

  • GTIN:

    0692465001816
