Aplication

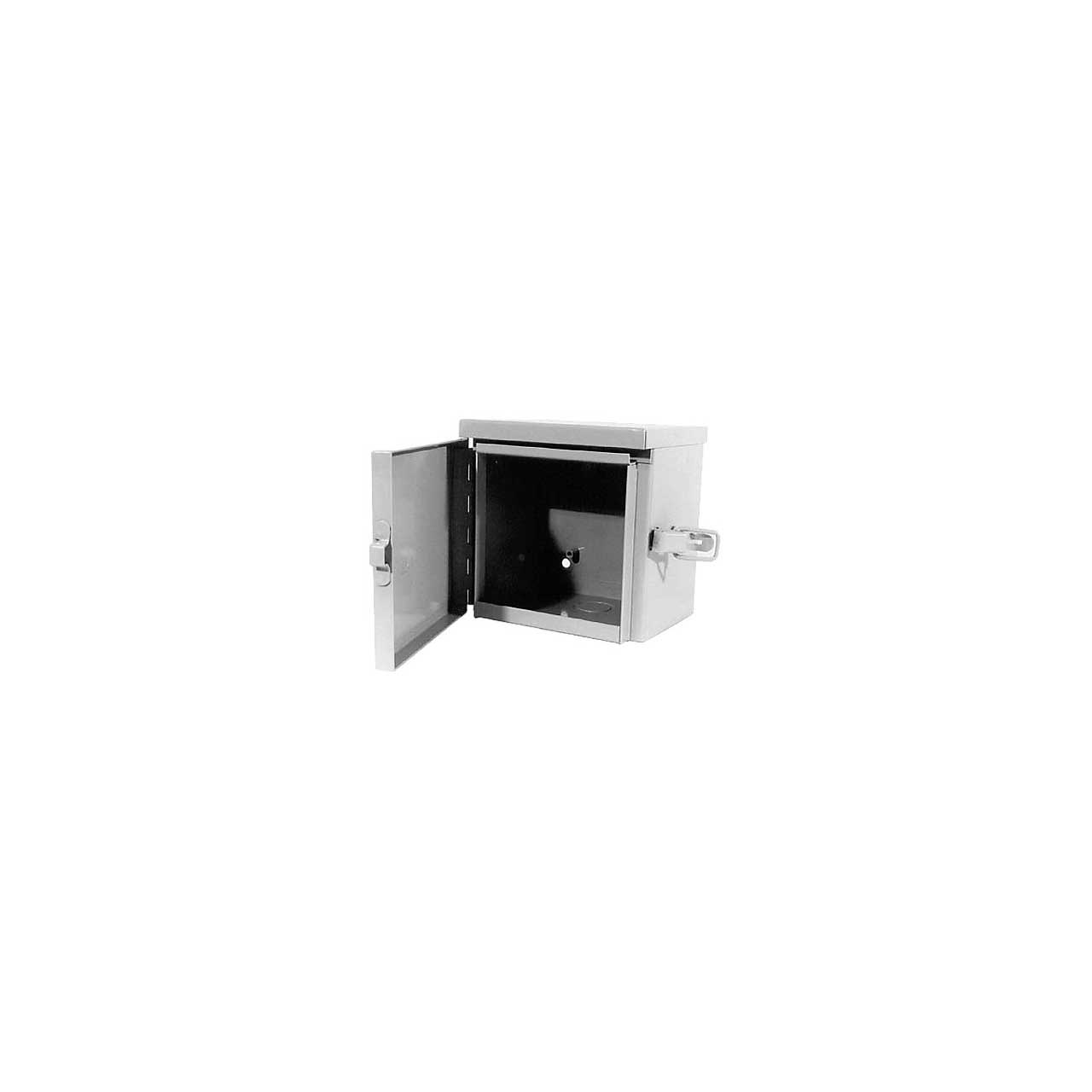

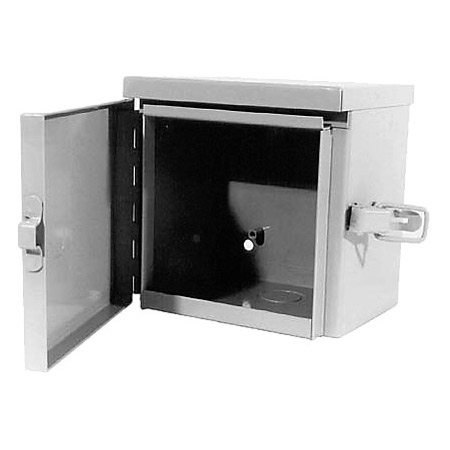

Designed for use as a telephone cabinet, panel enclosure, or junction box.
For outdoor use to provide protection against rain, sleet, or snow, or indoors where dripping water is a problem.
Construction
Enclosure and cover are manufactured from 16, 14, 12, or 11 gauge G90 galvanized steel.
The cover is mounted on galvanized lift-off hinges with stainless steel hinge pins. Cover is fastened with a pad-lockable draw latch.
Panel mounting studs provided for optional back panel.
Embossed mounting holes on back.
No Knockouts Provided
Drip shield top and seam-free sides, front and back.
Industry Standards
NEMA -Type 3R
UL 50-Type 3R
CUL-Type 3R (Equivalent to CSA)
Finish
ANSI 61 gray polyester powder coating over phosphatized G90 galvanized steel.
