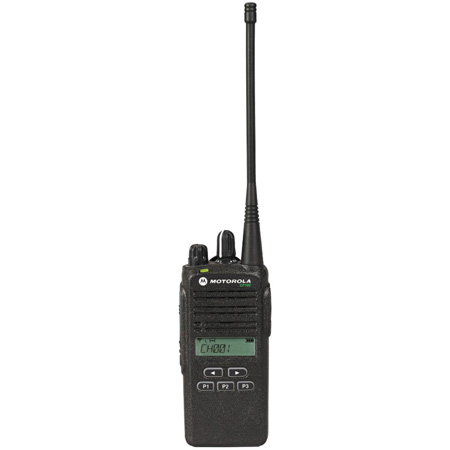

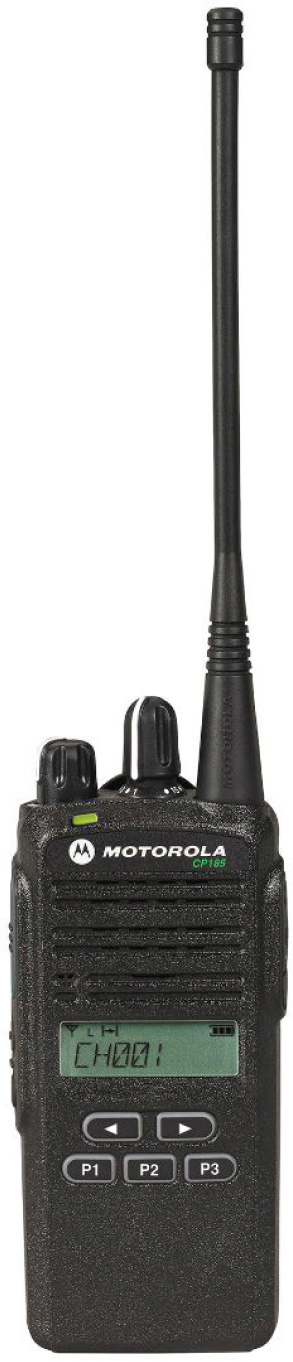

Motorola CP185-U 2-4 Watt - 16 Channel - Analog - UHF - 2 Way Radio - 435-480 MHz Display

CP185-U - Overview

• Features:

  • Easy-to-Handle, Lightweight and Compact - Small and lightweight, the CP185 fits comfortably into your hand and is easy to use. To provide the right features for each user, the CP185 is available in a Limited Keypad (LKP) model with screen, and a No Keypad (NKP) model. Voice activated (VOX) ready for hands-free communication lets users focus on the job at hand improving safety and efficiency. The programmable buttons, five for the LKP model and two for the NKP model, enable easy, one-touch access for up to 10 user-selected features.

    Increased Privacy - Enhance your privacy with built-in simple voice scrambling and utilize the Remote Inhibit feature, using MDC1200 Signaling, for deactivation of lost or stolen radios.

    Added Functionality - 16 channels support communication for all your employees even within larger retailers. The CP185 supports MDC, DTMF and QC-II signaling, delivering usability features such as caller ID and call alert.

    Communicate Like Never Before - Increase your coverage with repeater capability or use the Talkaround feature, which enables communication even when a repeater is not being used. Tighter audio specifications like the -70 dB adjacent channel selectivity provides enhanced rejection of interference from strong signals on adjacent channels so your message can get through clearly.

    Stay Powered For The Entire Shift - A Li-Ion battery provides up to 11 hours (5/5/90 duty cycle) of battery life at high power to meet the demands of your employee's work shift. A high-capacity battery ion is also available. The high power option, 5 watt (VHF) / 4 watt (UHF), with adjustable power levels help extend battery life. A rapid-rate drop-in charger can charge the radios in less than three hours.

    Versatile Accessory Portfolio - The CP185 portables offer a wide range of Motorola Original® audio, energy and carrying accessories as well as Mag One™ audio accessories, providing an affordable option for light duty radio users.


• Specifications:

  • General
  • Channel Capacity: 16
  • Channel Spacing: 12.5/25 kHz switchable
  • FCC Description: AZ489TF4883
  • IC ID: 109U-89FT4883
  • FCC Emissions Designators: 16K0F3E
  • Dimensions (HxWxL) - 4.7 x 2.3 x 1.5inch
  • Weight: 0.75Lbs
  • Battery Life: Up to 11 Hours

    Transmitter
  • RF Output: 2 to 4W
  • Frequency Stability: 2.5 ppm
  • Spurs and Harmonics: -63dBc (-26dBm @ 5W: -27dBm @ 4W)
  • FM Hum and Noise Ratio: > 40 dB
  • Modulation Limiting2 (12.5/25* kHz): =2.5 kHz / =5 kHz
  • Audio Response: + 1 to -3 dB
  • Audio Distortion: < 5%

    Receiver
  • Sensitivity (12 dB SINAD): < -119 dBm (0.25uV)
  • Adjacent Channel Selectivity (12.5/25* kHz): -65 dB / -70 dB
  • Intermodulation (12.5/25* kHz): >65 dB/>70 dB
  • Spurious Rejection: >70 dB
  • Audio Distortion: < 5%
  • Hum and Noise Radio (12.5/25* kHz): > 40 dB
  • Conducted Emission: < -57 dBm
  • Audio Output @ <5% Distortion: 500 mW

    Environmental
  • Operating Temperature Range: -22°F to 140°F
  • Water and Dust Intrusion: IP54, MIL-STD


• Item Includes:

  • 1x Standard Battery (Li-Ion, 1750T mAh)
  • 1x Rapid Rate Charger CEC Complaint (< 3 Hours - Base: PMPN4132A, Supply: 25009297001)
  • 1x Standard Antenna
  • 1x 2" Spring Action Belt Clip
  • 1x Quick Reference Guide


• Warranty:

  • 2 Year Warranty
