MP13 - Overview

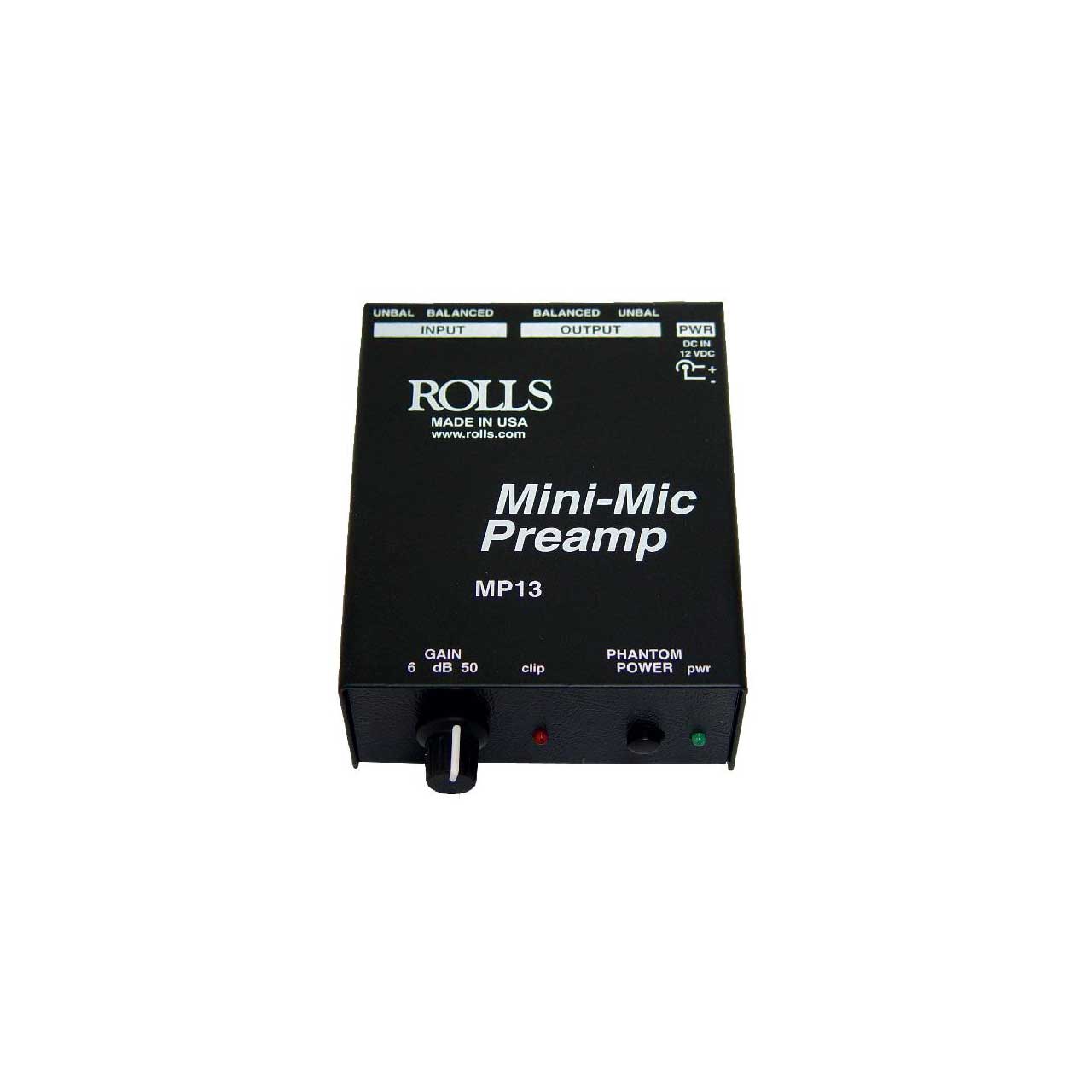

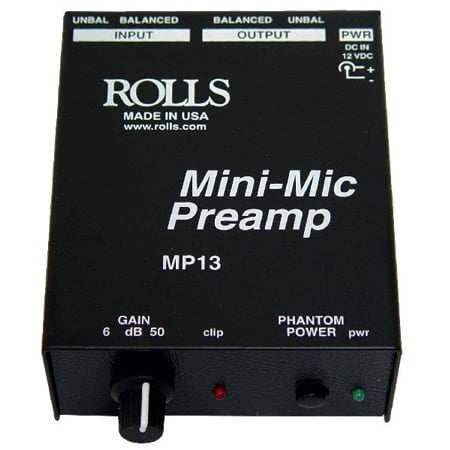

The Rolls MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4" Outputs, XLR and 1/8" Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.

  • Features:

    • Small size
    • Works with dynamic, Phantom and Heaset mics
    • XLR and 3.5mm inputs
    • XLR and 1/4" outs
    • Works with 9 to 12 Vdc


  • Specifications:

    • Input Impedance: 10K Ohms balanced/unbalanced
    • Max Input Level: +4dBV XLR balanced, +10dBV unbalanced
    • Max Gain: XLR 60dB, 1/4" 54dB
    • Phase Shift: <10 deg. 20 Hz - 20 kHz
    • EIN: -108dB max.
    • THD: <.01%
    • IMD (SMPTE): < .01%
    • CMRR: >80 dB
    • Phantom Power: +21 Volts, 6 mA
    • Power: 12VDC
    • Size: 3.4" X 4.2" X 1.4"
    • Weight: 1 lbs (.45 kg)


  • GTIN:

    0675889000139
