Merging Technologies MERGING+ANUBIS Audio Interface - 2 Combo Mic/Line Inputs - 2 XLR Outputs

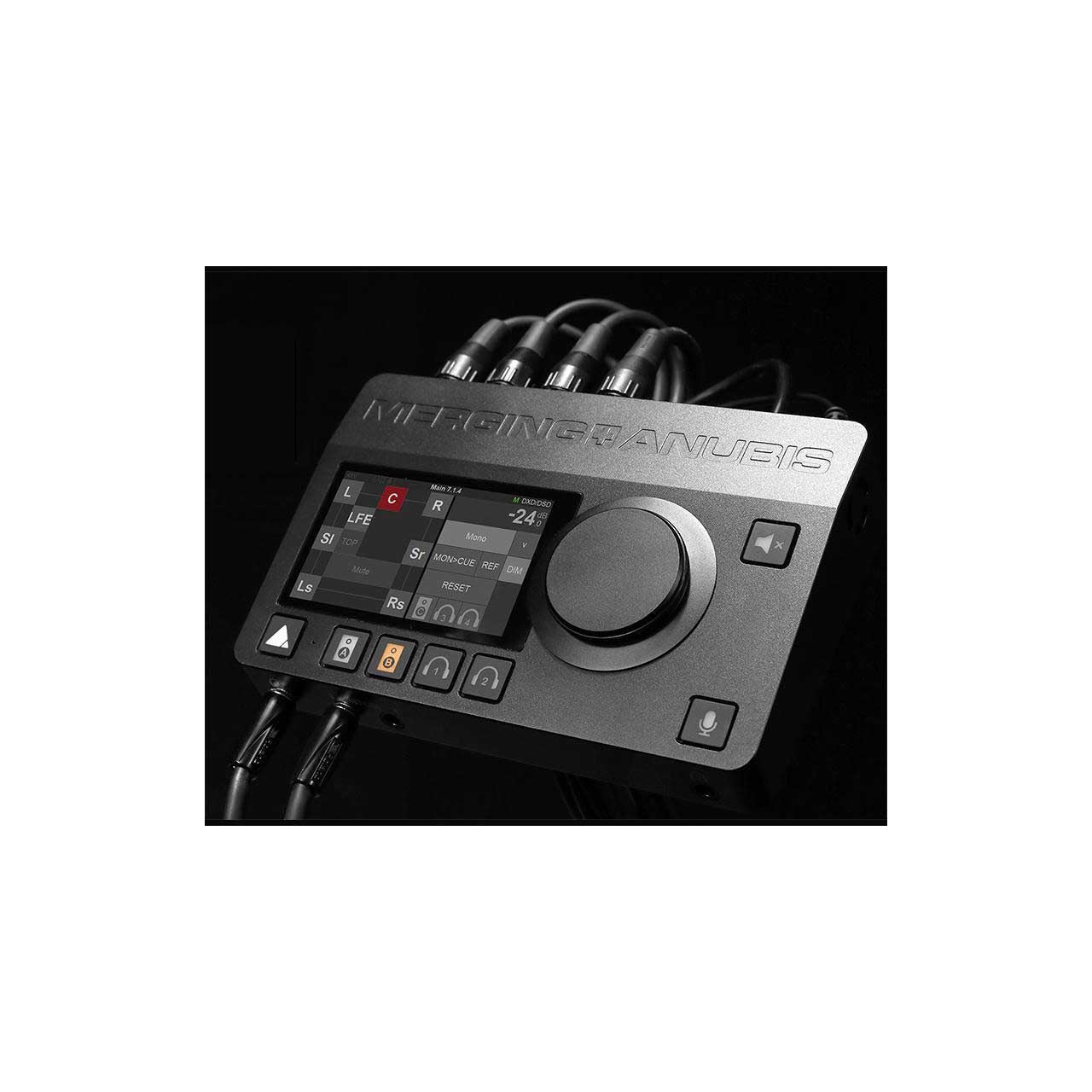

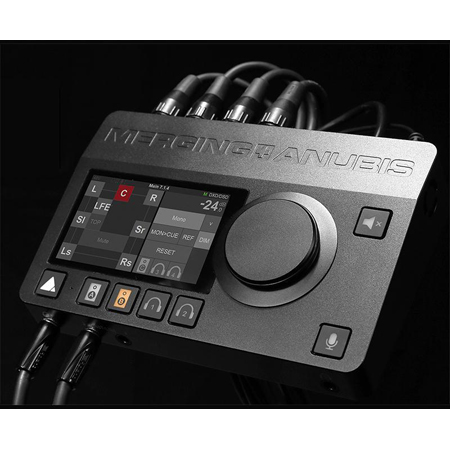

MERGING+ANUBIS - Overview

• Features:

  • Compact Unibody
  • Retina Class Touch TFT
  • Built-in Talkback Microphone
  • Mastering Grade Rotary Knob
  • Direct Speaker Selection
  • Talkback Switch/Latch
  • Instant Mute Button
  • One Port Ethercon
  • 9-15V DC Input
  • GPIO/MIDI
  • Microphone Stand Socket
  • Web App Remote Control
  • 2x Combo Mic/Line Inputs with 137db DYN Range

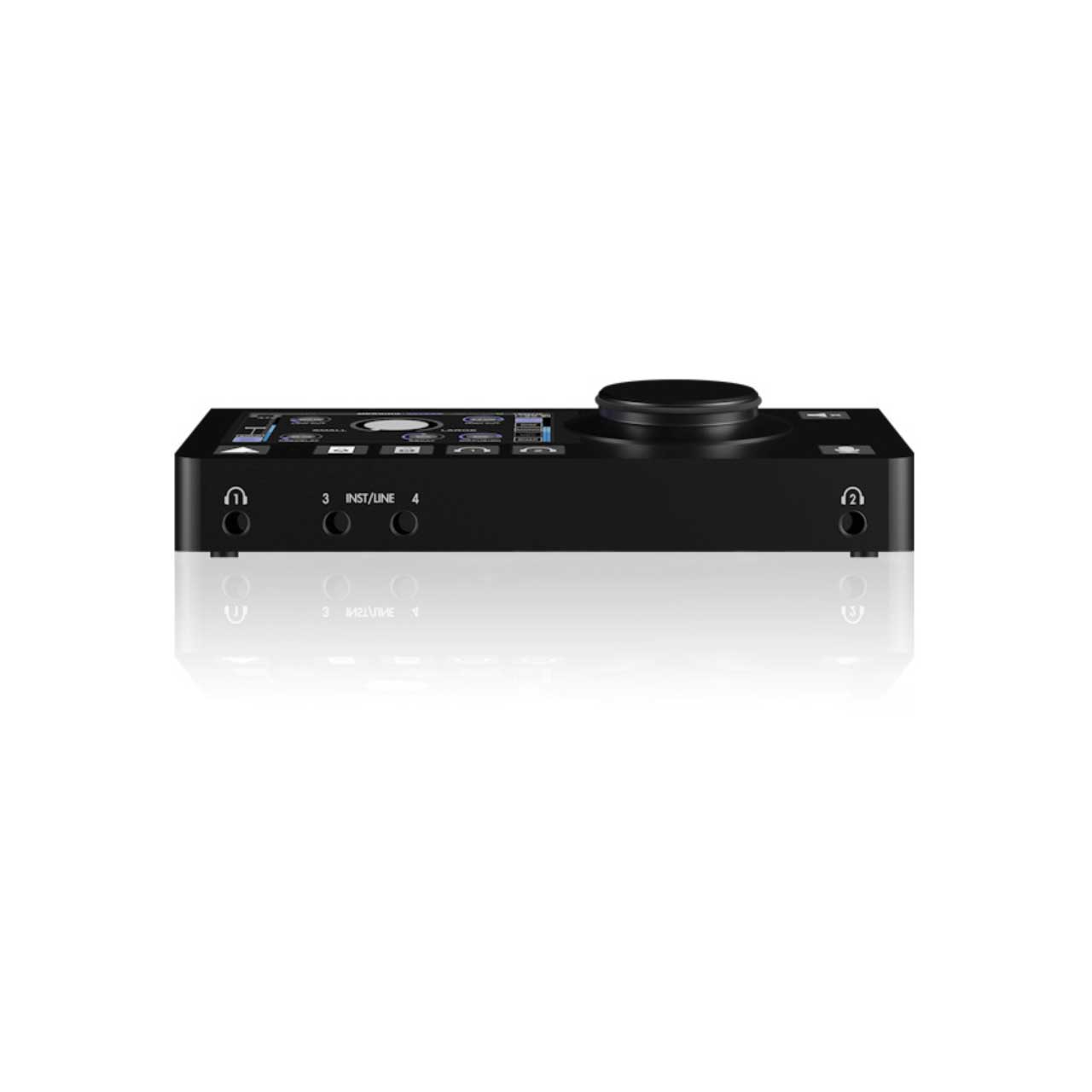

  • 2x HI-Z Line Inputs
  • 2x XLR Outputs
  • 2x 2 TRS Line Outputs
  • 2x Headphone Outputs with Best in Class Amp


• Specifications:

  • General Specifications
  • Case Material: Premium machined and anodized aluminium
  • Dimensions: 7.87" x 5.03" x 1.57" (200mm x 128mm x 40mm)
  • Weight: 2.09lbs (950 g)
  • Top Panel Display: Capacitive Touch, TFT LCD 800 x 480 pixels resolution, 16:9 Aspect ratio
  • Rotary Encoder: Anodized aluminum + Black rubber O-ring
  • 7x Hardware + Soft buttons: RGB LEDs
  • Bottom Panel Mic stand thread: 3/8" 16BSW European thread incorporated
  • Note: Americas 5/8" 27UN adaptor not included

    Software Specifications
  • Windows Driver/OS: Windows 7 64bit / Windows 8.1 64bit: RAVENNA ASIO v12.0 (ASIO 2.2)
  • Windows 10 64bit: MAD v2.0 (Merging Audio Device)
  • Mac Driver/OS: VAD Core Audio for macOS 10.8.5 or higher (Intel & M1)
  • Linux Driver/OS: ALSA Linux driver for RAVENNA/AES67
  • ANEMAN: Version 1.1.7 and above

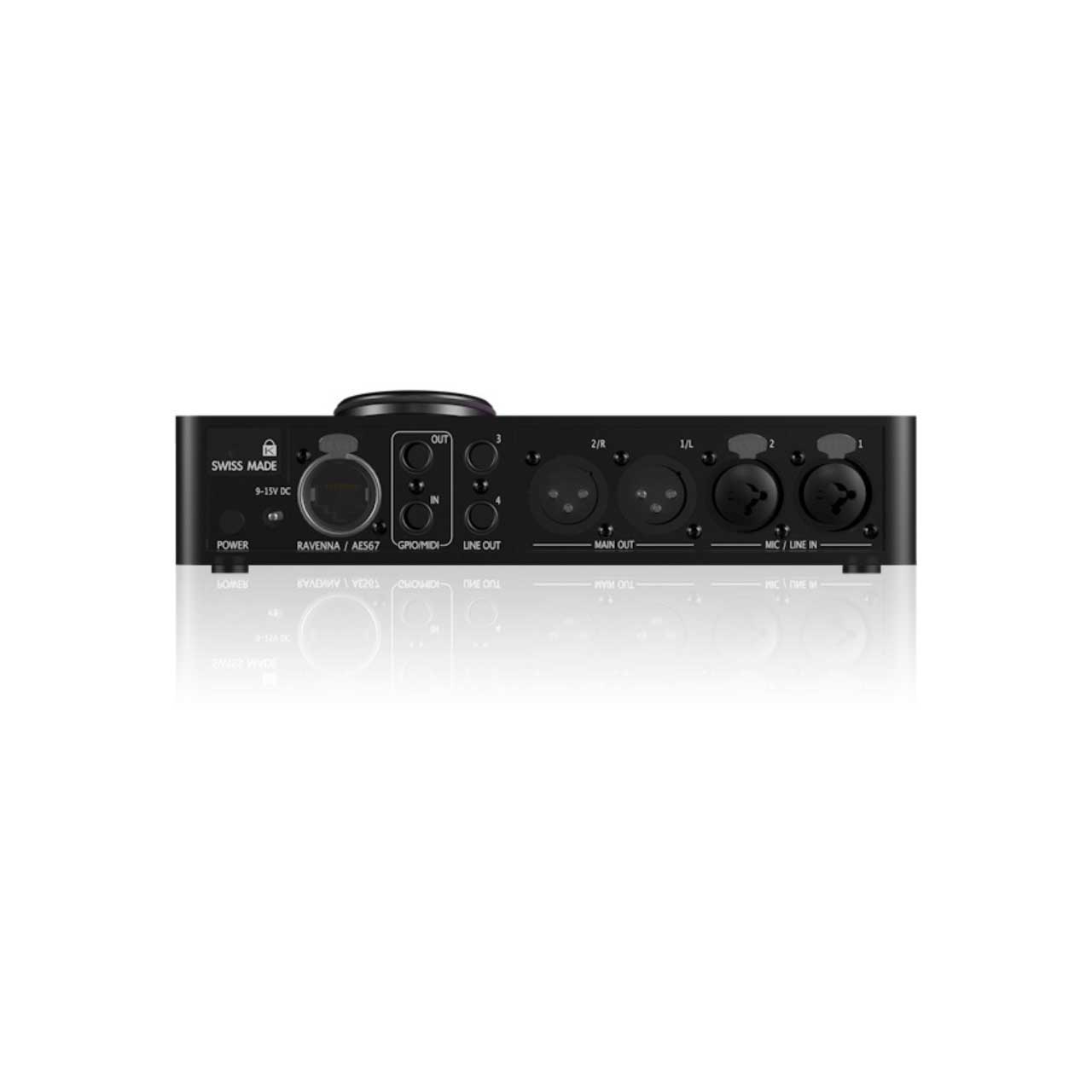

    Microphone Inputs 1-2 (Combo)
  • Connector Type: Combo Locking Neutrik XLR / TRS
  • Dynamic Range Mic / Mic Boost: 137 dB / 128 dB (A-weighted, typ.)
  • Max Input level Mic Pad / Mic / Mic Boost: +24 dBu / +12 dBu / +0 dBu
  • Frequency response +0/-0.2dB @ fs = 48 kHz: 9 Hz - 22 kHz
  • Frequency response +0/-3dB @ fs = 96 kHz: 9 Hz - 46 kHz
  • Frequency response +0/-3dB @ fs = 192 kHz: 11 Hz - 94 kHz
  • THD+N Preamp + A/D 1kHz @ 0 dBFS: < -110 dB (0.0003%)
  • Interchannel Crosstalk @ 1kHz: < -130 dB
  • Equivalent Input Noise Mic / Mic Boost (150Ω Source): < -125 dBu / -128 dBu (A-weighted, typ.)
  • Common Mode Rejection Rate (20 Hz - 20 kHz): > 80 dB
  • Input Impedance (Differential): ~ 10kω
  • Gain Range (Software controlled): 0 dB to +66 dB
  • Gain Step Coarse / Fine: 0.5 dB / 0.1 dB
  • Phantom Power (Software Switchable Per Channel): +48V
  • Phase Reverse (Software Switchable Per Channel): Yes
  • Low Cut filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz

    Line Inputs 1-2 (Combo)
  • Connector Type: Combo Locking Neutrik XLR / TRS
  • Dynamic Range, ref +24 dBu: 139 dB (A-weighted, typ.)
  • Max Line Input Level: +24 dBu
  • Input Impedance (Differential): ~ 10k&omega-
  • THD+N Preamp + A/D 1kHz @ 0 dBFS: < - 104 dB (0.0006%)
  • Interchannel Crosstalk @ 1kHz: < -140 dB
  • Sensitivity Range for 0 dBFS (Software controlled): +24 dBu to -42 dBu
  • Common Mode Rejection Rate (20 Hz - 20 kHz): > 80 dB

    Main Outputs 1-2
  • Connector Type: Neutrik XLR Male
  • Dynamic Range: 123 dB (A-weighted, typ.)
  • Max output Level (Differential / Single ended): +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
  • Frequency response +0/-0.2dB @ fs = 48 kHz: 6 Hz - 22 kHz
  • Frequency response +0/-3dB @ fs = 96 kHz: 2 Hz - 46 kHz
  • Frequency response +0/-3dB @ fs = 192 kHz: 2 Hz - 92 kHz
  • Output Impedance: < 70ω
  • THD+N 1 kHz @ 0 dBFS: < - 110 dB (0.0003%)

    Line Outputs 3-4
  • Connector Type: 1/4" TRS Female
  • Dynamic Range: 123 dB (A-weighted, typ.)
  • Max output Level (Differential / Single ended): +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
  • Output Impedance: < 70ω
  • THD+N 1 kHz @ 0 dBFS: < - 110 dB (0.0003%)


• Item Includes:

  • 1x Merging+Anubis Audio Interface
  • 1x Soft-shell Case
  • 1x Ethernet RJ45 cable
  • 1x 12V Power Supply
  • 1x Power Cable
  • 1x Quick Start Guide


• Warranty:

  • 2-Year Limited Warranty


• GTIN:

  0615104391376
