MuxLab 500219 Analog Audio Balun Amplifier

500219 - Overview

• Features:

  • RJ45 jack for input and binding posts for output
  • 30W per channel (PMPO) into 8 ohms
  • Compatible with MuxLab Stereo Hi-Fi Balun and Audio Matrix Switch
  • Volume control, Ground loop isolation
  • Front display: volume and input level indication


• Specifications:

  • Environment: Audio Distribution using CAT cabling
  • Device Targeted: Audio System using the Muxlab HiFi Balun.
  • Power Output: 30W RMS maximum (PMPO) per channel into 8 ohm
  • Frequency Response: 20 - 22,000 Hz (+/- 1 dB) with 8 ohms
  • Front Control: Volume, push to save power-up default

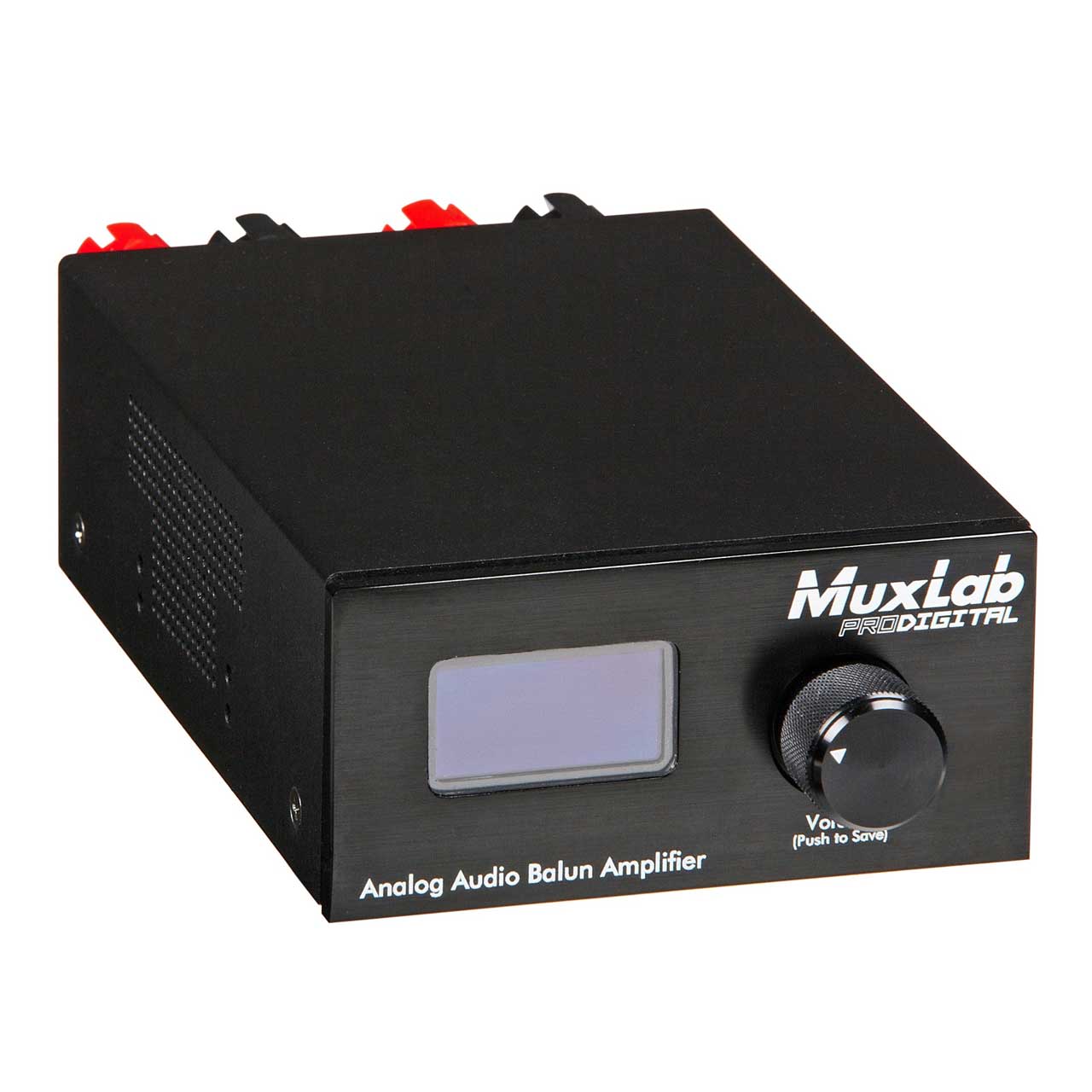

  • Front Display:
    - Input Level Left and Right: L R
    - Volume Level: ((o)), Set Volume Memory: M
  • Mounting Brackets (not included): Muxlab M500917
  • Power Requirement: 120W max, 24V 5A

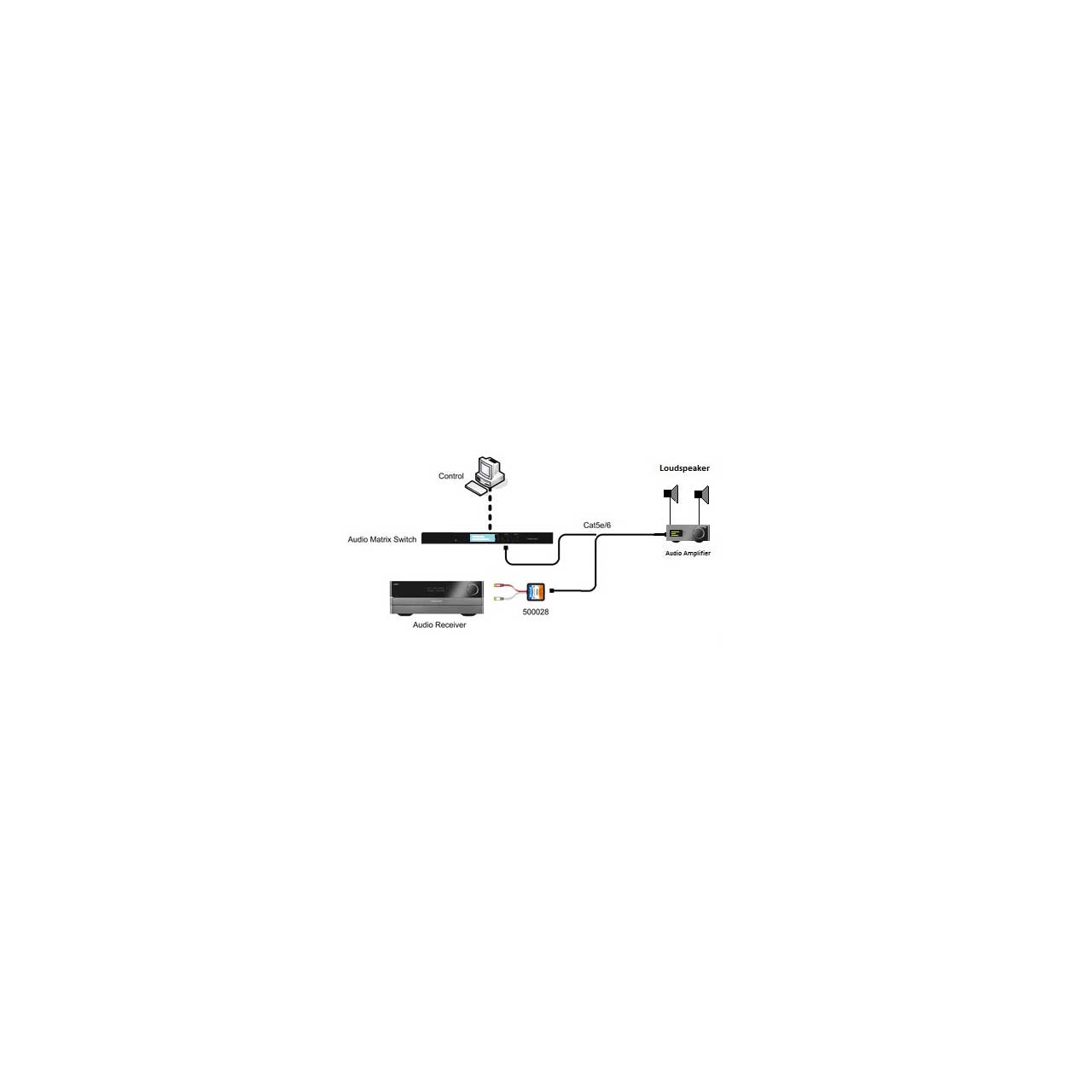

  • Compatible Source Unit:
    - Audio Matrix: 500210
    - Balun: 500019, 500027, 500028*, 500030 (*recommend)
  • Cabling Requirement: Any 4-pair straight cable UTP Cat5, 5E or 6

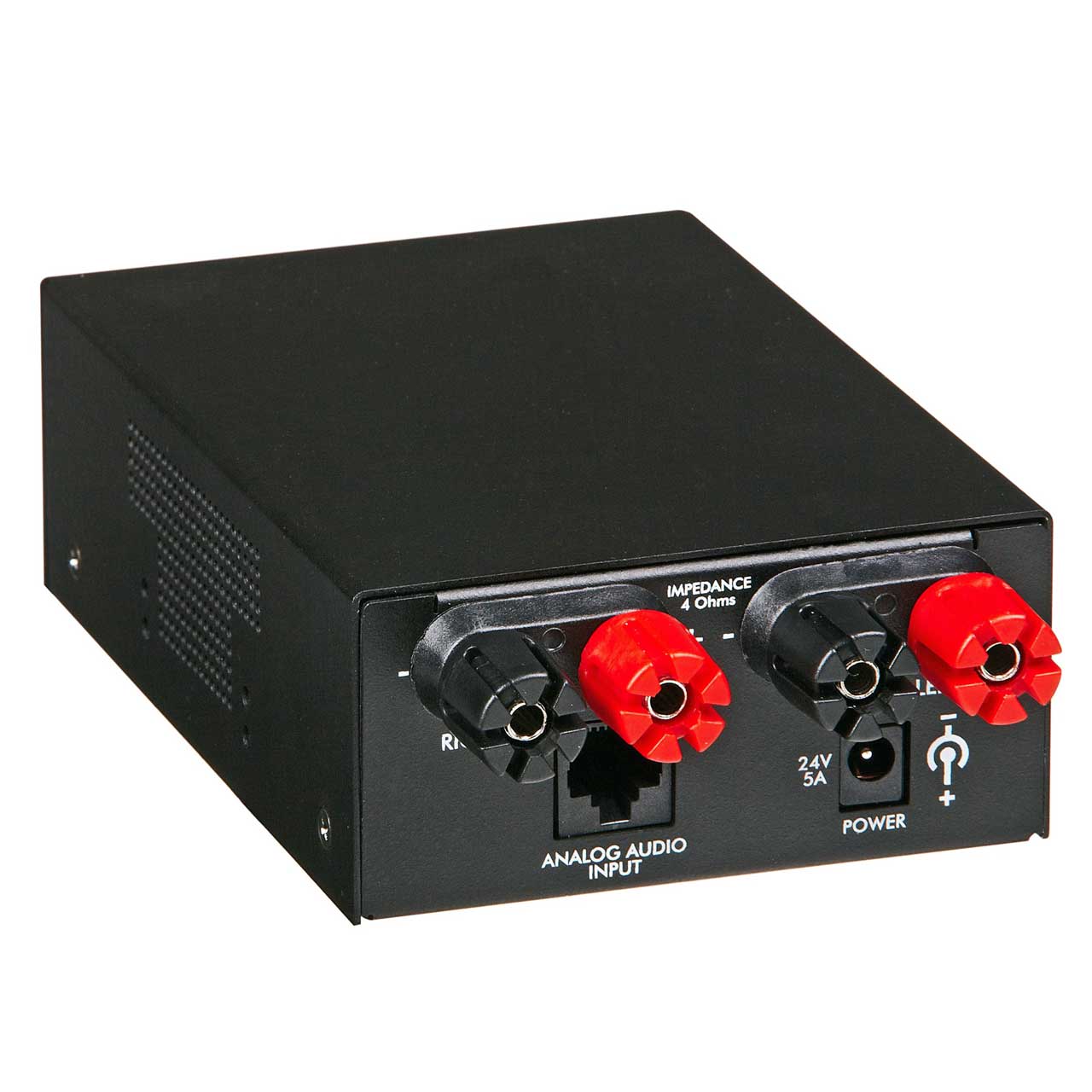

  • Connectors:
    - Input: 1x RJ45 connector
    - Output: 4x binding posts: red & black, for each channel
    - Power Input: 1x power coaxial jack, 2.0 mm
  • RJ45 Pin Configuration: Pin 1+2, 3+6 for audio left and right
  • Temperature:
    - Operating: 32° to 90°F (0° to 40°C)
    - Storage: -40° to 185°F (-40° to 85°C)
    - Humidity: Maximum 90% (non-condensing)
  • Enclosure: Aluminum, black anodized.
  • Dimensions: 4" x 5" x 2" (9 x 13 x 5 cm)
  • Weight: 5 lbs (2 kg)


• Warranty:

  • 2 Years


• Applications:

  • Audio Distribution Systems
  • Classroom training
  • Hospitality industry
  • Podium systems
  • Home theatre audio
  • Digital signage,
  • Rental and staging
  • PA systems
  • Ceiling and shelf speakers


• GTIN:

  0627699002193
