500222 - Overview

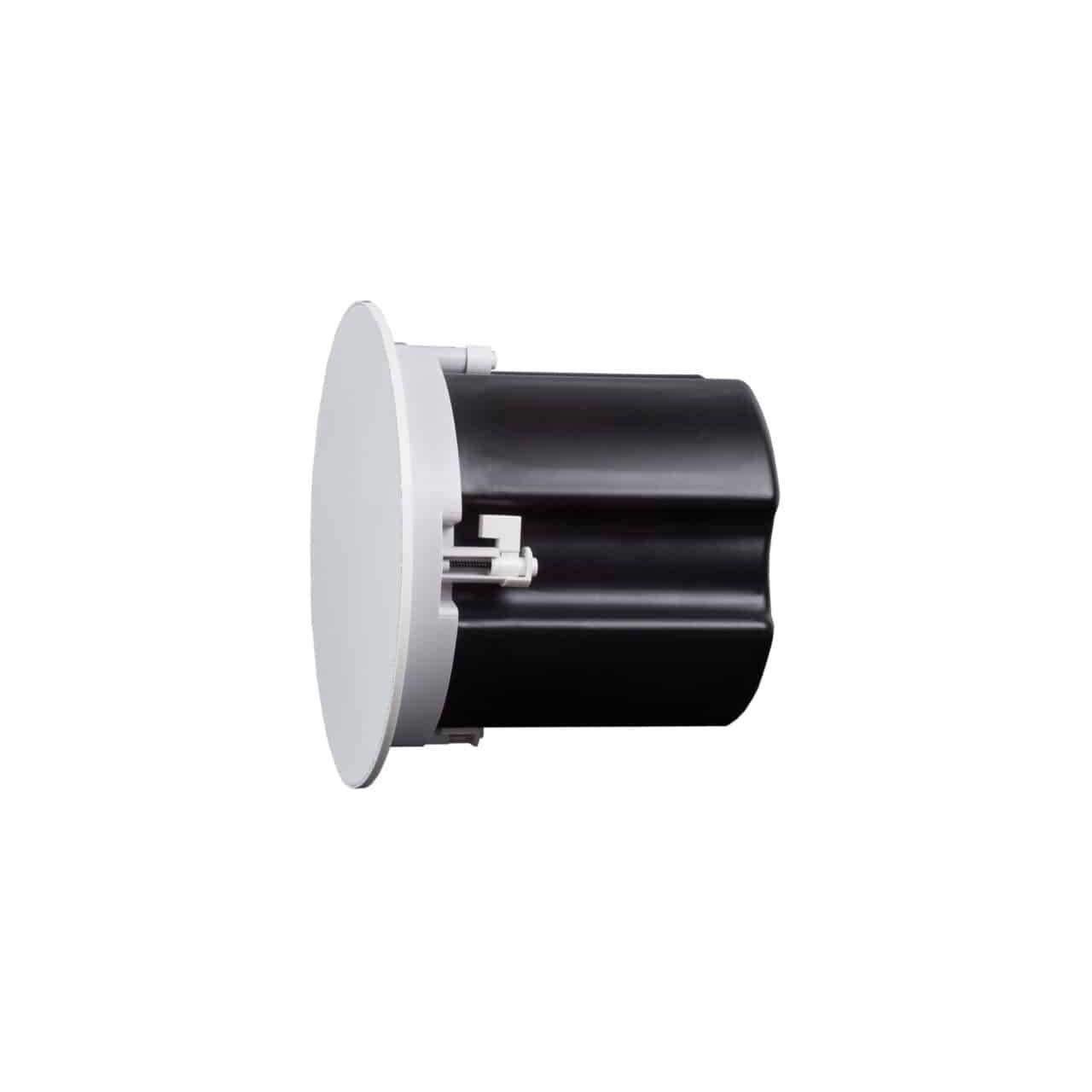

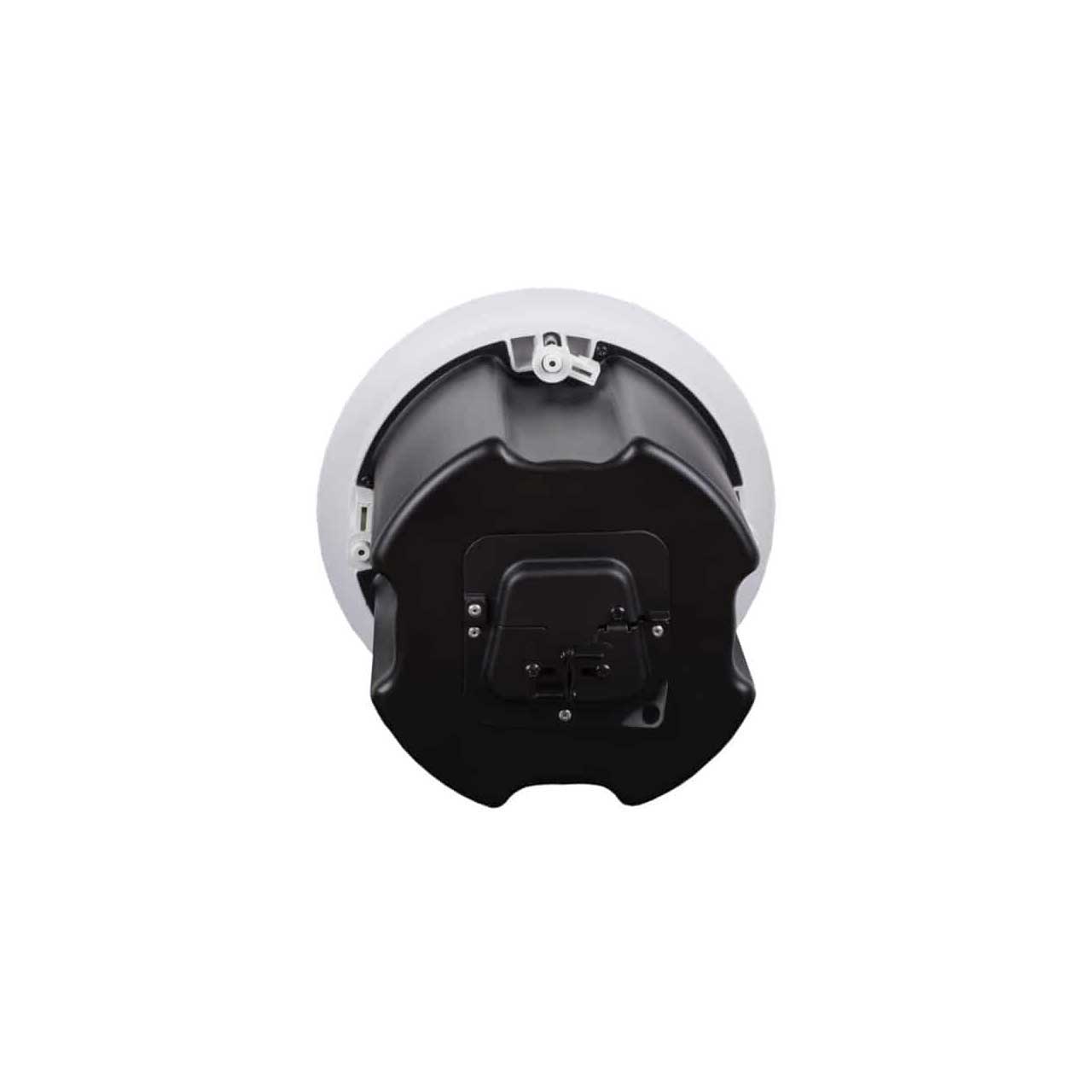

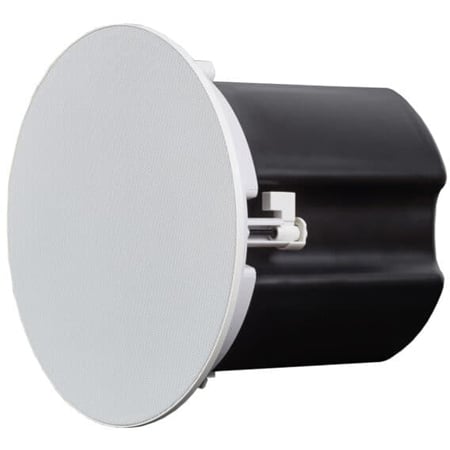

The MuxLab 500222 Passive Ceiling Speaker 8 Ohms/70V/100V, 40W is a high-performance full band and easy installation speaker ideal for providing background music and vocal performance in a wide range of applications and installations and is designed with advanced linear sound source technology. This speak can be used as an 8 ohm speak at 40 W but can also be cascaded when set as a 70V speaker system with taps at 2.5W, 5W, 10W and 20W, and as a 100V speaker system with taps at 5W, 10W, 20W and 40W.
The MuxLab Passive Ceiling Speaker 8 Ohms/70V/100V, 40W comes with a 6.25" coaxial 40W loudspeaker driver that has excellent dispersion, wide bandwidth, and smooth frequency response which makes this the top choice for today's overhead commercial and residential applications.

  • Features:

    • 40 Watts RMS
    • Frequency Range 96Hz - 20KHz (+/- 3dB)
    • Impedance 8 Ohms

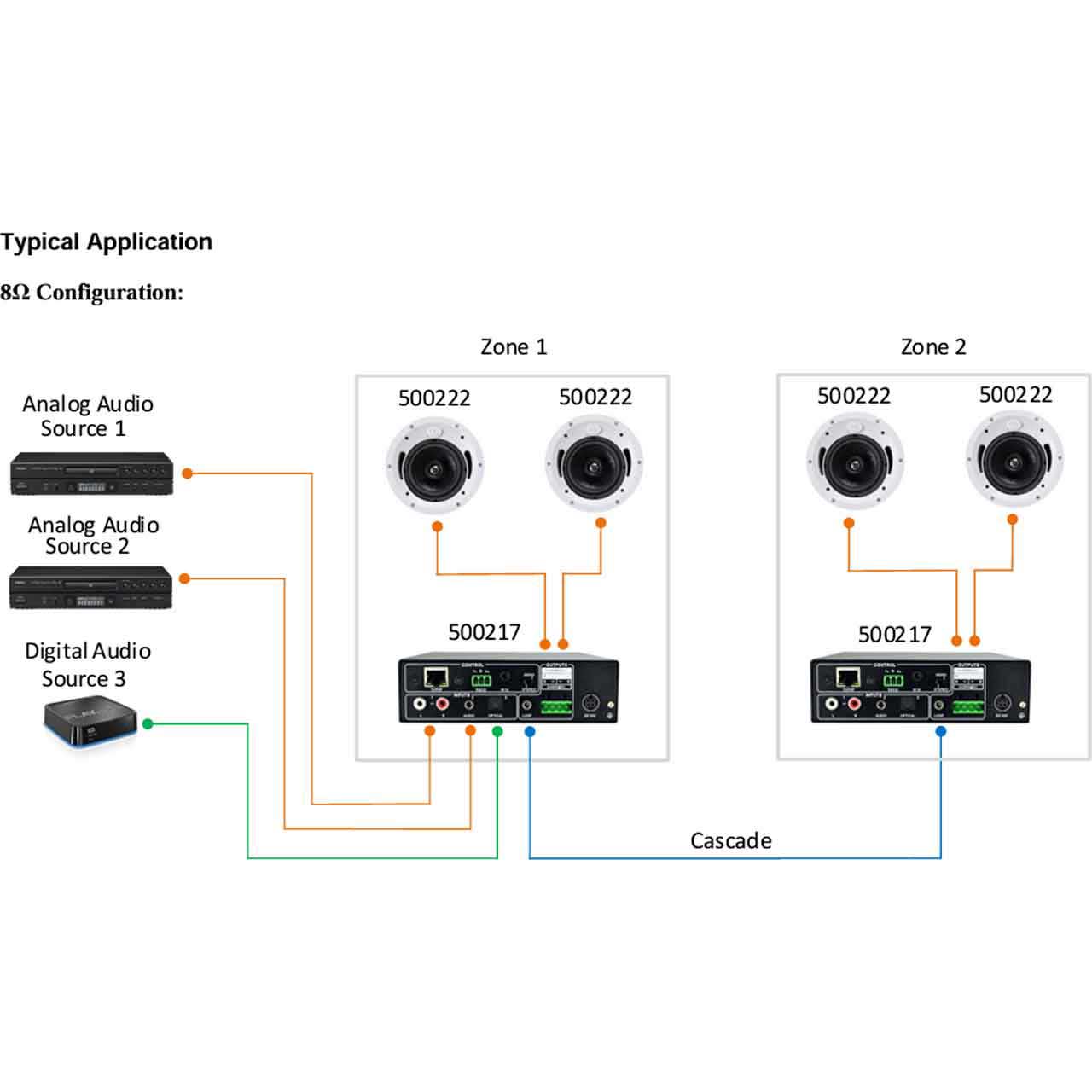

    • Supports 70V/100V cascaded speaker applications
    • Tweeter 1" (25mm) Titanium Dome
    • Woofer 6.25" (165mm) Graphite Cone, Rubber Surround

  • Specifications:

    • Audio Input: Analog Audio Signal
    • Frequency Range: +/- 3dB: 96Hz ~ 20KHz
    • Tweeter: 1" (25mm) Titanium Dome
    • Woofer: 6.25" (165mm) Graphite Cone, Rubber Surround
    • Power Handling RMS: 40W (IEEE 219)
    • Sensitivity (1W @ 1m): 86dB
    • Crossover Frequency: 3.5 kHz
    • Conformity (Input): 100V (8 Ohms)
    • Taps: 8 Ohms, N/C, 70V setting (2.5W, 5W, 10W and 20W), and 100V setting (5W, 10W, 20W and 40W)
    • Impedance: 8 Ohms
    • Nominal Coverage: 90 degrees conical
    • Termination: Standard pressed connector
    • Attachment: Low-profile grille
    • Dimensions (H x D): 9.01" x 10.11"
    • Weight: 7.27lb (3.3kg)
    • Cut out Diameter: 8.90" (226mm)
    • Material: ABS + Iron

  • Item Includes:

    • 1x Muxlab 500222 Passive Ceiling Speaker
    • 1x Cutout template grille

  • Warranty:

    • 2 Years
