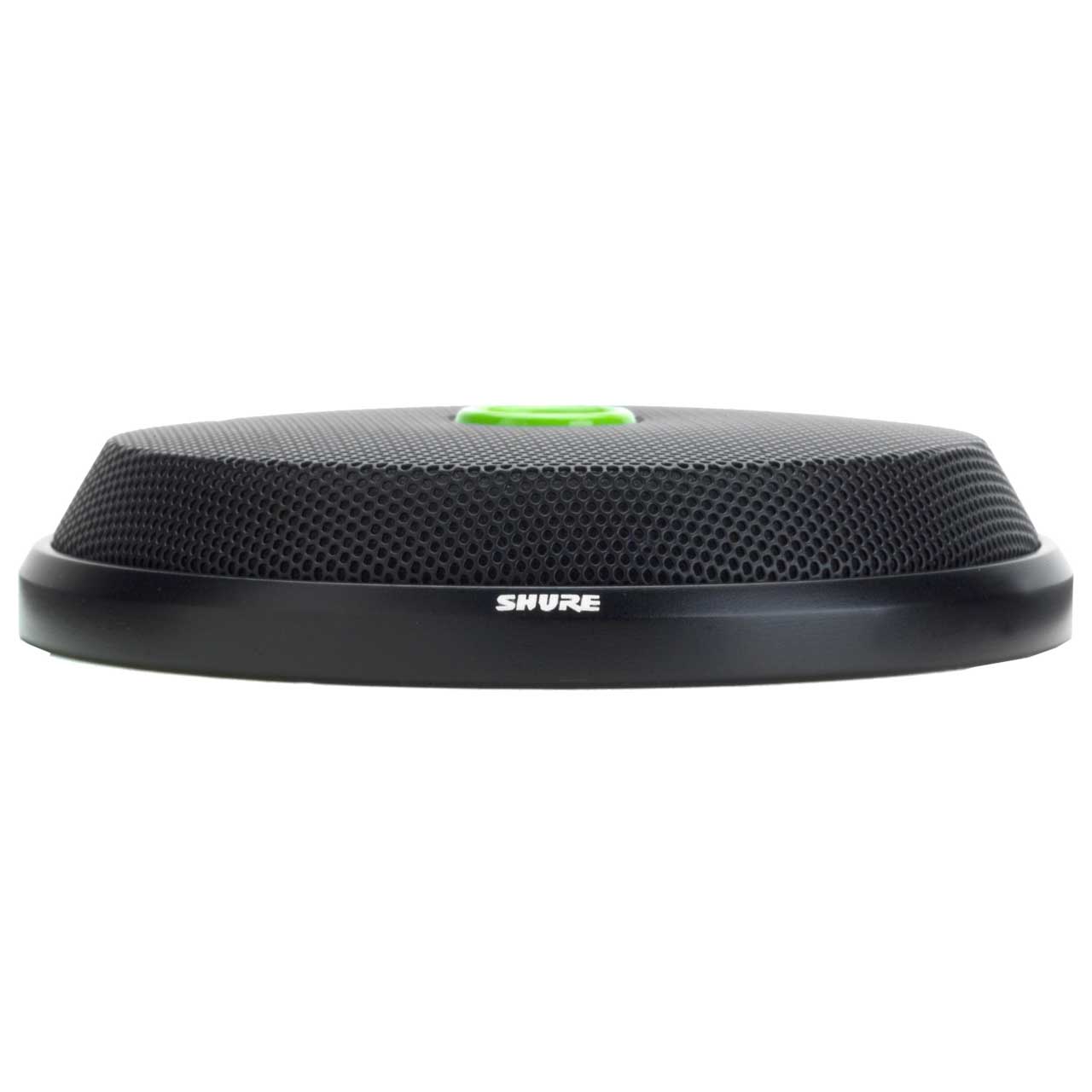

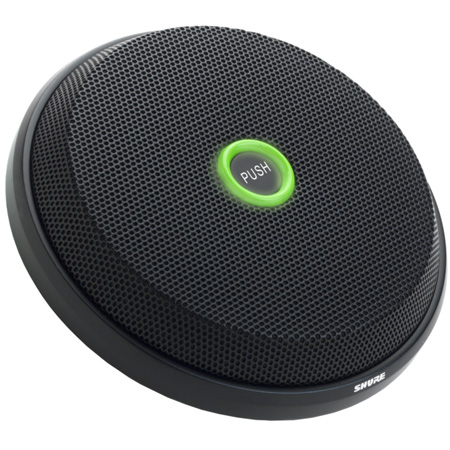

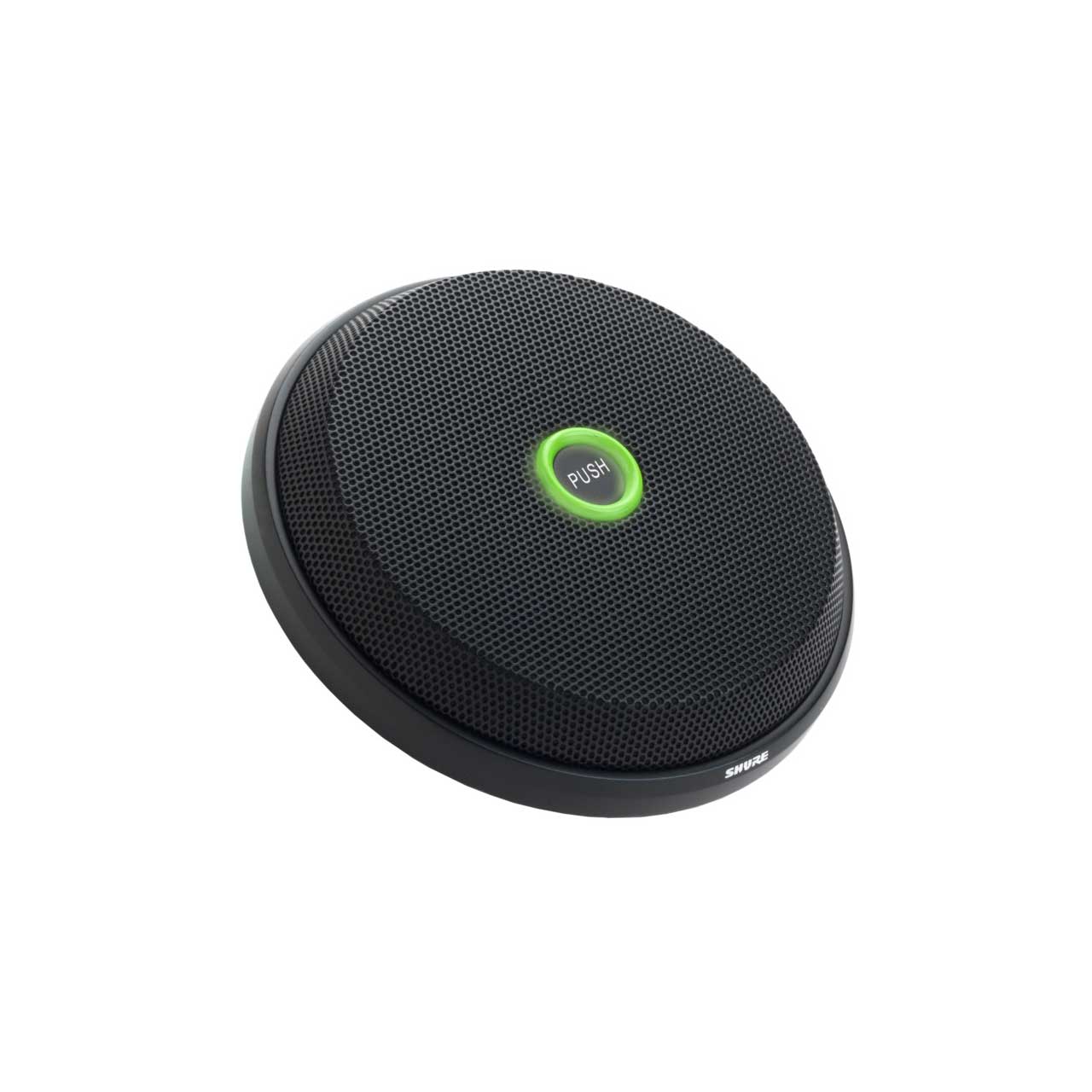

Shure MX396/C-DUAL Microflex Dual-Element Boundary Microphone

MX396/C-DUAL - Overview

• Features:

  • End of table (300°), center of table (360°), or cross table (bidirectional) coverage patterns
  • Individual audio output for each element
  • Bi-color status indicator
  • Programmable mute switch
  • Logic input/output for remote LED and mute control
  • CommShield® Technology


• Specifications:

  • Type: Condenser (electret bias)
  • Frequency Response: 50 to 17000 Hz
  • Polar Pattern: MX396/C-DUAL: 2 x Cardioid
  • Output Impedance: EIA Rated at 150 Ohms (170 Ohms actual)
  • Output Configuration: Active balanced
  • Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
  • Preamplifier Output Clipping Level (1% THD): -7 dBV (0.5 V)
  • Weight: Net: 0.587 kg (1.29 lbs.)
  • Packaged: 0.916 kg (2.02 lbs.)
  • Logic Connections: LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
  • LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible.
  • Absolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms)
  • Mute Switch Attenuation: -50 dB minimum
  • Cable: 6.1 m (20 ft) attached unterminated cable with three shielded audio pairs and three shielded conductors for logic control
  • Environmental Conditions:
  • Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F)
  • Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F)
  • Relative Humidity: 0 to 95%
  • Power Requirements: MX396/C-DUAL: 48–52 Vdc phantom, 10.0 mA

  • Sensitivity (at 1 kHz , open circuit voltage):
  • -35 dBV/Pa (18 mV)
  • 1 Pascal=94 dB SPL
  • Maximum SPL (1 kHz at 1% THD, 1 kilohms load): 122 dB
  • Equivalent Output Noise (A-weighted): 28 dB SPL
  • Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 66 dB
  • Dynamic Range (1 kilohm load at 1 kHz): 94 dB


• GTIN:

  0042406141413
