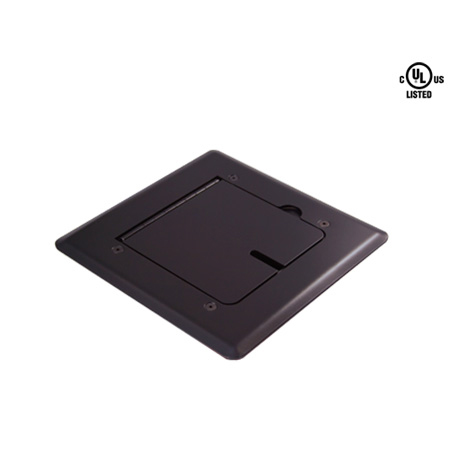

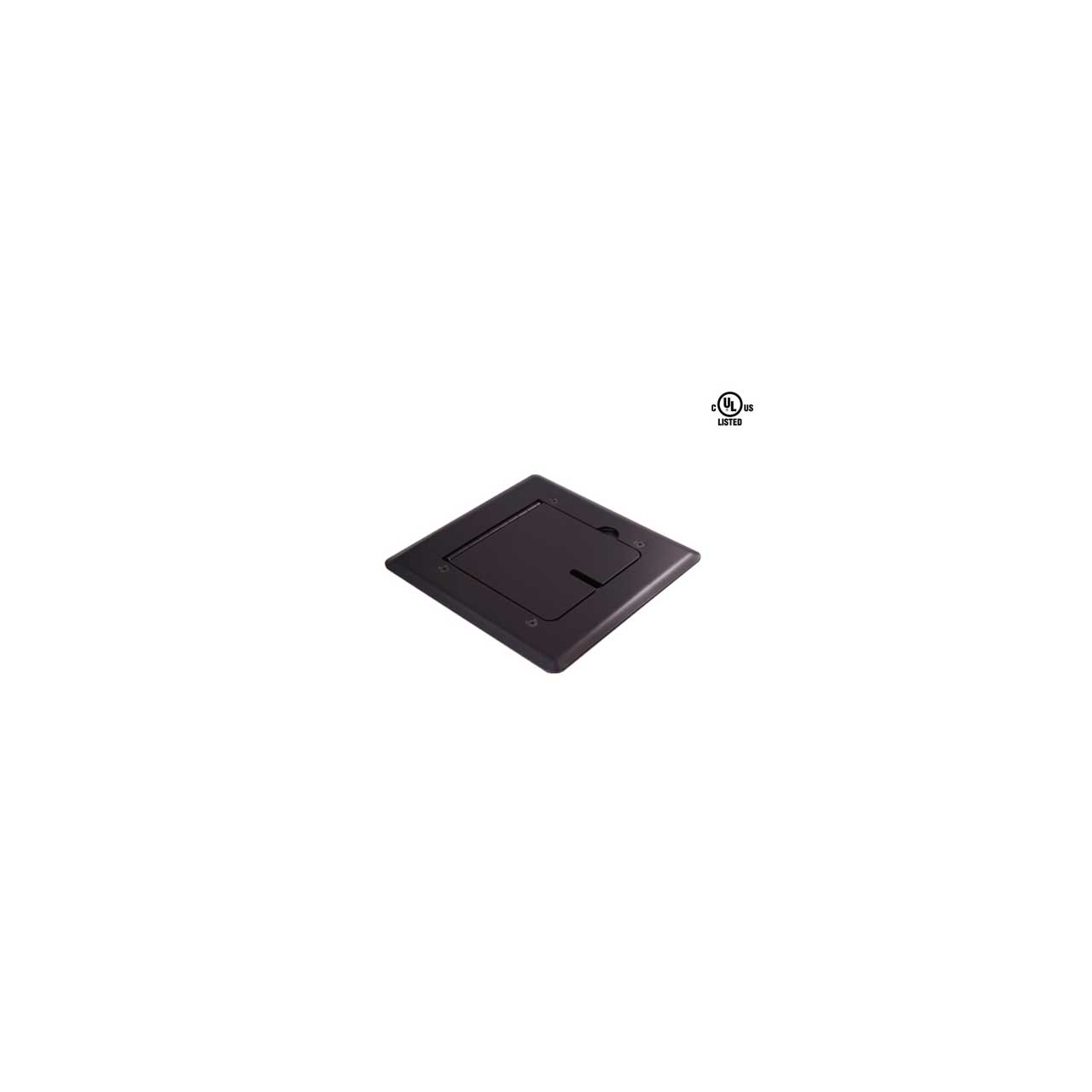

Mystery FMCA1000 Floor Box; Satin Black; Self-trimming; Cable Slots

ITEM #: MYS-FMCA1000 MFG #: FMCA1000

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$207.00

Our Price:

$161.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


FMCA1000 - Overview

The UL and cUL Listed FMCA1000 raised access floor box assembly combines flexibility, ease of installation, high capacity, and long-term value in an economical floor box assembly.
Unique design and 12 gauge cover supports loads in excess of the 300lb UL standard. Ideal for classrooms, houses of worship, conference rooms, courtrooms, performance venues or anywhere connections are needed in the floor. The attractive design and finish allows for the FMCA1000 to also be used for in-wall applications.

  • Features:

    • Attractive satin black 12 gauge scratch resistant cover with powder coated finish

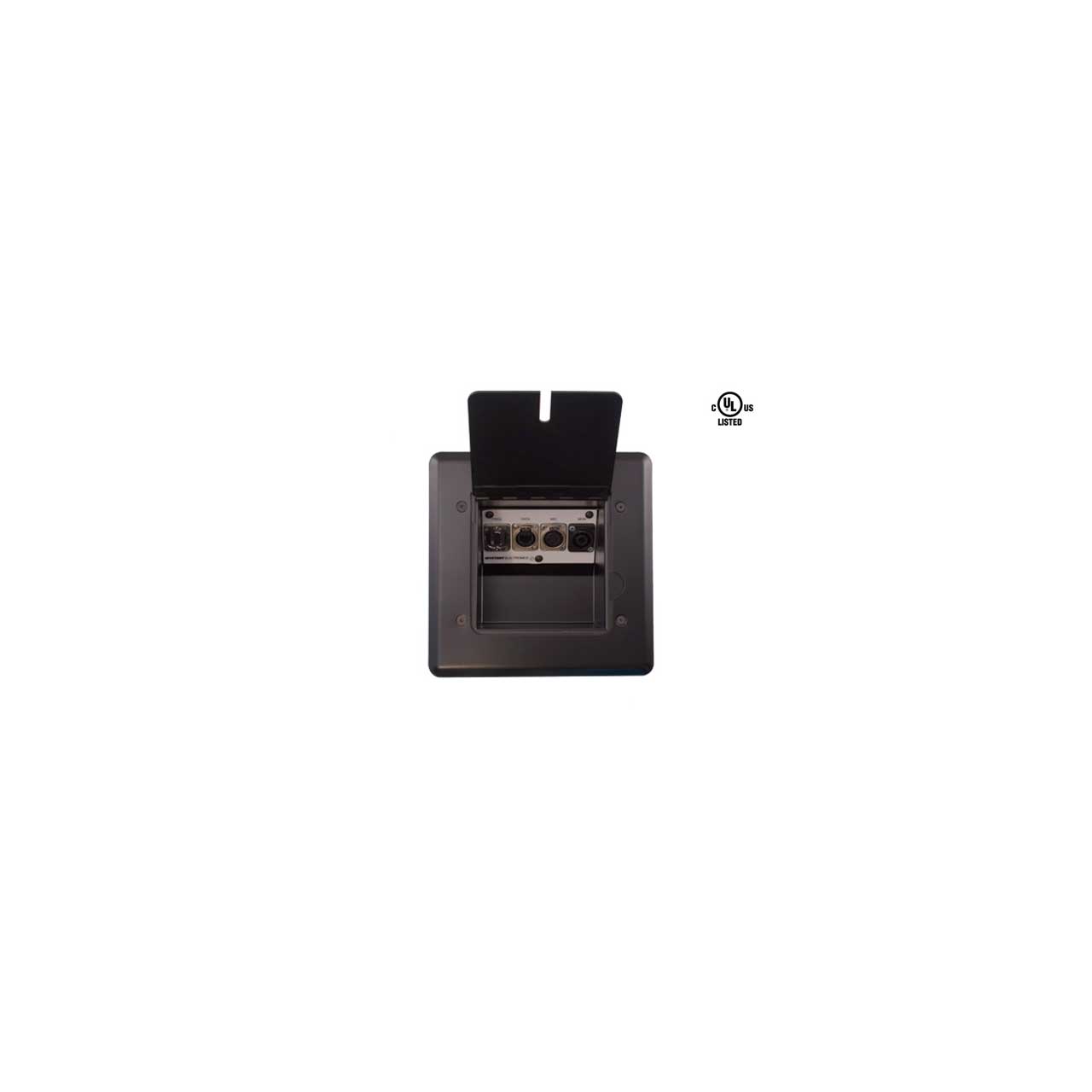

    • Accepts all ModuLine Insert Panels (up to 4 XLR type connectors, active devices or duplex power)
    • Cable Slot allows 4 cables up to 1/4" O.D.
    • Self-trimming cover installs on top of carpet or hard surface
    • Accommodates Decora, AAP, and MAAP active devices
    • Concrete rated rough-in box for installation above grade

  • Specifications:

    • Dimensional data (nominal)
    • Door/Cover: 8"L x 8"W
    • Basket: 4.625"L x 4.625"W x 4"D
    • (without rough-in box)

  • Item Includes:

    • FMCA1000 floor box assembly includes: 1ea cover, 1ea gasket, 1ea basket, mounting screws and hardware.


FMCA1000 - Required Accessories
