Mystery FMCA1800 Stainless Steel Self Trimming Floor Box with Cable Door

ITEM #: MYS-FMCA1800 MFG #: FMCA1800

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$496.00

Our Price:

$385.77

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


FMCA1800 - Overview

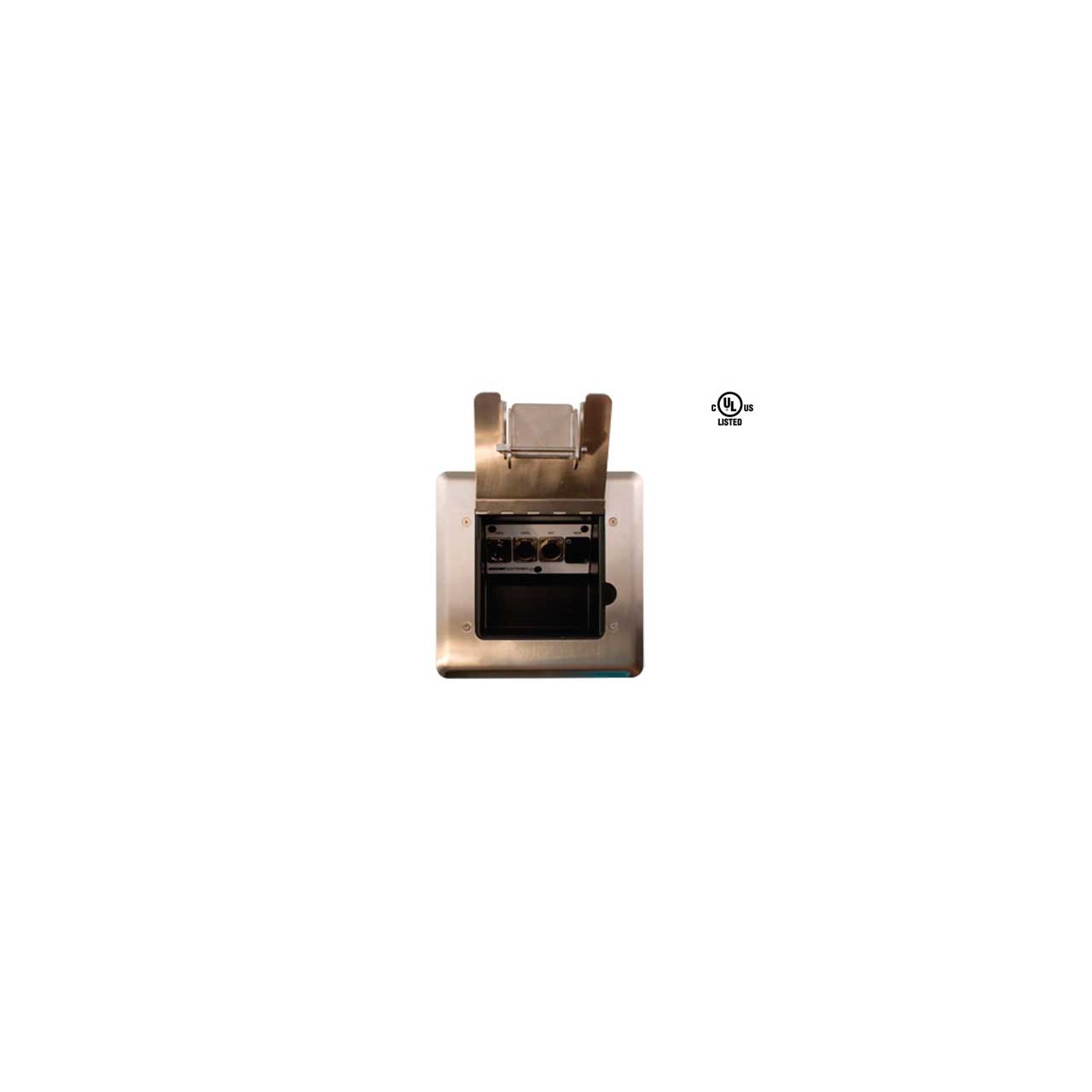

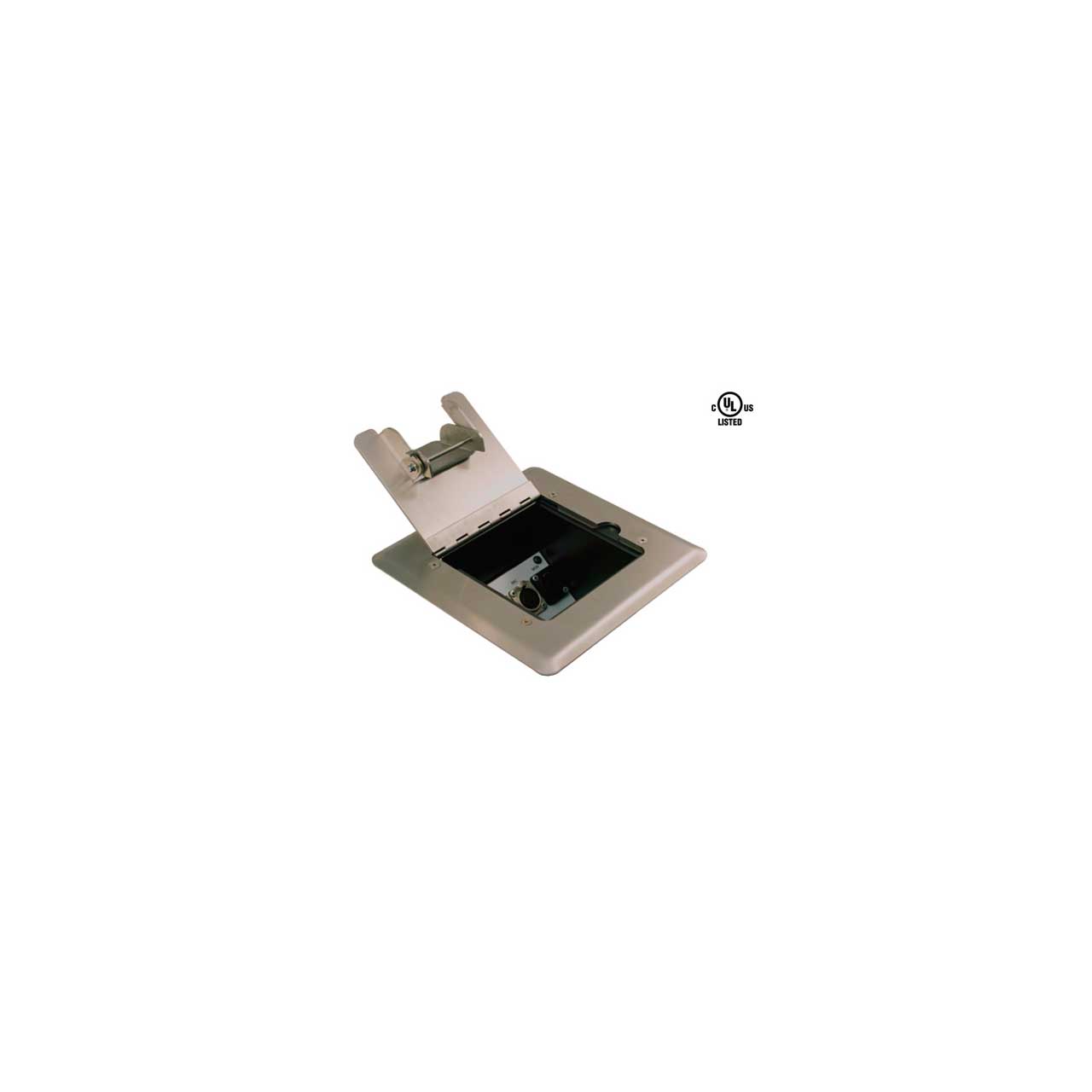

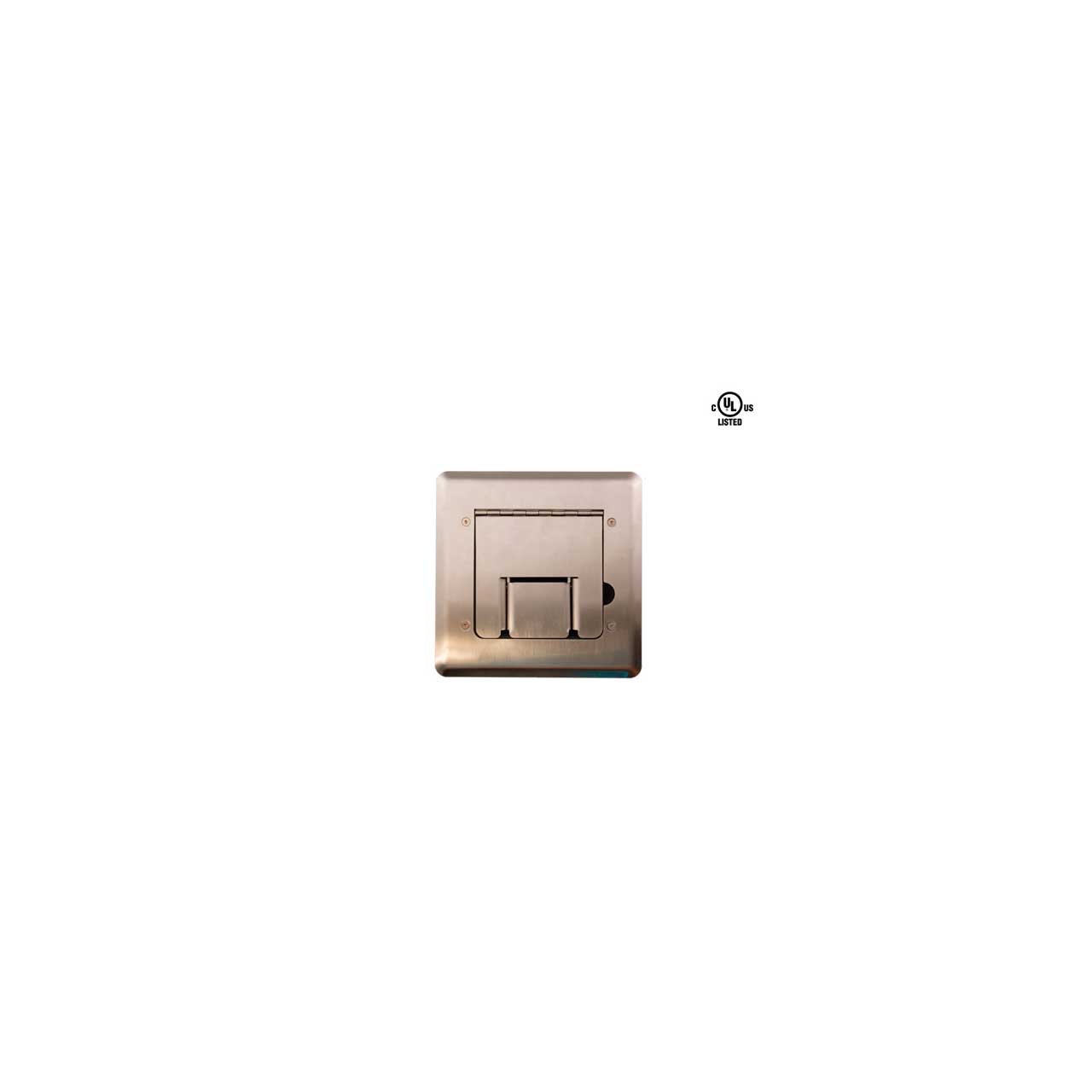

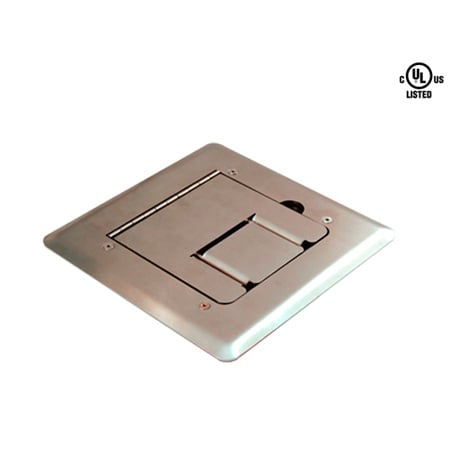

The UL and cUL Listed FMCA1800 raised access floor box combines flexibility, ease of installation, high capacity, and long-term value in an economical floor box assembly. Proprietary modular panel design accommodates a wide variety of AV connectors, active devices, and barrier separated AC power. The concrete rated rough-in box includes alignment labeling and detailed installation instructions for rough-in installation above grade. Unique design and 12 gauge cover supports loads in excess of the 300lb UL standard. Ideal for classrooms, houses of worship, conference rooms, courtrooms, performance venues or anywhere connections are needed in the floor. The attractive design and finish allows for the FMCA1800 to also be used for in-wall applications.

  • Features:

    • Attractive stainless steel 12 gauge cover with satin finish
    • Accepts all ModuLine Insert Panels (up to 4 XLR type connectors, active devices or duplex power)
    • Cable Door allows large cables up to 1.25” O.D.
    • Self-trimming cover installs on top of carpet or hard surface
    • Accommodates Decora, AAP, and MAAP active devices
    • Options include:
    • Pre-punched insert panels
    • Duplex power module, UL Listed Rough-in box
    • Connector loading
    • Labeling and more

  • Specifications:

    • Dimensional data (nominal)
    • Door/Cover: 8”L x 8”W
    • Basket: 4.625”L x 4.625”W x 4”D
    • (without rough-in box)

  • Item Includes:

    • Cover
    • Gasket
    • Basket
    • Mounting Hardware
