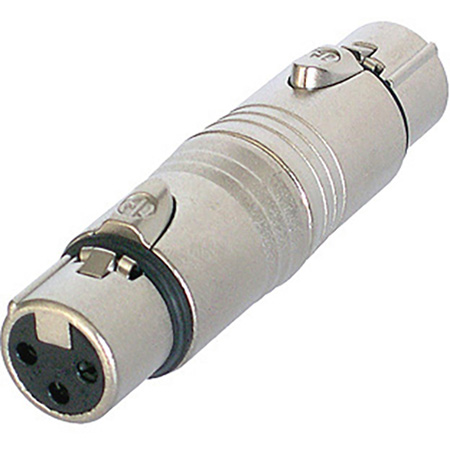

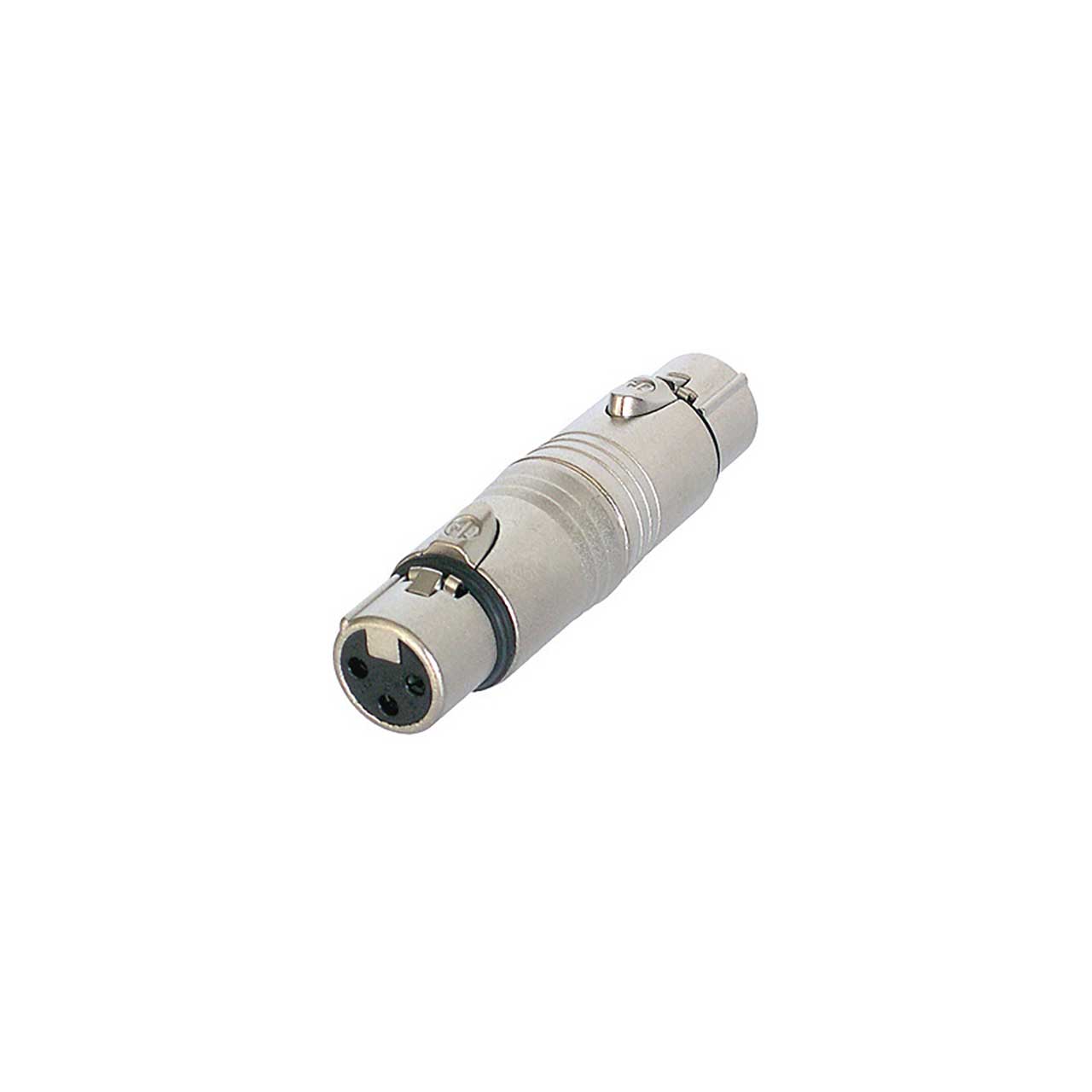

Neutrik NA3F5F 3 Pole XLR-F 5 Pole XLR-F Gender Conversion Adapter

NA3F5F - Overview

• Features:

  • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
  • Rugged diecast shell for best reliability
  • Professional look and compact space saving design, based on the XX Series


• Specifications:

  • Electrical
  • Contact Resistance: ≤3mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: >2 GΩ
  • Rated Current per Contact: 3A

    Mechanical
  • Insertion Force: <20 N
  • Withdrawal Force: <20 N
  • Lifetime: >1000 mating cycles
  • Locking Device: Latch lock

    Material
  • Contact Plating: 2µm Ag
  • Contacts: Brass (CuZn39Pb3)(5 pole female)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel

    Environmental
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)


• GTIN:

  7613187004698
