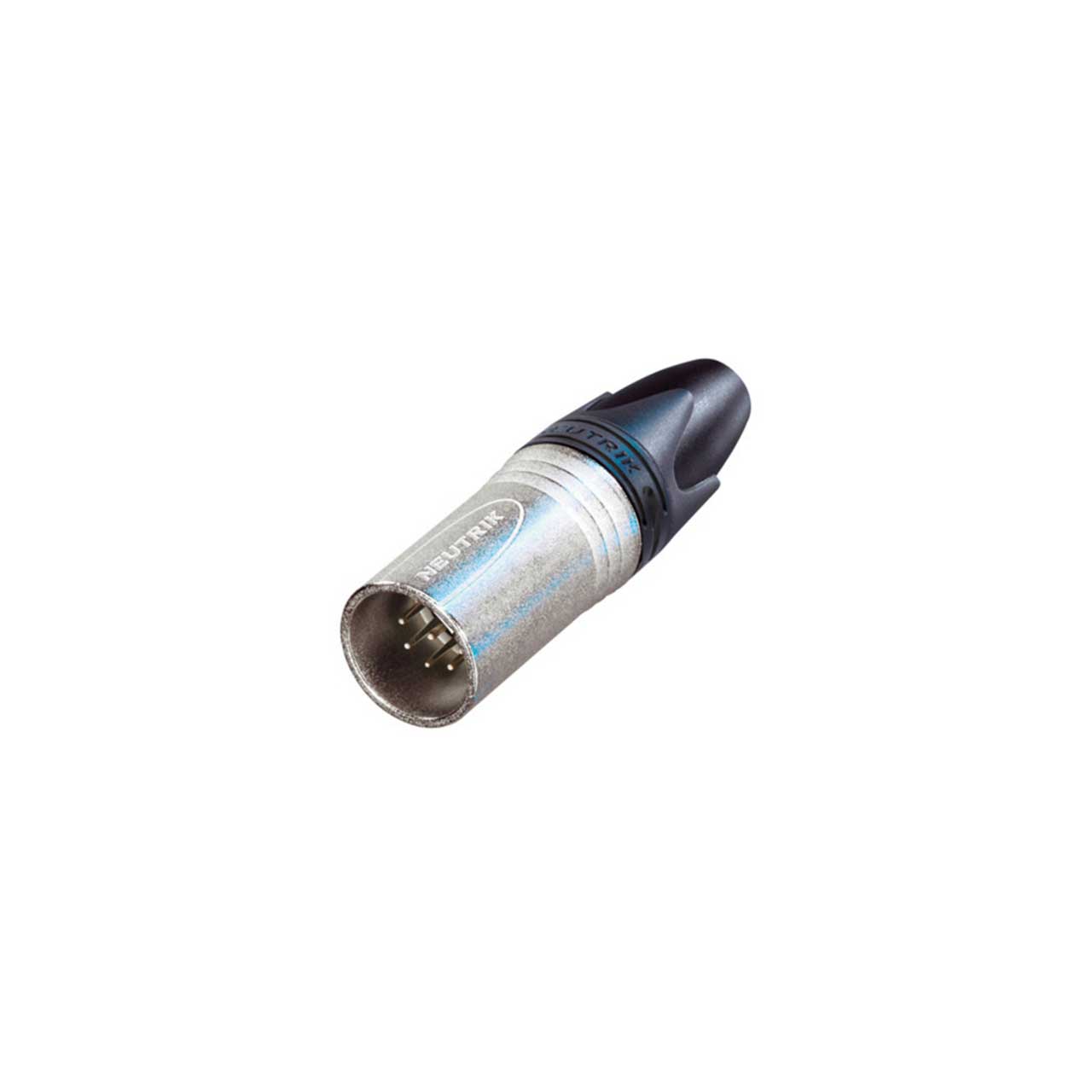

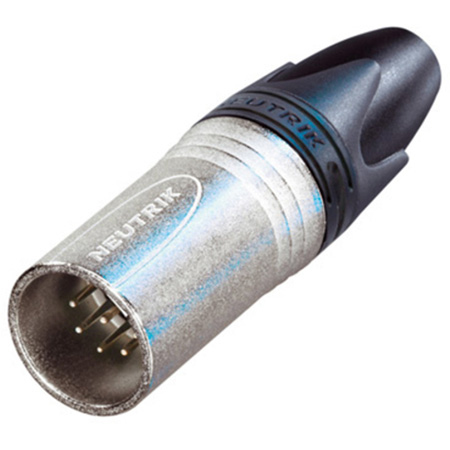

Neutrik NC7MXX 7-Pin Male Cable Connector

NC7MXX - Overview

• Features:

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Internal thread on shell is well protected against any damage
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Colored rings and boots available for coding or identification
  • Rugged zinc diecast shell, longlasting and dependable


• Specifications:

  • Electrical
  • Capacitance Between Contacts: ≤9 pF
  • Contact Resistance: ≤3mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: >10GΩ (initial)
  • Rated Current per Contact: 5A
  • Rated Voltage: <50V

    Mechanical
  • Cable O.D.: 3.5mm - 8.0mm
  • Insertion Force: ≤20 N
  • Withdrawal Force: ≤20 N
  • Lifetime: >1000 mating cycles
  • Wiresize: Max. 1.0mm²
  • Wiresize: Max. 18 AWG
  • Wiring: Solder contacts
  • Locking Device: Latch lock

    Material
  • Boot: Polyurethan
  • Contact Plating: 2µm Ag over 2µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel
  • Strain Relief: Polyacetal (POM)

    Environmental
  • Flammability: UL 94 HB
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)


• GTIN:

  7613187000232
