Belden 5506UE 22AWG Security and Sound Cable - Gray - 1000 Foot

ITEM #: BL-5506UE-1000 MFG #: 5506UE 0081000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$349.30

Our Price:

$282.18

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

5506UE 0081000 - Overview

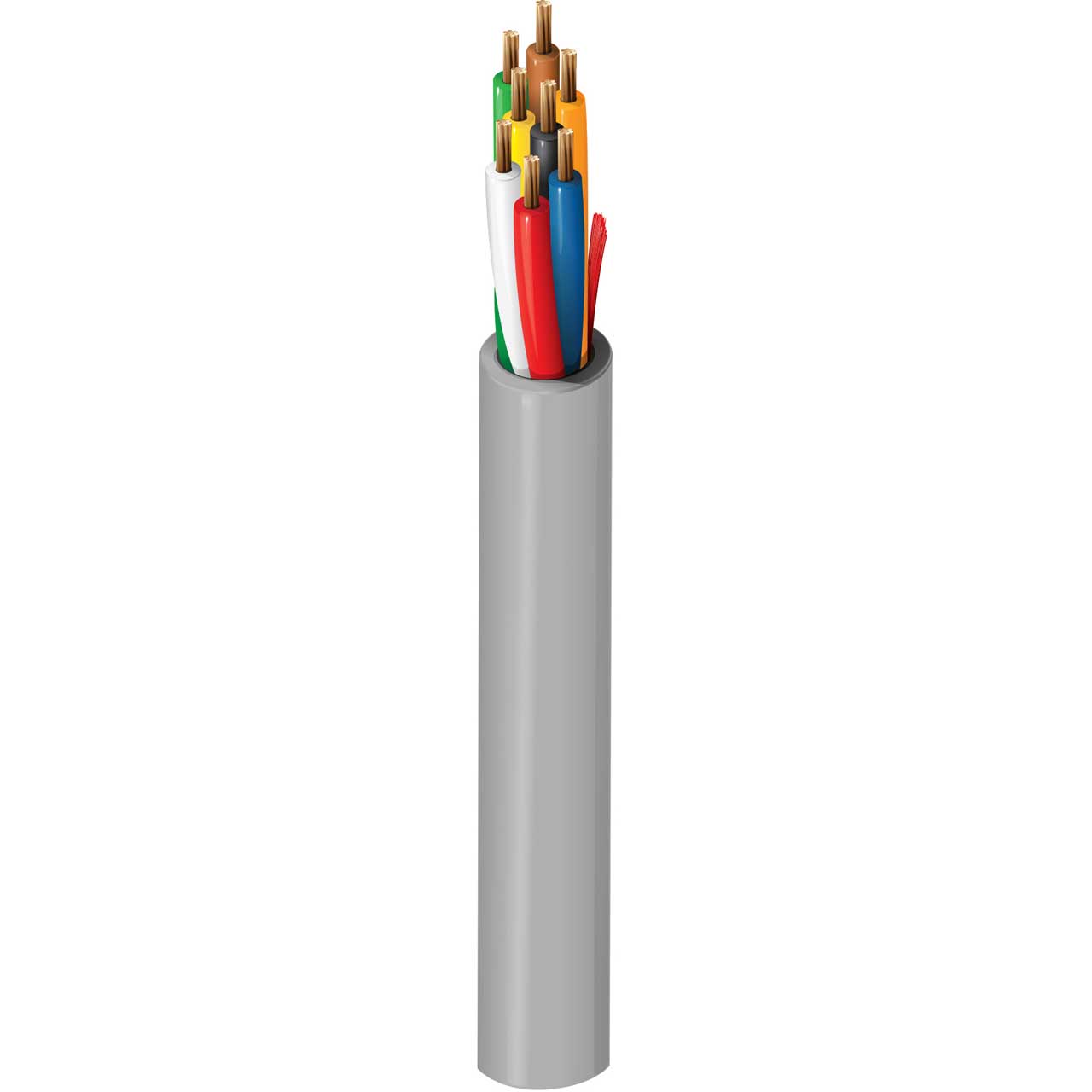

Belden 5506UE Security & Alarm Cable, Riser-CMR, 8-22 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord. Suitable for Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls, and Single Line Telephone applications.

  • Specifications:

    • Conduntors: 8
    • AWG: 22
    • Stranding: 7x30
    • Material: BC - Bare Copper
    • Outer Shield Material: Unshielded: PVC - Polyvinyl Chloride
    • Overall Nominal Diameter: 4.648 mm
    • Operating Temperature Range: -20°C To +75°C
    • UL Temperature Rating: 75°C
    • Bulk Cable Weight: 37.205 Kg/Km
    • Max. Recommended Pulling Tension: 323.829 N
    • Min. Bend Radius/Minor Axis: 44.450 mm
    • Capacitance (pF/m): 55.777
    • DCR @ 20°C (Ohm/km): 53.1522
    • Voltage: 300 V RMS
    • Current: 2 Amps per conductor @ 25°C


  • GTIN:

    0612825163916
