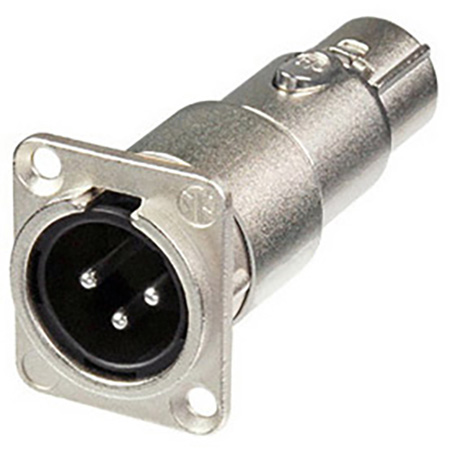

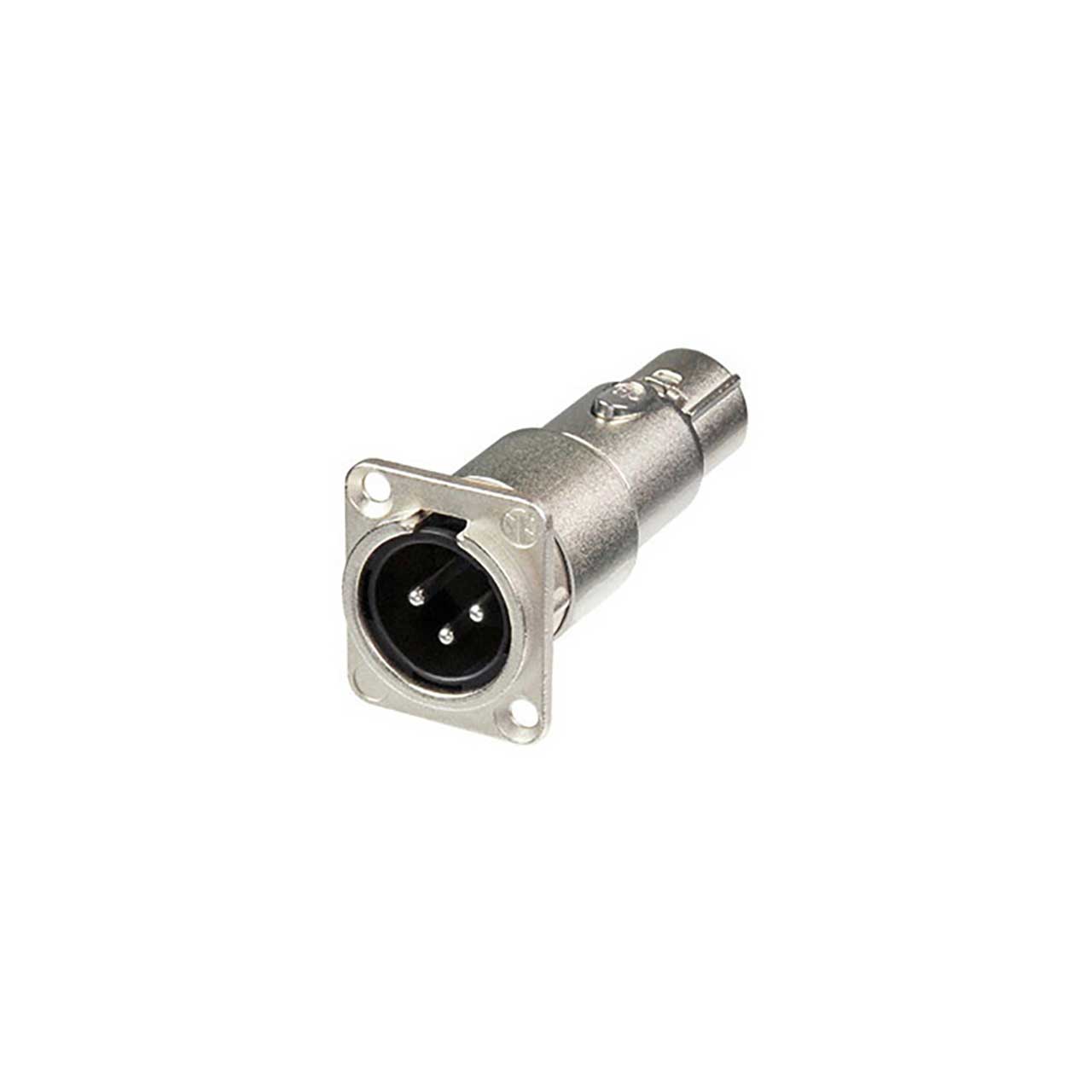

Neutrik NA3MDF 3 Pin XLR-M to XLR-F Adapter for D Panel Mounting

NA3MDF - Overview

• Specifications:

  • Capacitance between contacts = 4 pF
  • Contact resistance = 5 mO
  • Dielectric strength 1,5 kVdc
  • Insulation resistance > 2 GO (initial)
  • Insulation resistance > 1 GO (after damp heat test)
  • Rated current per contact 16 A
  • Rated voltage 50 V
  • Insertion force = 20 N
  • Withdrawal force = 20 N
  • Lifetime > 1000 mating cycles
  • Wire size - max. 2.5 mm
  • Wire size - max. 14 AWG
  • Wiring - Solder contacts
  • Locking device - latch lock
  • Mounting direction - Male front & Female rear
  • Chassis shape - D
  • Contact plating - 2 æm Ag over 2 æm Ni
  • Contacts female: Bronze (CuSn6), male: Brass (CuZn35Pb2)
  • Insert - Polyamide (PA 6.6 30 % GR)
  • Locking element - Steel Ck67
  • Shell - Zinc diecast (ZnAl4Cu1)
  • Shell plating - Nickel
  • Flammability UL 94 HB
  • Standard compliance IEC 61076-2-103
  • Protection class IP 40
  • Solderability Complies with IEC 68-2-20
  • Temperature range -30 °C to +80 °C


• GTIN:

  7613187002243
