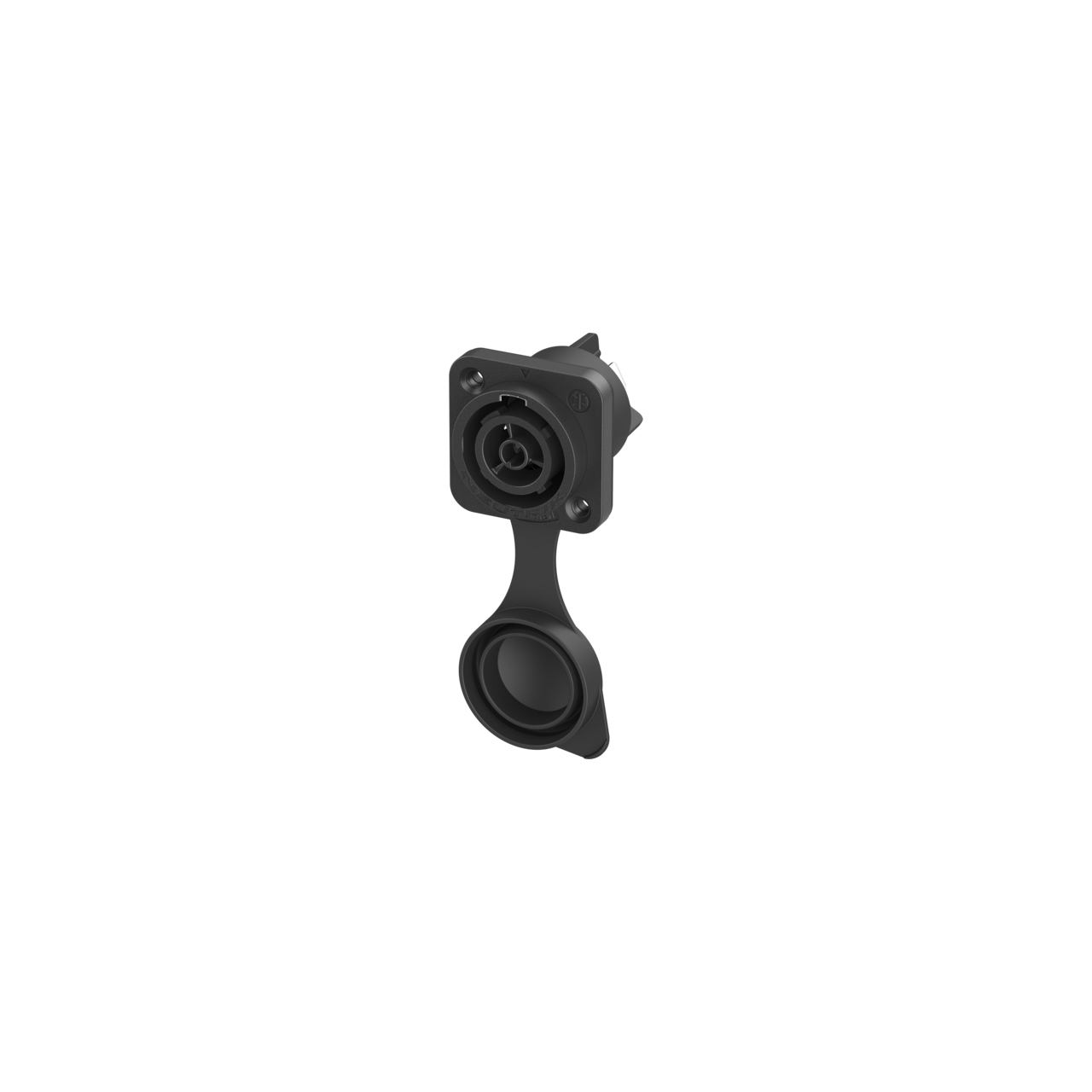

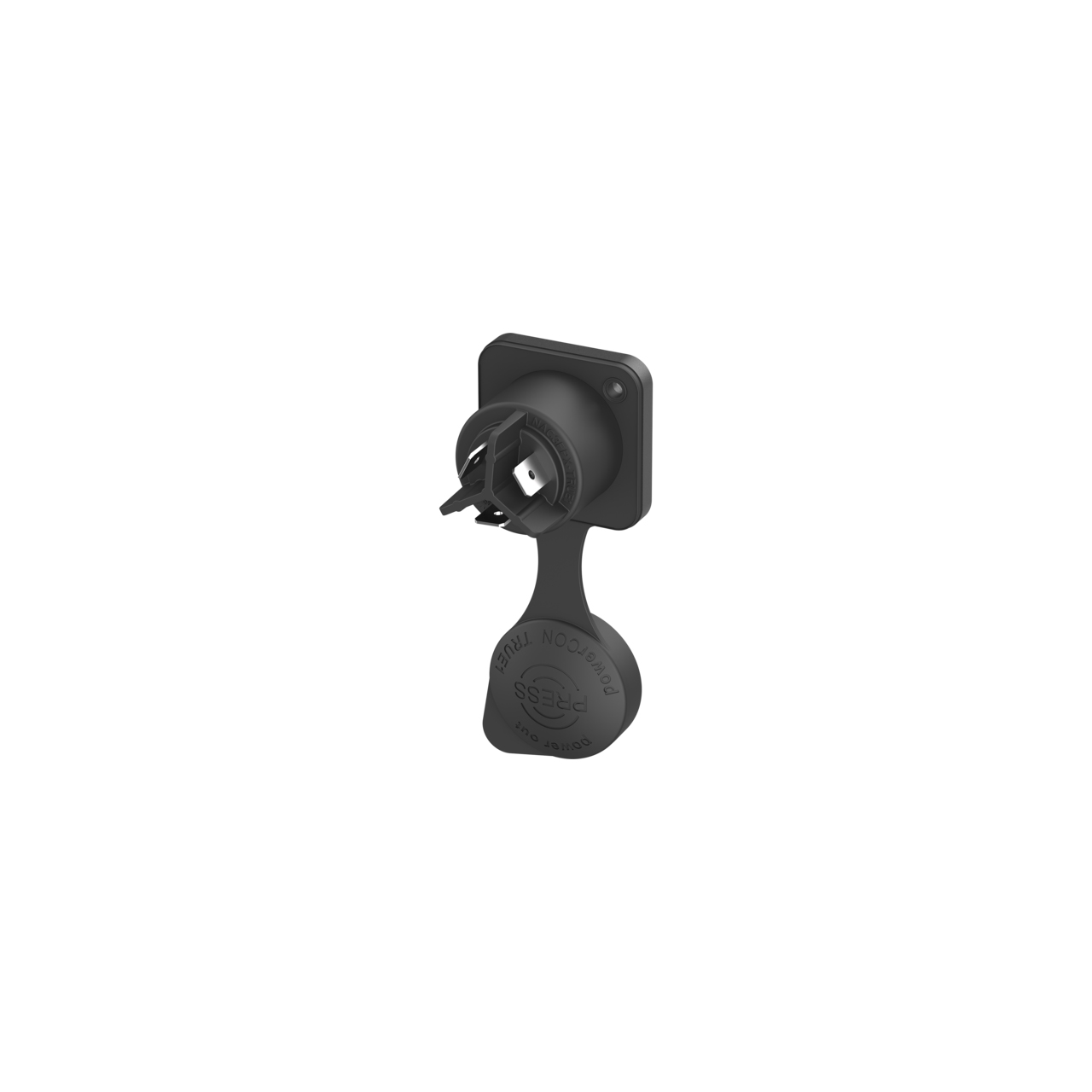

Neutrik NAC3FPX-TRUE1 powerCON TRUE1 Airtight Chassis Mount Connector - Female - 100 Pack

Name: Neutrik NAC3FPX-TRUE1 powerCON TRUE1 Airtight Chassis Mount Connector - Female - 100 Pack
Brand: Neutrik Americas
SKU: NAC3FPX-TRUE1-D1
Price: 1069.00 USD
Availability: PreSale

ITEM #: NAC3FPX-TRUE1-D1 MFG #: NAC3FPX-TRUE1

Neutrik Americas

List Price:

$1,247.00

Our Price:

$1,069.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NAC3FPX-TRUE1 - Overview

The Neutrik powerCON TRUE1 airtight is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions.

The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features:
- Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- IP65, IP66 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
Specifications:
- Contact Resistance: ≤ 2 mΩ
- Dielectric Strength: 4kV DC/2.8kV AC
- Insulation Resistance: > 1 GΩ (after damp and heat test IEC 68-2-30)
- Number of Electrical Contacts: 2 + PE
- Rating (EU): 16A/250V AC according to EN IEC 60320-1
- Rating (US):
  - 20A/250V AC according to UL 60320-1
  - 20A/250V AC according to CSA C22.2 No. 60320-1

  Mechanical
- Lifetime: > 5000 mating cycles
- Wiresize (mm²): 2.5 mm²
- Wiresize (AWG): 12 AWG

  Material
- Contact Plating: 2 μm Ag
- Locking Element: Stainless steel
- Contacts: Copper Alloy
- Shell: Polyamide (PA 66)

  Environmental
- Flammability: UL 94 V-0
- Protection Class: IP65/67 (mated or with closed caps)
- UV Resistance: F1 rated material withstands UV exposure
- Temperature Range:
  - -22°F - 176°F (-30°C - 80°C) according to IEC 61984
  - 23°F - 104°F (-5°C - 40°C) according to IEC 60320-1
Item Includes:
- 100x NAC3FPX-TRUE1 Airtight Female powerCON Connector
