NEUTRIK NC3FD-LX-HA 3-Pin Female XLR Panel/Chassis Mount Connector - Crimp - Nickel/Silver

Name: NEUTRIK NC3FD-LX-HA 3-Pin Female XLR Panel/Chassis Mount Connector - Crimp - Nickel/Silver
Brand: NEUTRIK Group
SKU: NC3FD-LX-HA
Price: 3.84 USD
Availability: InStock

ITEM #: NC3FD-LX-HA MFG #: NC3FD-LX-HA

NEUTRIK Group

List Price:

$4.48

Our Price:

$3.84

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NC3FD-LX-HA - Overview

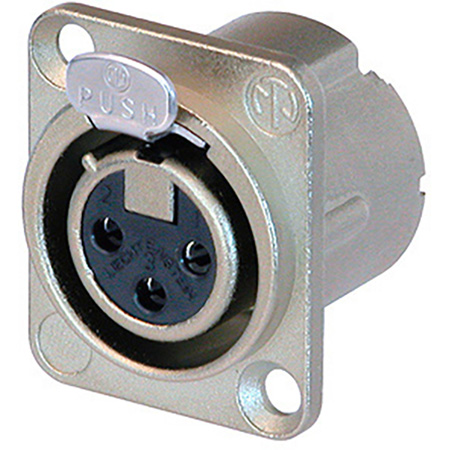

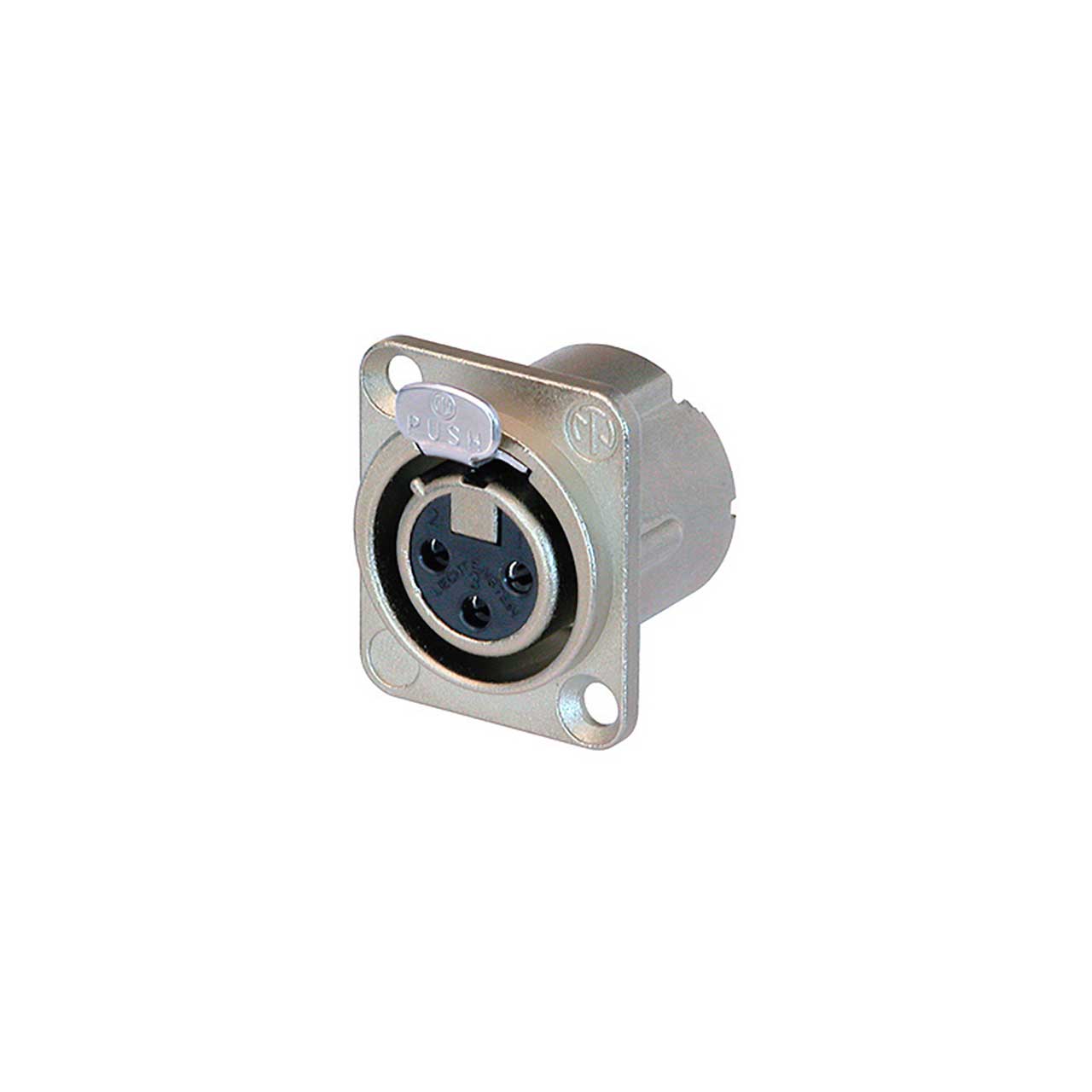

NEUTRIK NC3FD-LX-HA is a 3 pole female receptacle, crimp termination (Standard B-Crimp), Nickel housing, silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with NEUTRIK's EMC XLR cable connector.

Features:
- All metal housing offers best overall RF protection and electromagnetic shielding

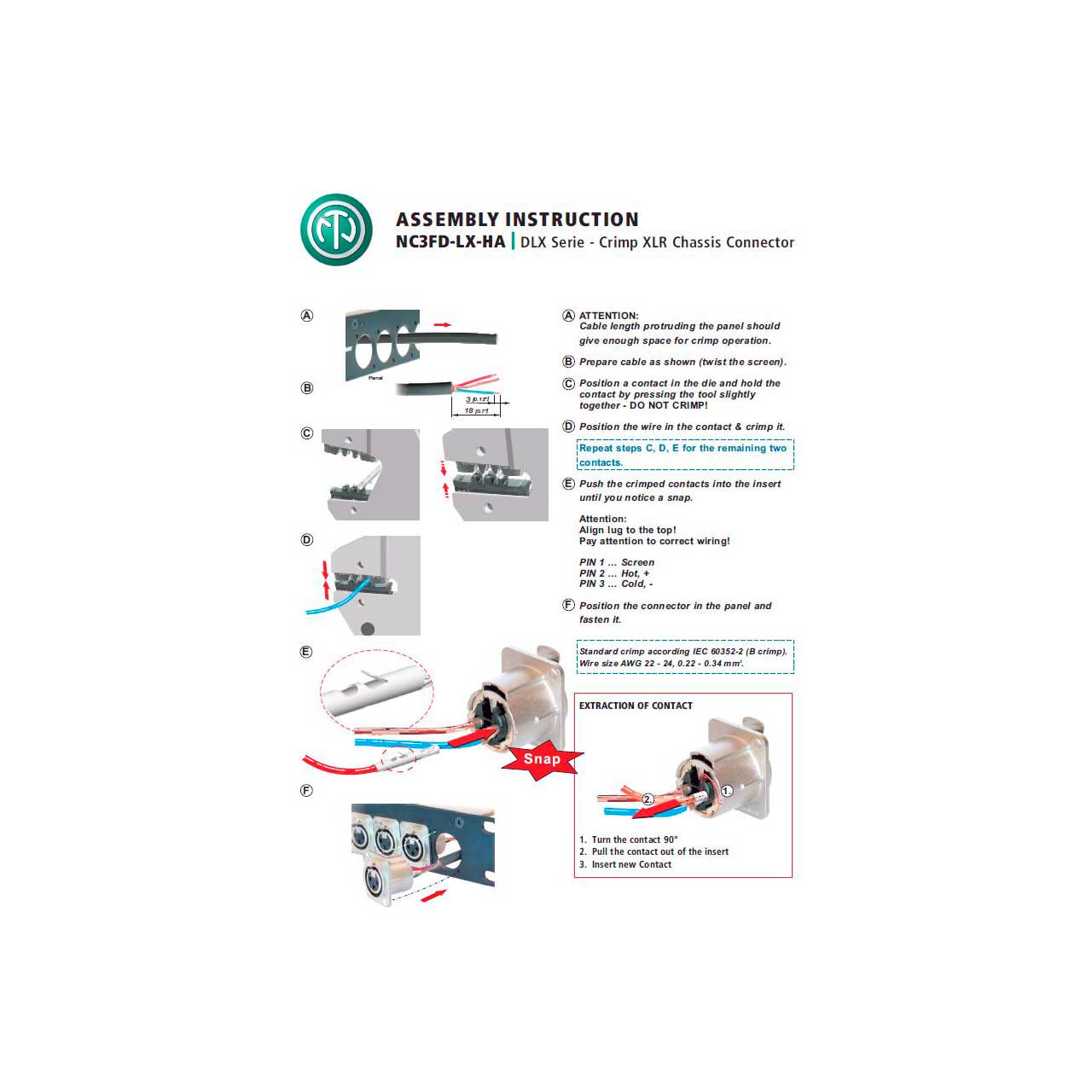

- Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
- Gastight and Solderless connection (RoHS compliant)
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
GTIN:
7613187002953

NC3FD-LX-HA - Recommended Accessories

NEUTRIK HX-R-BNC Crimp Tool for DIE-R- Series
HX-R-BNC
Our Price: $177.93
NEUTRIK DIE-R-HA-1 Crimp Tool Die for XX-HA XLR Connectors and HX-R-BNC Crimper
DIE-R-HA-1
Our Price: $243.66
NEUTRIK HA-3FXX Replacement Crimp Contact for the NC3FXX-HA - 50/Pack
HA-3FXX
Our Price: $15.50
Canare L-4E6S Star-Quad Microphone Cable by the Foot - Black
L-4E6S BK
Our Price: $0.59
Connectronics 4-40 x 3/8 Flat Head (Countersunk) Screws for Chassis Mount Connectors - 100 Pack - Stainless Steel
SCREW-38S
Our Price: $13.49
440 Nut with Star Washer - 100 Pack
NUT-CMT
Our Price: $10.95

NC3FD-LX-HA - Reviews

Overview

NC3FD-LX-HA - Overview

NEUTRIK NC3FD-LX-HA is a 3 pole female receptacle, crimp termination (Standard B-Crimp), Nickel housing, silver contacts

Features:
- All metal housing offers best overall RF protection and electromagnetic shielding
- Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
- Gastight and Solderless connection (RoHS compliant)
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
GTIN:
7613187002953
