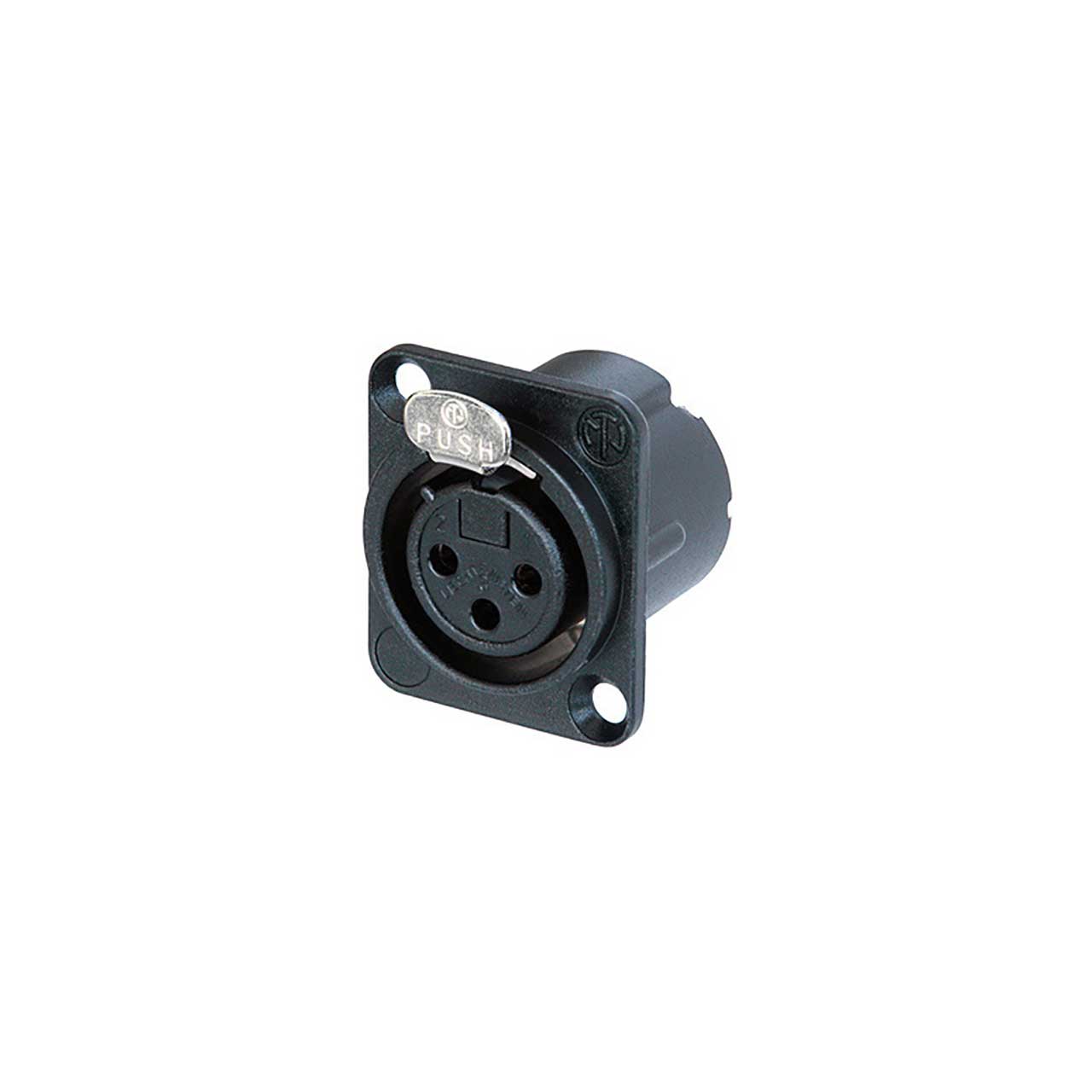

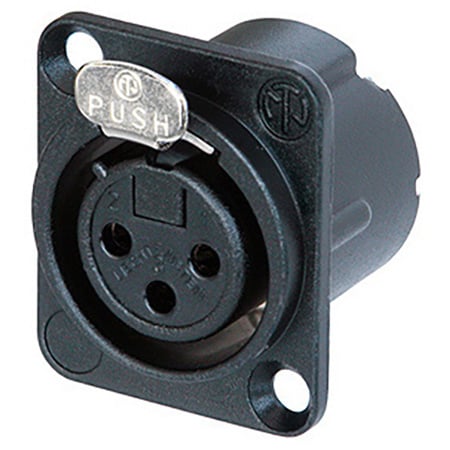

Neutrik NC3FD-LX-BAG 3-Pin Female XLR Panel/Chassis Mount Connector - Duplex Ground Contact - Black/Silver

ITEM #: NC3FD-LX-BAG MFG #: NC3FD-LX-BAG

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4.60

Our Price:

$3.94

Availability: In Stock
iAvailability Description Popup


NC3FD-LX-BAG - Overview

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

  • Features:

    • All metal housing offers best overall RF protection and electromagnetic shielding
    • New duplex ground contact for excellent contact integrity between chassis and cable connector
    • Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
    • Male connector's retention bar replaces plastic design with all metal version improving pull-out force
    • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
    • Larger solder contacts for easier termination
    • Optional connection to easily join pin1 to chassis ground
    • D-style housing provides installation compatibility with industry standard D mounting dimensions

  • Specifications:

    • Connection Type:XLR
    • Gender: female
    • Capacitance between contacts: ≤ 4 pF
    • Contact resistance:≤ 5 mΩ (inner)
    • Dielectric strength1,5 kVdc
    • Insulation resistance> 2 GΩ (initial)
    • Rated current per contact16 A
    • Rated voltage50 V
    • Insertion force≤ 20 N
    • Withdrawal force≤ 20 N
    • Lifetime> 1000 mating cycles
    • Wire size max. 2.5 mm²
    • Wire size max. 14 AWG
    • Wiring Solder contacts
    • Locking device Latch lock
    • Mounting direction front & rear
    • Chassis shapeD
    • Contact plating2 µm Ag over 2 µm NiContactsBronze (CuSn6)InsertPolyamide (PA 6.6 30 % GR)
    • Locking element Steel Ck67
    • Shell Zinc diecast (ZnAl4Cu1)
    • Shell plating Black chromium
    • FlammabilityUL 94 HB
    • Standard compliance IEC 61076-2-103
    • Protection class IP 40
    • Solderability Complies with IEC 68-2-20
    • Temperature range-30 °C to +80 °C
